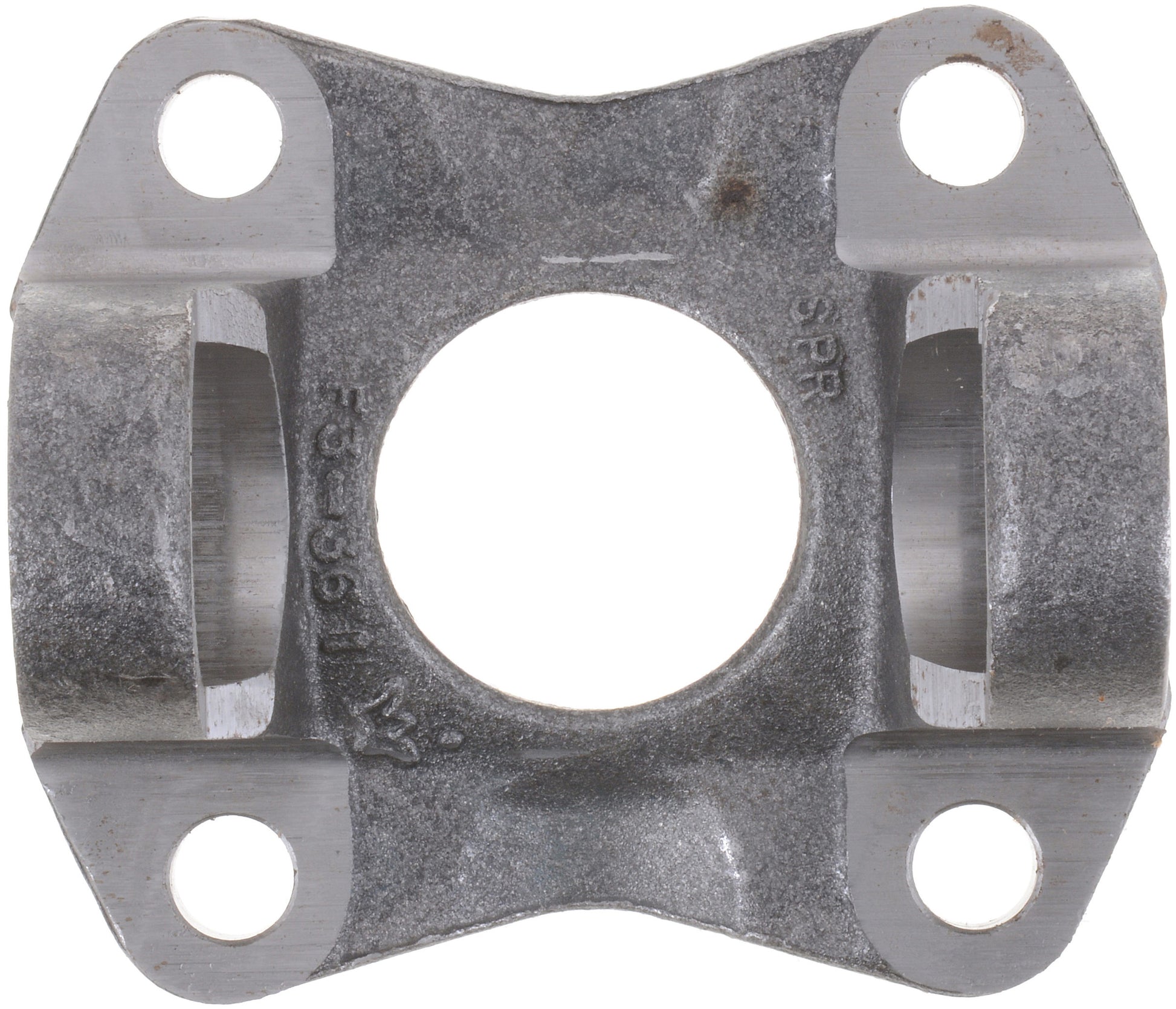

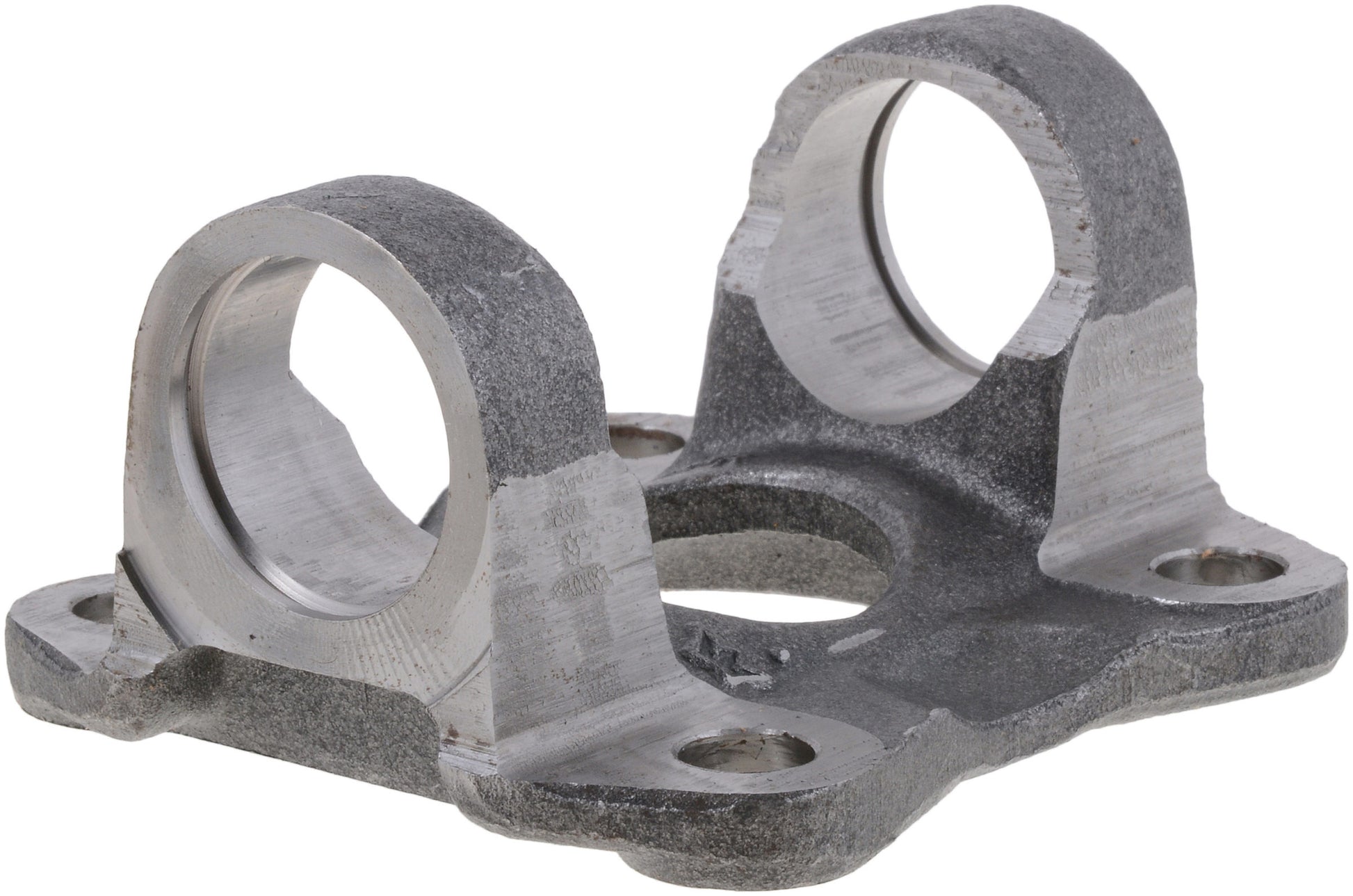

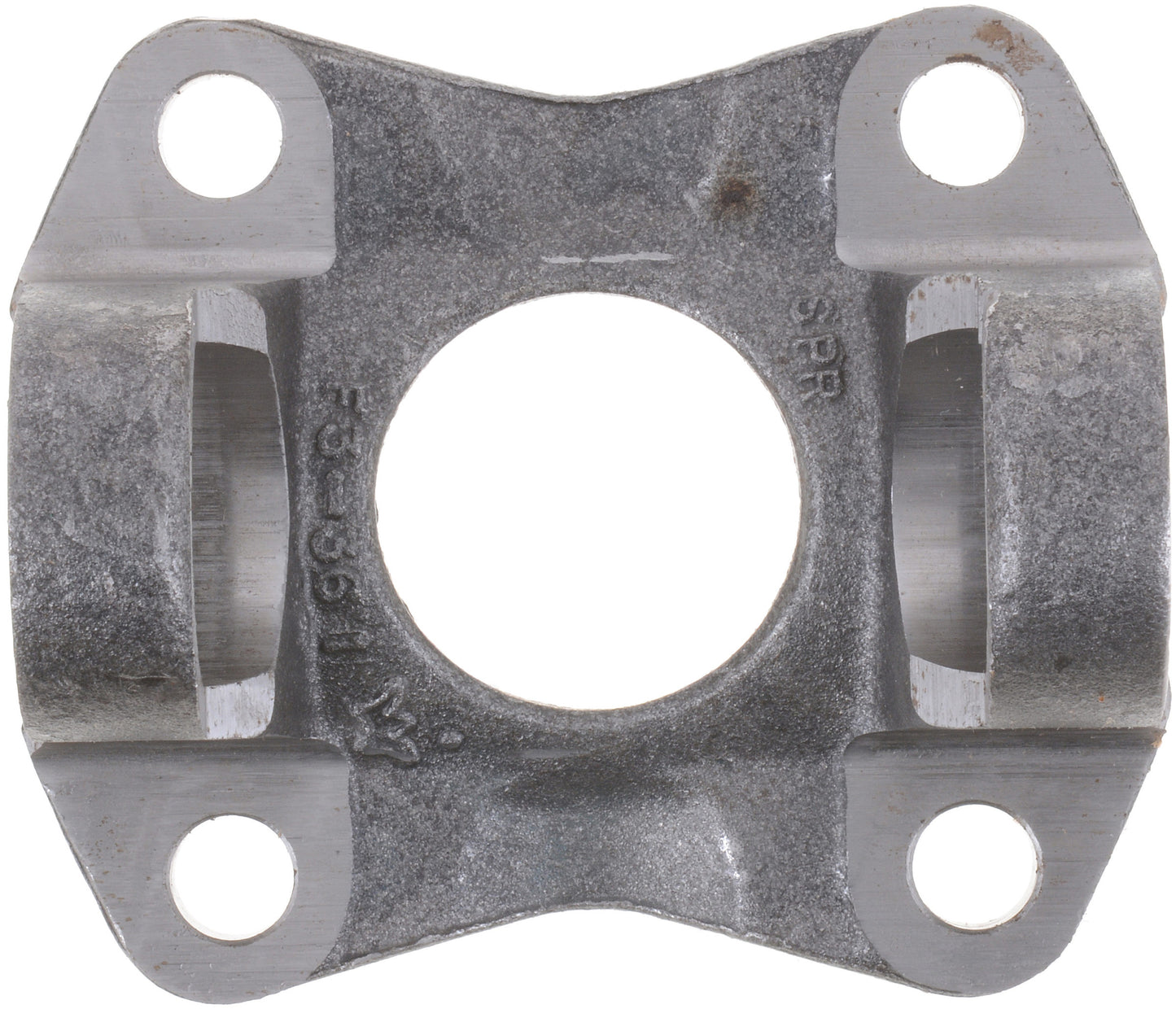

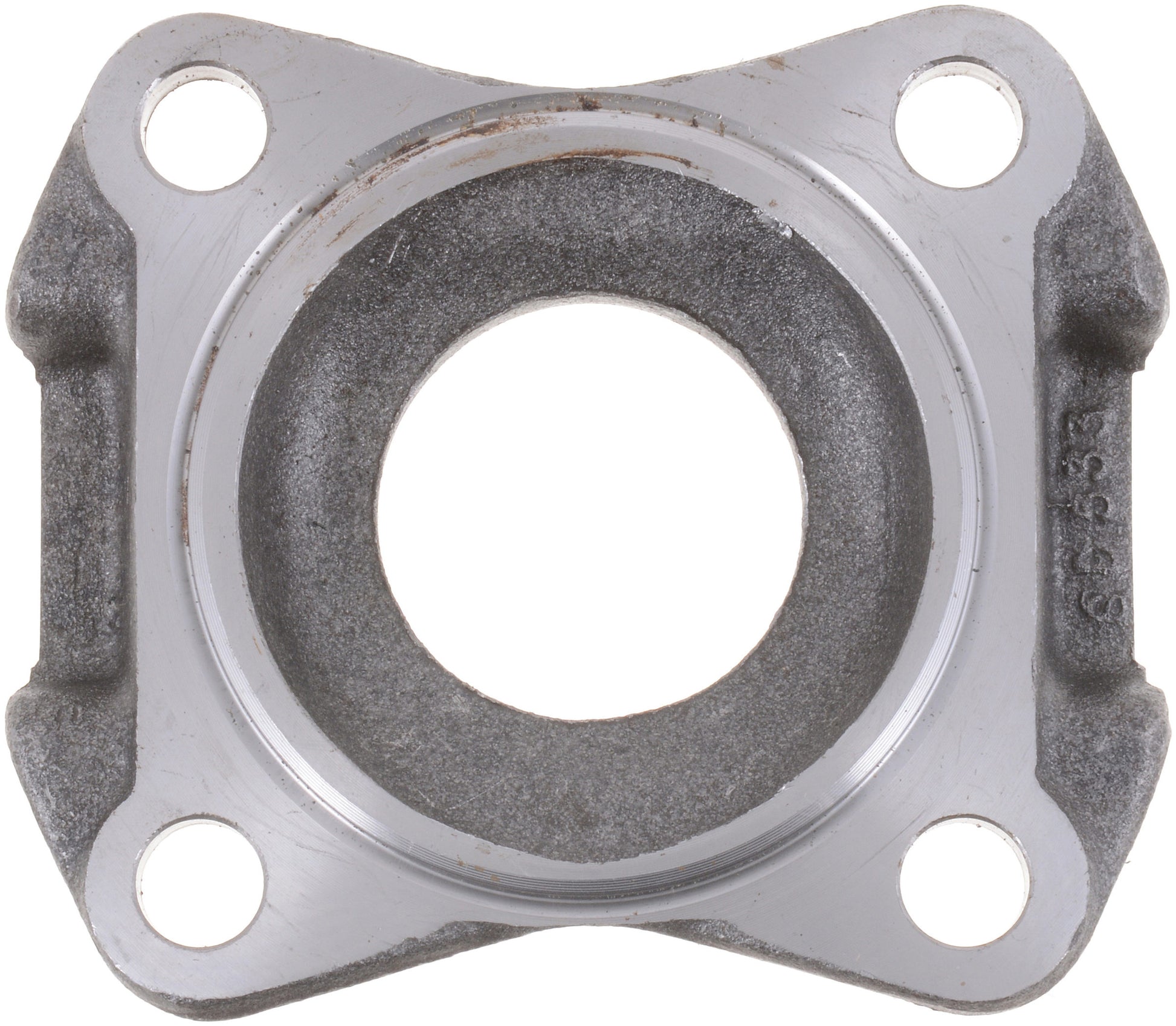

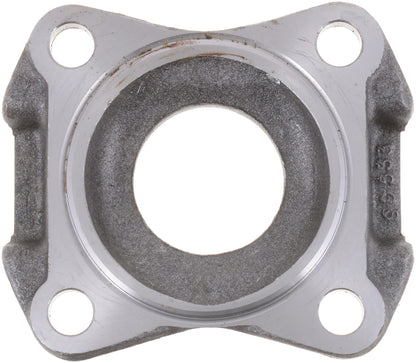

Spicer 3-2-809 - DRIVE SHAFT FLANGE YOKE
Spicer 3-2-809 - DRIVE SHAFT FLANGE YOKE
SKU: FSGR-3-2-809
Regular price
$74.99 USD
Regular price
$100.13 USD
Sale price
$74.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 3-2-809 - DRIVE SHAFT FLANGE YOKE
DRIVE SHAFT FLANGE YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Flange Face To C/L In. (G): 1.281
Flange Or Swing Dia. In. (A): 4.500
Outside Yoke Dimension In.(E): 3.875
Bolt Hole Dia. In (B): .438 - DRILLED
Bolt Circle Dia. In. (B): 3.750
Design: Square
Number Of Bolt Holes: 4
Material: Steel
Series: 1350
Pilot Dia. M=Male F=Female (C): 2.750 - MALE
Yoke Bearing Dimension In. (D): 1.888
Joint Angle #1: 15
