Spicer 3-2-159 - DRIVE SHAFT FLANGE YOKE
Spicer 3-2-159 - DRIVE SHAFT FLANGE YOKE
SKU: FSGR-3-2-159
Regular price
$55.99 USD
Regular price
$61.59 USD
Sale price
$55.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability

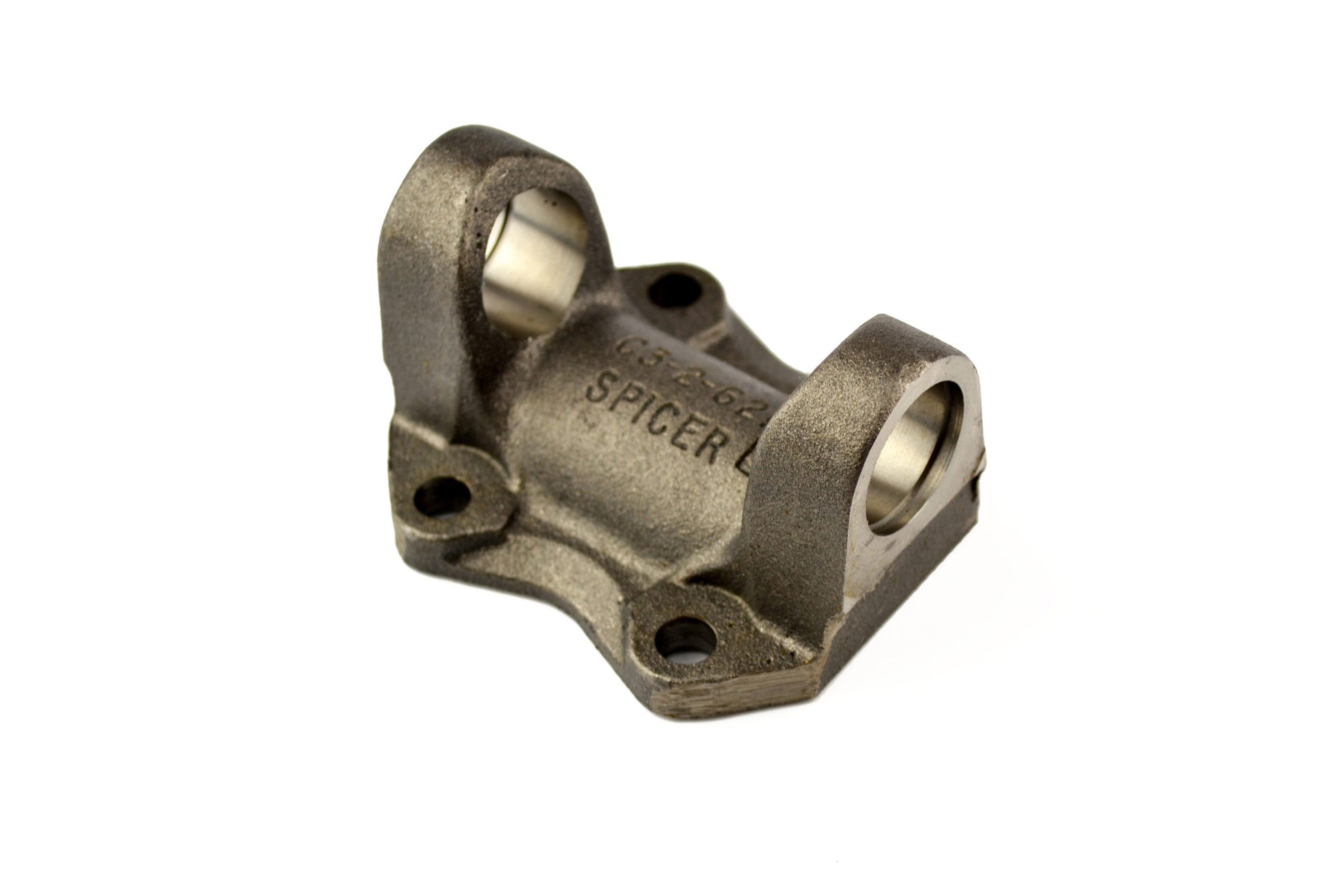

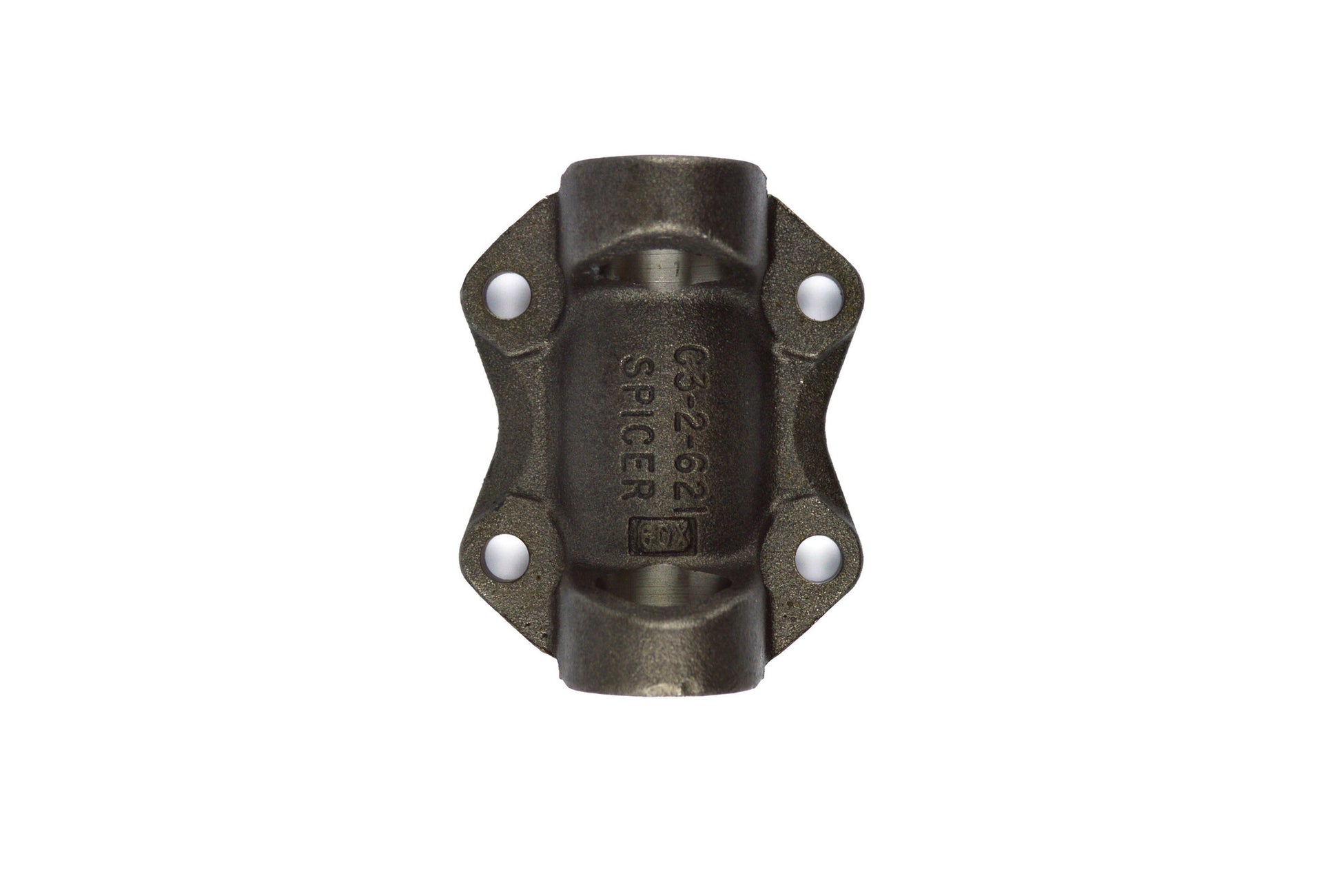

Spicer 3-2-159 - DRIVE SHAFT FLANGE YOKE
Yoke - Flange - 1410 Series - 3.750 in Diameter - Steel - Natural - Each
DRIVE SHAFT FLANGE YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: 1410
Material: Steel
Number Of Bolt Holes: 4
Design: Rectangular
Bolt Circle Dia. In. (B): 3.750
Bolt Hole Dia. In (B): .438 - DRILLED
Flange Face To C/L In. (G): 1.688
Flange Or Swing Dia. In. (A): 4.625
Outside Yoke Dimension In.(E): 4.438
Pilot Dia. M=Male F=Female (C): 2.750 - MALE
Yoke Bearing Dimension In. (D): 1.188
Joint Angle #1: 22
