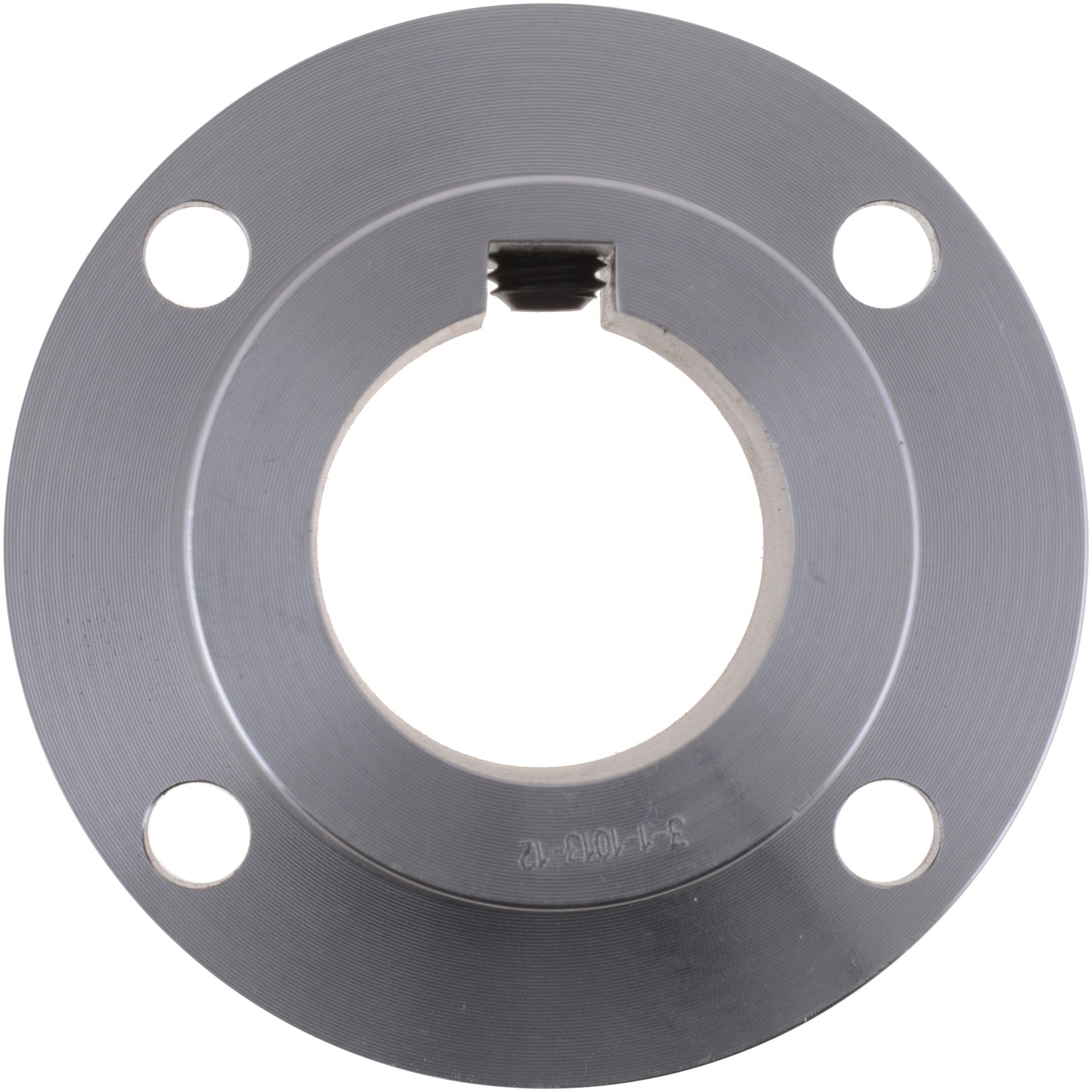

  • Product Image 1

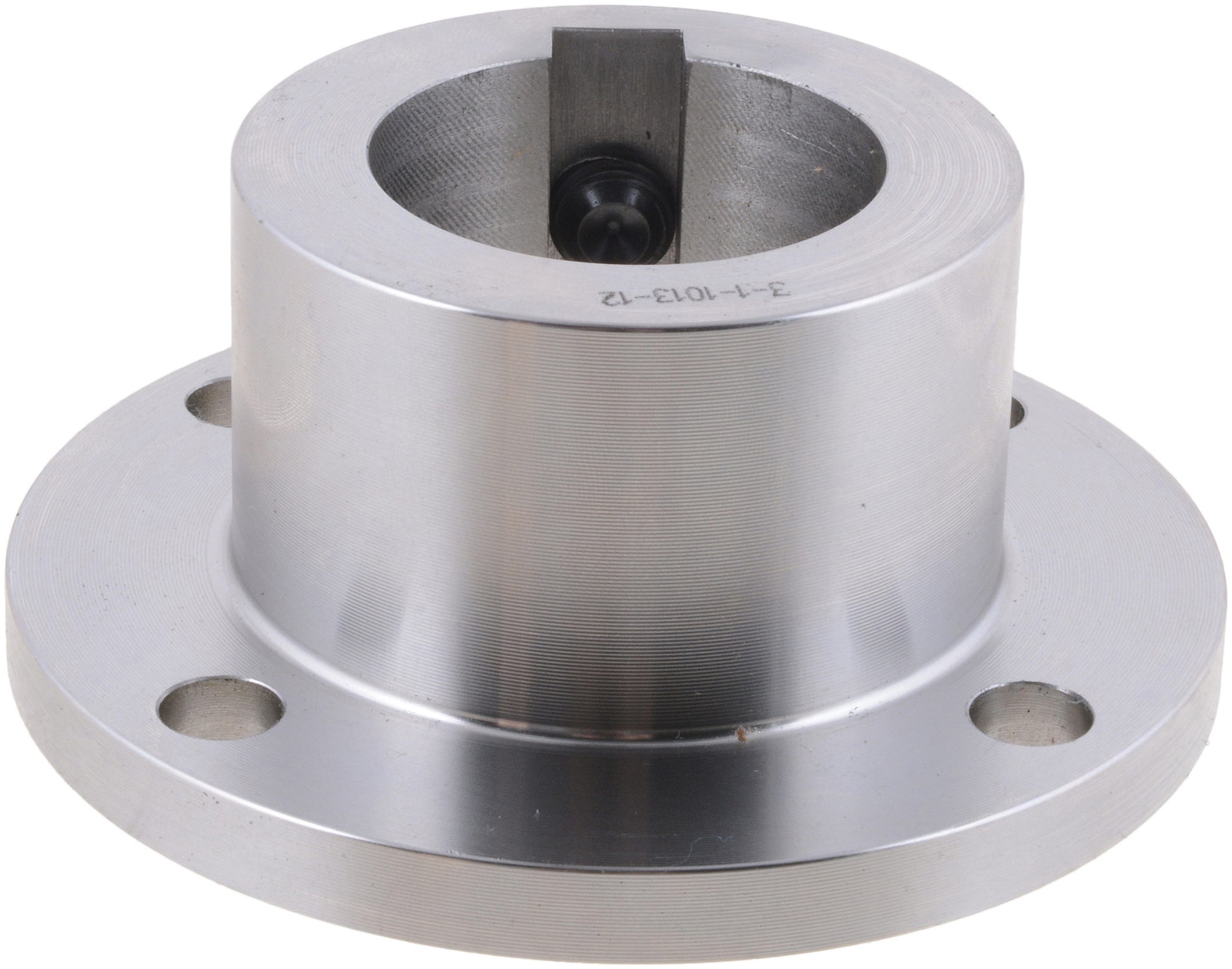

  • Product Image 2

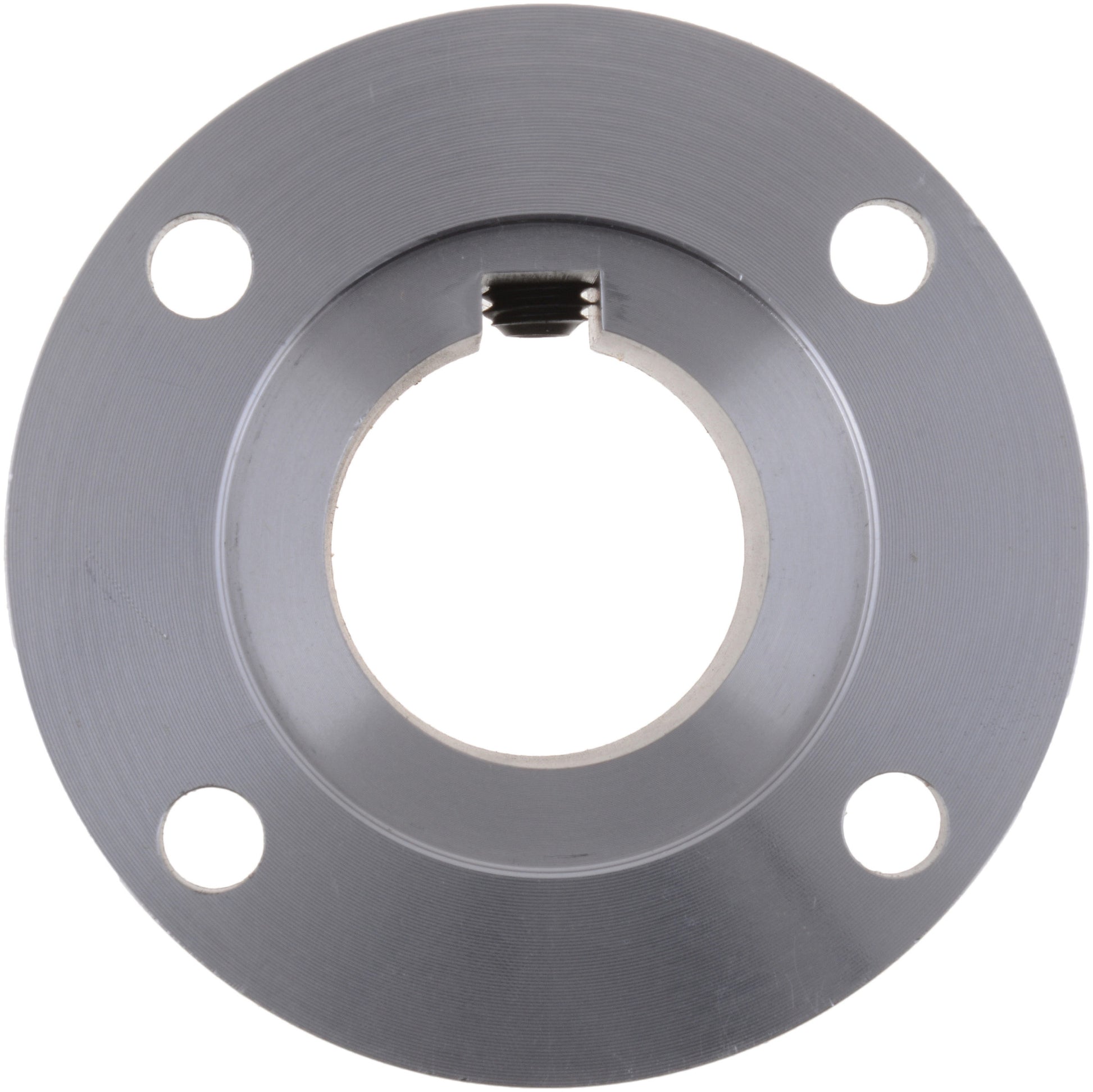

  • Product Image 3
1 3

Spicer 3-1-1013-12 - Drive Shaft Companion Flange

Spicer 3-1-1013-12 - Drive Shaft Companion Flange

Spicer | 3-1-1013-12
SKU: FSGR-3-1-1013-12
$244.99 USD
$328.38 USD $244.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 3-1-1013-12 - Drive Shaft Companion Flange

Drive Shaft Companion Flange

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana.
  • Tested and validated to rigorous OE specifications.
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1350
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.750 - FEMALE
Bolt Circle Diameter (B) In.: 3.750
Flange Type: Circular
Actual Hole Diameter (Max): 1.876
Actual Hole Diameter (Min): 1.875
Bore Diameter (D) In.: 1.875
Circ Flnge Face To End Of Hub: 2.000
Flange Width Diameter (A) In.: 4.56
Hub Diameter (E) In.: 2.875
Key Width (K) In.: 0.500
Set Screw Hole Diameter In.: 0.500
Bolt Hole Diameter (In.): .438 DRILLED
