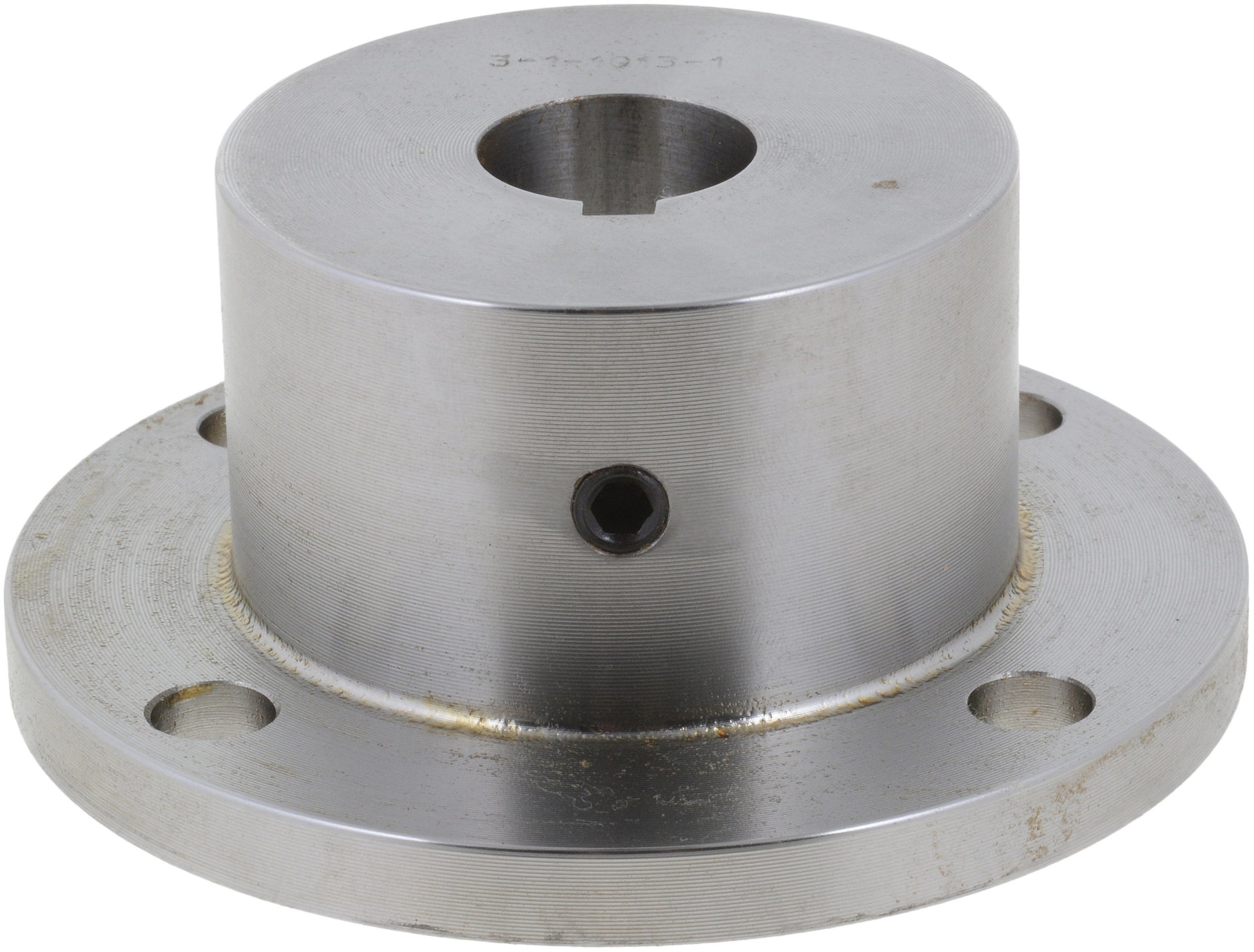

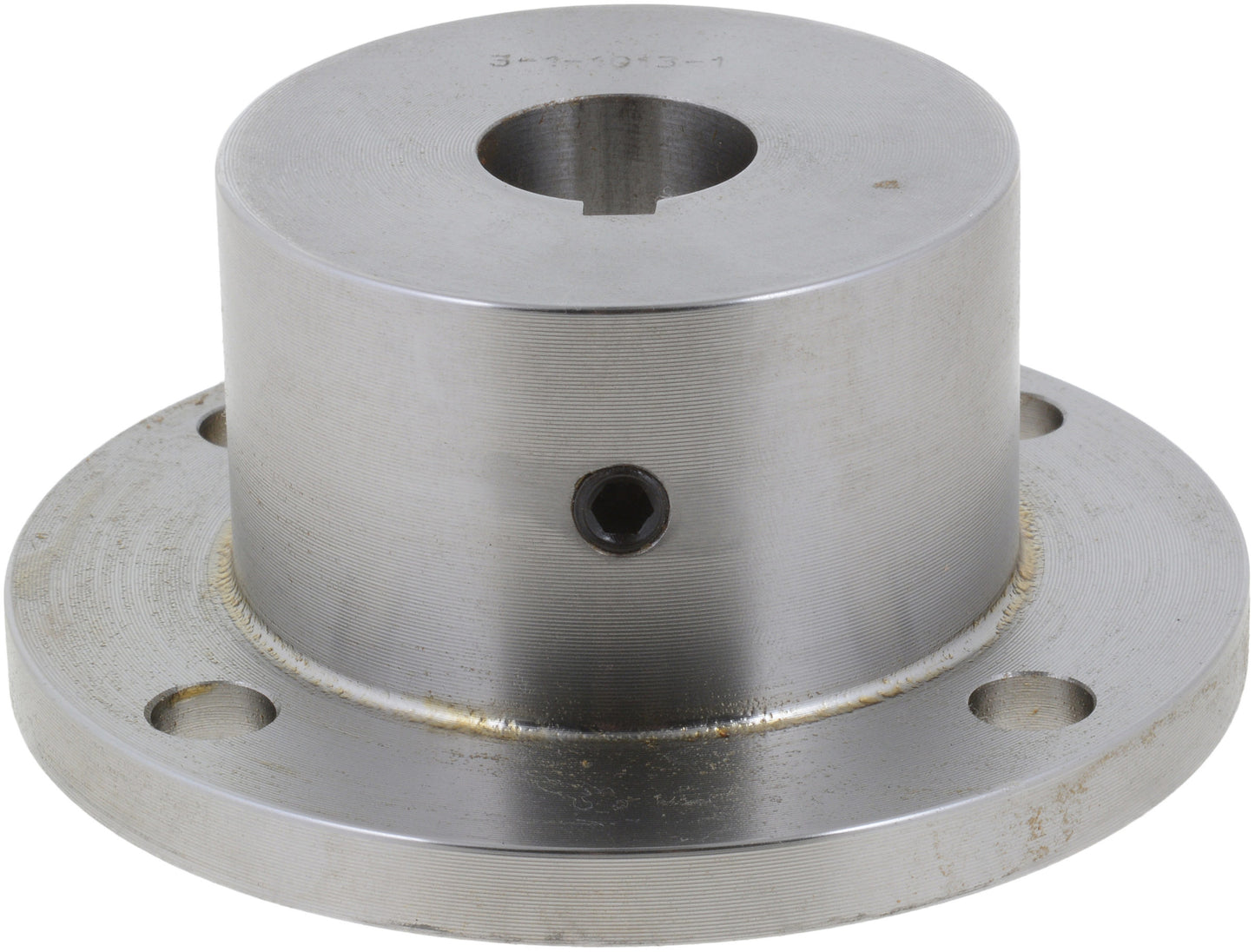

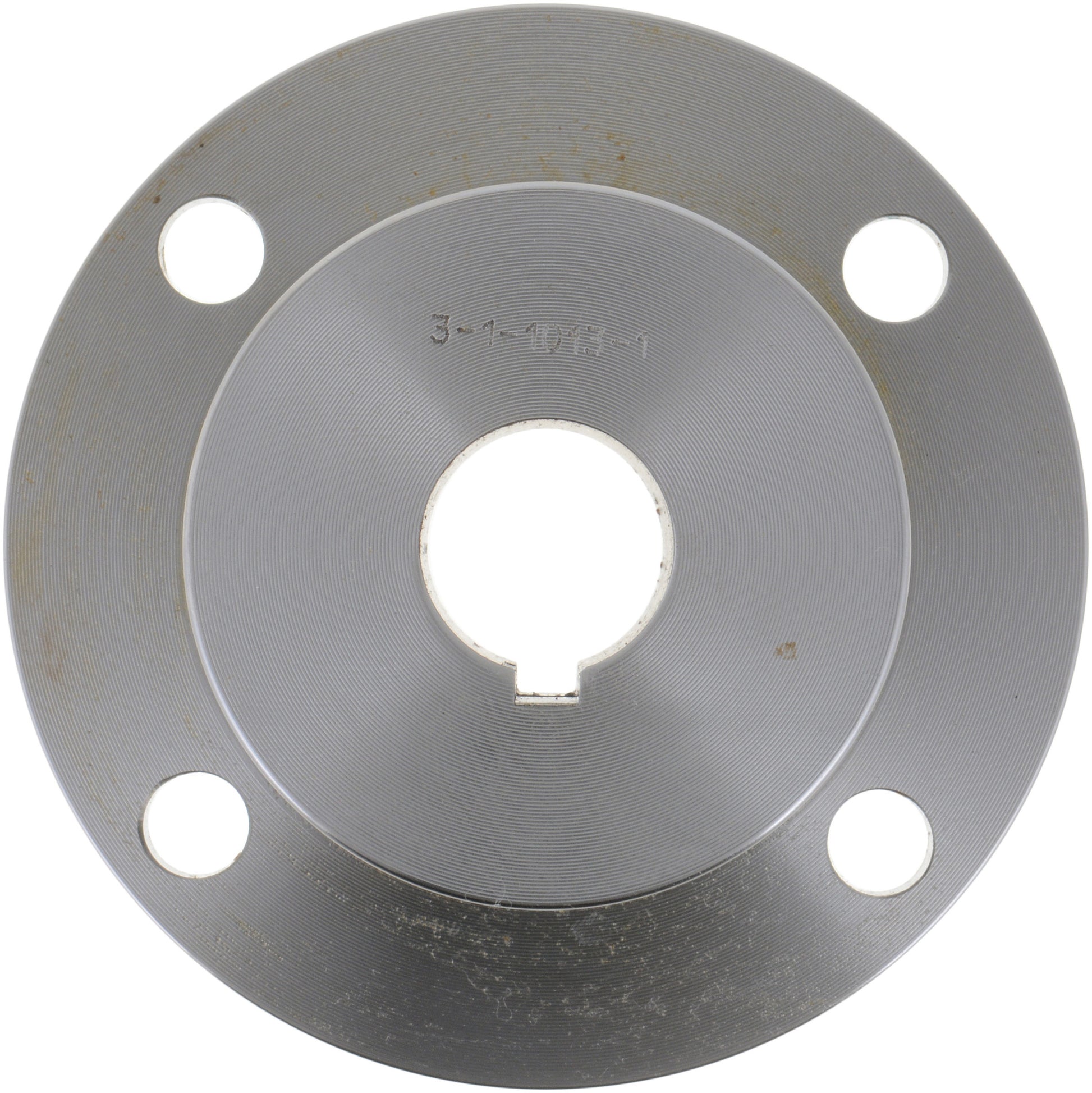

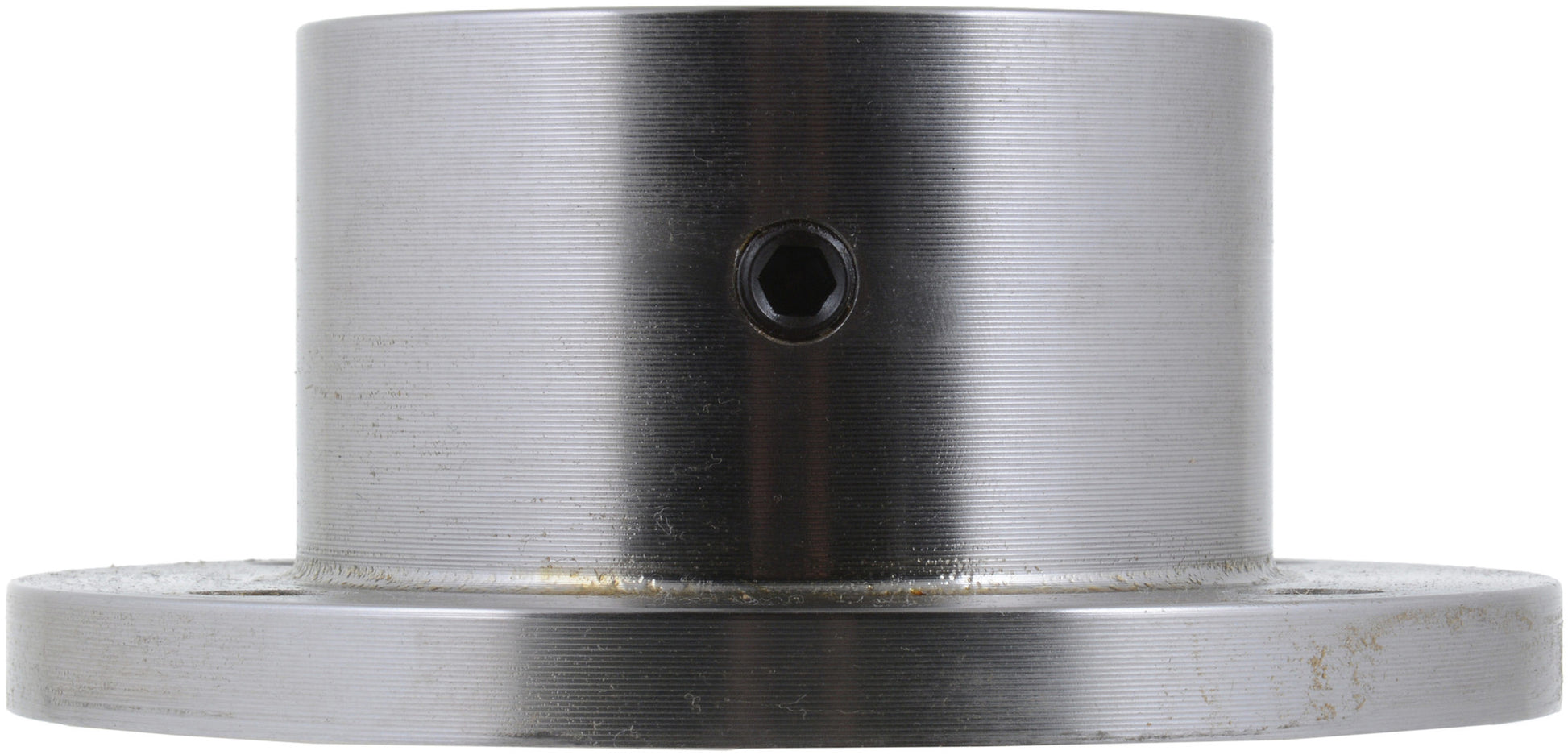

Spicer 3-1-1013-1 - Drive Shaft Companion Flange

Spicer 3-1-1013-1 - Drive Shaft Companion Flange

Spicer | 3-1-1013-1
SKU: FSGR-3-1-1013-1
$251.99 USD
$338.83 USD $251.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 3-1-1013-1 - Drive Shaft Companion Flange

Drive Shaft Companion Flange

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana.
  • Tested and validated to rigorous OE specifications.
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1350
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.750 - FEMALE
Bolt Circle Diameter (B) In.: 3.750
Flange Type: Circular
Actual Hole Diameter (Max): 1.001
Actual Hole Diameter (Min): 1.000
Bore Diameter (D) In.: 1.000
Circ Flnge Face To End Of Hub: 2.000
Flange Width Diameter (A) In.: 4.56
Hub Diameter (E) In.: 2.875
Key Width (K) In.: 0.250
Set Screw Hole Diameter In.: 0.375
Bolt Hole Diameter (In.): .438 - DRILLED
