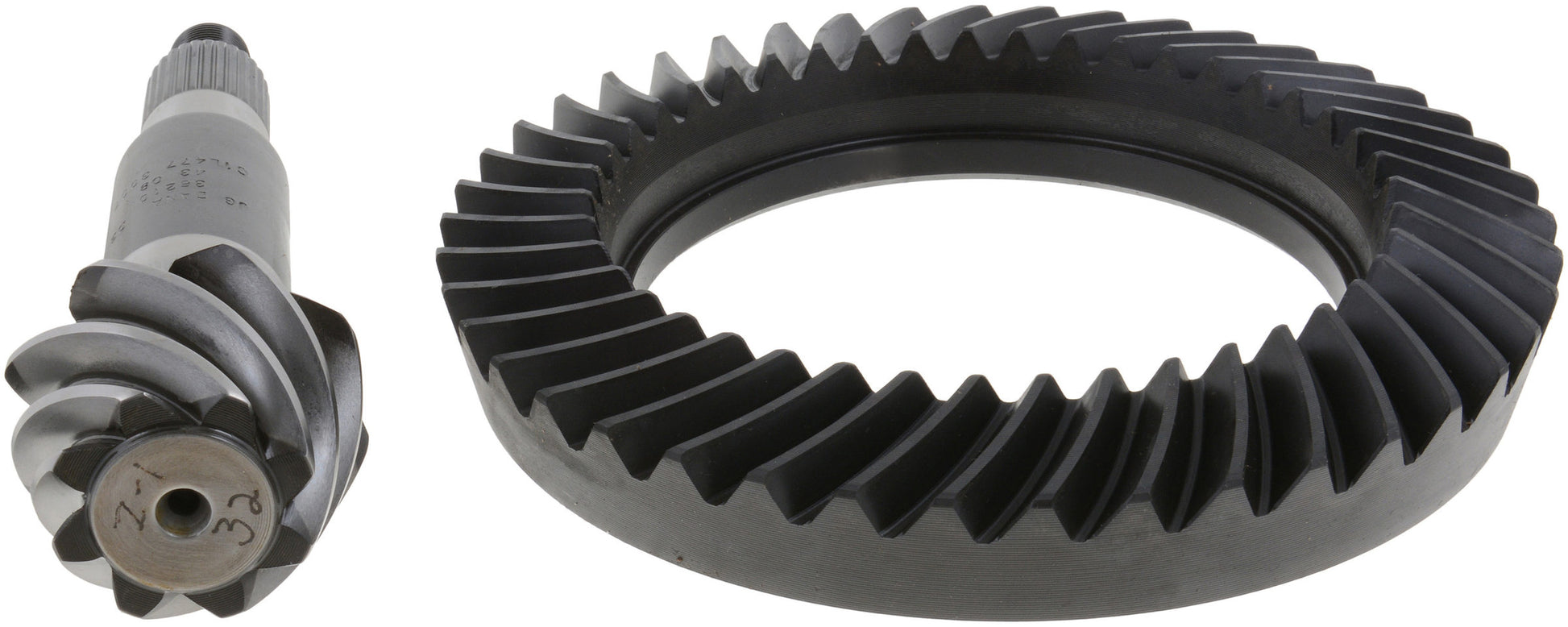

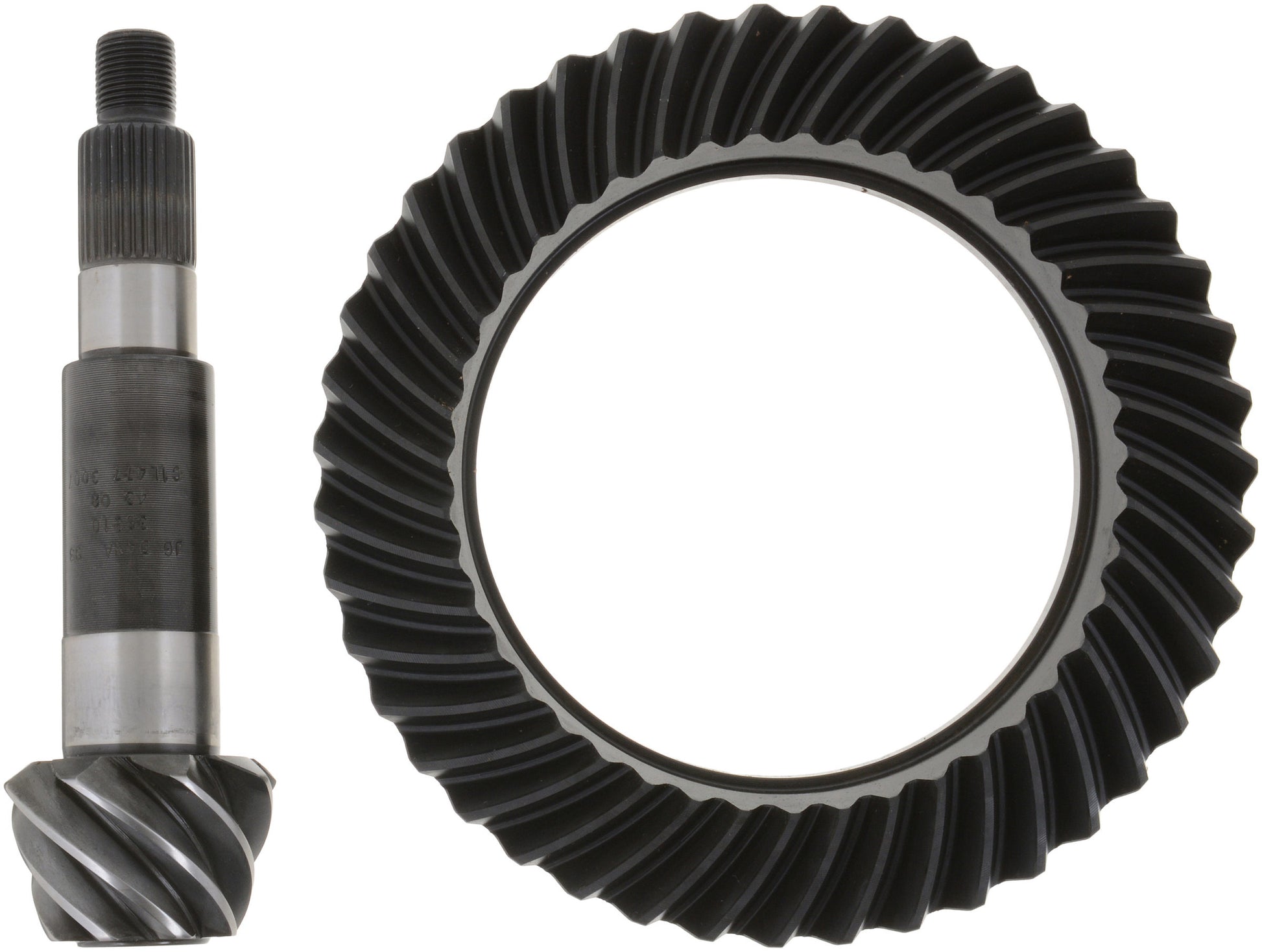

Spicer 27518X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 5.38 RATIO
Spicer 27518X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 5.38 RATIO
SKU: FSGR-27518X
Regular price
$330.99 USD
Regular price
$444.83 USD
Sale price
$330.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 27518X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 5.38 RATIO
DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 5.38 RATIO
Demand genuine Spicer. Made in the USA. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
- Lapped to reduce noise and heat. Lubrication process allows for no break in period.
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
- High-grade steel for maximum durability.
Axle Model: DANA 60
Gear Ratio: 5.38
Ring Teeth Count: 43
Carrier Breaks: 4.56 And Up
Cover Bolt Quantity: 10
Include Installation Kit: N
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.625
Pinion Spline Count: 29
Ring Gear Bolt Qty: 12
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 9.750
Ring Gear Rotation: Standard
Axle Type: Semi Floating And Full Floating
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
