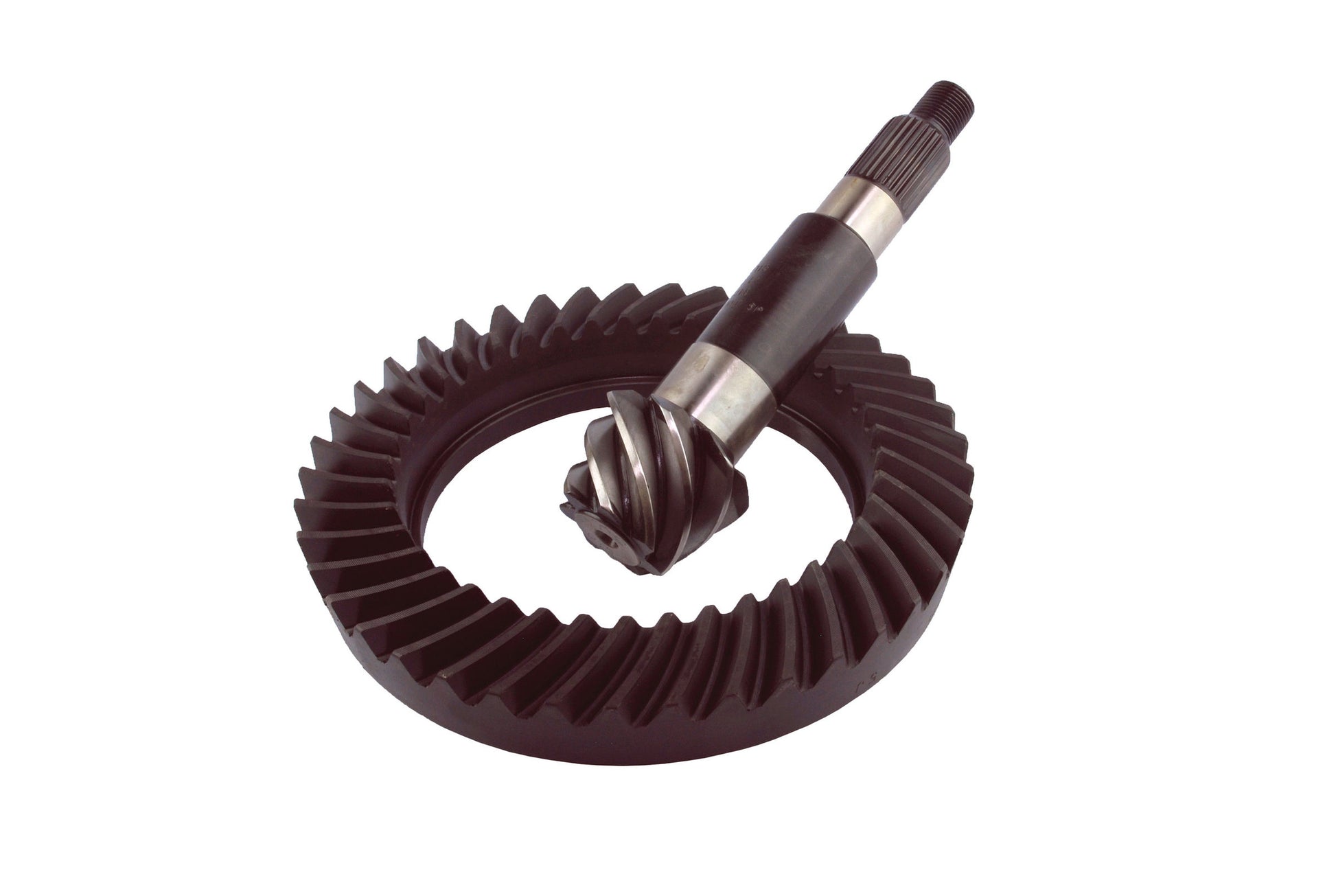

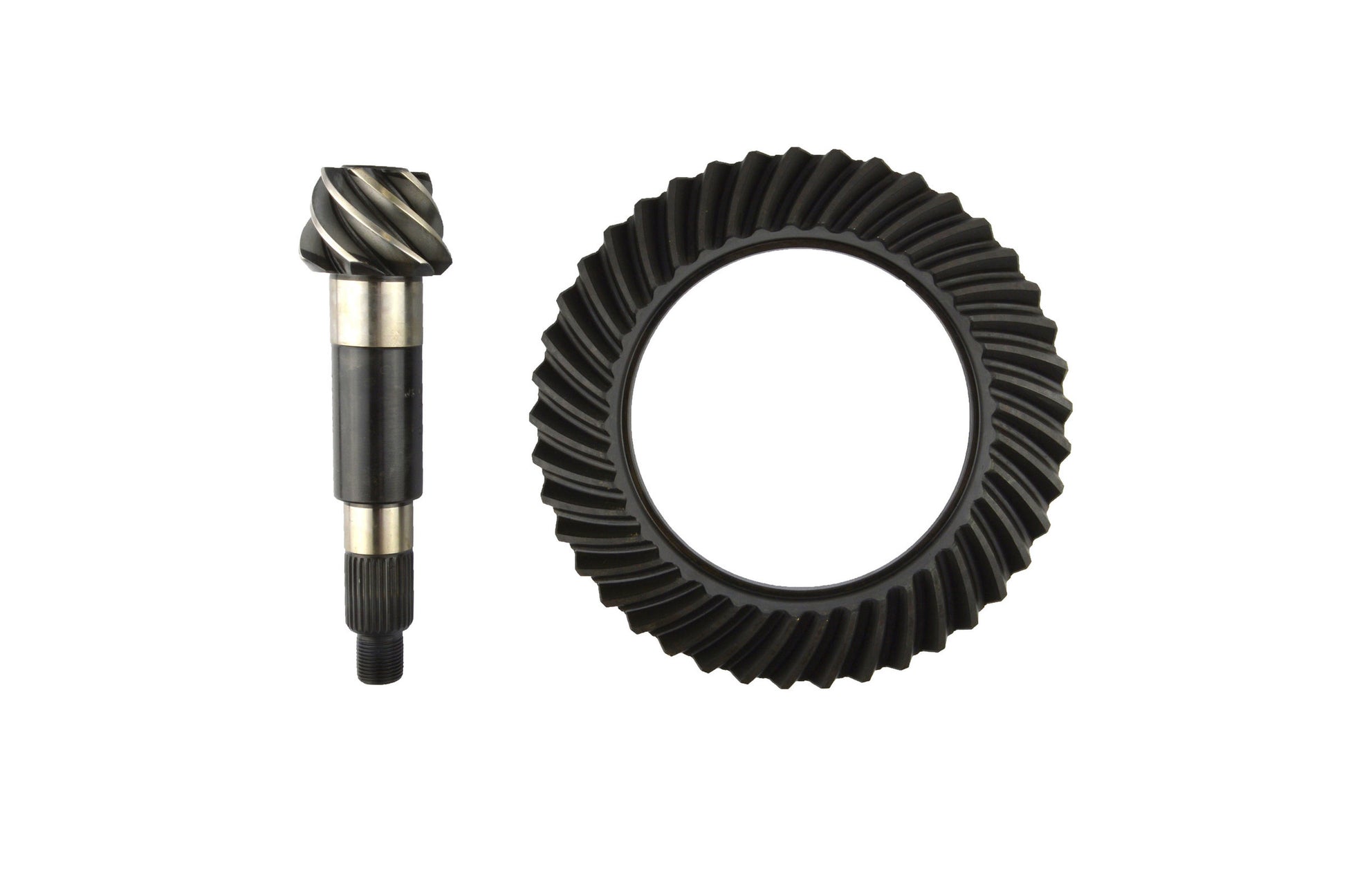

Spicer 25784X - Differential Ring and Pinion - DANA 60 - 5.86 Ratio

Spicer 25784X - Differential Ring and Pinion - DANA 60 - 5.86 Ratio

Spicer | 25784X
SKU: FSGR-25784X
Regular price $788.99 USD
Regular price $1,060.28 USD Sale price $788.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 25784X - Differential Ring and Pinion - DANA 60 - 5.86 Ratio

Differential Ring and Pinion - DANA 60 - 5.86 Ratio

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

  • Superior metallurgy: Ensures more consistent, higher quality product.
  • Hobbed and shaved gearing: Provides optimal mating to minimize stress and maximize life.
  • Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
  • High-grade steel for maximum durability.
Axle Model: DANA 60
Gear Ratio: 5.86
Ring Teeth Count: 41
Carrier Breaks: 4.56 And Up
Cover Bolt Quantity: 10
Include Installation Kit: Y
On Vehicle Location: Front/Rear
Pinion Gear Tooth Quantity: 7
Pinion Shaft Diameter: 1.625
Pinion Spline Count: 29
Ring Gear Bolt Qty: 12
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 9.750
Ring Gear Rotation: Standard
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
