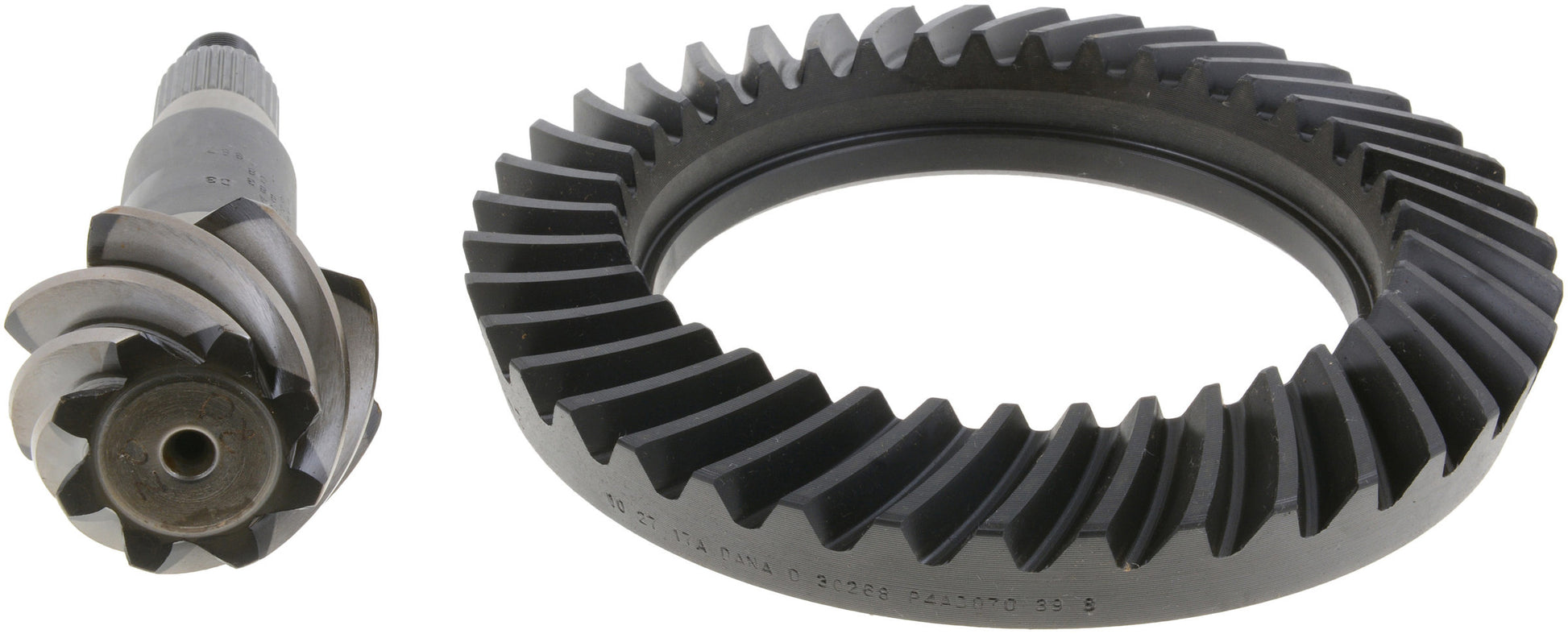

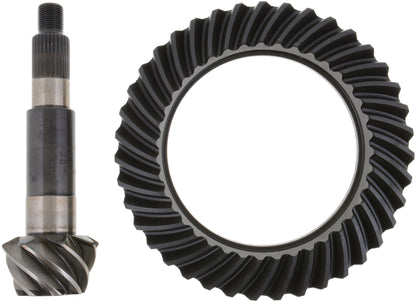

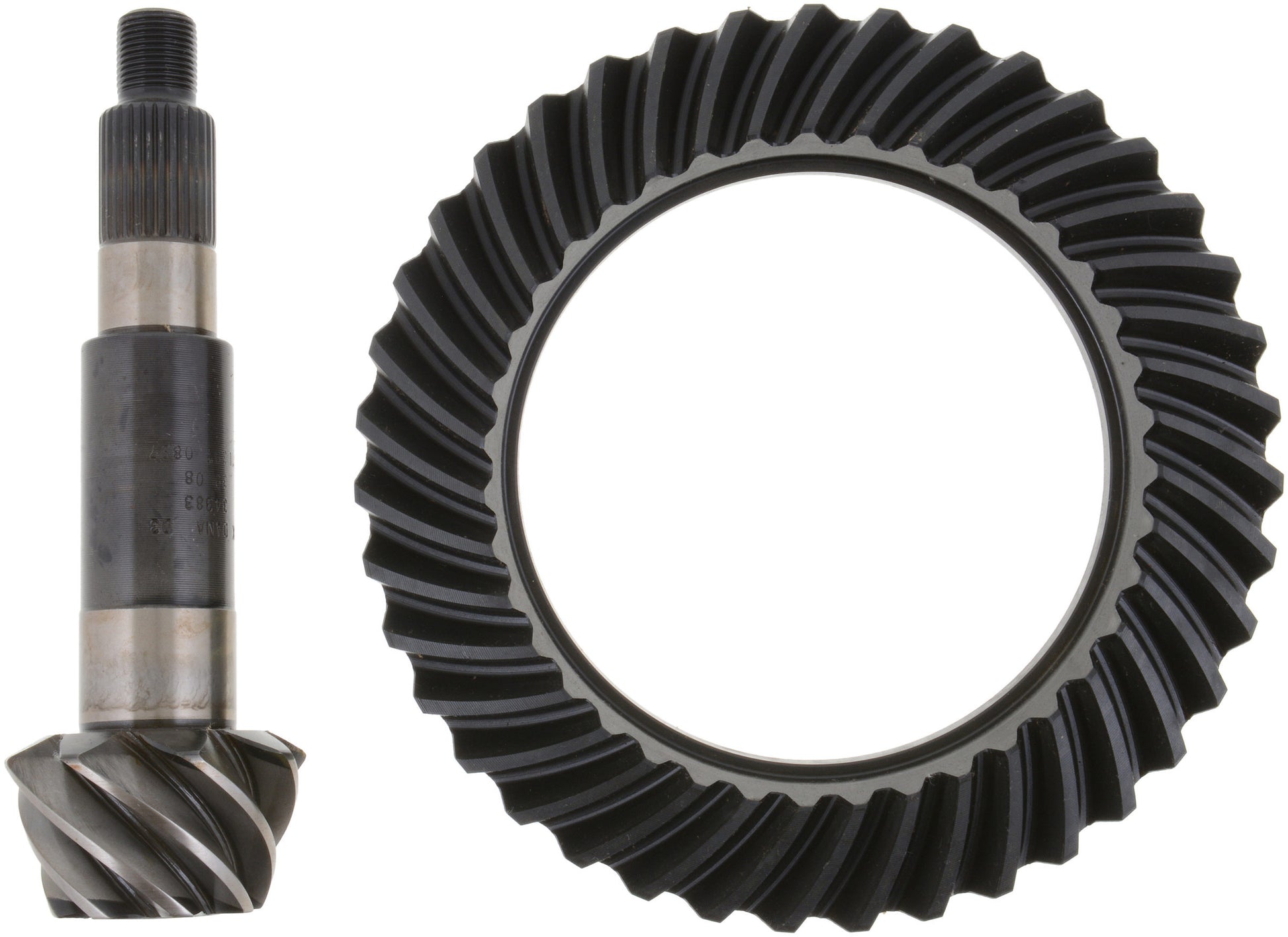

Spicer 25334X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 4.88 RATIO
Spicer 25334X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 4.88 RATIO
SKU: FSGR-25334X
Regular price
$313.99 USD
Regular price
$421.87 USD
Sale price
$313.99 USD
Shipping calculated at checkout.
3 in stock
Quantity
Couldn't load pickup availability
Spicer 25334X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 4.88 RATIO
DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 4.88 RATIO
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications
- Lapped to reduce noise and heat. Lubrication process allows for no break in period.
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear
- High-grade steel for maximum durability
Axle Model: DANA 60
Gear Ratio: 4.88
Ring Teeth Count: 39
Carrier Breaks: 4.56 And Up
Cover Bolt Quantity: 10
Include Installation Kit: N
On Vehicle Location: Front/Rear
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.625
Pinion Spline Count: 29
Ring Gear Bolt Qty: 12
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 9.750
Ring Gear Rotation: Standard
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
