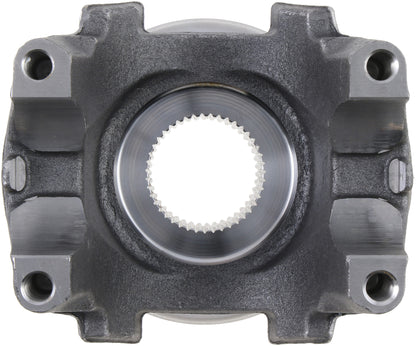

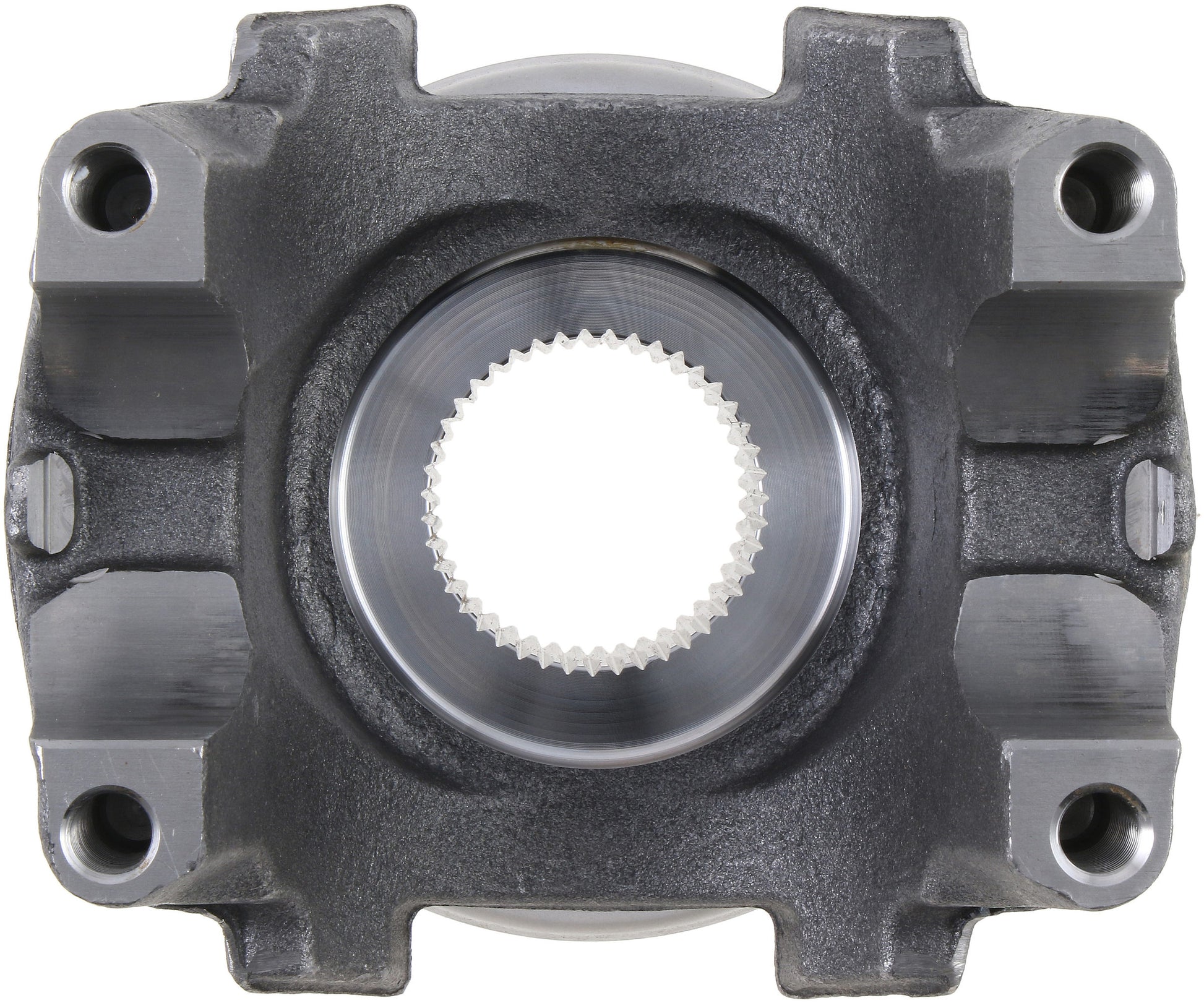

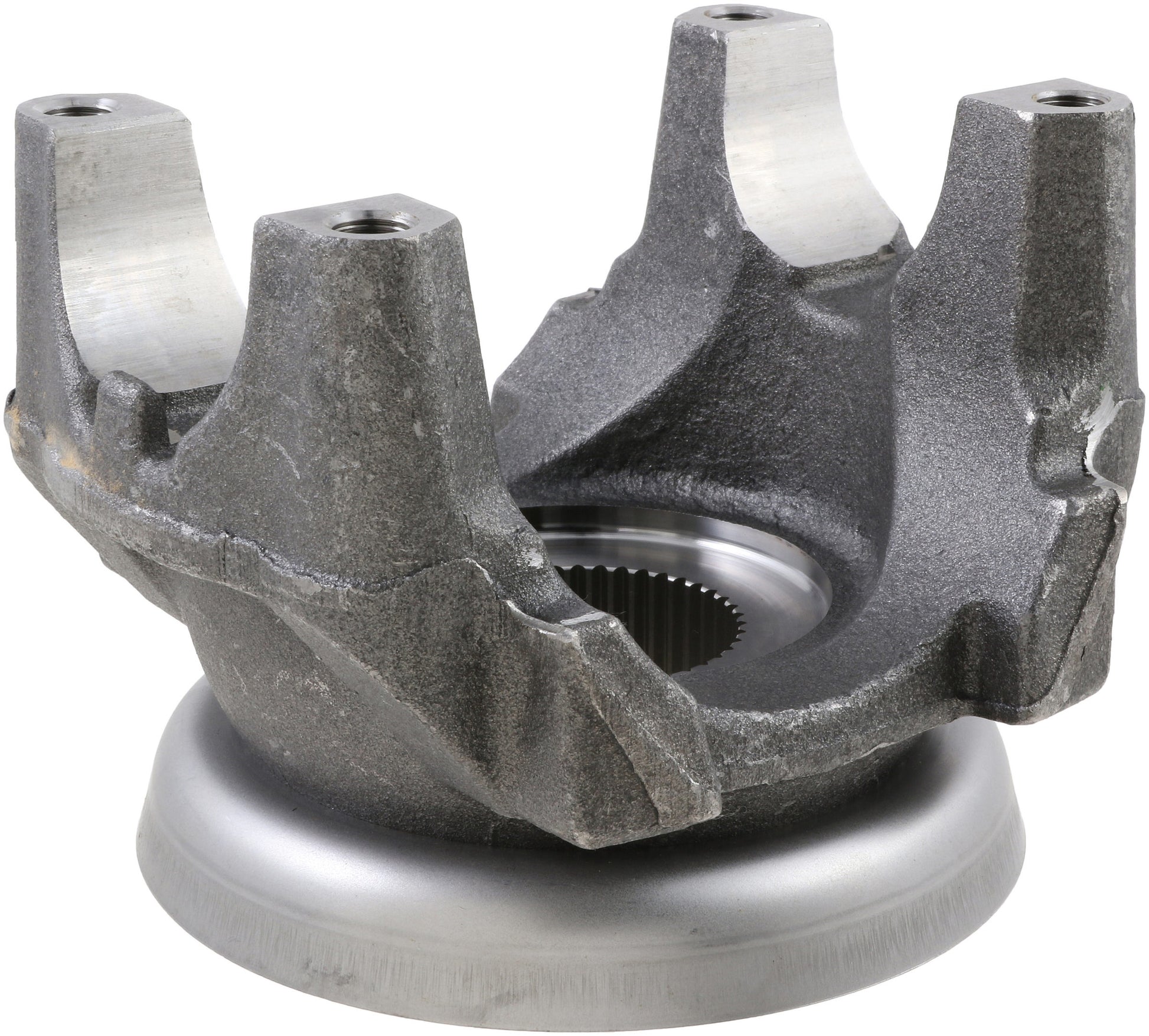

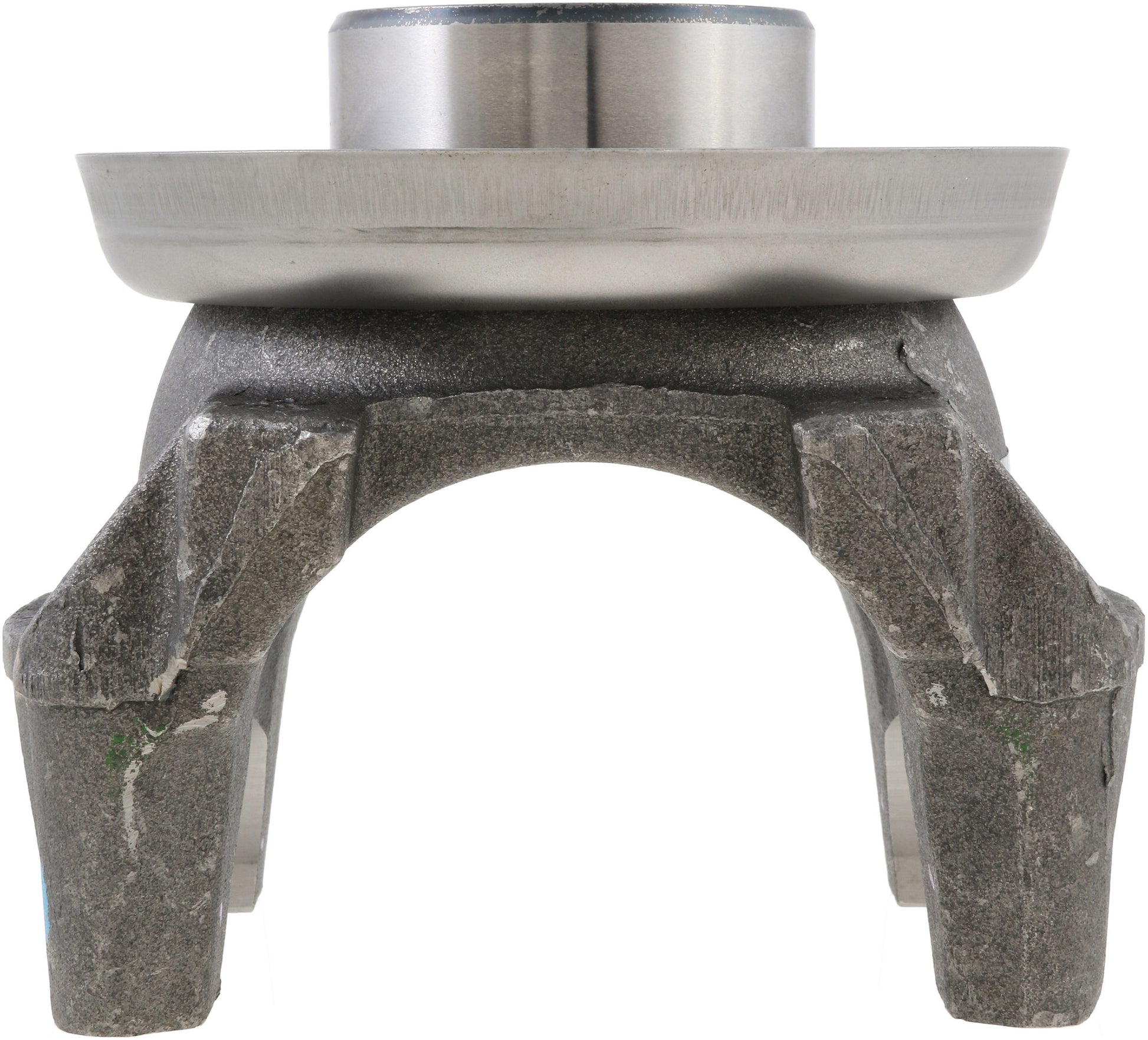

Spicer 250-4-1341-1X - End Yoke Assembly

End Yoke Assembly

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL250
Material: Steel
Spline Count: 43
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3.005
Includes Slinger/Plug: Y
Involute Spline: Y
Length Thru Hole Q: 2.327
Outside Yoke Dimension (In) E: 6.417
Yoke Bearing Dimension (In) D: 2.362
Yoke Style: HR
Major Diameter: 2.243
C/L To End Hub S: 5.500
