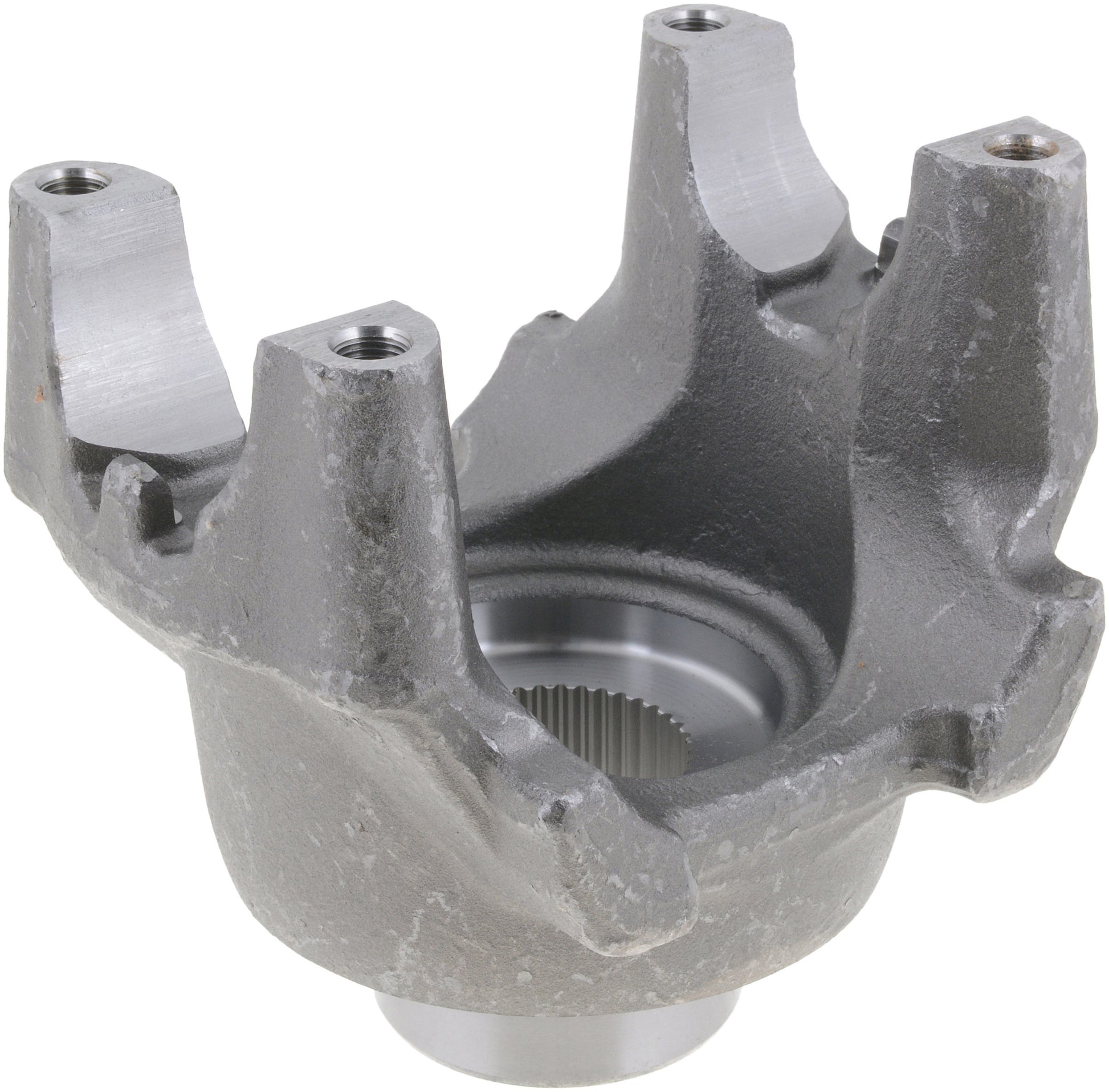

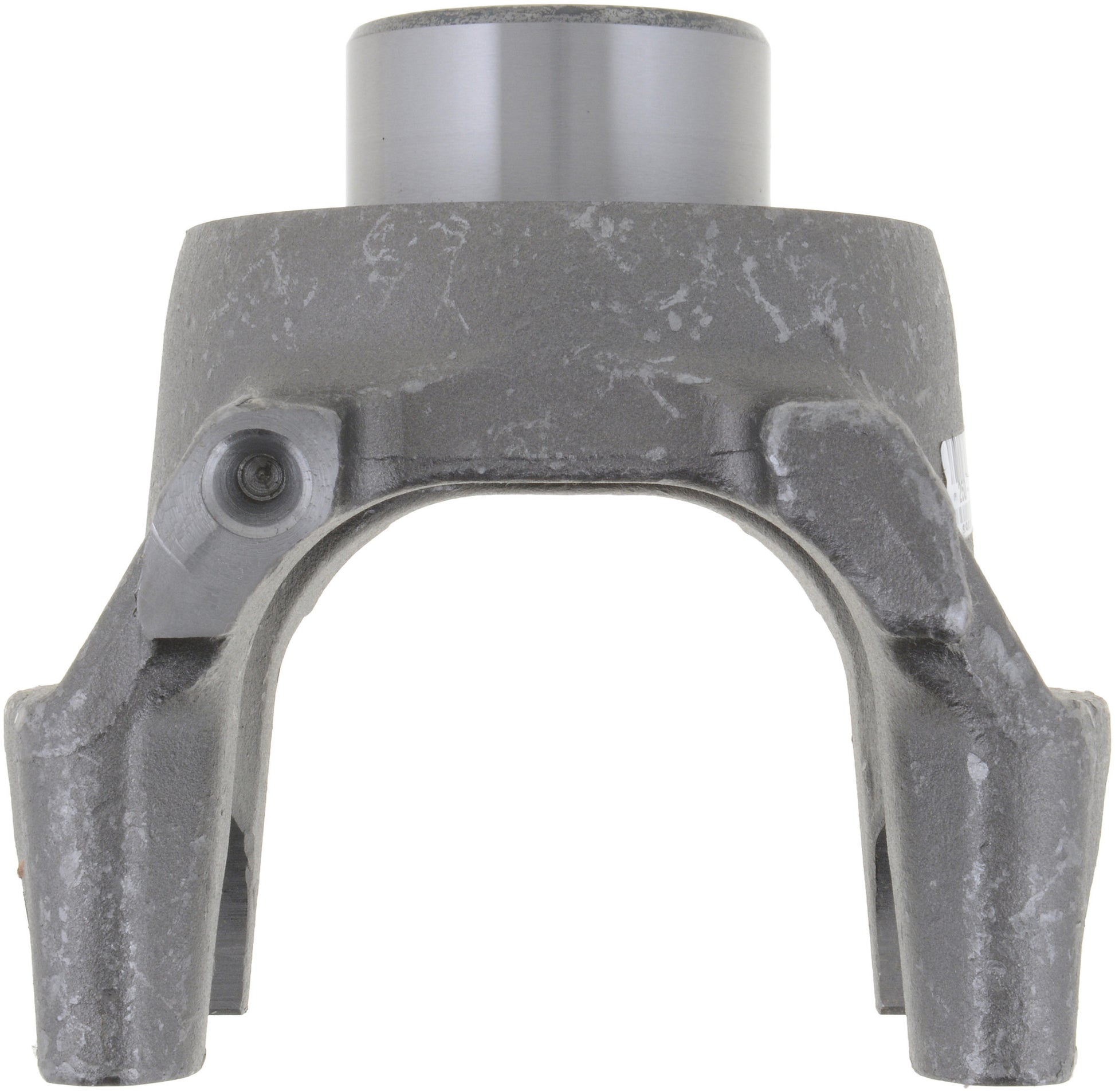

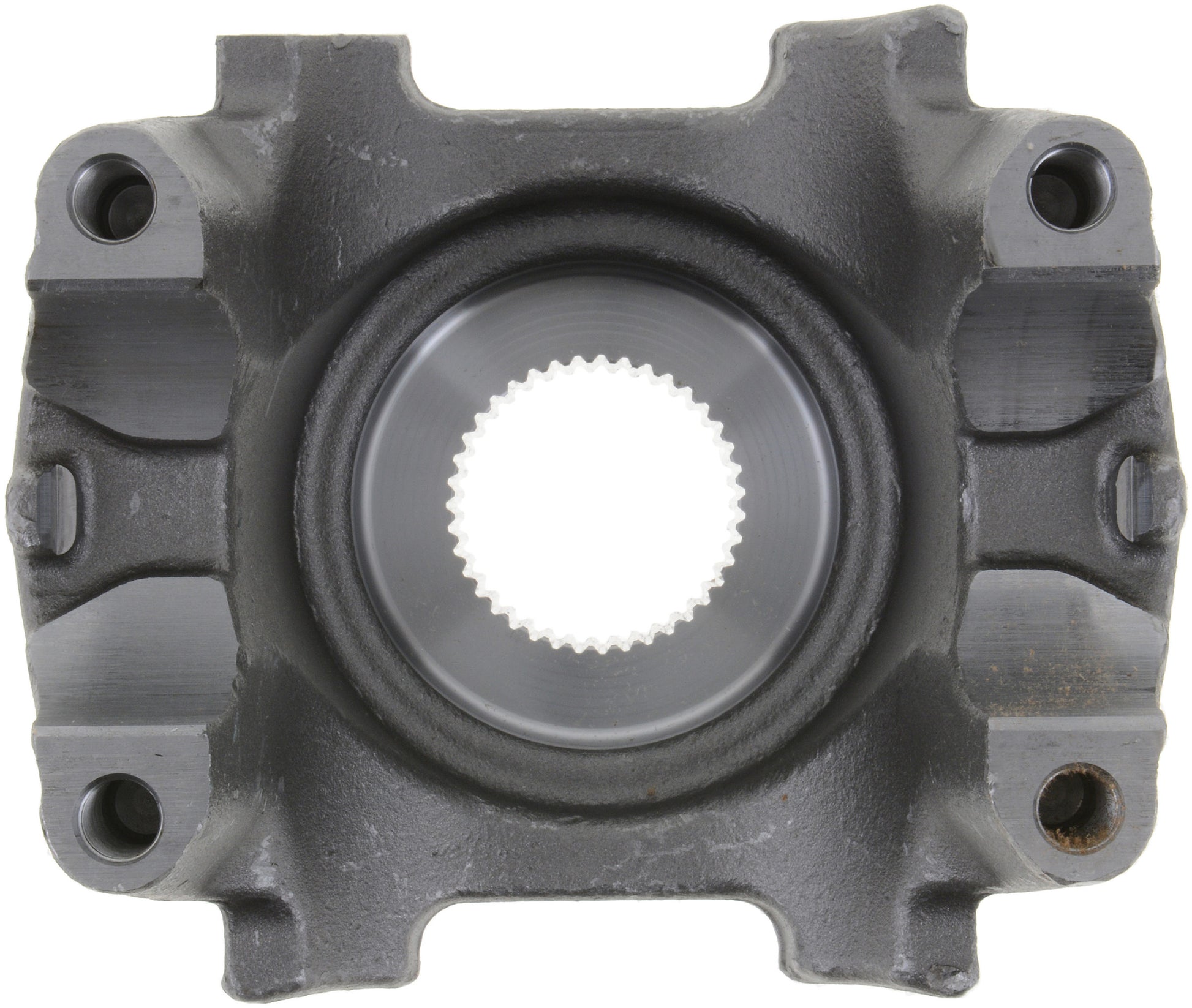

Spicer 250-4-1241-1 - End Yoke

Spicer 250-4-1241-1 - End Yoke

Spicer | 250-4-1241-1
SKU: FSGR-250-4-1241-1
$350.99 USD
$471.30 USD $350.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 250-4-1241-1 - End Yoke

End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL250
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 2.750
Includes Slinger/Plug: Y
Involute Spline: N
Length Thru Hole Q: 2.312
Outside Yoke Dimension (In) E: 6.417
Yoke Bearing Dimension (In) D: 2.362
Yoke Style: HR
Major Diameter: 2.024
C/L To End Hub S: 6.11
C-Bore Depth: 0.09
