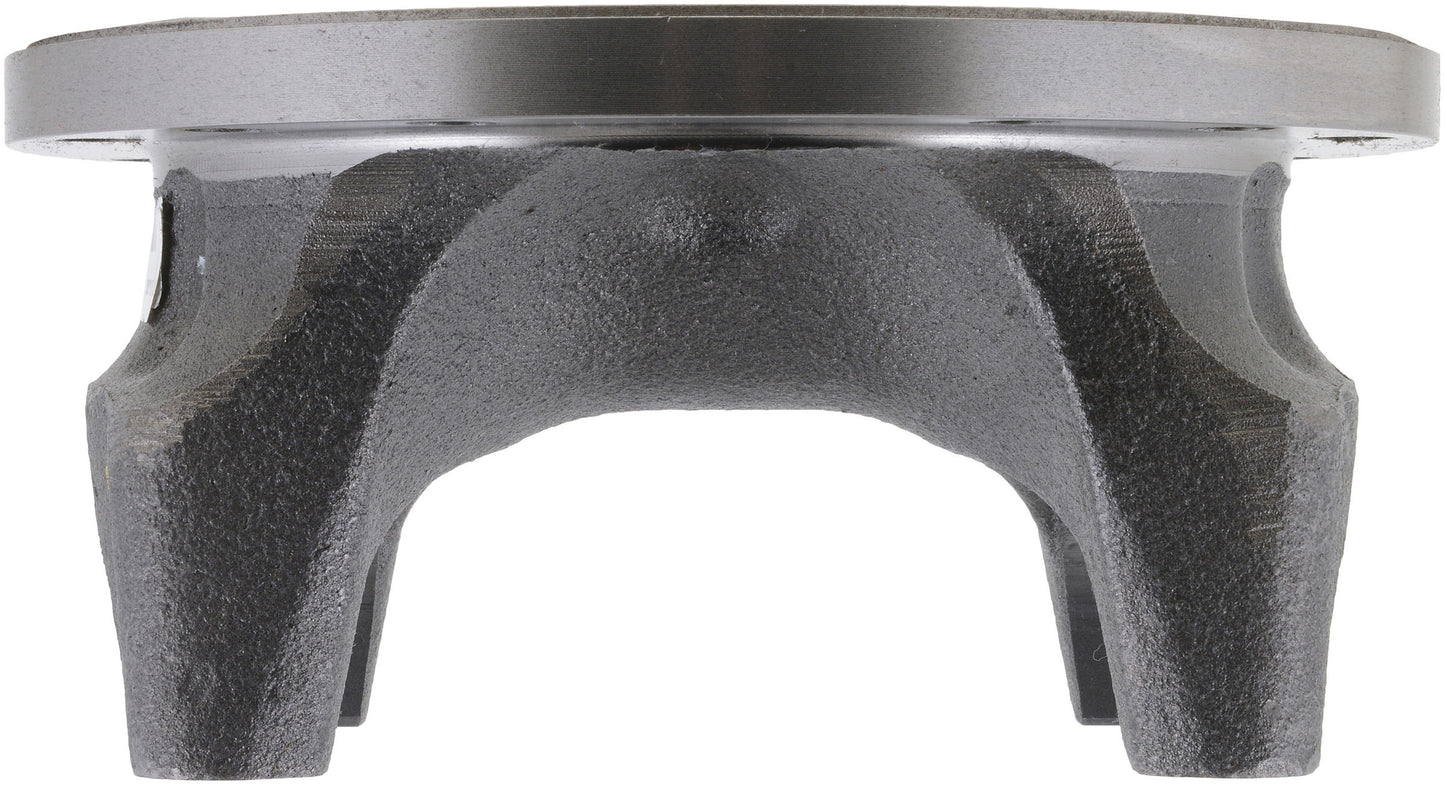

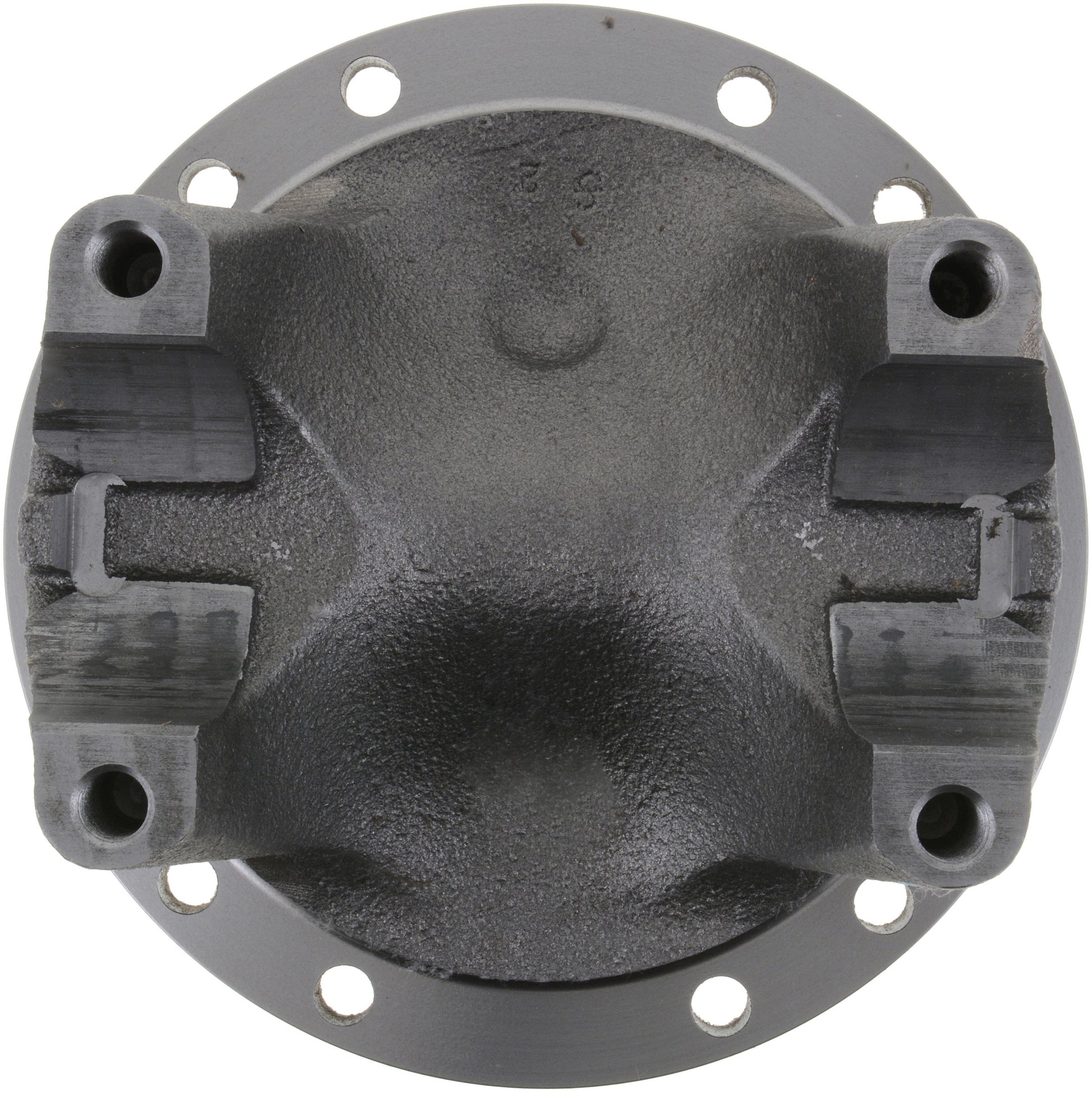

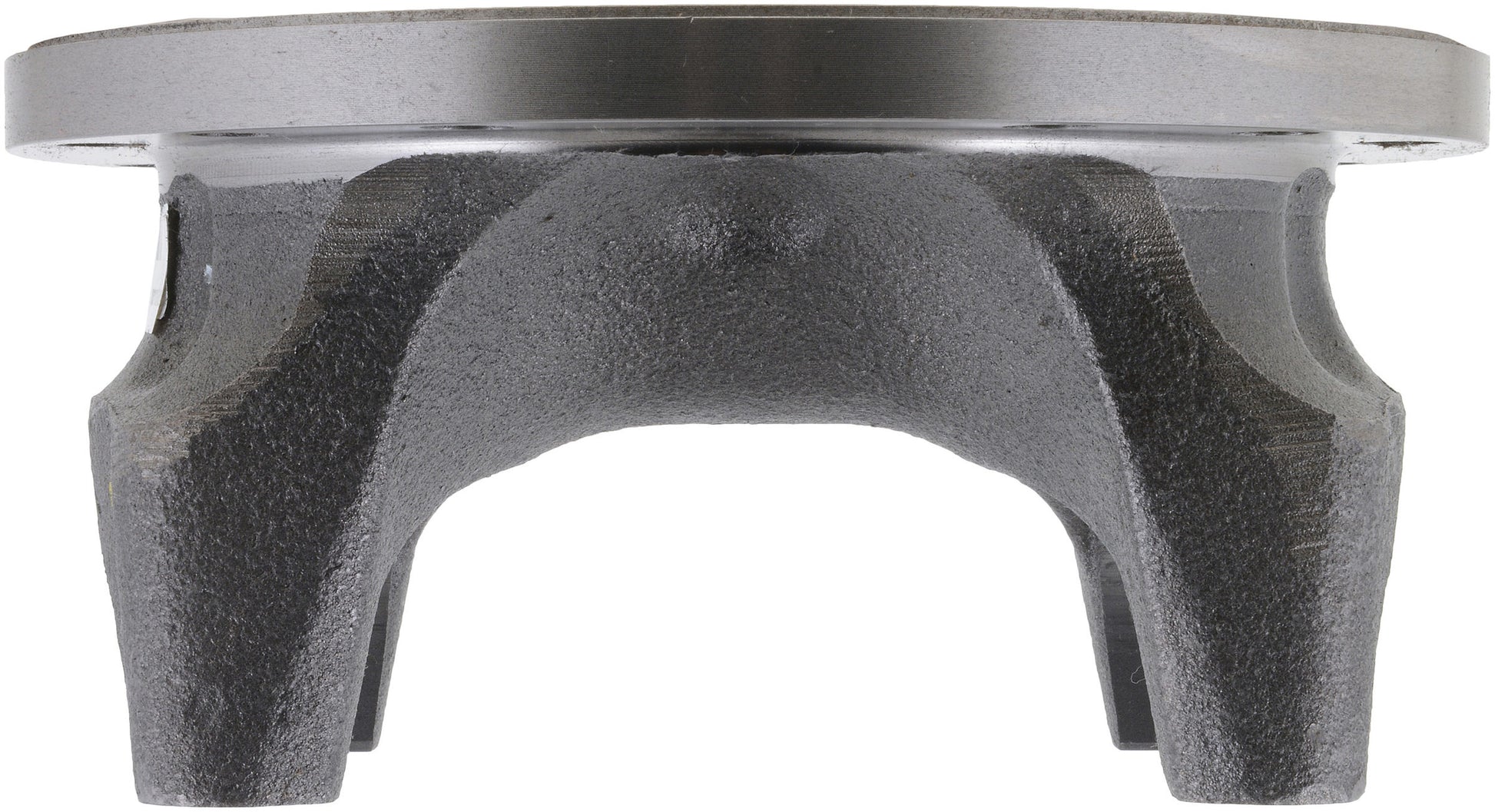

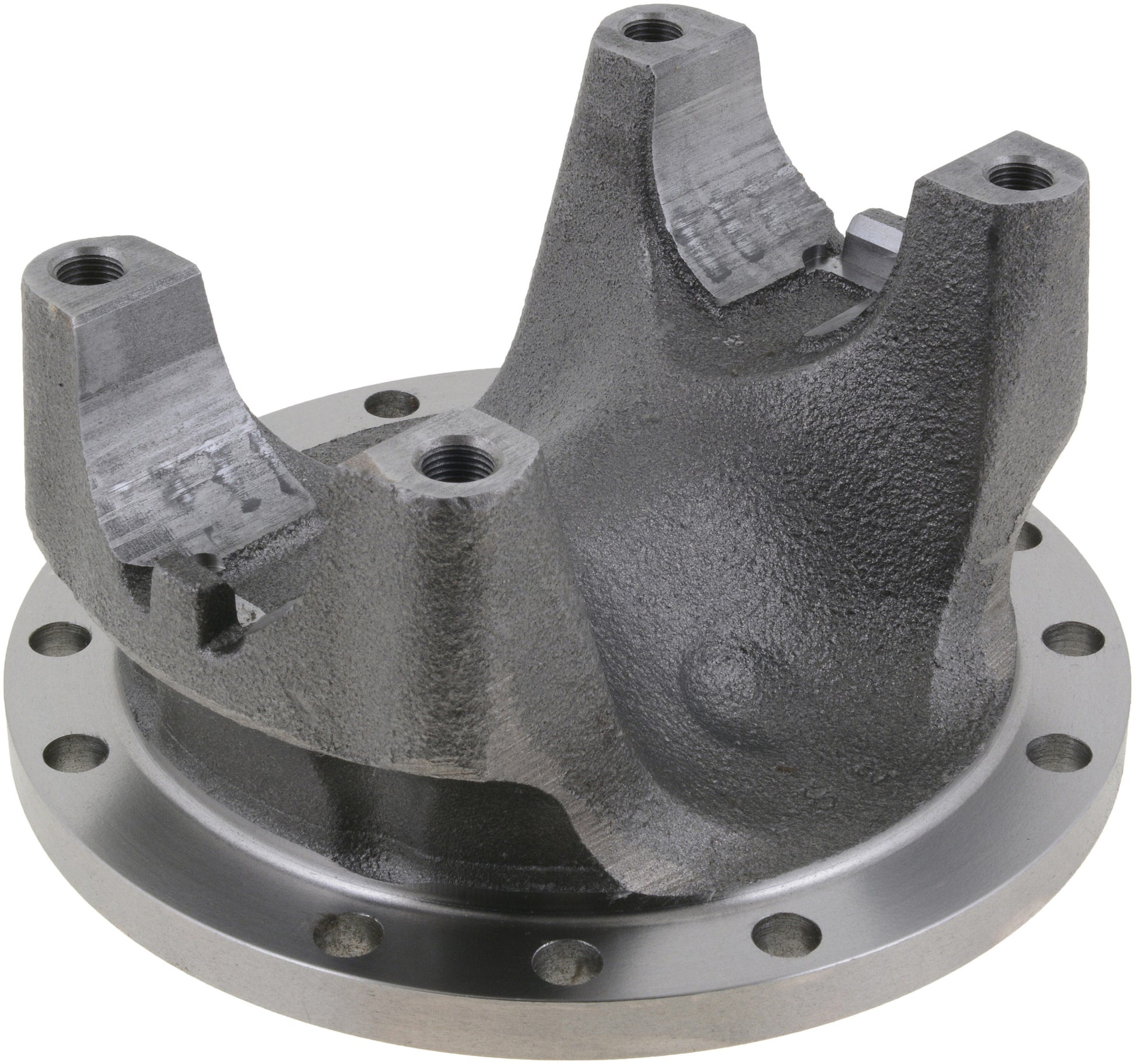

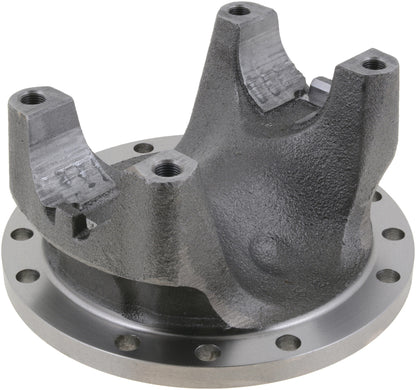

Spicer 250-2-49-1 - DRIVE SHAFT FLANGE YOKE
Spicer 250-2-49-1 - DRIVE SHAFT FLANGE YOKE
SKU: FSGR-250-2-49-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Spicer 250-2-49-1 - DRIVE SHAFT FLANGE YOKE
DRIVE SHAFT FLANGE YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: SPL250
Material: Steel
Number Of Bolt Holes: 12
Design: Circular
Bolt Circle Dia. In. (B): 7.250
Bolt Hole Dia. In (B): .440 - DRILLED
Flange Face To C/L In. (G): 3.524
Flange Or Swing Dia. In. (A): 8.000
Outside Yoke Dimension In.(E): 5.986
Pilot Dia. M=Male F=Female (C): 7.750 - MALE
Yoke Bearing Dimension In. (D): 2.362
