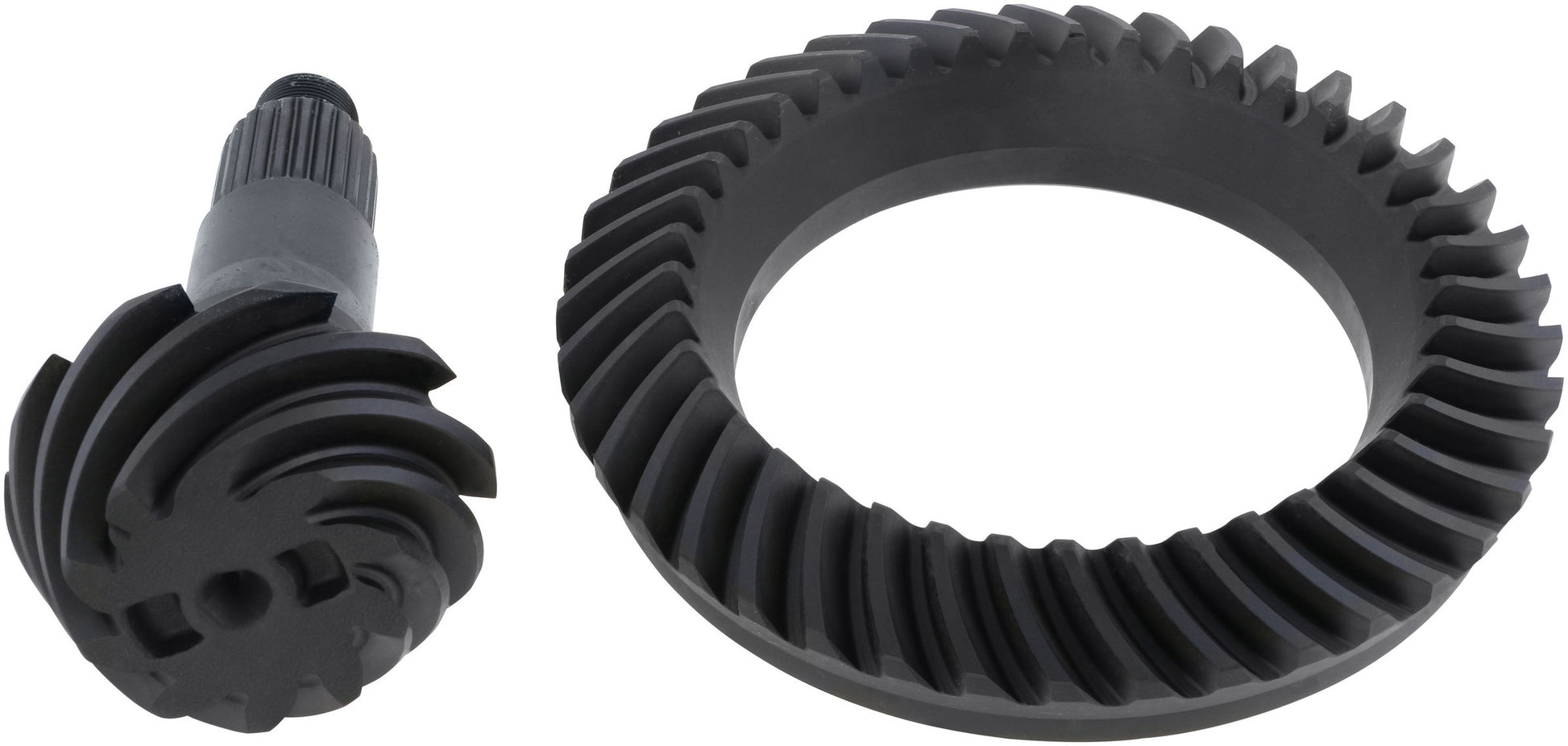

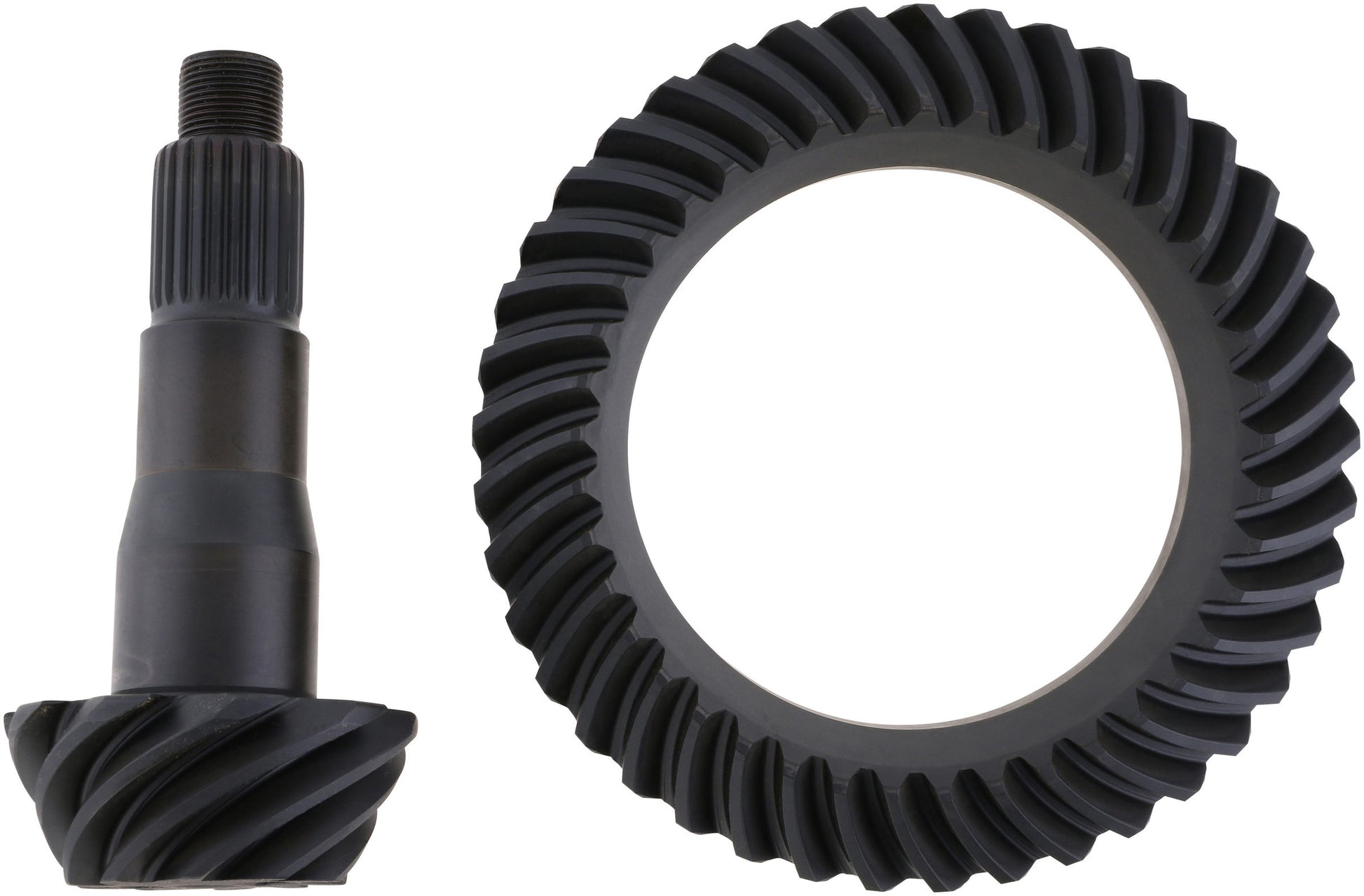

Spicer 2017552 - Differential Ring and Pinion - M190 Front 4.10 Ratio

Spicer 2017552 - Differential Ring and Pinion - M190 Front 4.10 Ratio

Spicer | 2017552
SKU: FSGR-2017552
$277.99 USD
$373.81 USD $277.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 2017552 - Differential Ring and Pinion - M190 Front 4.10 Ratio

Differential Ring and Pinion - M190 Front 4.10 Ratio

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

  • Heat treated for optimal hardness and increased durability
  • Face hobbed to ensure precise mating of gear teeth, so you get a quieter ride
  • Shot peened to double the fatigue life of the gear
  • Precision manufacturing processes.
Axle Model: M190
Gear Ratio: 4.10
Ring Teeth Count: 41
Carrier Breaks: 3.54 And Up
Cover Bolt Quantity: 10
Include Installation Kit: N
On Vehicle Location: Front
Pinion Gear Tooth Quantity: 10
Pinion Shaft Diameter: 1.626
Pinion Spline Count: 24
Ring Gear Bolt Qty: 10
Ring Gear Bolt Thread In.: M12 - 1.25
Ring Gear Diameter (In.): 7.560
Ring Gear Rotation: Reverse
Axle Type: M190
New Or Remanufactured: New
Shims Included: N
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
