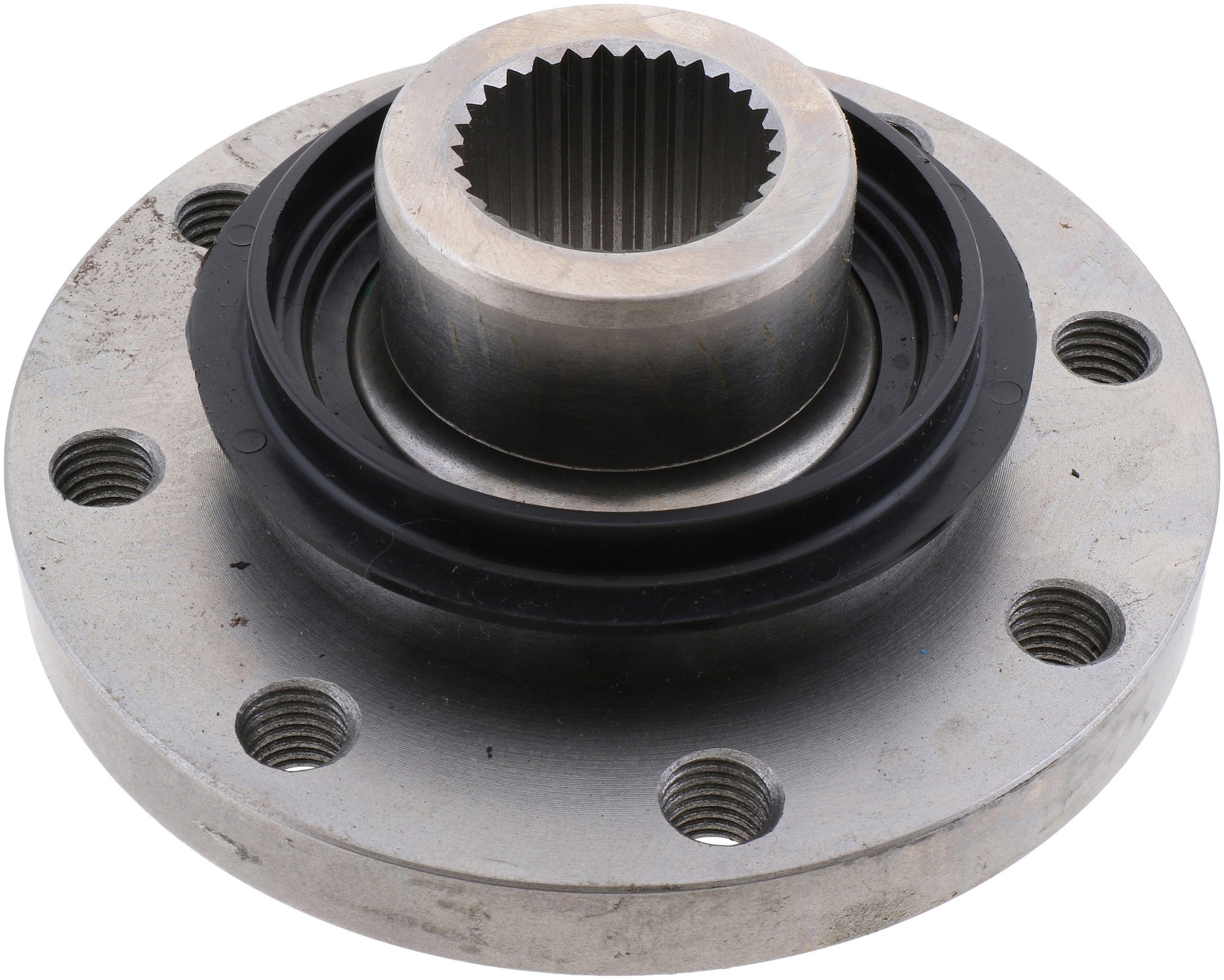

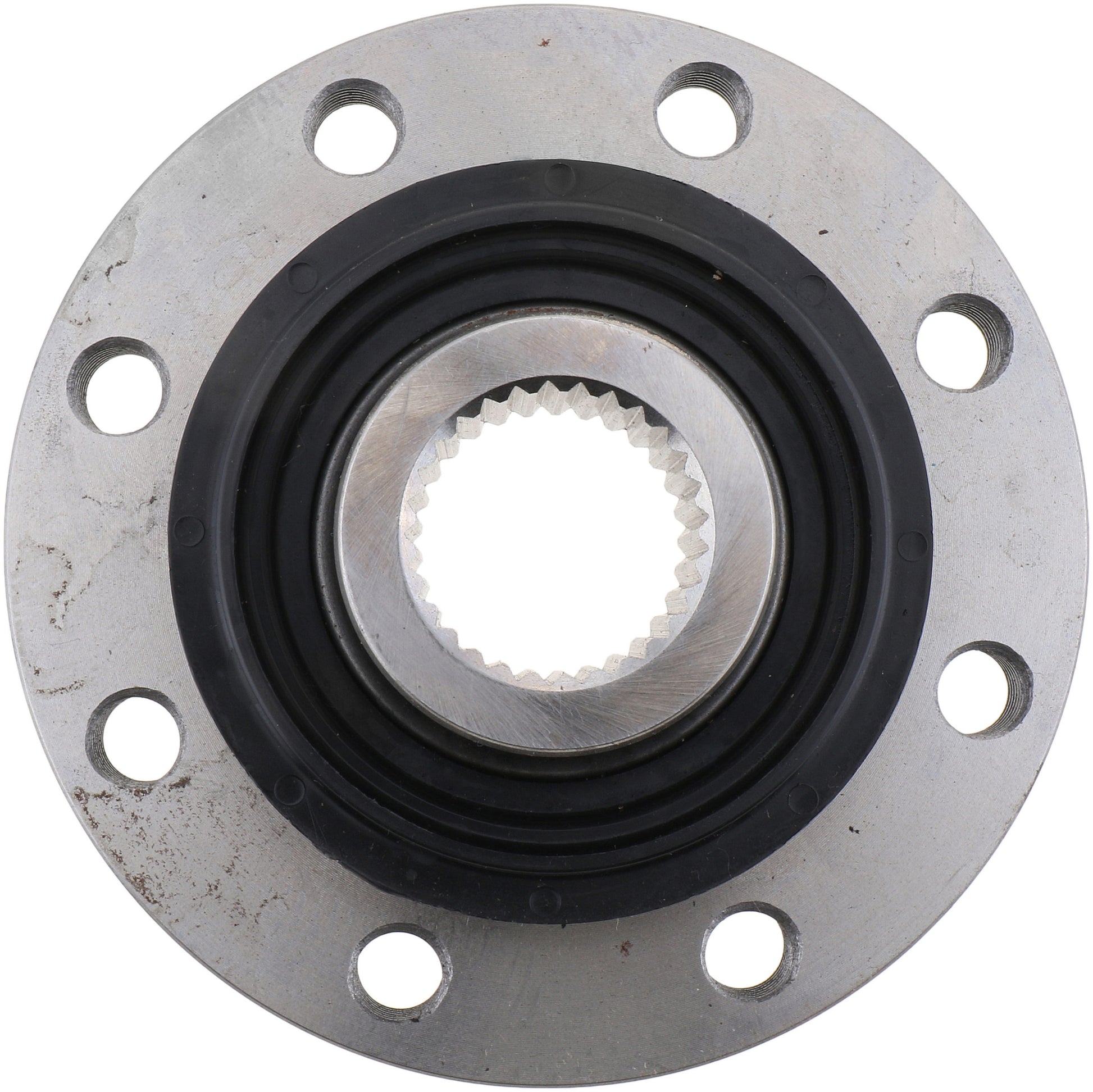

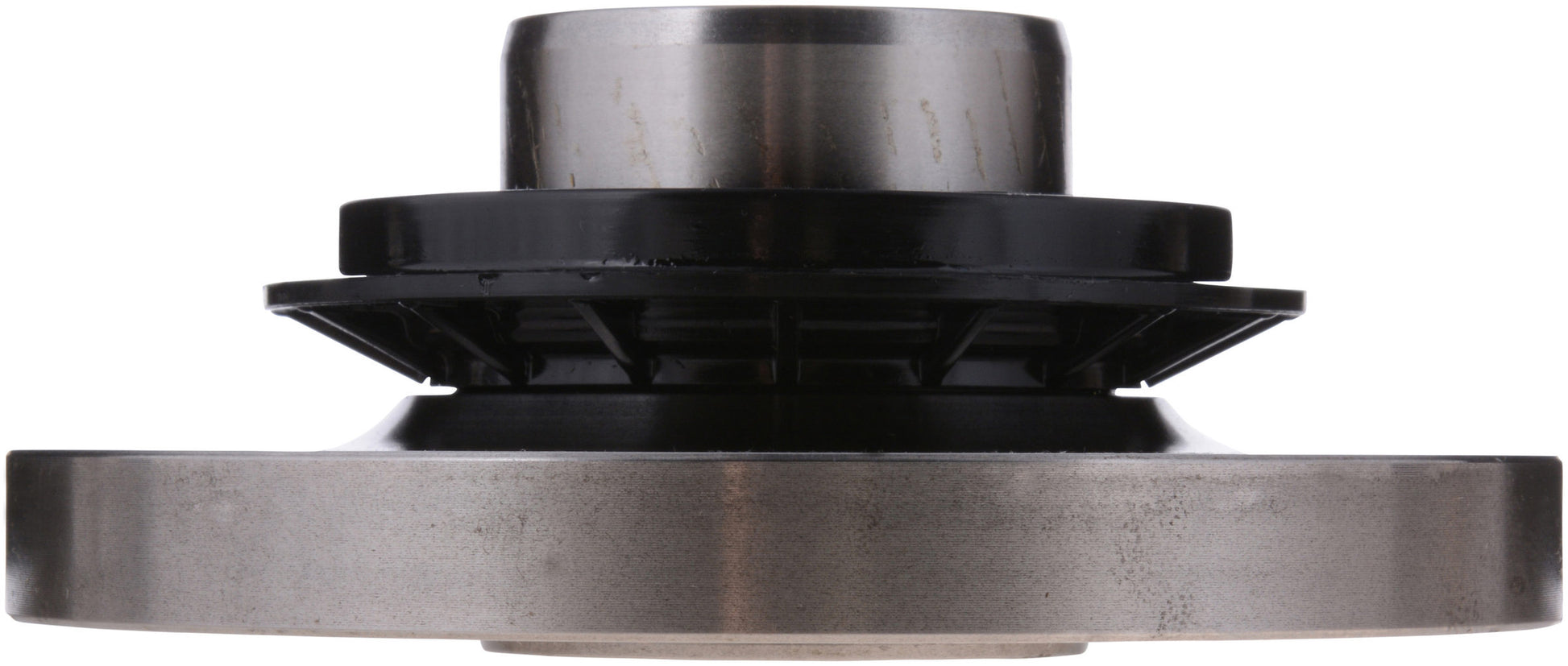

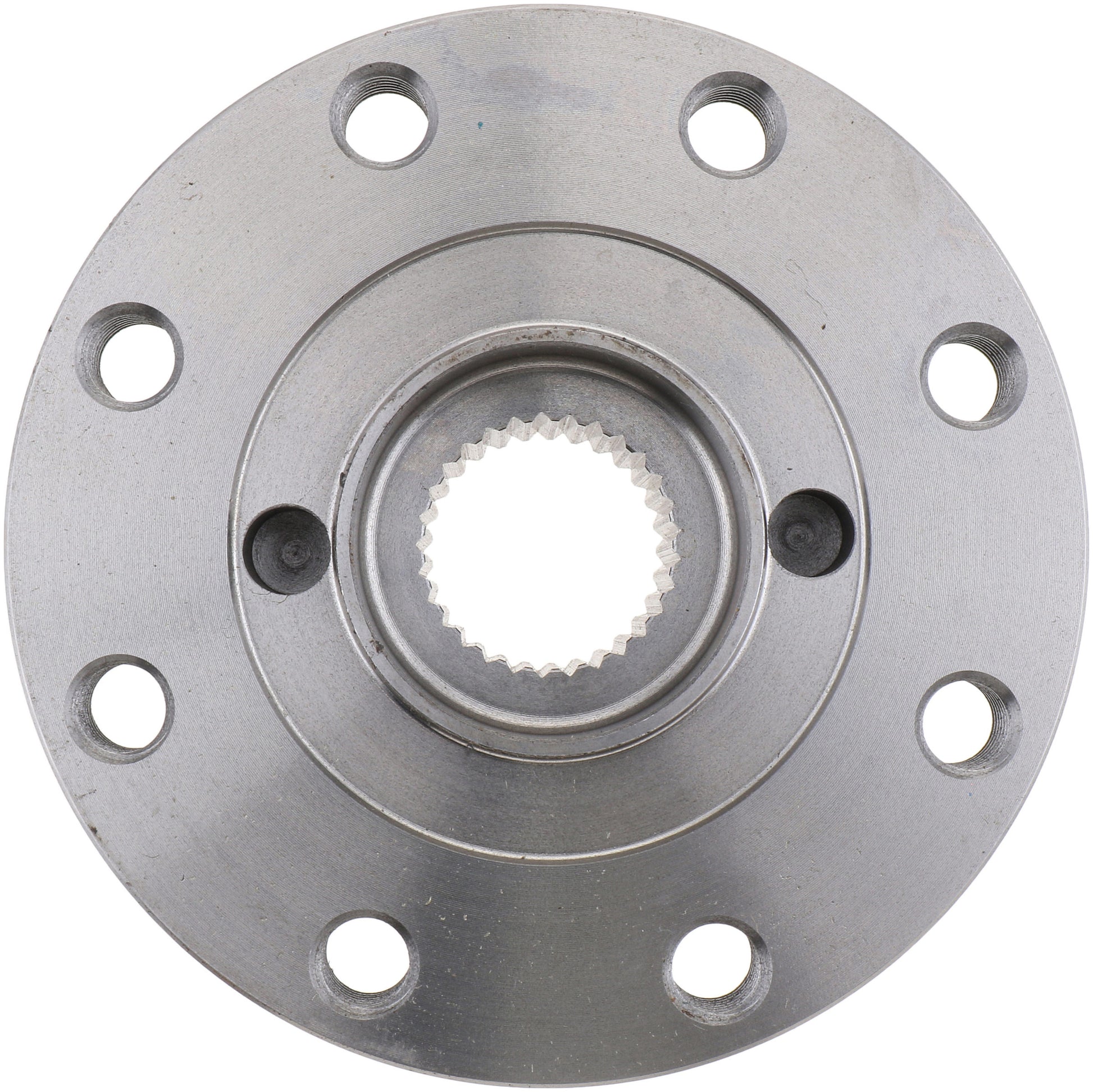

Spicer 2010948 - Diffl Companion Flange;29 Spline Male Pilot 1350 Series; Builder Axle Compatible
Spicer 2010948 - Diffl Companion Flange;29 Spline Male Pilot 1350 Series; Builder Axle Compatible
SKU: FSGR-2010948
Regular price
$71.99 USD
Regular price
$95.91 USD
Sale price
$71.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 2010948 - Diffl Companion Flange;29 Spline Male Pilot 1350 Series; Builder Axle Compatible
Diffl Companion Flange;29 Spline Male Pilot 1350 Series; Builder Axle Compatible
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
Series: 1350
Material: Steel
Spline Count: 29
Involute Spline: N
Companion Flange Assembly: Y
Flange Face To End Of Hub (G): 1.955
Ground Hub Diameter In.: 1.875
Length Thru Hole (F) In.: 1.5
Major Diameter (D) In.: 1.325
Pilot Diameter (C) In.: 2.000-M
Bolt Circle Dia.(B) In.(FL YK): 4.25
Bolt Hole Diameter In (FL YK): M12-1.75T
Number Of Holes (FL YK): 8
