Spicer 2006269 - Differential Pinion Flange - Male Pilot
Spicer 2006269 - Differential Pinion Flange - Male Pilot
SKU: FSGR-2006269
Regular price
$79.99 USD
Regular price
$106.83 USD
Sale price
$79.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

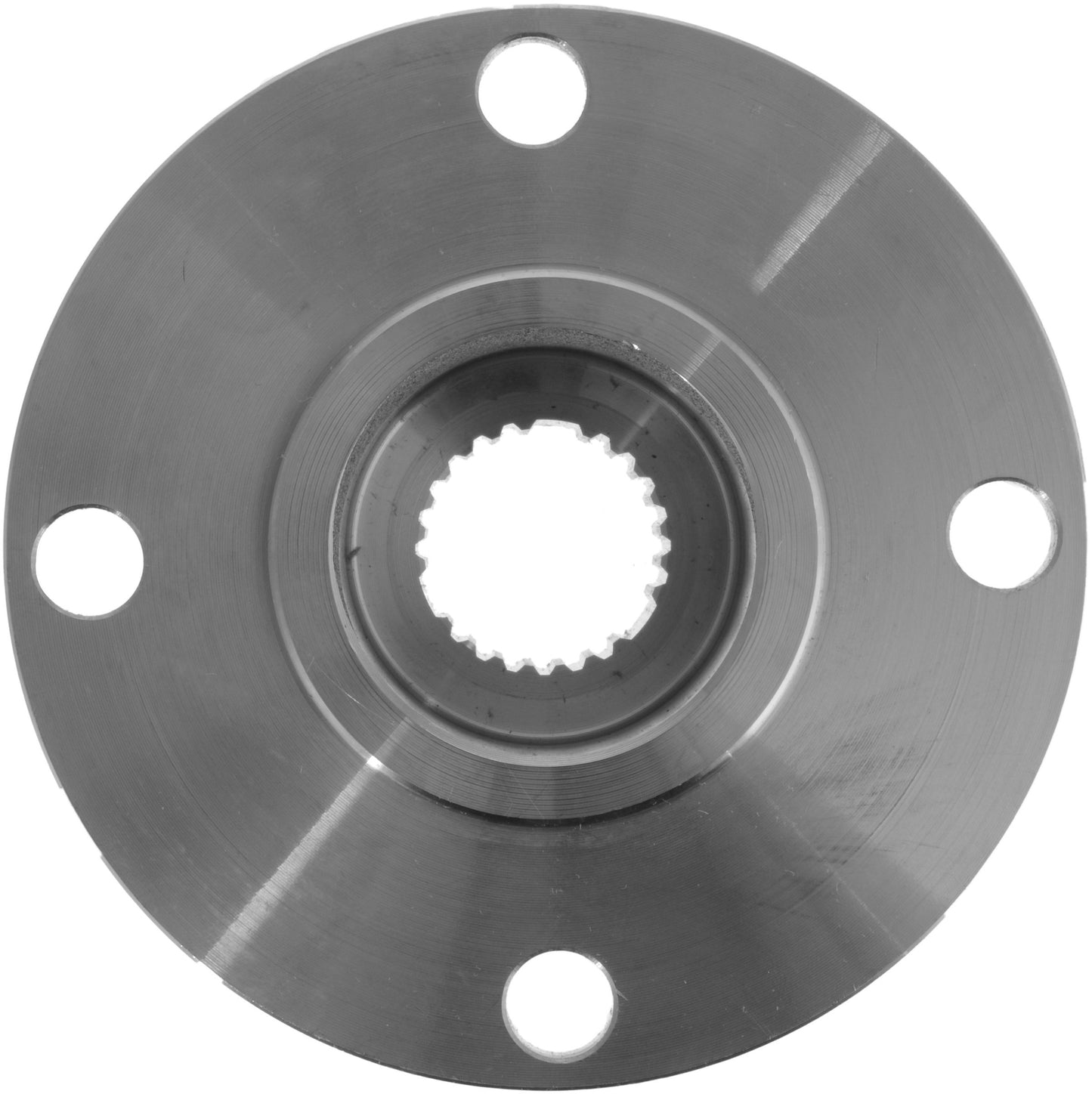

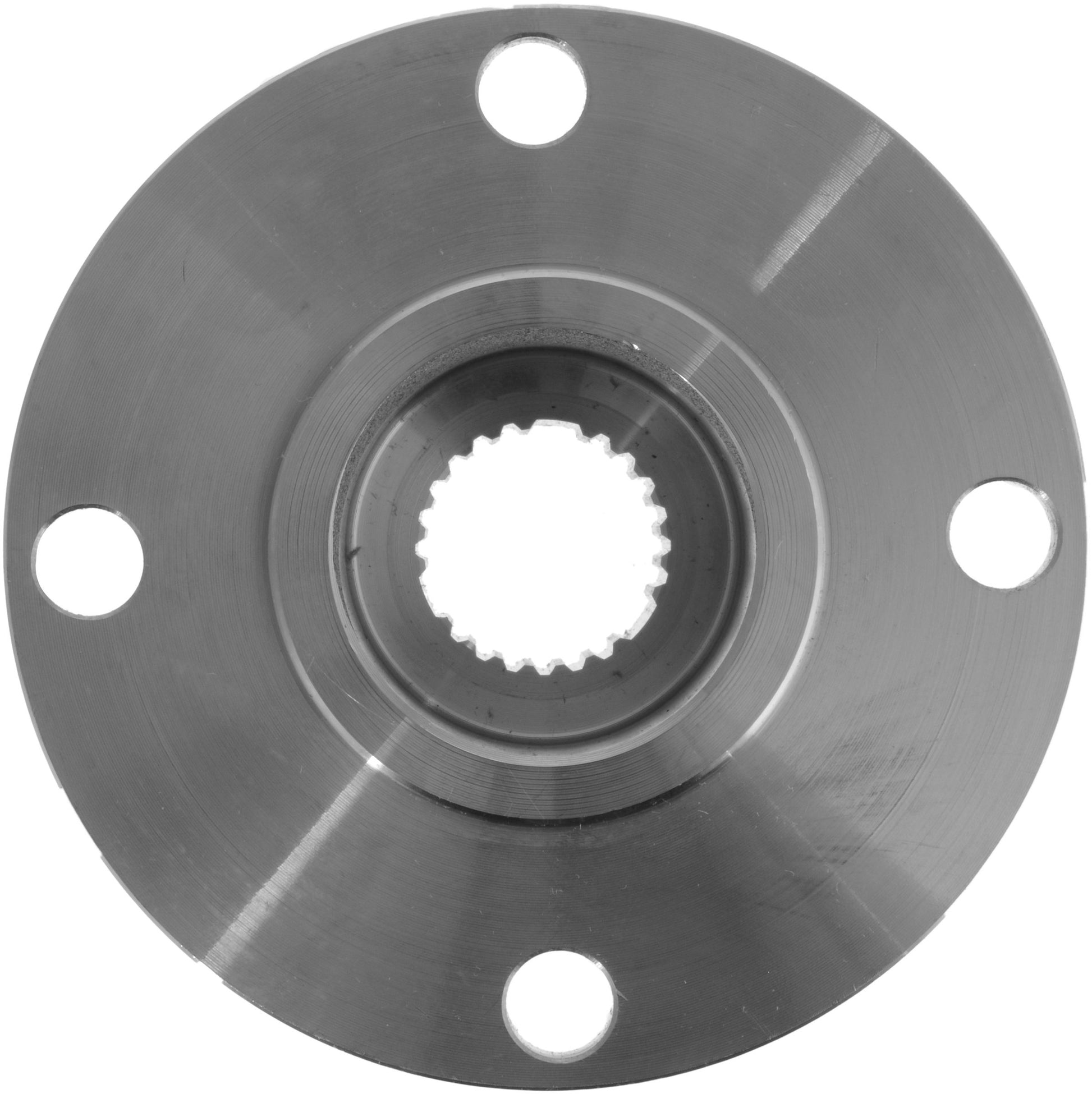

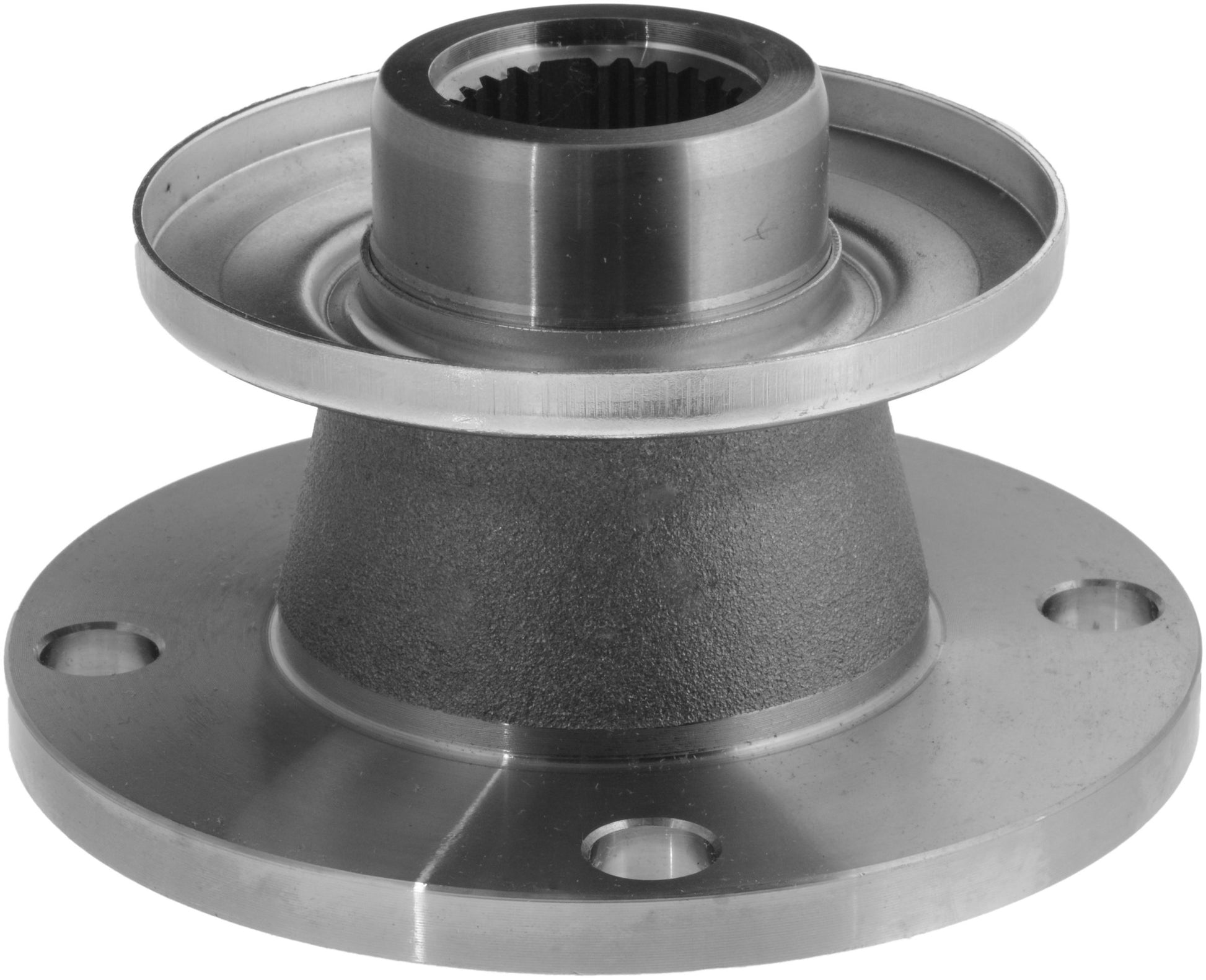

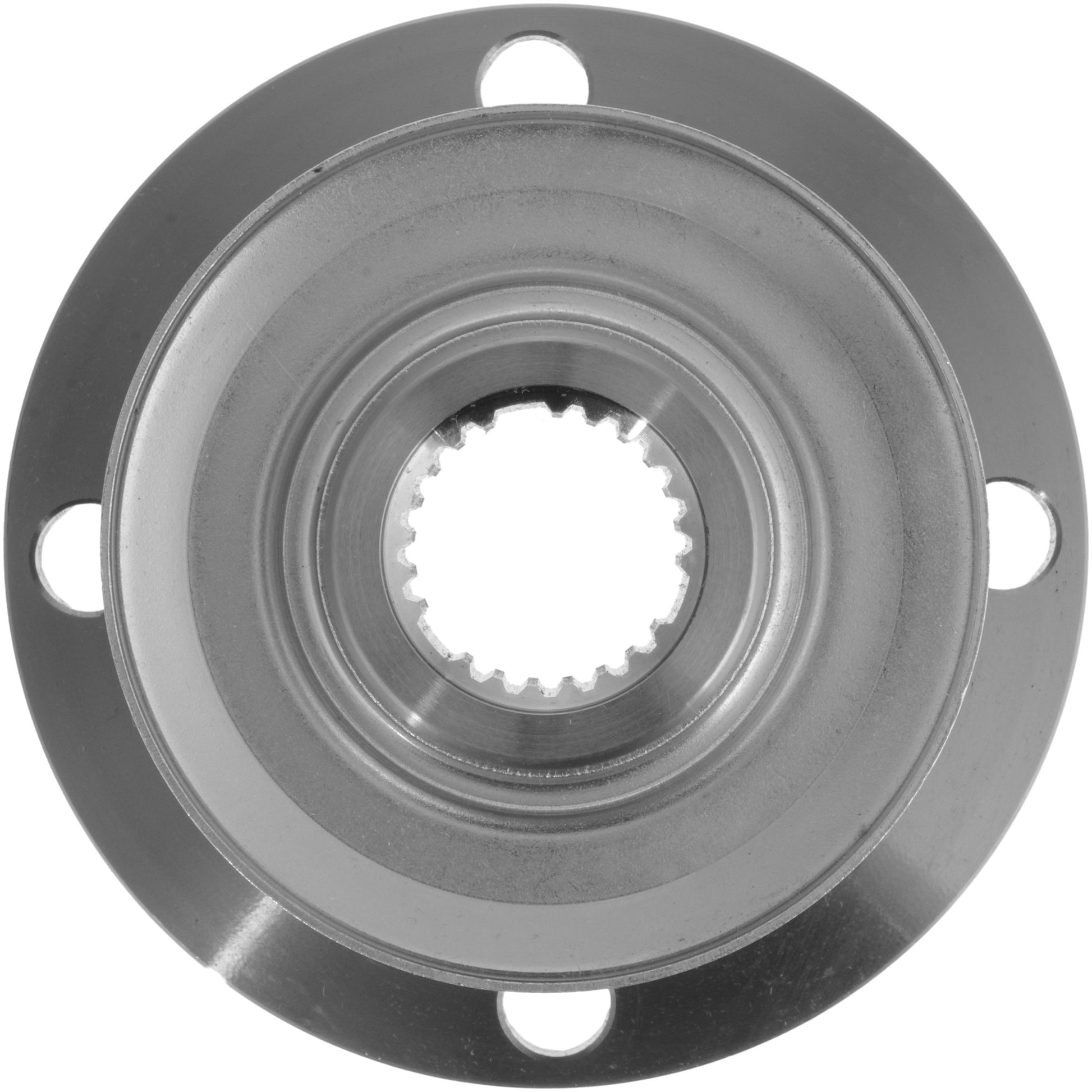

Spicer 2006269 - Differential Pinion Flange - Male Pilot
Differential Pinion Flange - Male Pilot
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Spline Count: 21/24 I
Involute Spline: Y
Companion Flange Assembly: Y
Flange Face To End Of Hub (G): 2.787
Ground Hub Diameter In.: 1.875
Length Thru Hole (F) In.: 1.488
Major Diameter (D) In.: 1.250
Pilot Diameter (C) In.: 2.559 - MALE
Series: 1310
Material: Steel
Bolt Circle Dia.(B) In.(FL YK): 4.25
Bolt Hole Diameter In (FL YK): .500
Number Of Holes (FL YK): 4
