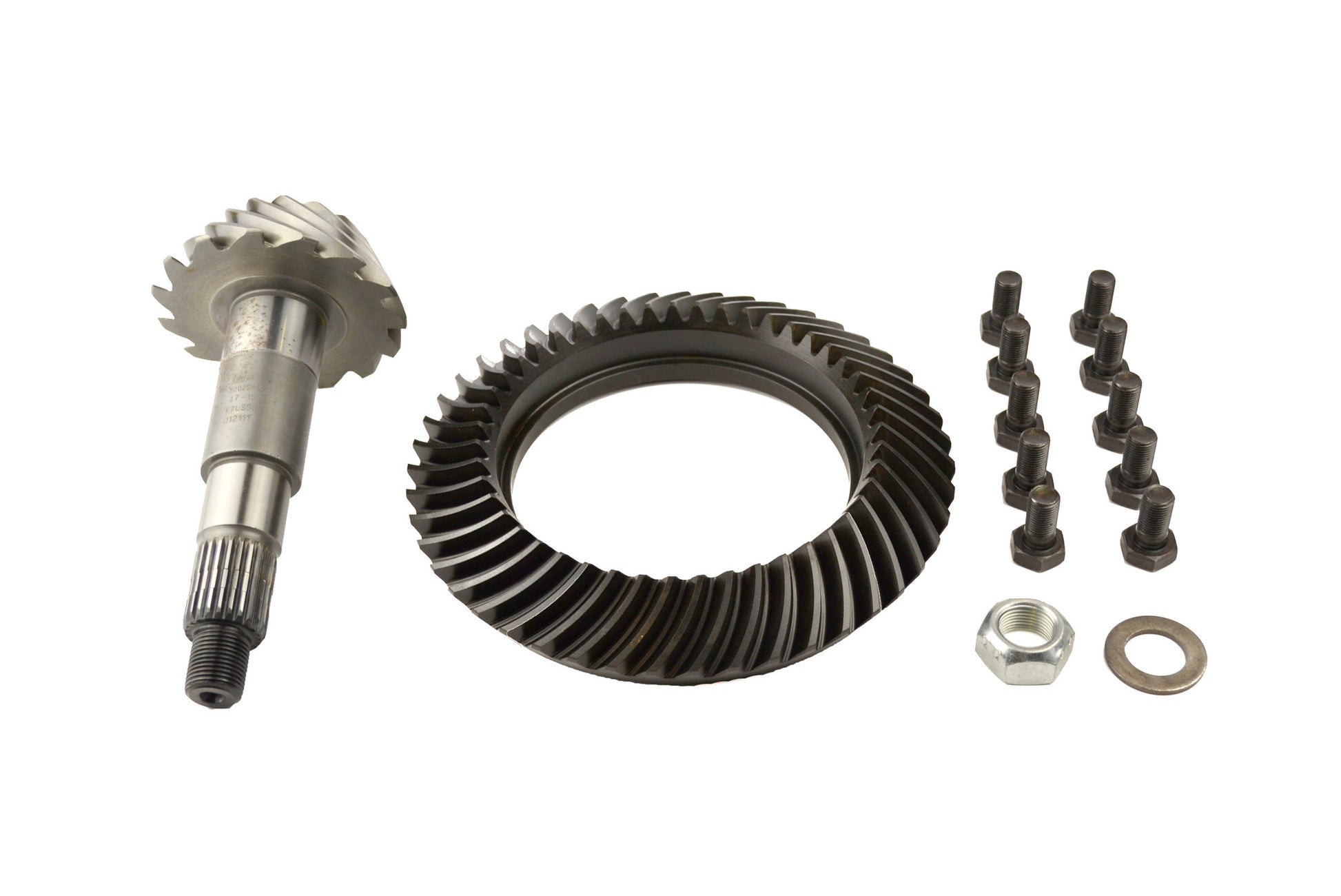

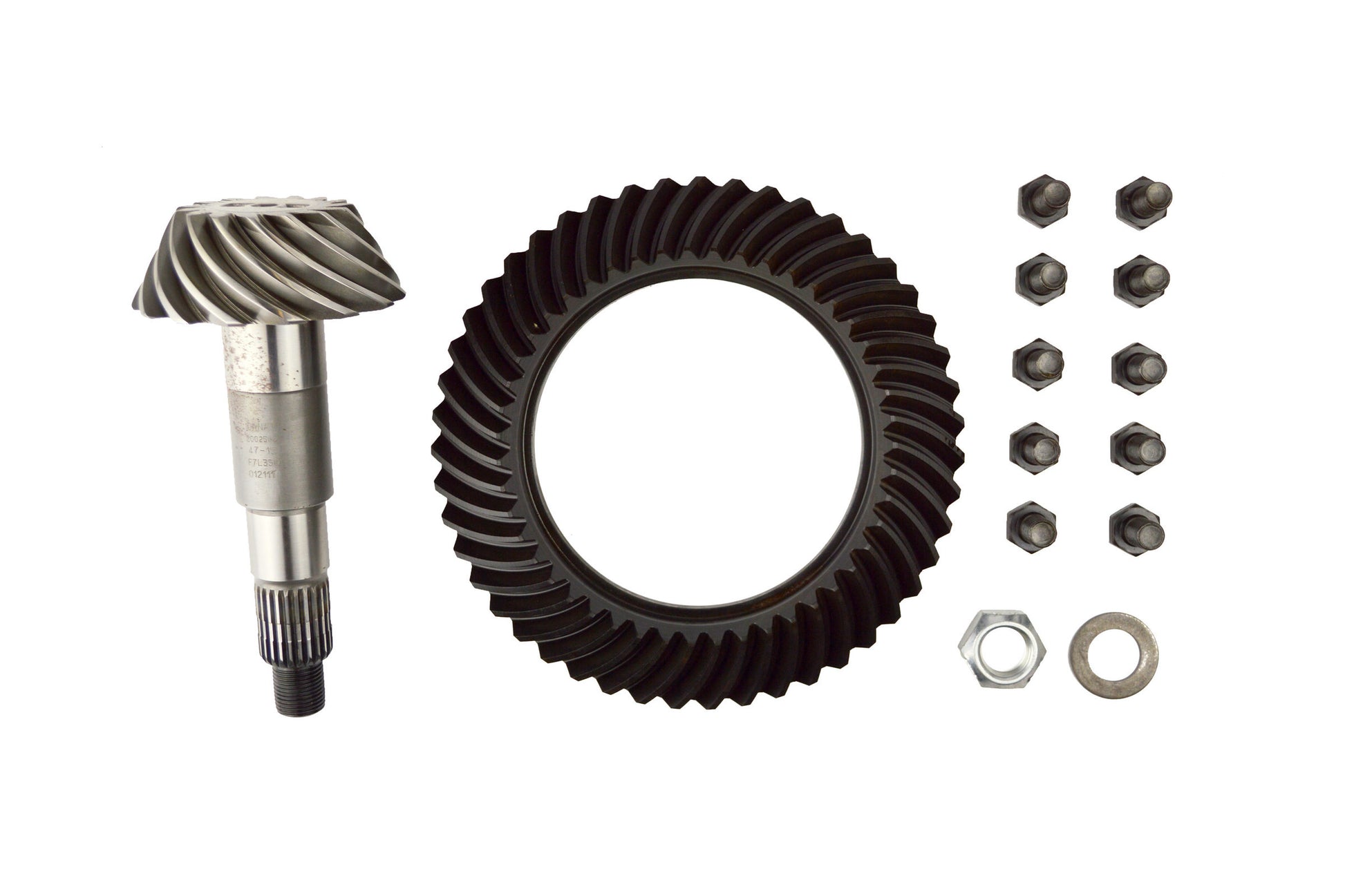

Spicer 2002561-5 - Gear Set DANA S44-3.13 - Pinion is 24 Spline If Original 29 Must Change Flange
Spicer 2002561-5 - Gear Set DANA S44-3.13 - Pinion is 24 Spline If Original 29 Must Change Flange
SKU: FSGR-2002561-5
Regular price
$487.99 USD
Regular price
$655.45 USD
Sale price
$487.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 2002561-5 - Gear Set DANA S44-3.13 - Pinion is 24 Spline If Original 29 Must Change Flange
Gear Set DANA S44-3.13 - Pinion is 24 Spline If Original 29 Must Change Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
- Lapped to reduce noise and heat. Lubrication process allows for no break in period.
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
- High-grade steel for maximum durability.
Axle Model: DANA 44
Gear Ratio: 3.13
Ring Teeth Count: 47
Carrier Breaks: None
Cover Bolt Quantity: 10
Include Installation Kit: Y
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 15
Pinion Shaft Diameter: 1.627
Pinion Spline Count: 24
Ring Gear Bolt Qty: 10
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 8.900
Ring Gear Rotation: Standard
Axle Type: Semi Floating
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: Y
