Spicer 2-4-803 - DRIVE SHAFT END YOKE
Spicer 2-4-803 - DRIVE SHAFT END YOKE
SKU: FSGR-2-4-803
Regular price
$62.99 USD
Regular price
$83.72 USD
Sale price
$62.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

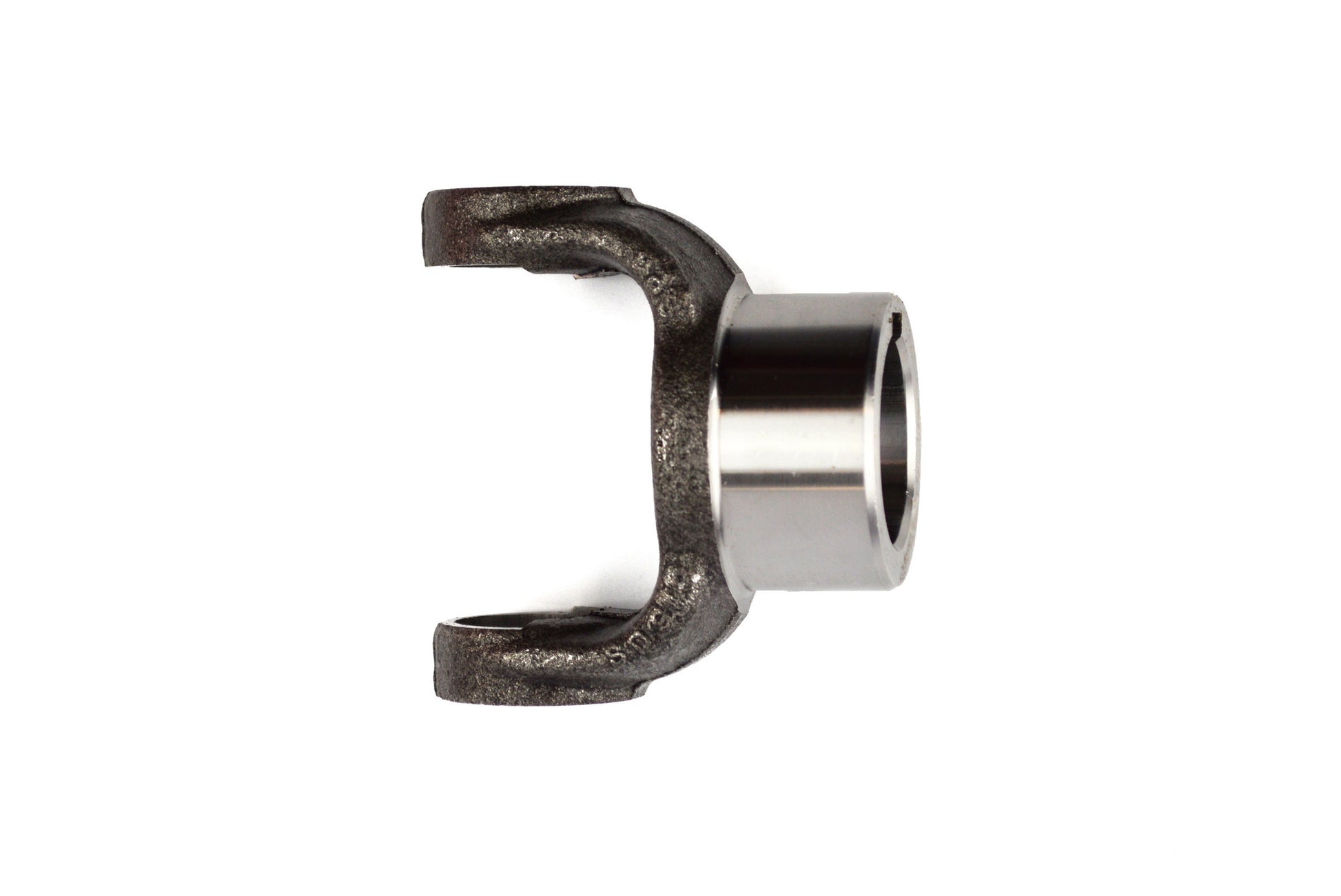

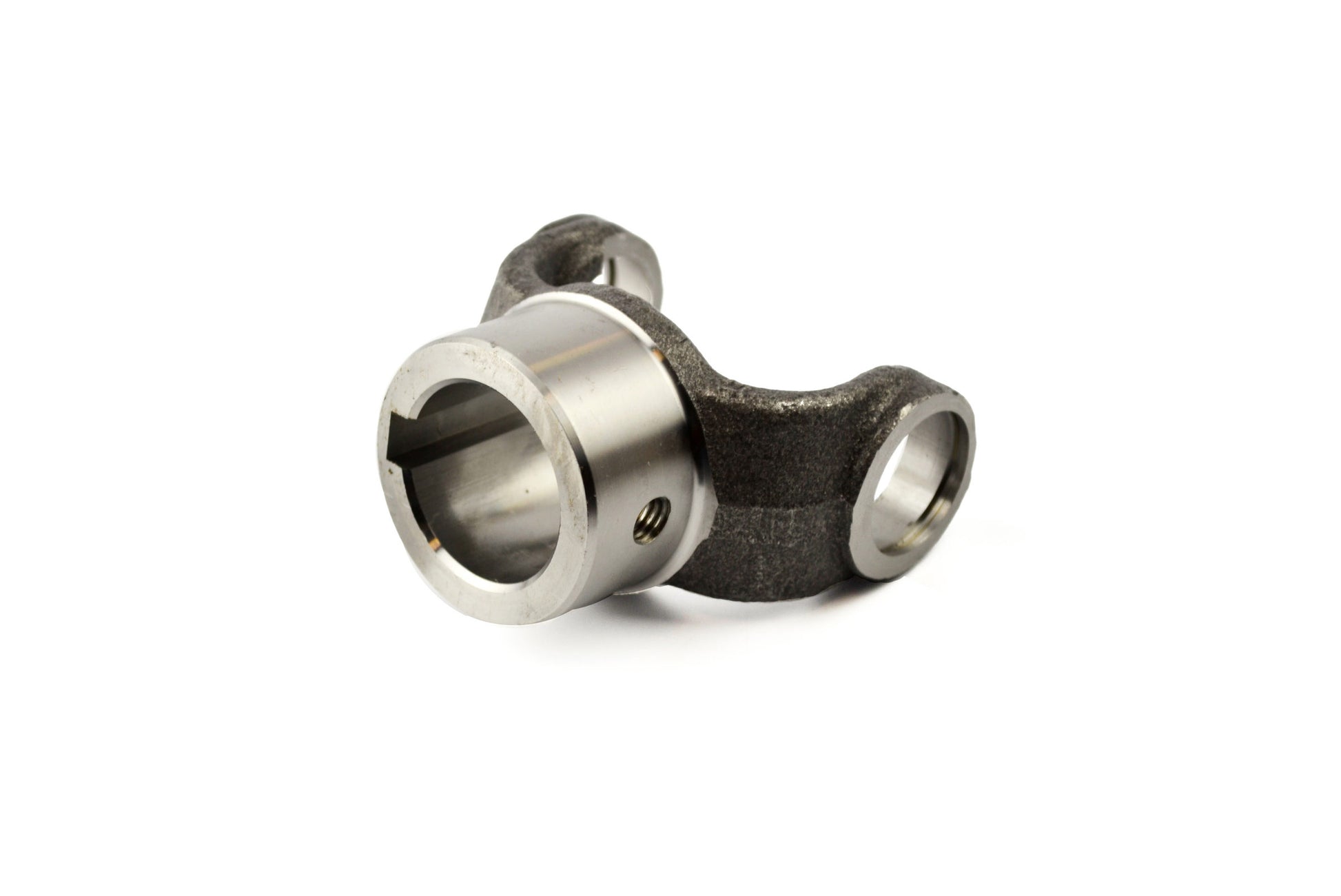

Spicer 2-4-803 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Hole Diameter (In) P: 1.375
Hub Diameter R: 2.000
Involute Spline: N
Outside Yoke Dimension (In) E: 3.469
Yoke Bearing Dimension (In) D: 1.062
Yoke Style: SR
Keyway Location W: 12
Sae Keyway Width (In) X: 0.375
Series: 1310
Material: Steel
Type: Straight Round Hole
Set Screw Location W: 6
C/L To End Hub S: 2.562
Joint Angle #1: 17
Set Screw Hole Diameter (In): 0.375
Keyway Width - Max: 0.378
Keyway Width - Min: 0.376
