Spicer 2-4-783-1 - 1310 SERIES END YOKE
Spicer 2-4-783-1 - 1310 SERIES END YOKE
SKU: FSGR-2-4-783-1
Regular price
$73.99 USD
Regular price
$99.15 USD
Sale price
$73.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

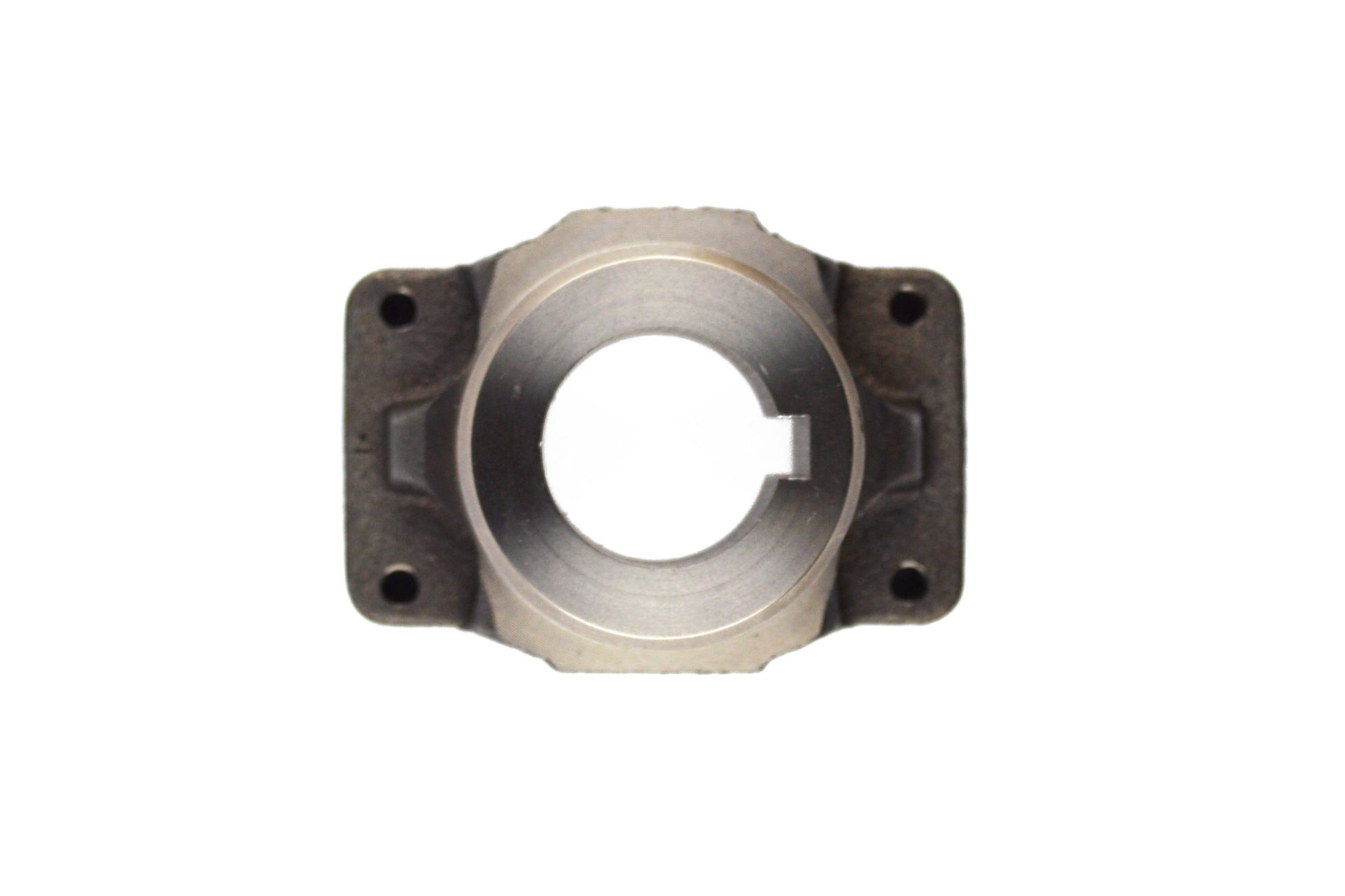

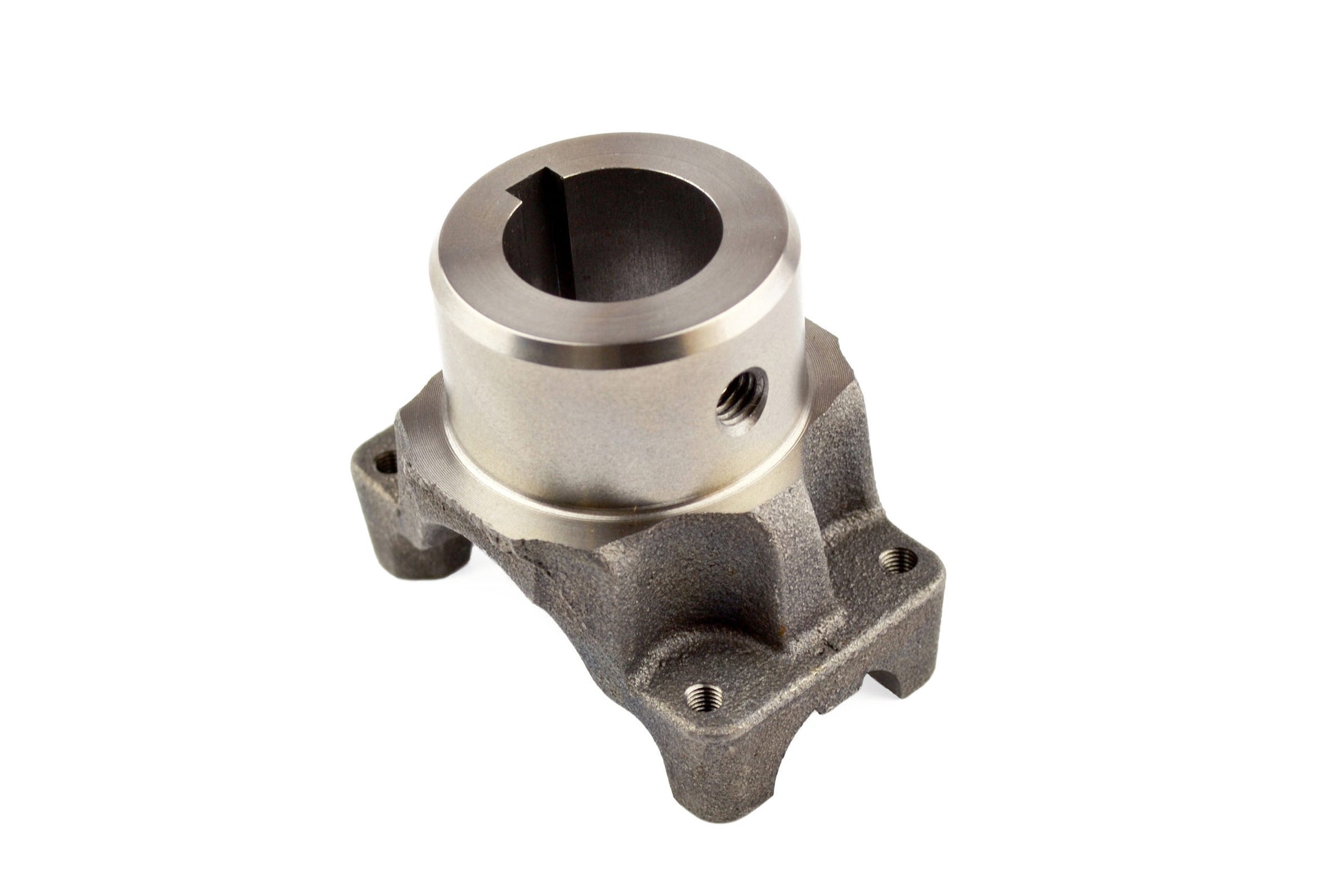

Spicer 2-4-783-1 - 1310 SERIES END YOKE
1310 SERIES END YOKE
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: 1310
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.250
Hub Diameter R: 2.120
Involute Spline: N
Length Thru Hole Q: 1.495
Outside Yoke Dimension (In) E: 3.219
Yoke Bearing Dimension (In) D: 1.062
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.314
Set Screw Location W: 6
C/L To End Hub S: 2.935
Joint Angle #1: 22
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.2505
Hole Diameter - Min: 1.2495
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
