Spicer 2-4-433 - DRIVE SHAFT END YOKE

Spicer 2-4-433 - DRIVE SHAFT END YOKE

Spicer | 2-4-433
SKU: FSGR-2-4-433
$341.99 USD
$459.02 USD $341.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

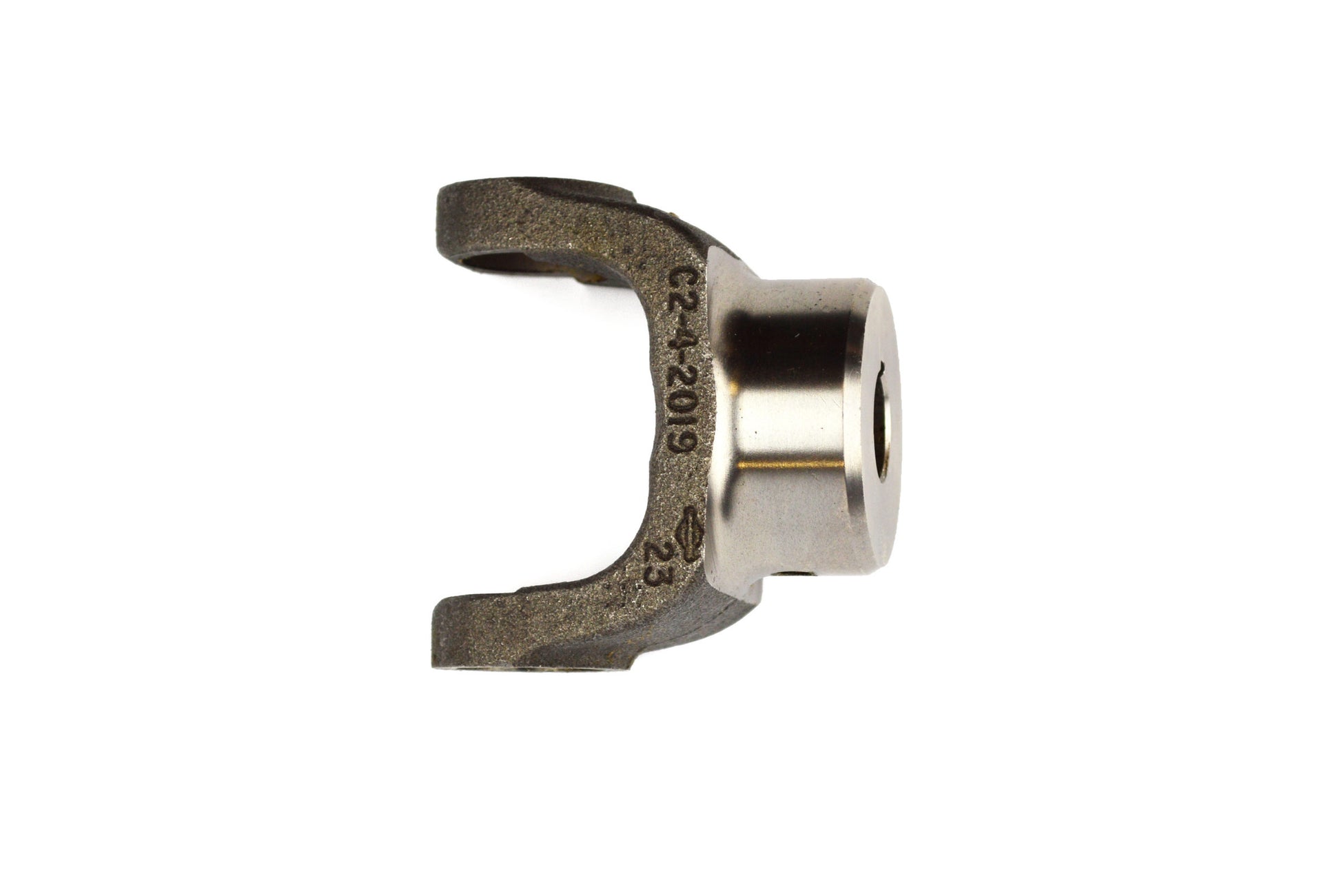

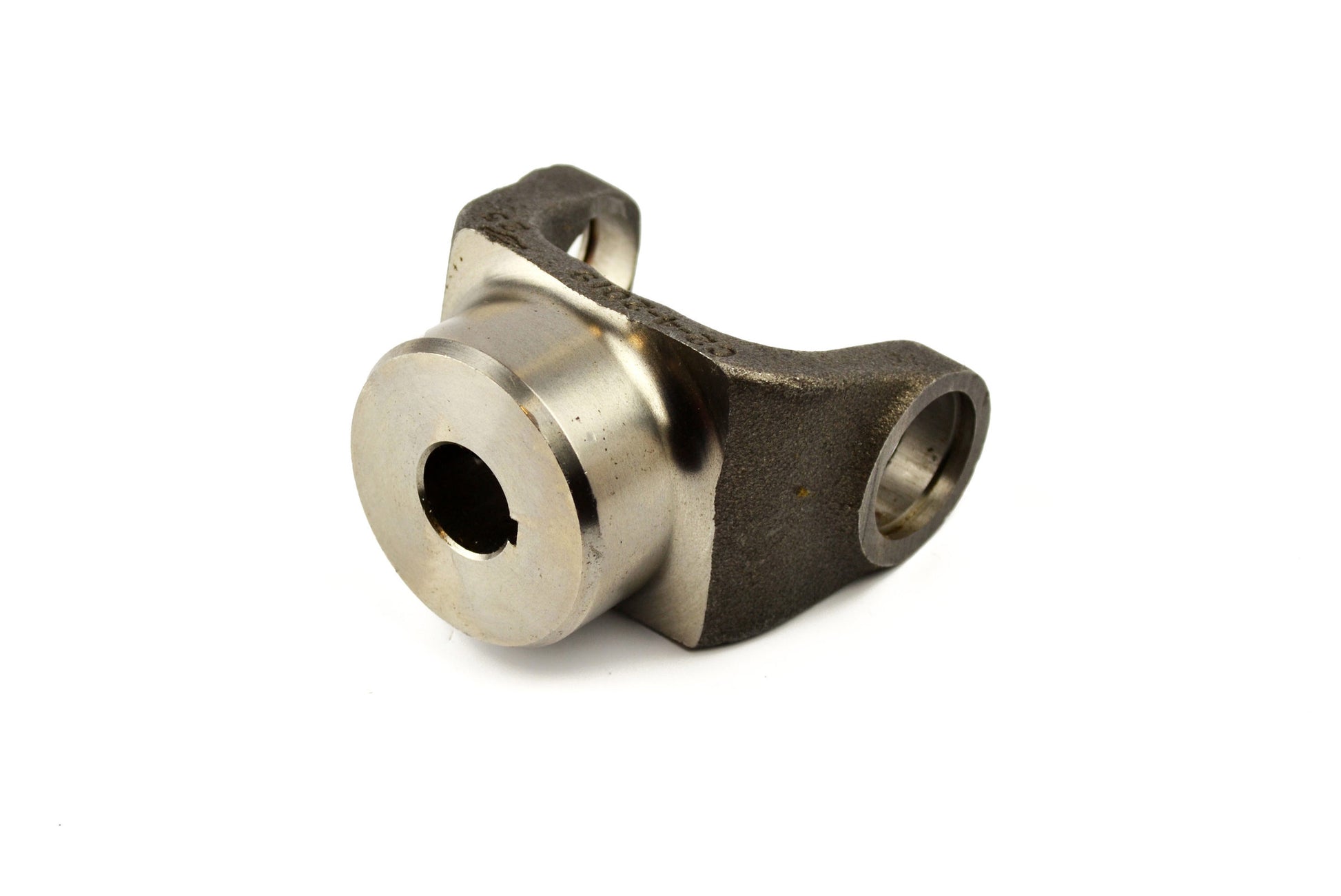

Spicer 2-4-433 - DRIVE SHAFT END YOKE

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: 1310
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 0.750
Hub Diameter R: 2.125
Involute Spline: N
Outside Yoke Dimension (In) E: 3.469
Yoke Bearing Dimension (In) D: 1.062
Yoke Style: SR
Keyway Location W: 12
Sae Keyway Width (In) X: 0.188
Set Screw Location W: 6
C/L To End Hub S: 2.562
Joint Angle #1: 17
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 0.7505
Hole Diameter - Min: 0.7495
Keyway Width - Max: 0.1875
Keyway Width - Min: 0.1865
