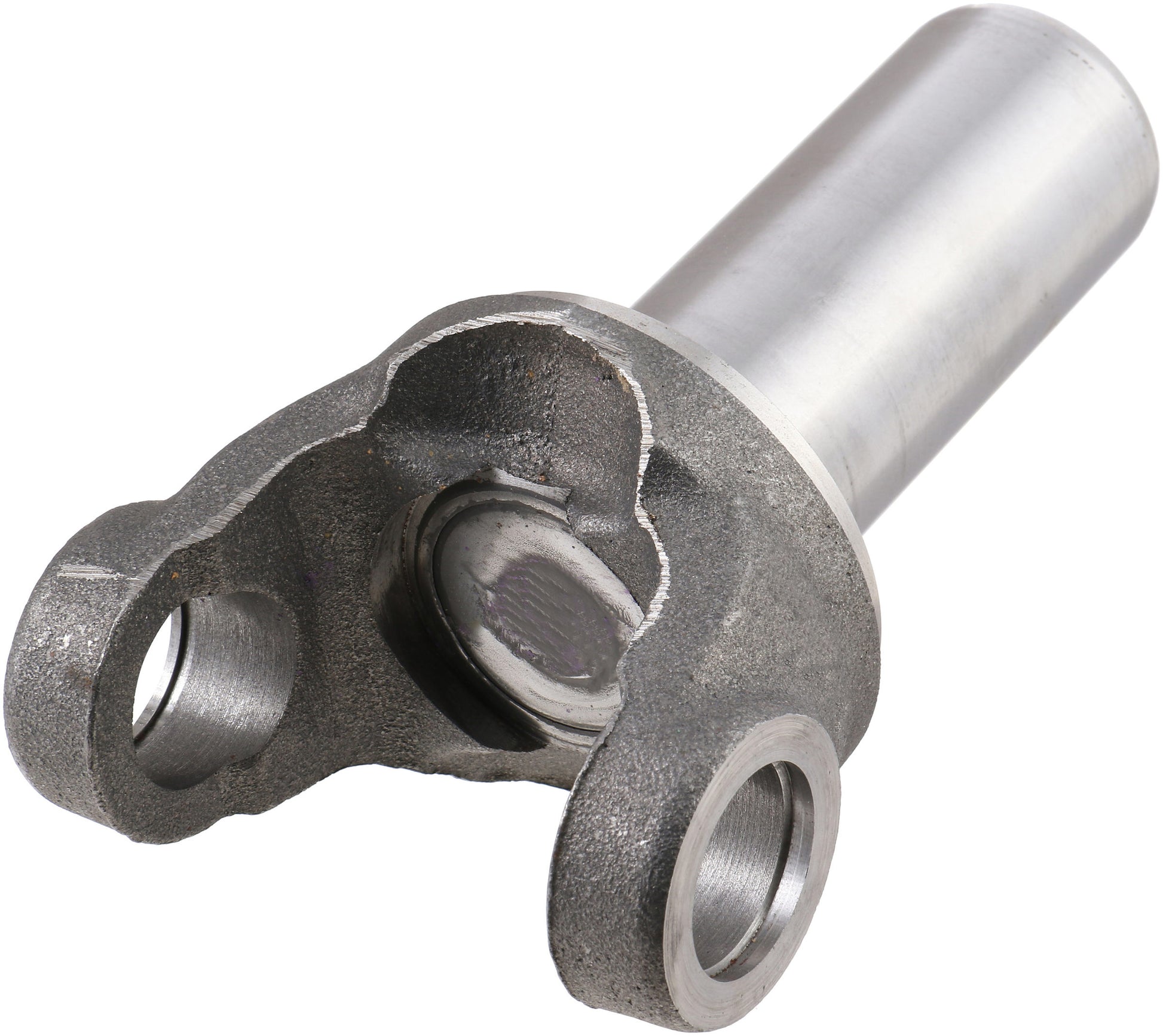

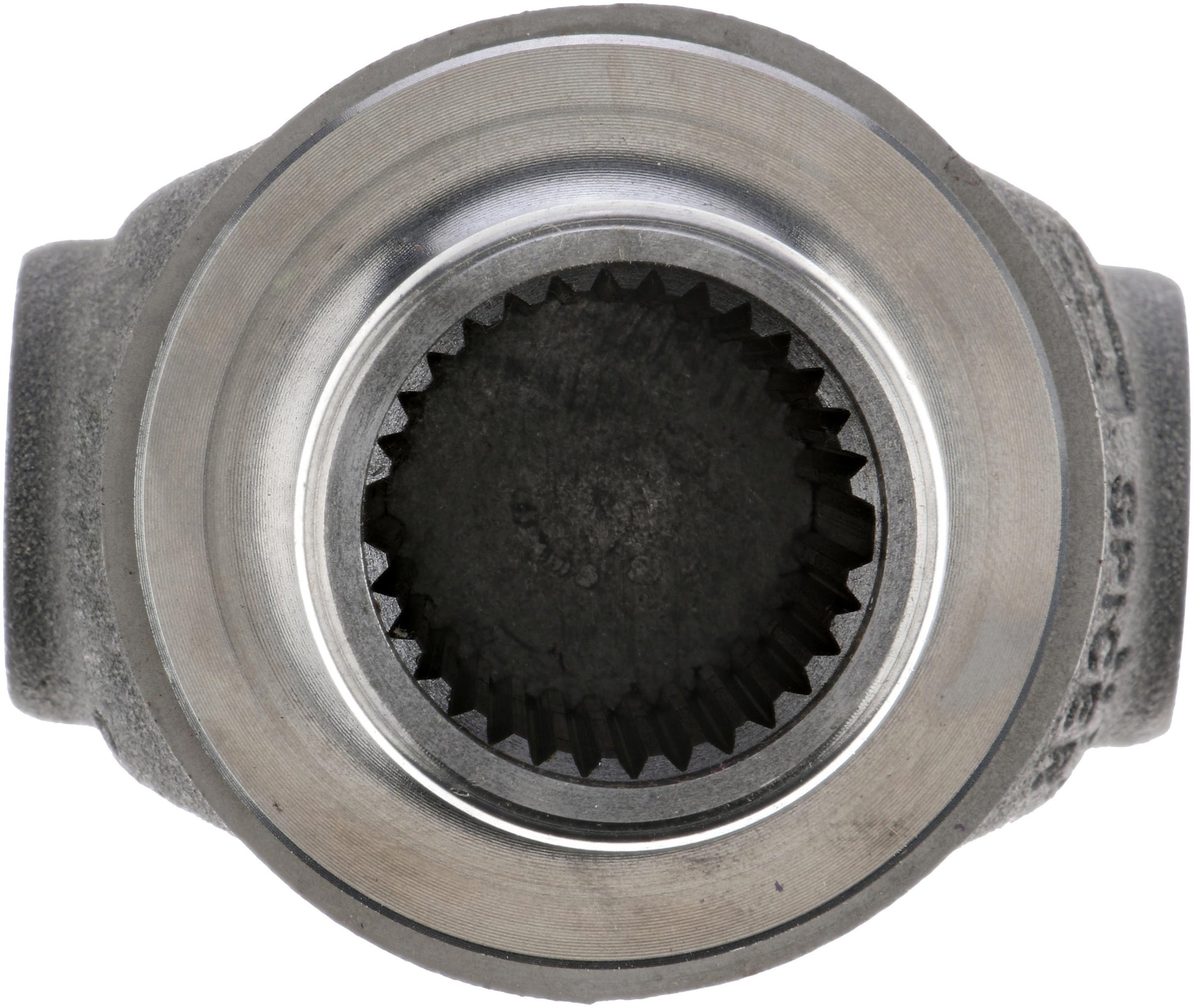

Spicer 2-3-15871X - Drive Shaft Transmission Slip Yoke
Spicer 2-3-15871X - Drive Shaft Transmission Slip Yoke
SKU: FSGR-2-3-15871X
Regular price
$122.99 USD
Regular price
$164.92 USD
Sale price
$122.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 2-3-15871X - Drive Shaft Transmission Slip Yoke
Drive Shaft Transmission Slip Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Quench And Tempered (Heat Treated)
- High Strength Forged
- Precision Machined
- Electroless Nickle-Plated
Series: 1330
Material: Steel
Style: SR
No. Of Splines: 30/32 I
Bearing Cap Diameter (D) In.: 1.062
Outside Yoke Dimension (E) In.: 3.875
Spline O.D. (STD): 1.378
To End Of Spline (J) In.: 6.102
Spline O.D. (MM): 35
Hub Diameter (R) In.: 1.731
Counter Bore Diameter: 1.375
Counter Bore Depth: .393
Number of Splines Based On: 32
Involute: I
C-Line to Washer Face: 1.128
Type of Hub: Ground Hub
