Spicer 2-1-933 - Drive Shaft Companion Flange
Spicer 2-1-933 - Drive Shaft Companion Flange
SKU: FSGR-2-1-933
Regular price
$231.99 USD
Regular price
$310.98 USD
Sale price
$231.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

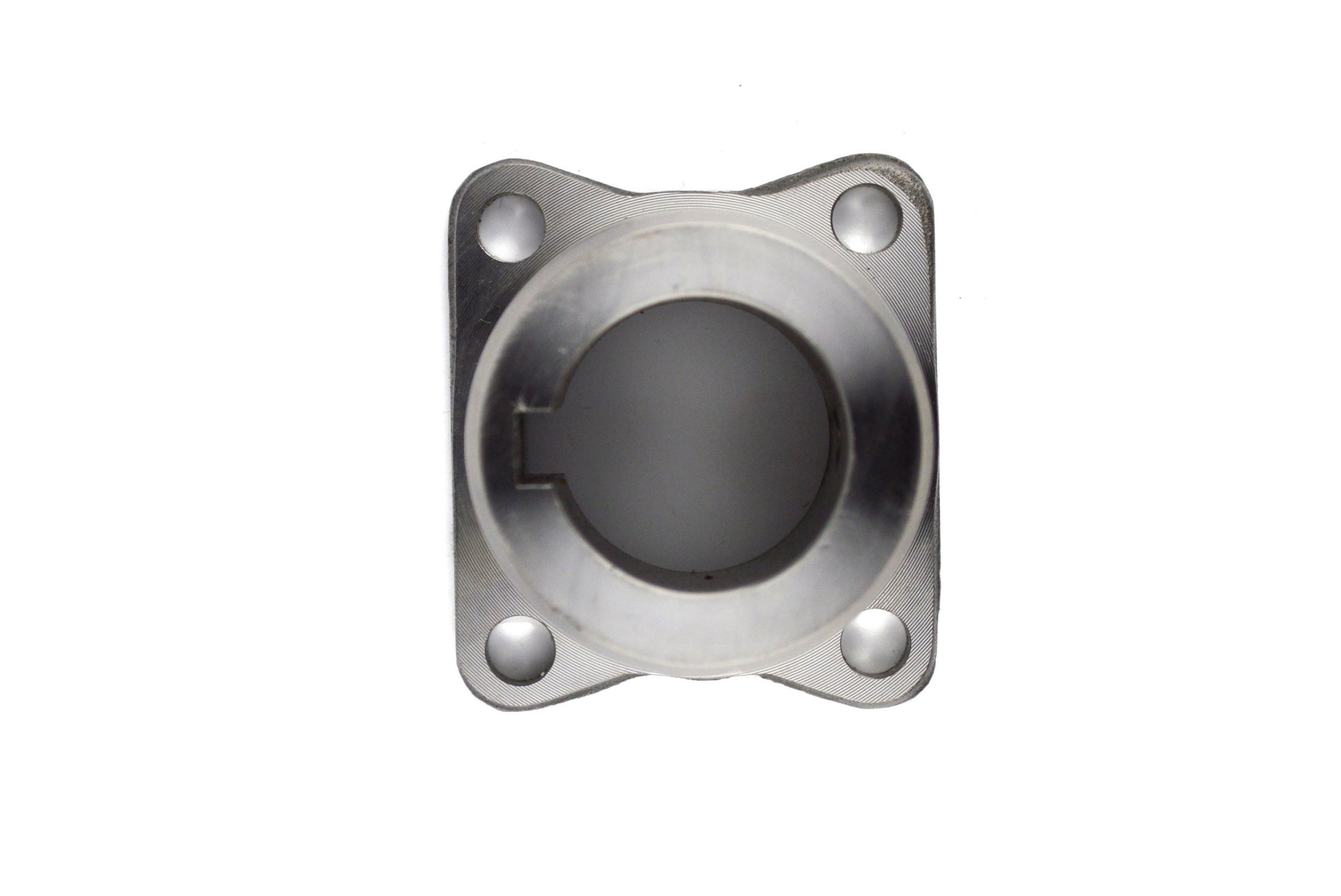

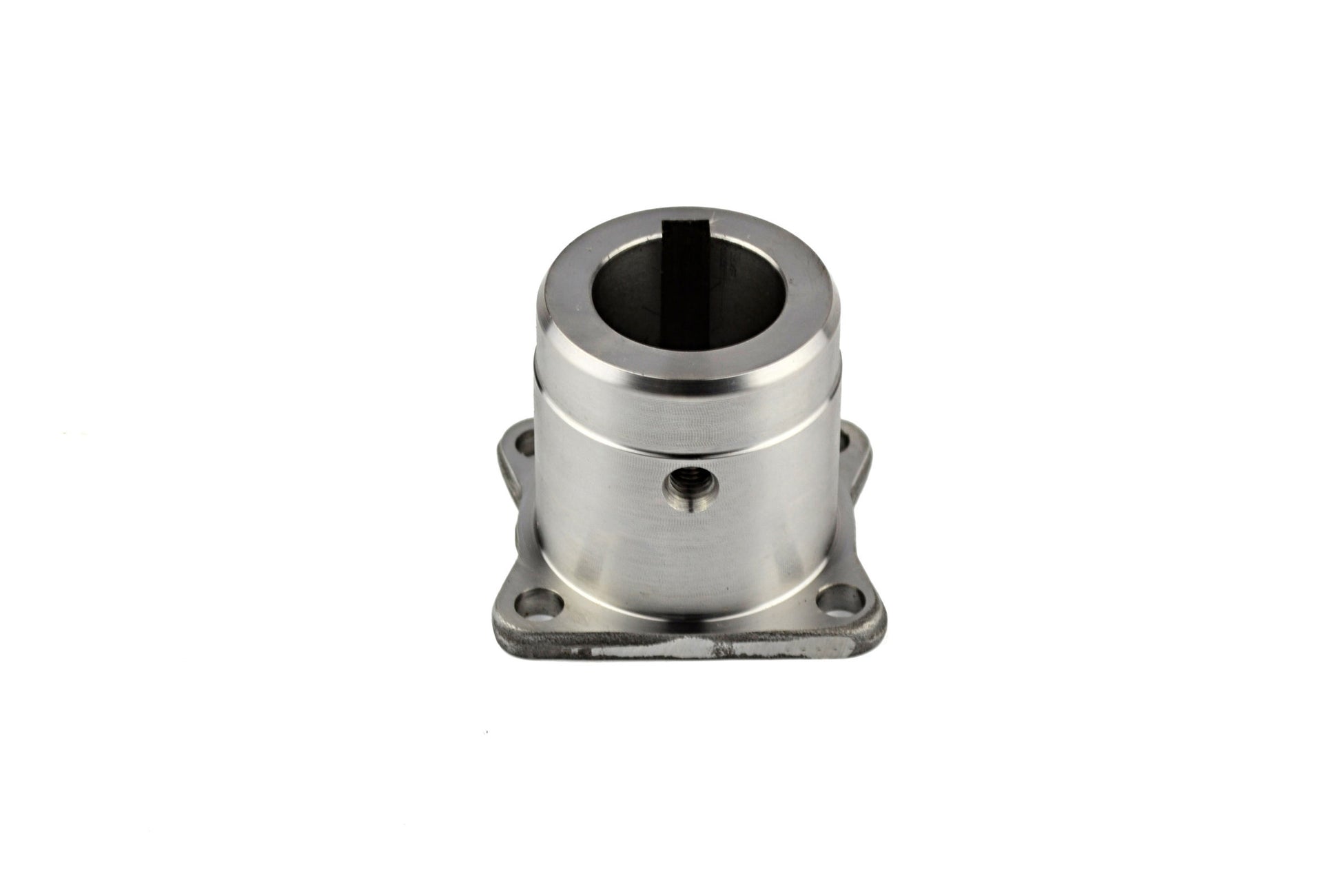

Spicer 2-1-933 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1310
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.375 - FEMALE
Bolt Circle Diameter (B) In.: 3.125
Flange Type: Rectangular
Actual Hole Diameter (Max): 1.5005
Actual Hole Diameter (Min): 1.4995
Actual Keyway Width (Max): 0.378
Actual Keyway Width (Min): 0.376
Bore Diameter (D) In.: 1.500
Circ Flnge Face To End Of Hub: 2.625
Flange Width Diameter (A) In.: 3.8
Hub Diameter (E) In.: 2.438
Key Width (K) In.: 0.375
Rect Flnge Face End Of Hub (G): 2.625
Rect Lngth Thru Hole (F): 2.000
Set Loc. ( Hub & Keyway At 12): 6
Set Screw Hole Diameter In.: 0.375
