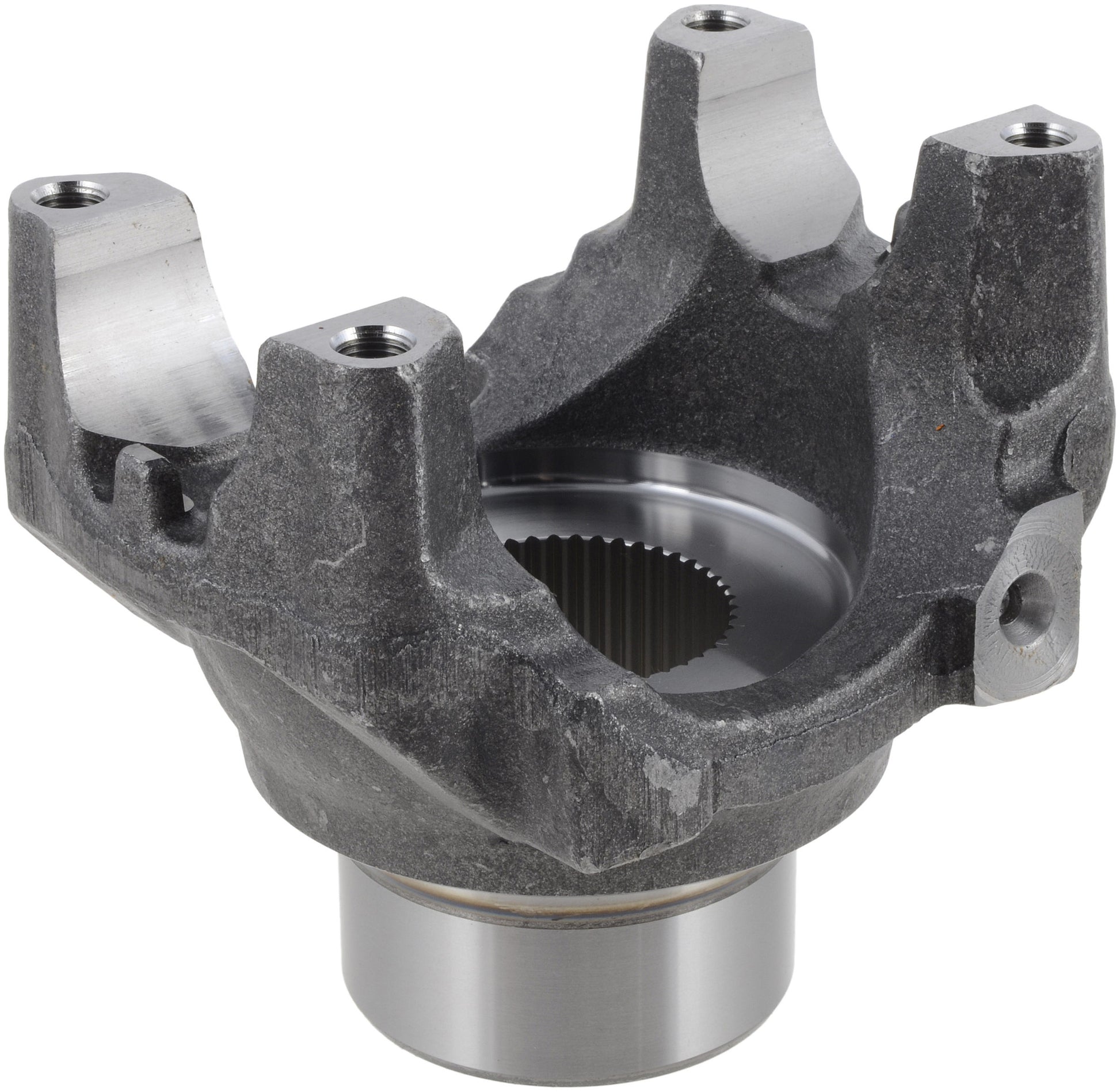

  • Product Image 1

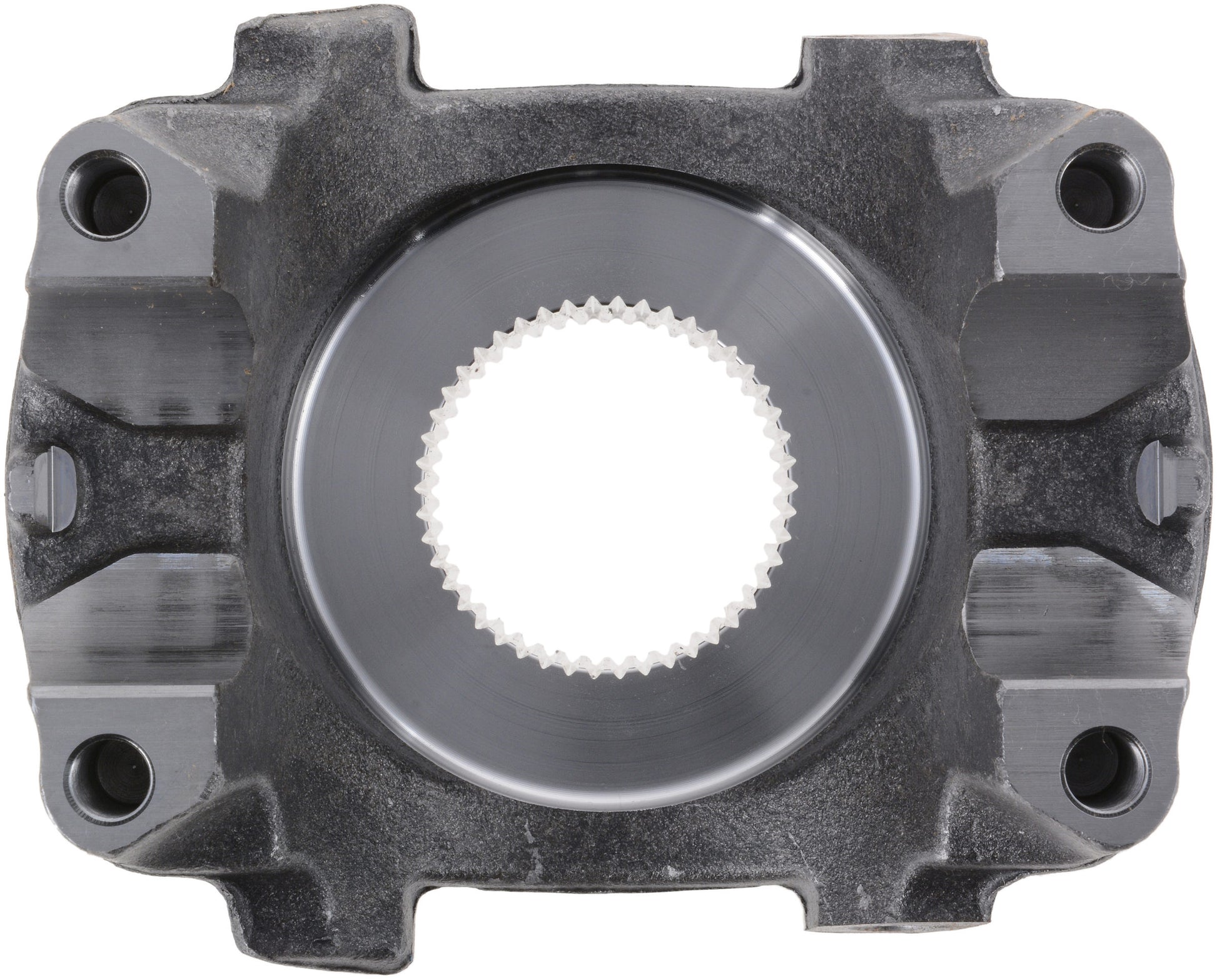

  • Product Image 2

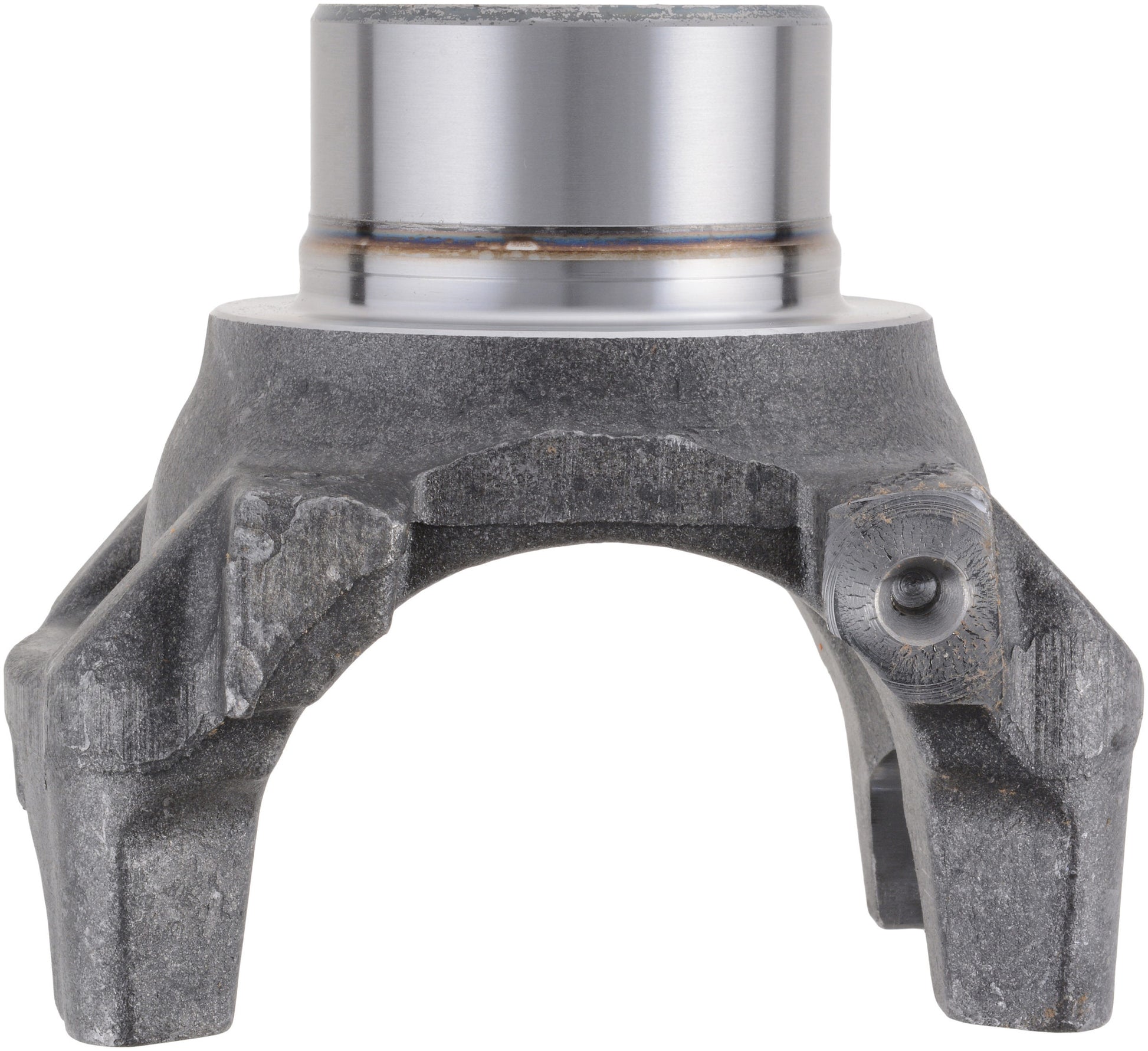

  • Product Image 3
1 3

Spicer 170-4-1681-1 - DRIVE SHAFT END YOKE

Spicer 170-4-1681-1 - DRIVE SHAFT END YOKE

Spicer | 170-4-1681-1
SKU: FSGR-170-4-1681-1
$325.99 USD
$438.49 USD $325.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 170-4-1681-1 - DRIVE SHAFT END YOKE

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL170
Material: Steel
Spline Count: 46
Type: Splined Hole
Assembly: N
Hub Diameter R: 3.250
Includes Slinger/Plug: N
Involute Spline: I
Length Thru Hole Q: 2.875
Outside Yoke Dimension (In) E: 6.456
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.390
C/L To End Hub S: 5.760
C-Bore Depth: 0.140
Joint Angle #1: 25
