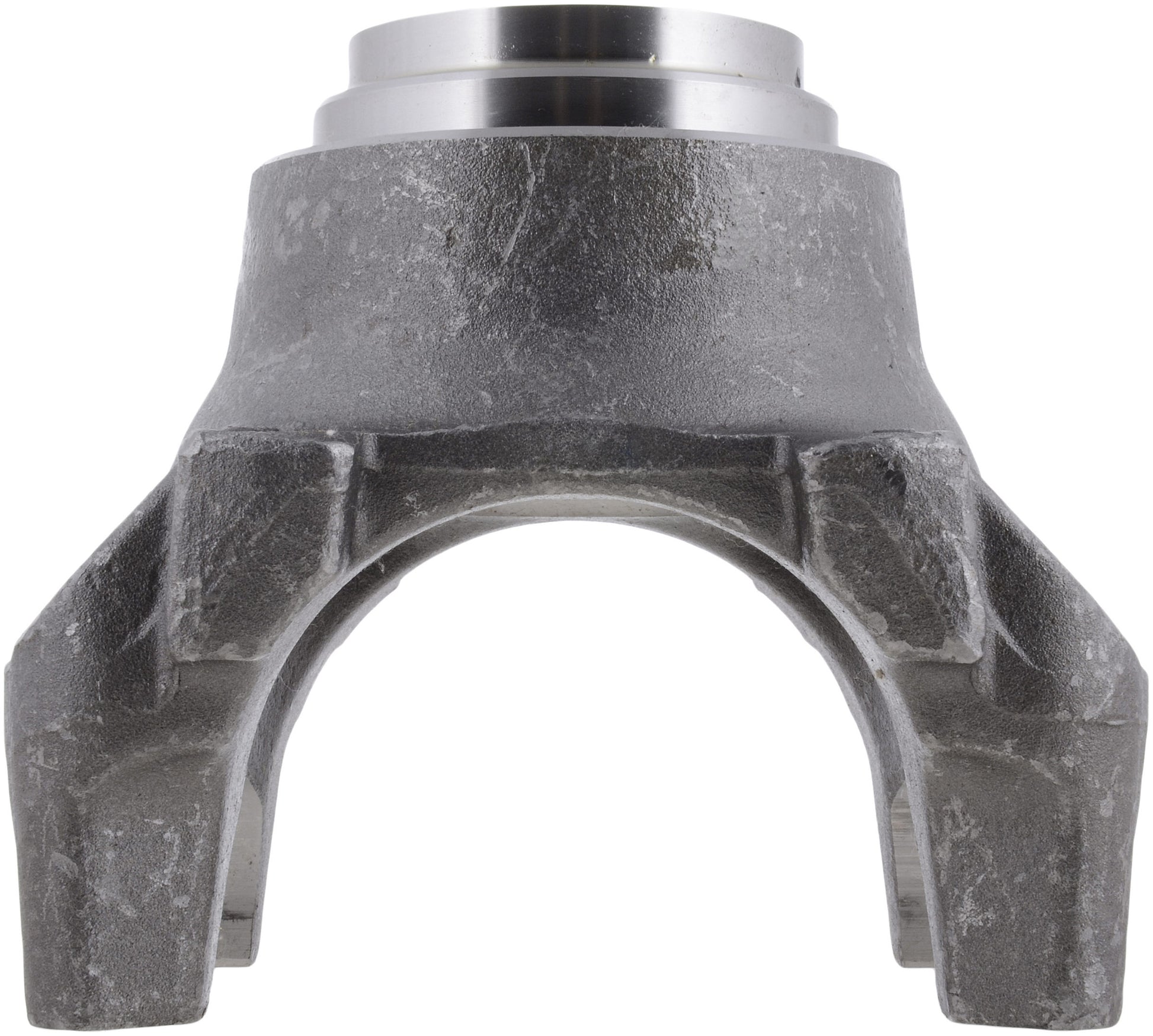

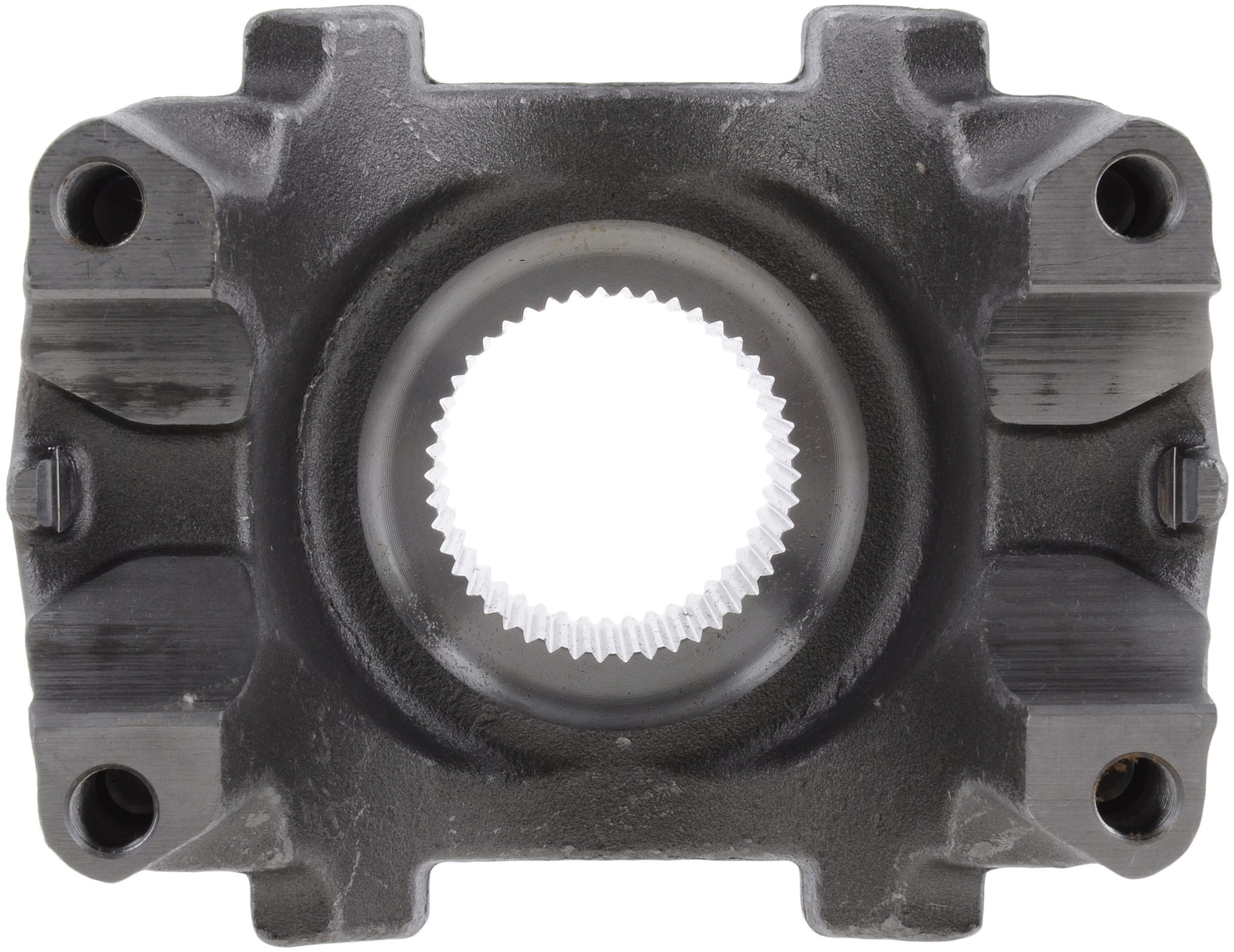

Spicer 170-4-1271-1 - DRIVE SHAFT END YOKE
Spicer 170-4-1271-1 - DRIVE SHAFT END YOKE
SKU: FSGR-170-4-1271-1
Regular price
$249.99 USD
Regular price
$336.30 USD
Sale price
$249.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 170-4-1271-1 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: SPL170
Material: Steel
Spline Count: 46
Type: Splined Hole
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.390
C/L To End Hub S: 5.590
C-Bore Depth: 0.157
C-Bore Diameter: 2.4409
Joint Angle #1: 25
Assembly: N
Hub Diameter R: 2.879
Includes Slinger/Plug: N
Involute Spline: I
Length Thru Hole Q: 2.750
Outside Yoke Dimension (In) E: 6.456
