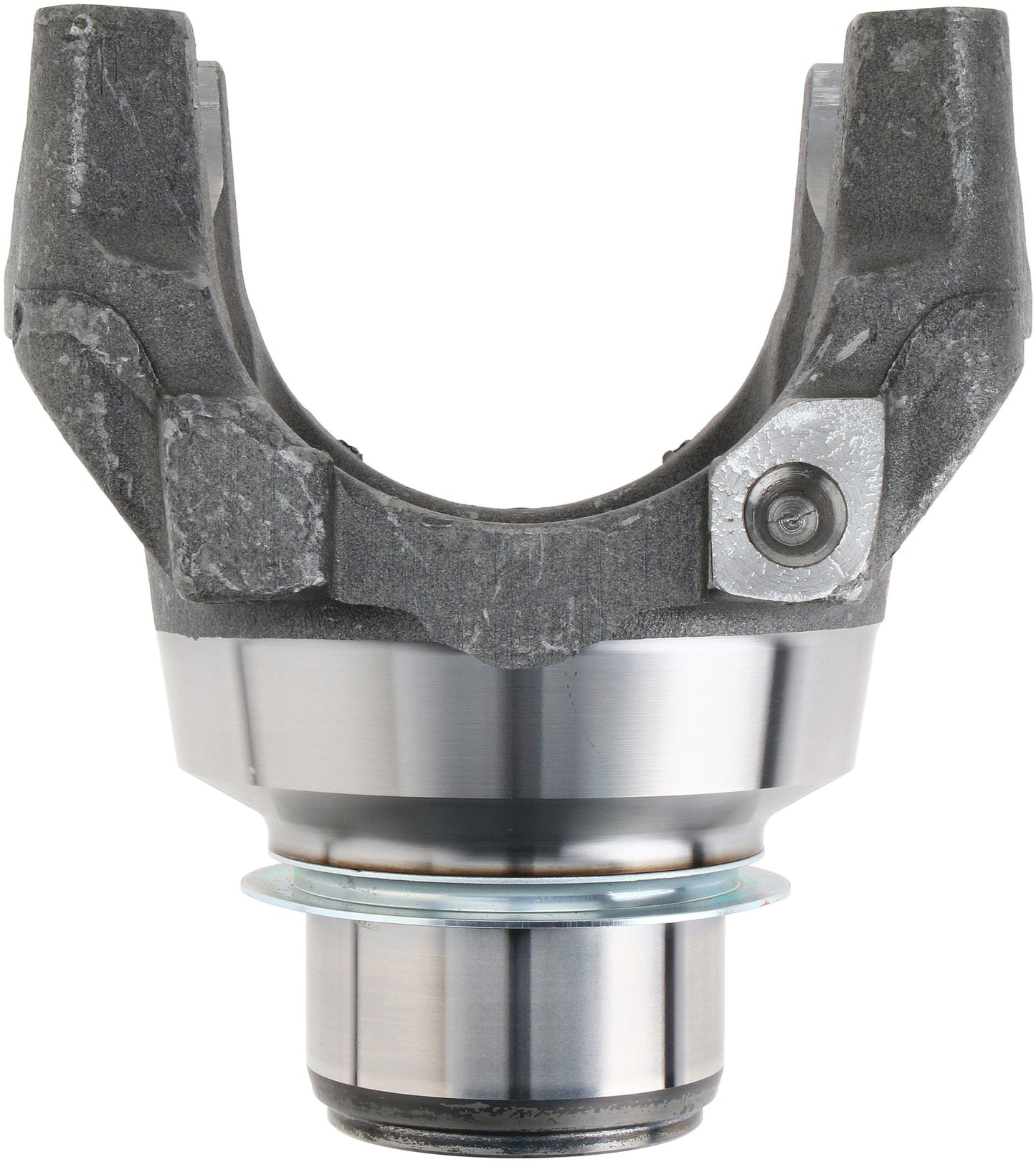

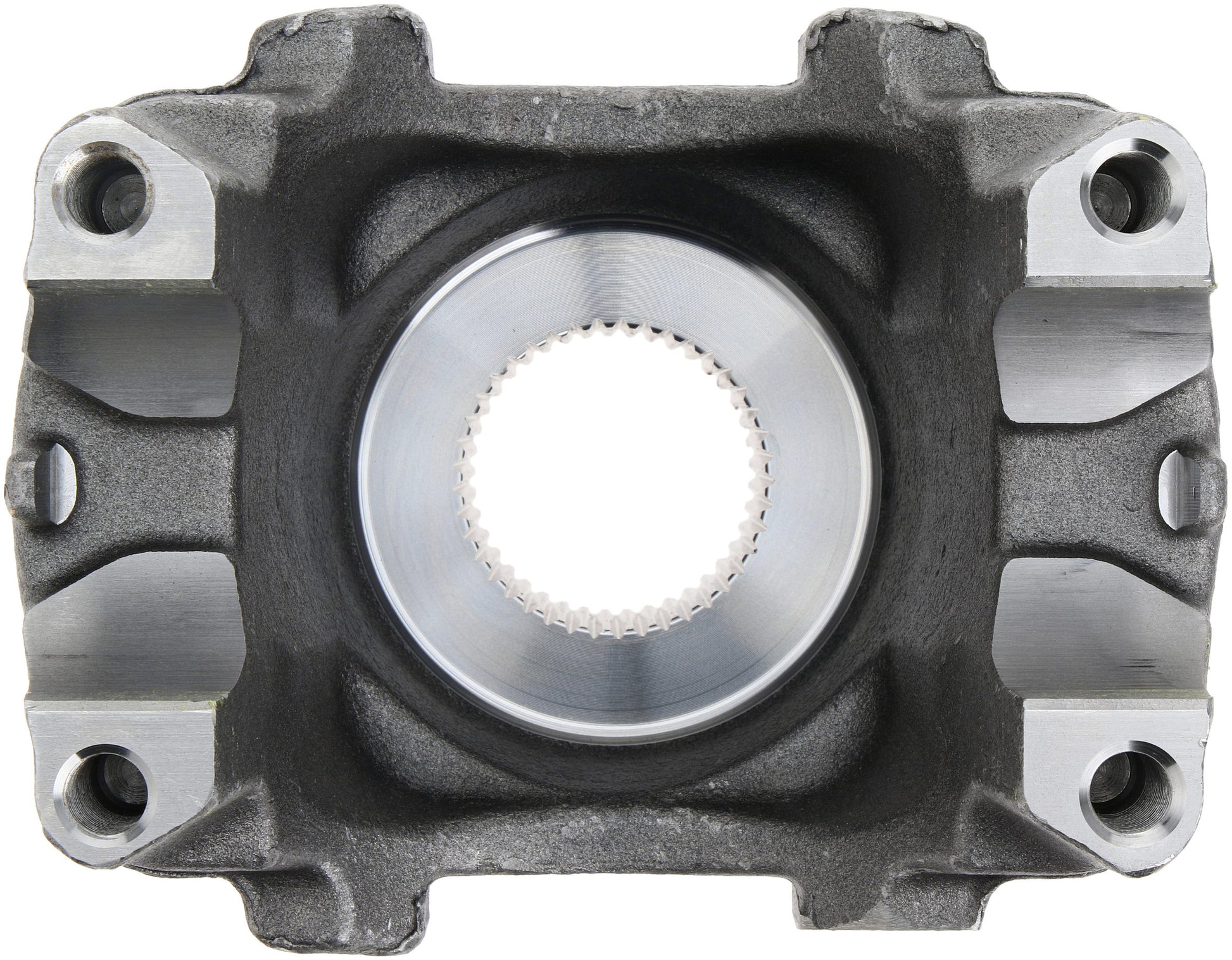

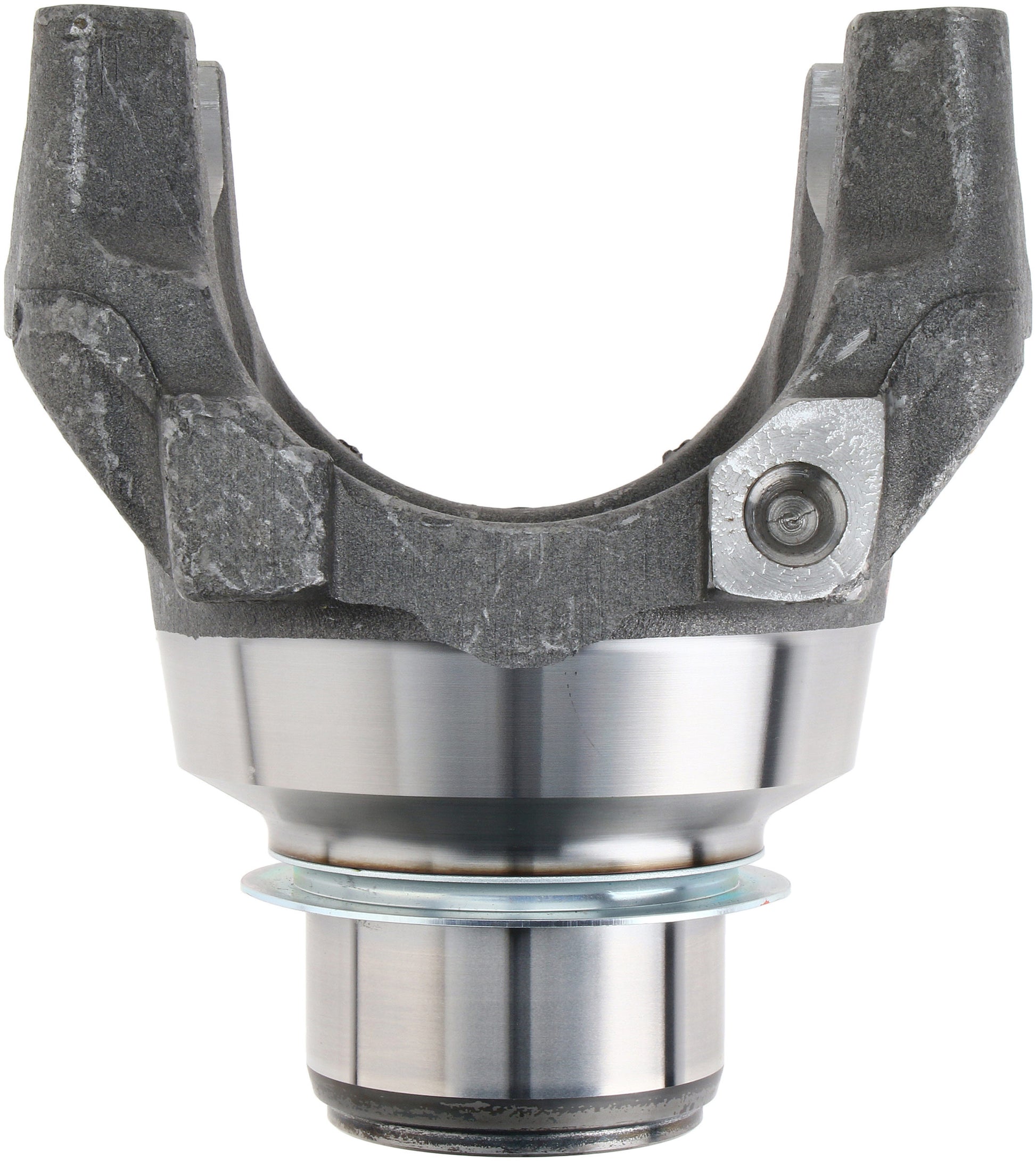

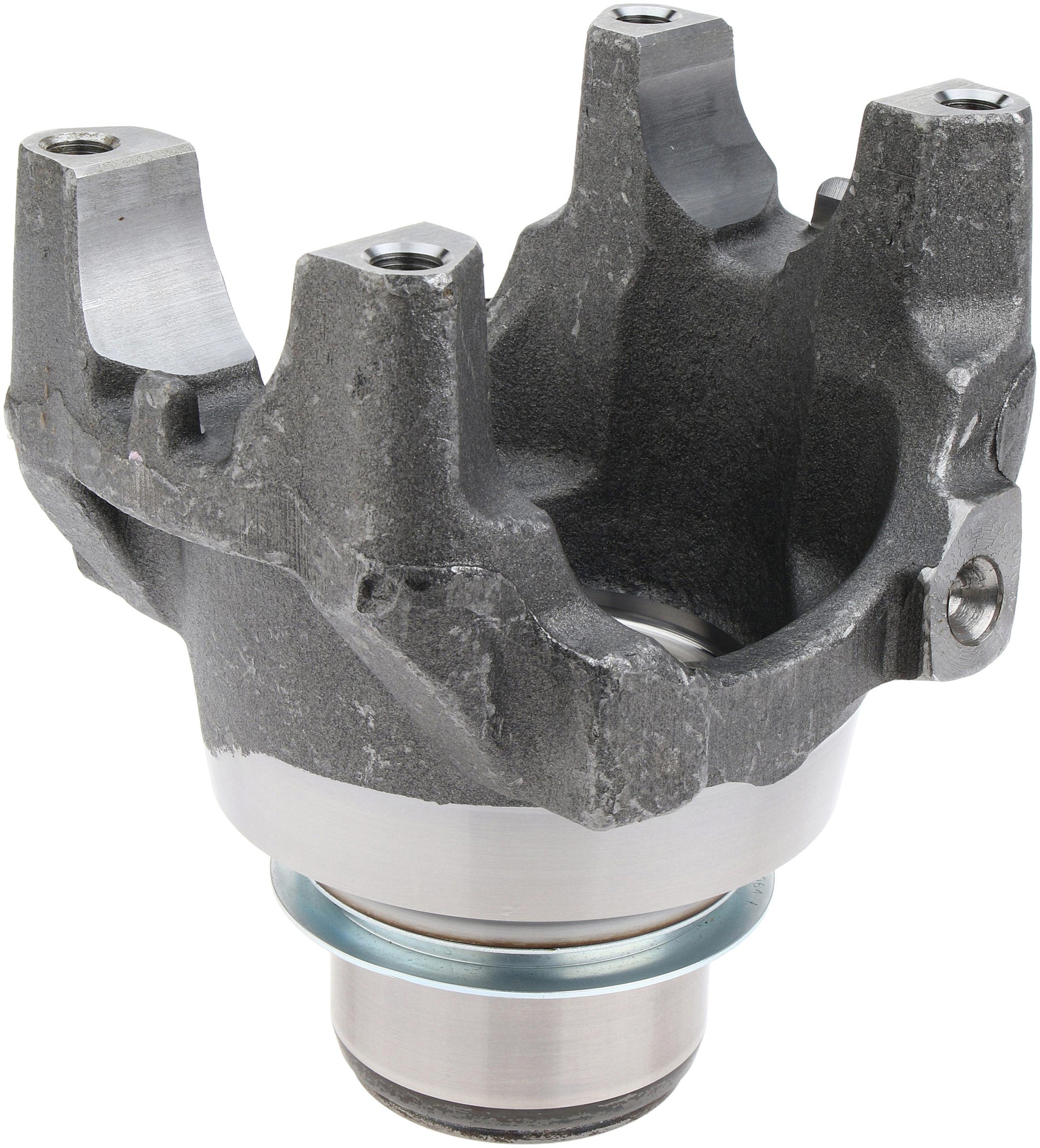

Spicer 170-4-10002595-1X - Differential End Yoke

Spicer 170-4-10002595-1X - Differential End Yoke

Spicer | 170-4-10002595-1X
SKU: FSGR-170-4-10002595-1X
$305.99 USD
$411.68 USD $305.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 170-4-10002595-1X - Differential End Yoke

Differential End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
Series: 170
Material: Steel
Spline Count: 41
Hub Diameter R: 2.938
Includes Slinger/Plug: 2023064
Involute Spline: Y
Length Thru Hole Q: 3.000
Outside Yoke Dimension (In) E: 6.456
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.143
C/L To End Hub S: 7.190
C-Bore Depth: 0.380
Joint Angle #1: 45
