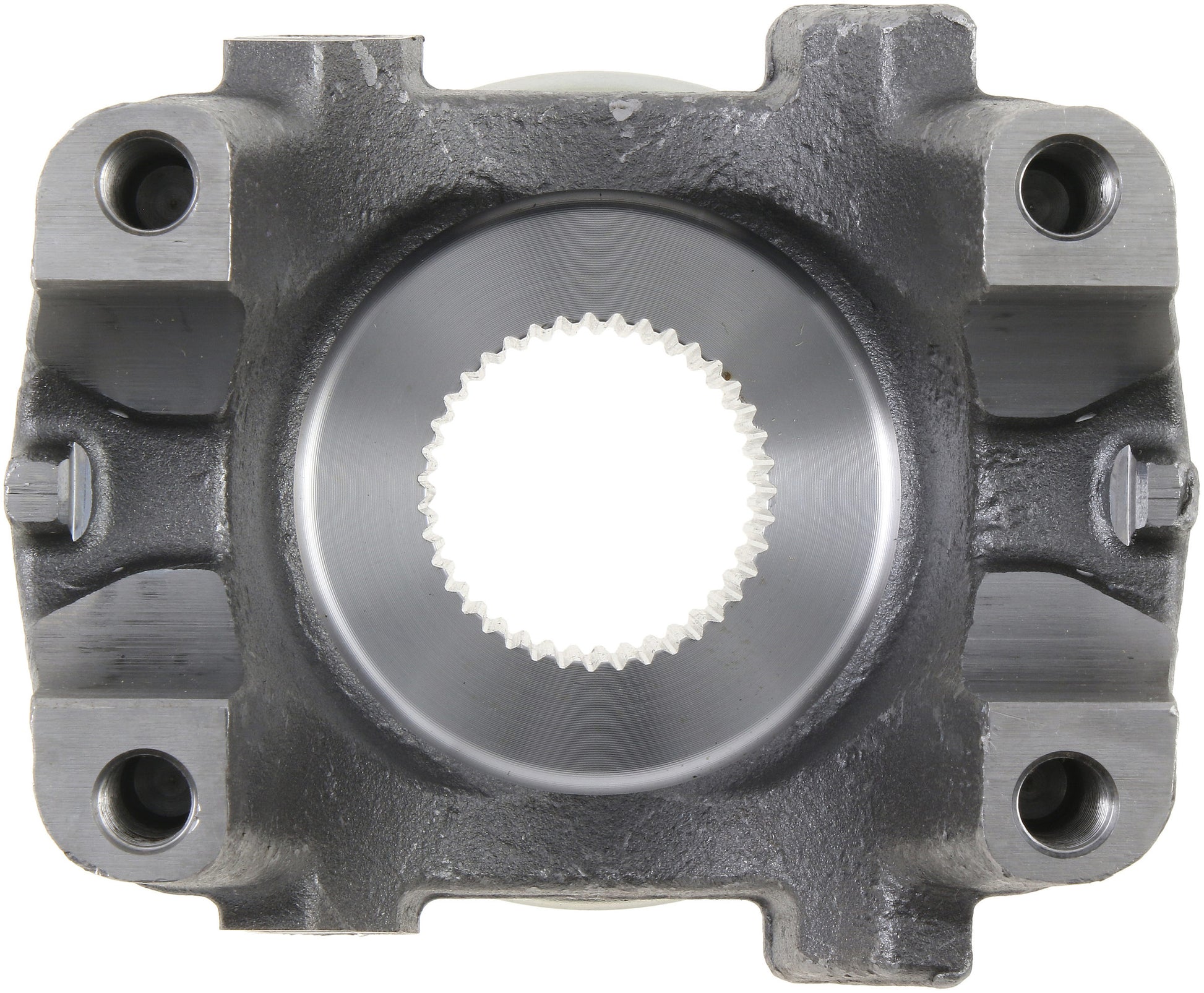

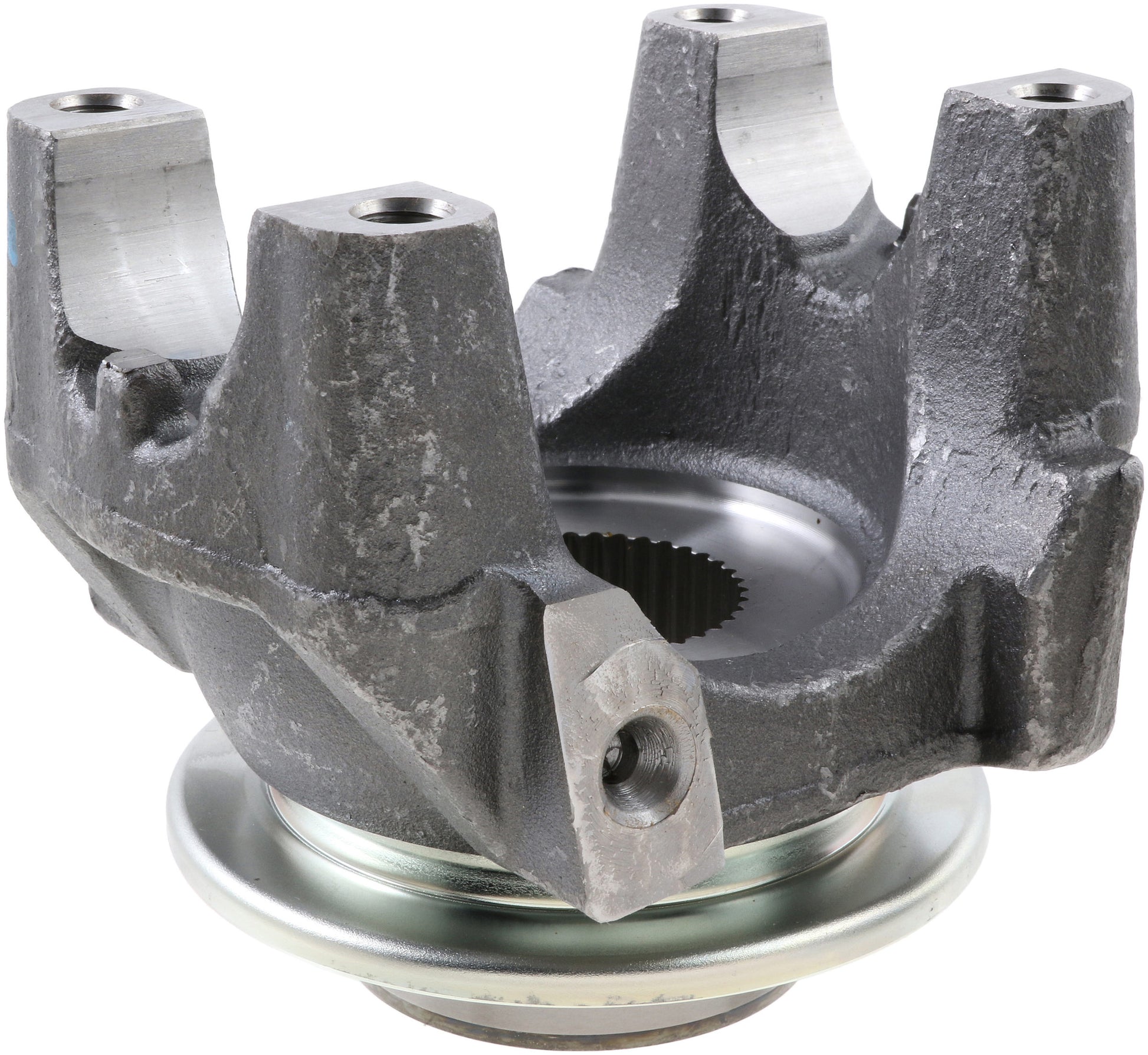

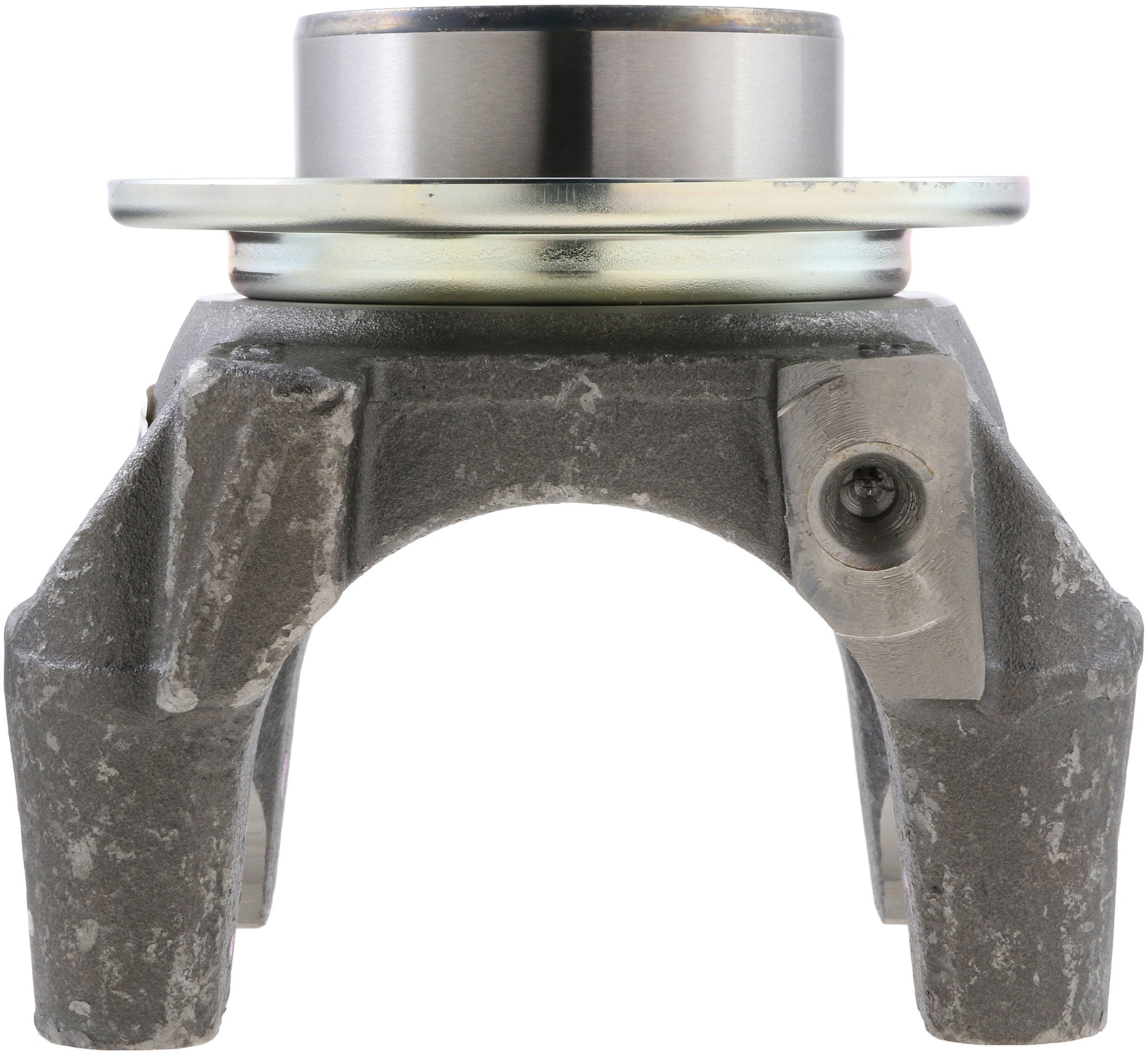

Spicer 140-4-1791-1X - End Yoke Assembly

Spicer 140-4-1791-1X - End Yoke Assembly

Spicer | 140-4-1791-1X
SKU: FSGR-140-4-1791-1X
$197.99 USD
$265.57 USD $197.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 140-4-1791-1X - End Yoke Assembly

End Yoke Assembly

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL140
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3
Includes Slinger/Plug: Y
Involute Spline: Y
Length Thru Hole Q: 2.284
Outside Yoke Dimension (In) E: 5.457
Yoke Bearing Dimension (In) D: 1.938
Yoke Style: HR
Major Diameter: 2.024
C/L To End Hub S: 4.94
C-Bore Depth: 0.25
