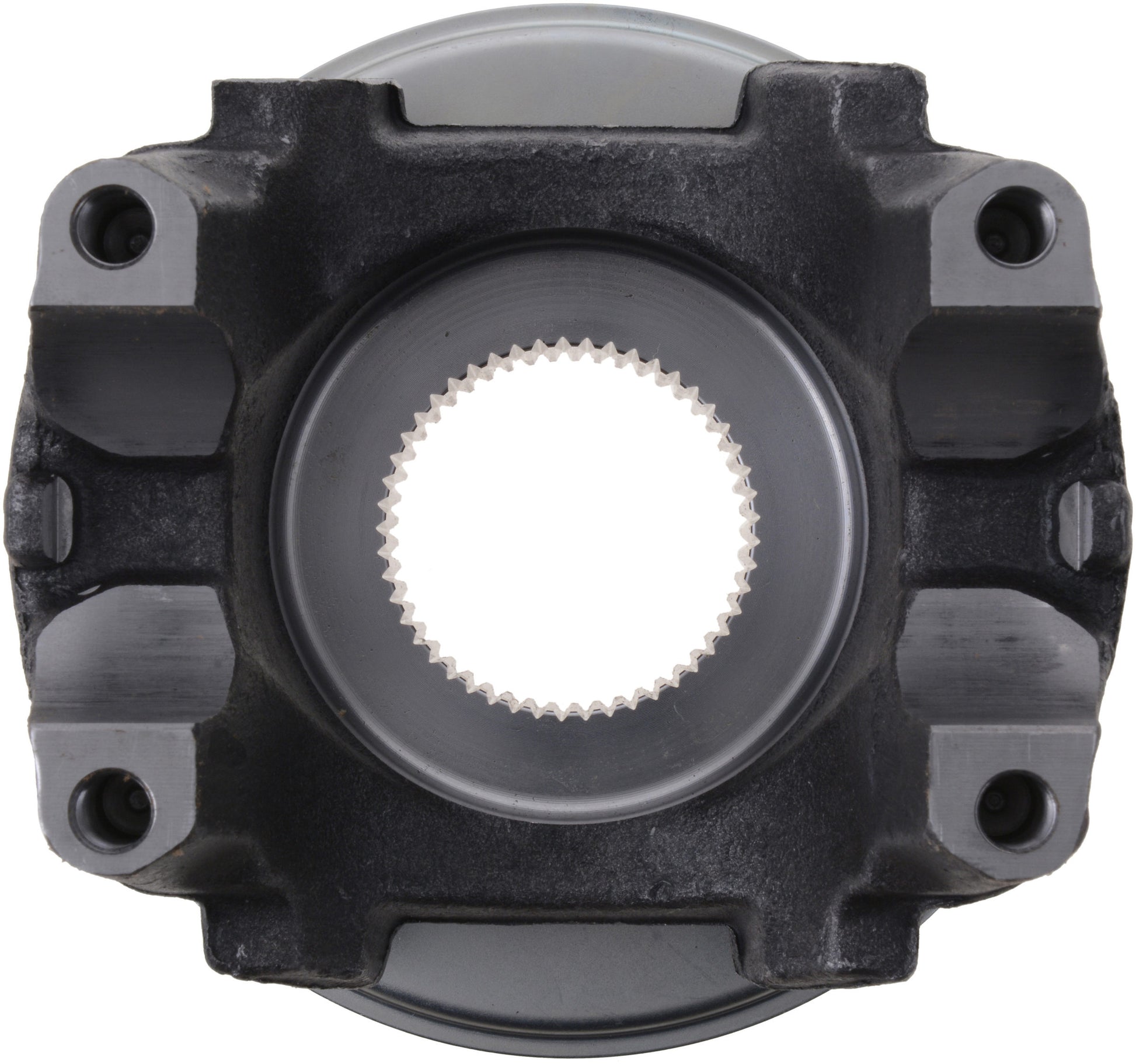

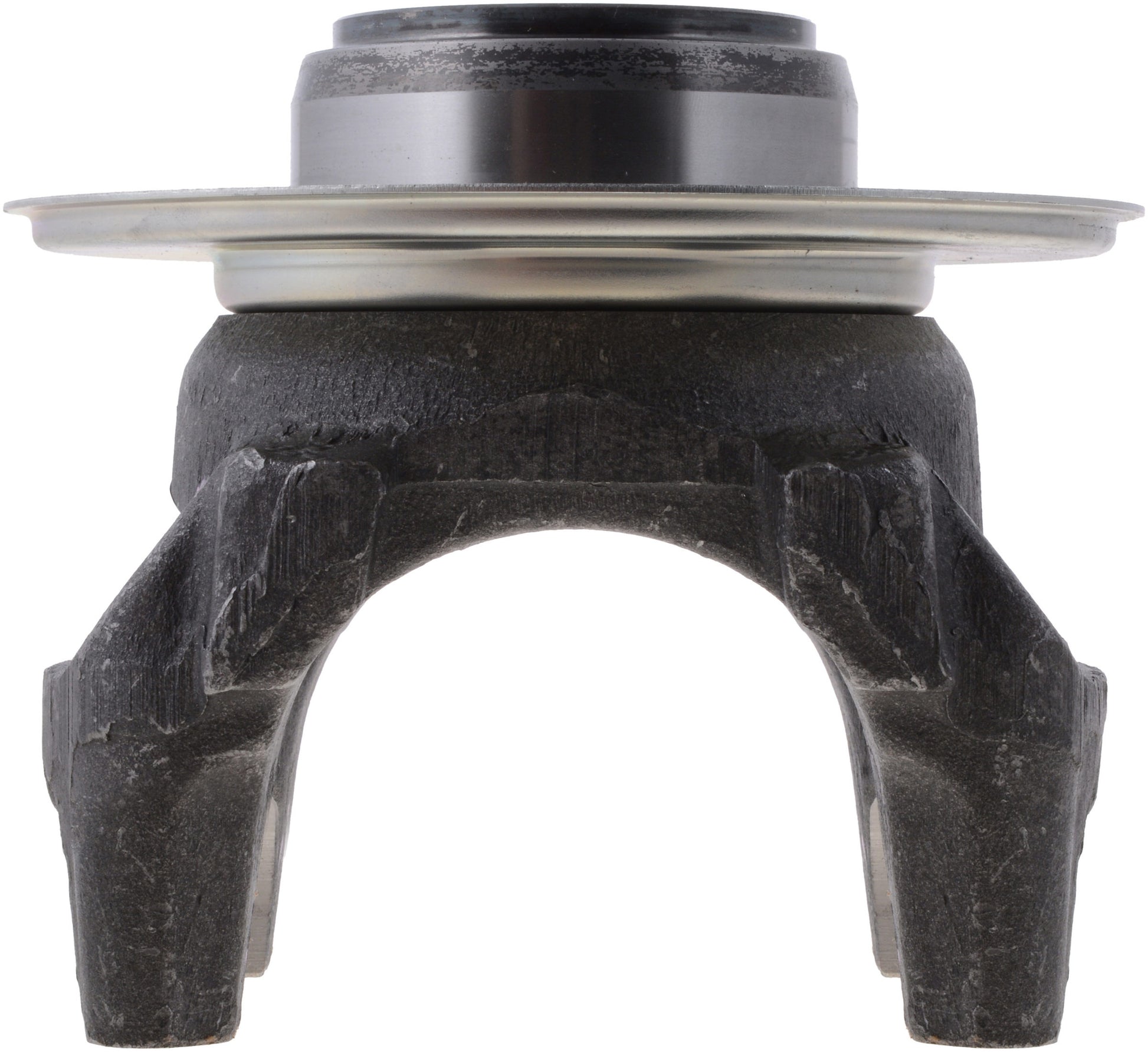

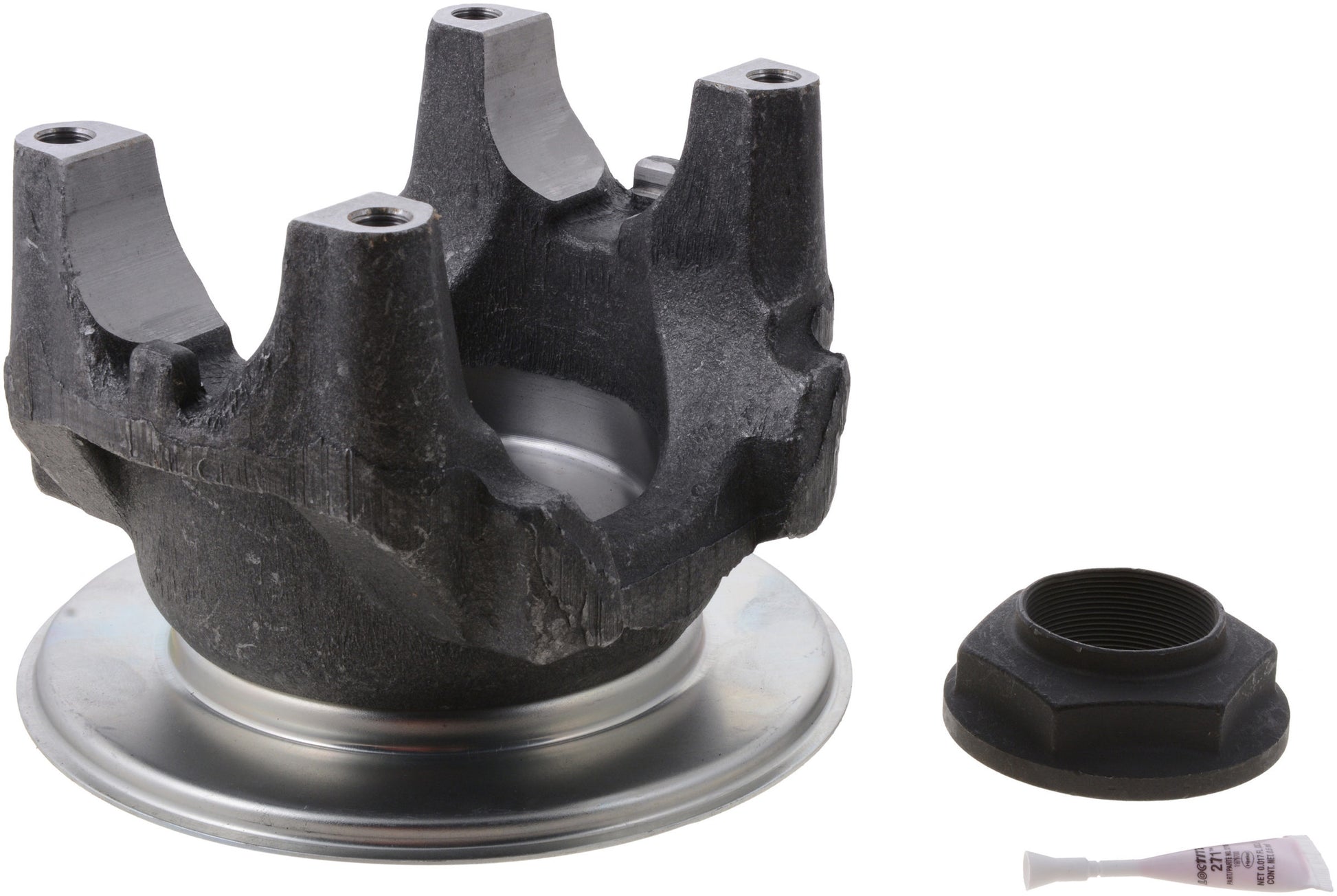

Spicer 131446K - Pinion Shaft End Yoke
Pinion Shaft End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: SPL250
Material: Steel
Spline Count: 49
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3.819
Includes Slinger/Plug: Y
Involute Spline: Y
Length Thru Hole Q: 2.672
Outside Yoke Dimension (In) E: 6.417
Yoke Bearing Dimension (In) D: 2.362
Yoke Style: HR
Major Diameter: 2.544
C/L To End Hub S: 6.200
C-Bore Depth: 0.240
