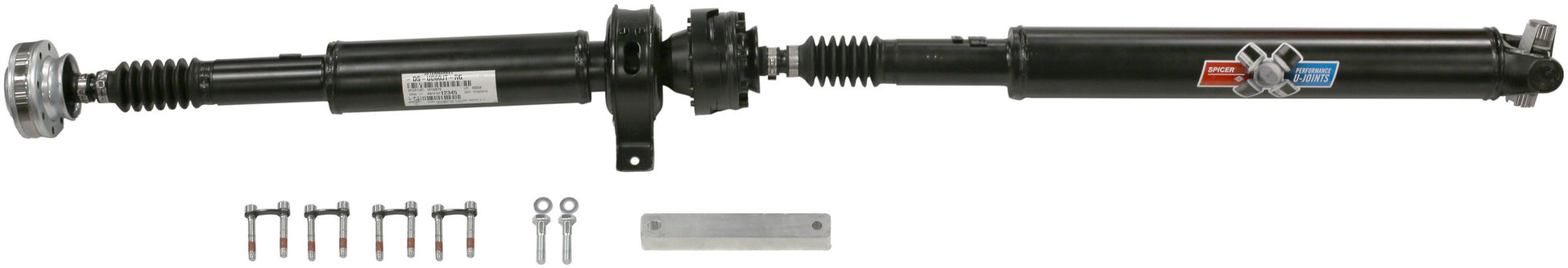

Spicer 10132306 - Drive Shaft Assembly Kit - Jeep Gladiator JT Ultimate DANA 60-Rear

Spicer 10132306 - Drive Shaft Assembly Kit - Jeep Gladiator JT Ultimate DANA 60-Rear

Spicer | 10132306
SKU: FSGR-10132306
Regular price $2,091.99 USD
Regular price $2,900.23 USD Sale price $2,091.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10132306 - Drive Shaft Assembly Kit - Jeep Gladiator JT Ultimate DANA 60-Rear

Drive Shaft Assembly Kit - Jeep Gladiator JT Ultimate DANA 60-Rear

Now for the Jeep Gladiator, the new 2-piece Spicerá1350 series driveshaft is engineered as a direct bolt-in solution that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includesá3 inch DOM tubing and a unique CV Joint with an additional 5 degrees of angle. Dana gives you everything necessary for a bolt-in solution including a center bearing drop bracket kit designed to accommodate vehicles lifted up to 6.5 inches. Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.

  • Highest quality mix of bearings, cups and cones, each precisely selected for maximum performance in every position and application.
  • Premium oil seals for your best protection against nagging leaks and damaging contamination.
  • All the small parts to do the job right, including sealant, snap rings, gasket, shims, ring gear bolts and more.
  • Production upgrades that ensure genuine Spicer parts are as good as - or better than - the OE parts they replace.
Series: 1350
Material: Steel
Note: Install with Center Bearing Drop Bracket Kit - 10149071
Phased: 0
Slip (In): 6.299
Slip (Mm): 160.000
Tube Length (In): 29.9213
Tube Length (Mm): 1533.020
Tube Size (In): 3 x .08
Tube Size (Mm): 76.2 x 2.1
Phased - Degrees: 0
Cl Yoke To Cl Yoke(IN) - COLL.: 59.800
Cl Yoke To Cl Yoke(MM) - COLL.: 1518.92
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 6.2992
Max Slip (MM): 160.0000
Notes: Install with Center Bearing Drop Bracket Kit - 10149071
Mid Slip (MM): 80.0000
Mid Slip (IN): 3.1496
FF(Flange Face) To FF (MM)-COLL: 1533.0200
Phase (Yes/No): No
CV Joints Included: No
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 60.3551
FF(Flange Face) To FF (IN)-INST: 63.5047
FF(Flange Face) To FF (MM)-INST: 1613.0200
1/2 Max Slip (IN): 3.1496
1/2 Max Slip (MM): 80
