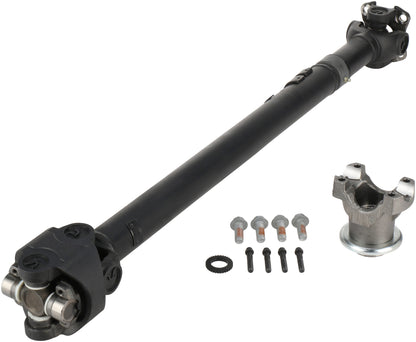

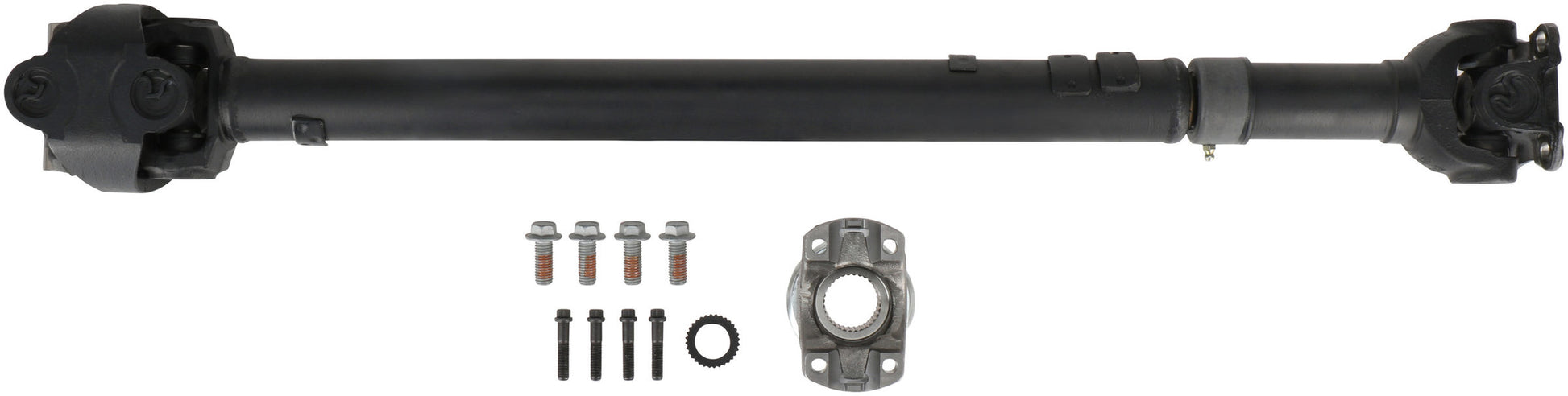

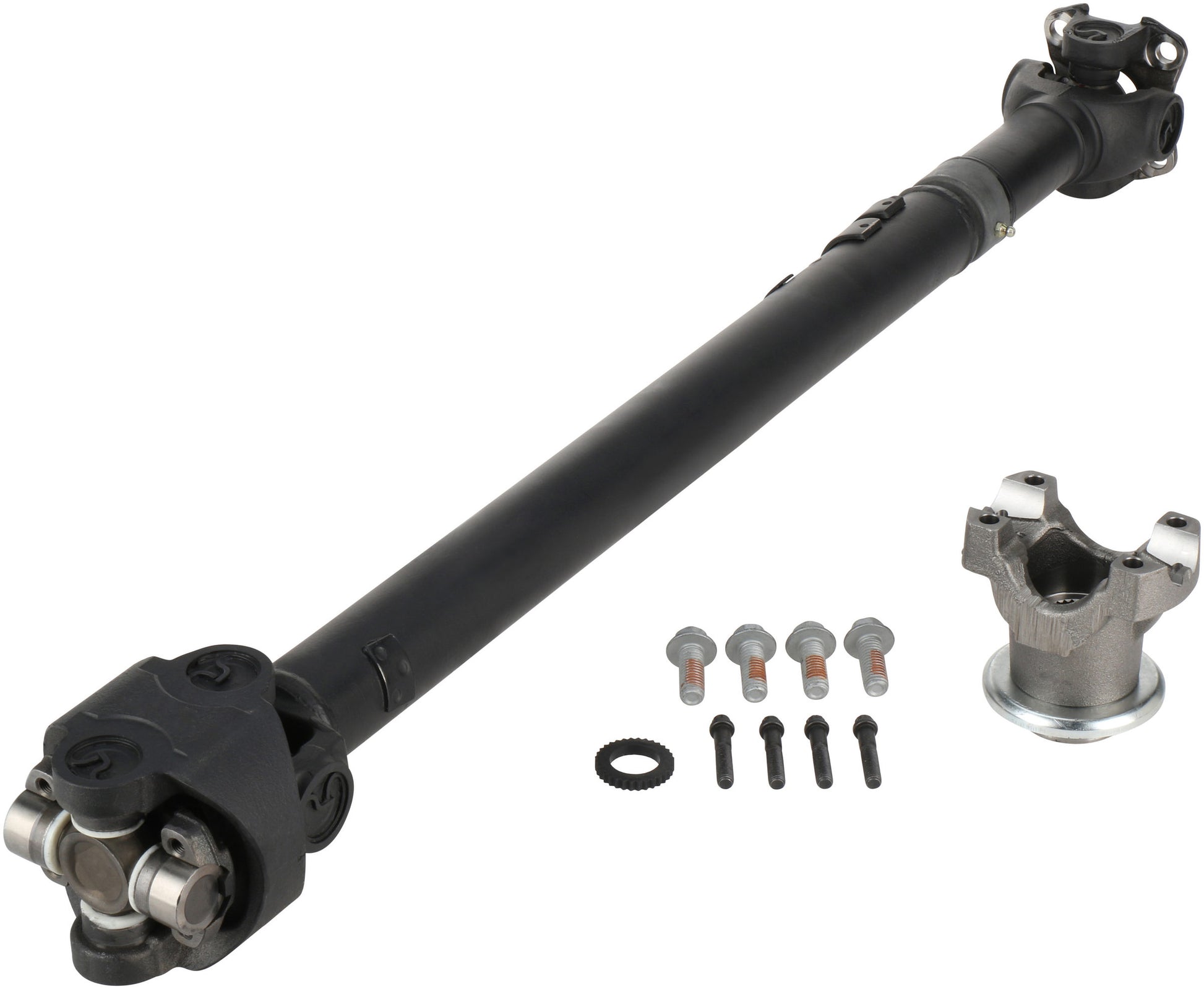

Spicer 10097840 - Drive Shaft Assy-Wrangler JL and Gladiator JT-DANA 44 AdvanTEK-with T-Case Yoke

Spicer 10097840 - Drive Shaft Assy-Wrangler JL and Gladiator JT-DANA 44 AdvanTEK-with T-Case Yoke

Spicer | 10097840
SKU: FSGR-10097840
Regular price $848.99 USD
Regular price $933.89 USD Sale price $848.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10097840 - Drive Shaft Assy-Wrangler JL and Gladiator JT-DANA 44 AdvanTEK-with T-Case Yoke

Drive Shaft Assy-Wrangler JL and Gladiator JT-DANA 44 AdvanTEK-with T-Case Yoke

The Spicer 1350 series driveshaft is manufactured with high-quality steel that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includes extra thick tubing and a slip assembly located at the transfer case to minimize impacts and contamination. With all the hardware required for a 100% bolt-in solution, Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.

  • Highest quality mix of bearings, cups and cones for performance you can count on.
  • Premium oil seals to keep lube in - and dust and grime out.
  • RTV or gasket included to seal the repair.
  • Genuine OE quality. Tested and proven.
Series: 1350
Tube Length (In): 22.5984
Tube Length (Mm): 574.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 3.1220
Max Slip (MM): 79.3000
Notes: Flange yoke and Double Carden joint at one end
CL Yoke To CL Yoke (IN) - COLL: 34.6299
CL Yoke To CL Yoke (MM) - COLL: 879.6000
Mid Slip (MM): 39.6500
Mid Slip (IN): 1.5610
Phase (Yes/No): No
CV Joints Included: No
End 2 TJ Side: 10043946
CL Yoke To Flange Face(IN)-COLL: 35.8583
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 910.8000
CL Yoke To Flange Face (MM)-INST: 950.500
1/2 Max Slip (IN): 1.5610
1/2 Max Slip (MM): 39.65
