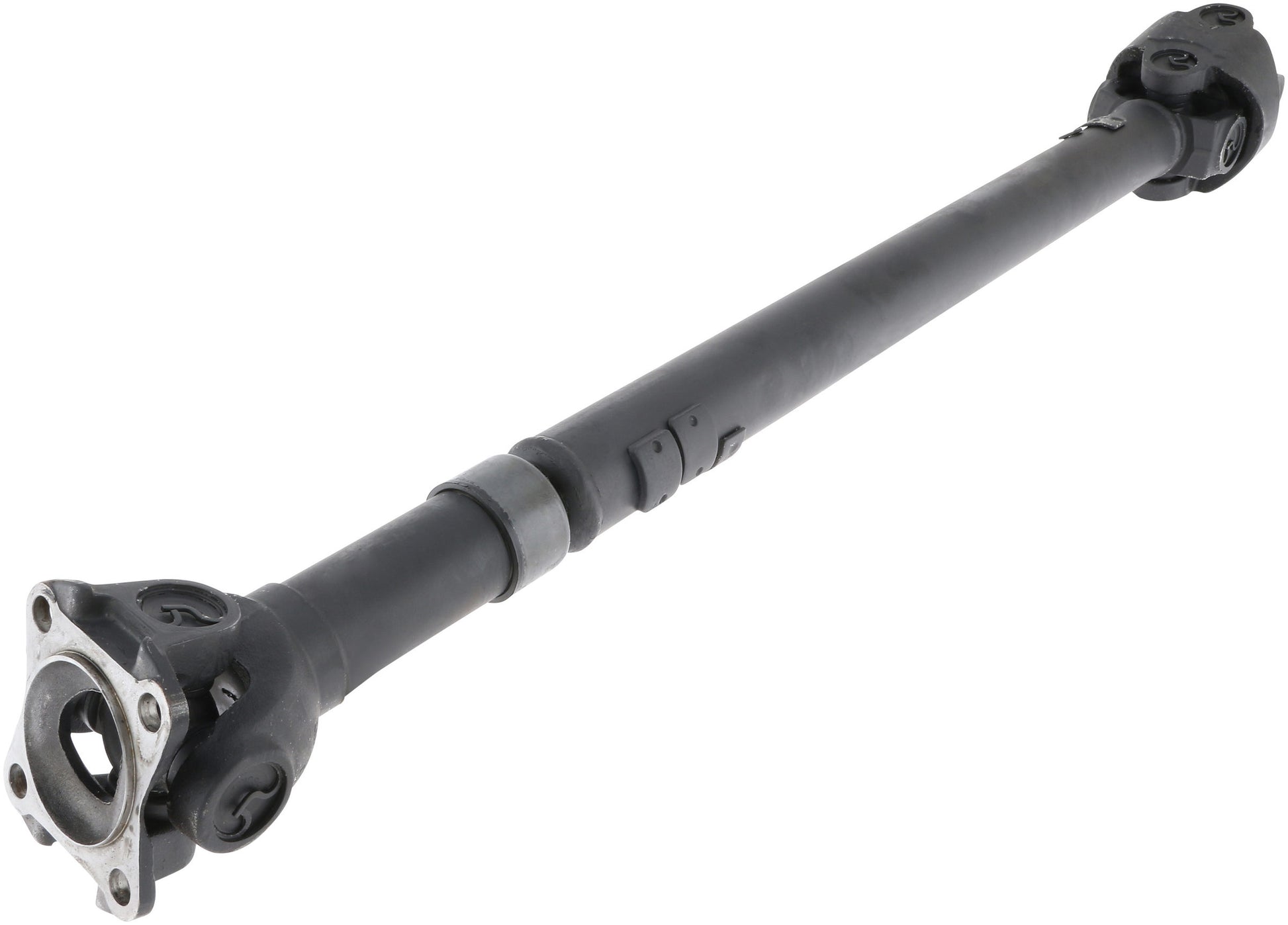

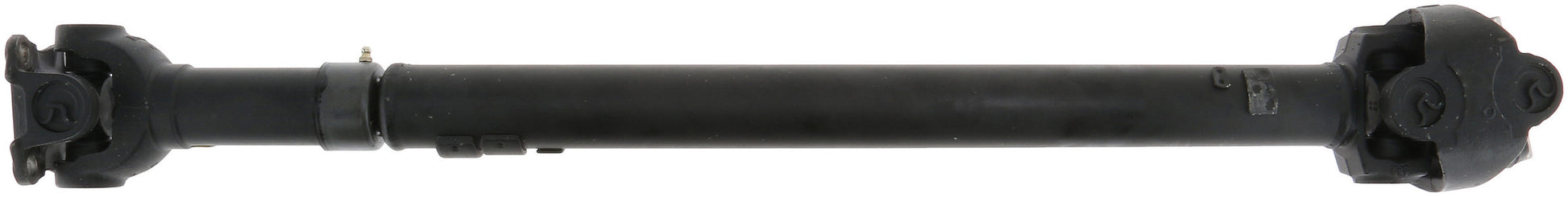

Spicer 10097269 - Drive Shaft Assembly - 1350 DANA 44 AdvanTEK - Front JL
Spicer 10097269 - Drive Shaft Assembly - 1350 DANA 44 AdvanTEK - Front JL
SKU: FSGR-10097269
Regular price
$837.99 USD
Regular price
$921.79 USD
Sale price
$837.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 10097269 - Drive Shaft Assembly - 1350 DANA 44 AdvanTEK - Front JL
Drive Shaft Assembly - 1350 DANA 44 AdvanTEK - Front JL
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Highest quality mix of bearings, cups and cones for performance you can count on.
- Premium oil seals to keep lube in - and dust and grime out.
- RTV or gasket included to seal the repair.
- Genuine OE quality. Tested and proven.
Series: 1350
Tube Length (In): 22.5984
Tube Length (Mm): 574.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 3.1220
Max Slip (MM): 79.3000
Notes: Flange yoke and Double Carden joint at one end
CL Yoke To CL Yoke (IN) - COLL: 34.6299
CL Yoke To CL Yoke (MM) - COLL: 879.6000
Mid Slip (MM): 39.6500
Mid Slip (IN): 1.5610
Phase (Yes/No): No
CV Joints Included: No
End 2 TJ Side: 10043946
CL Yoke To Flange Face(IN)-COLL: 35.8583
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 910.8000
CL Yoke To Flange Face (MM)-INST: 950.500
1/2 Max Slip (IN): 1.5610
1/2 Max Slip (MM): 39.65
