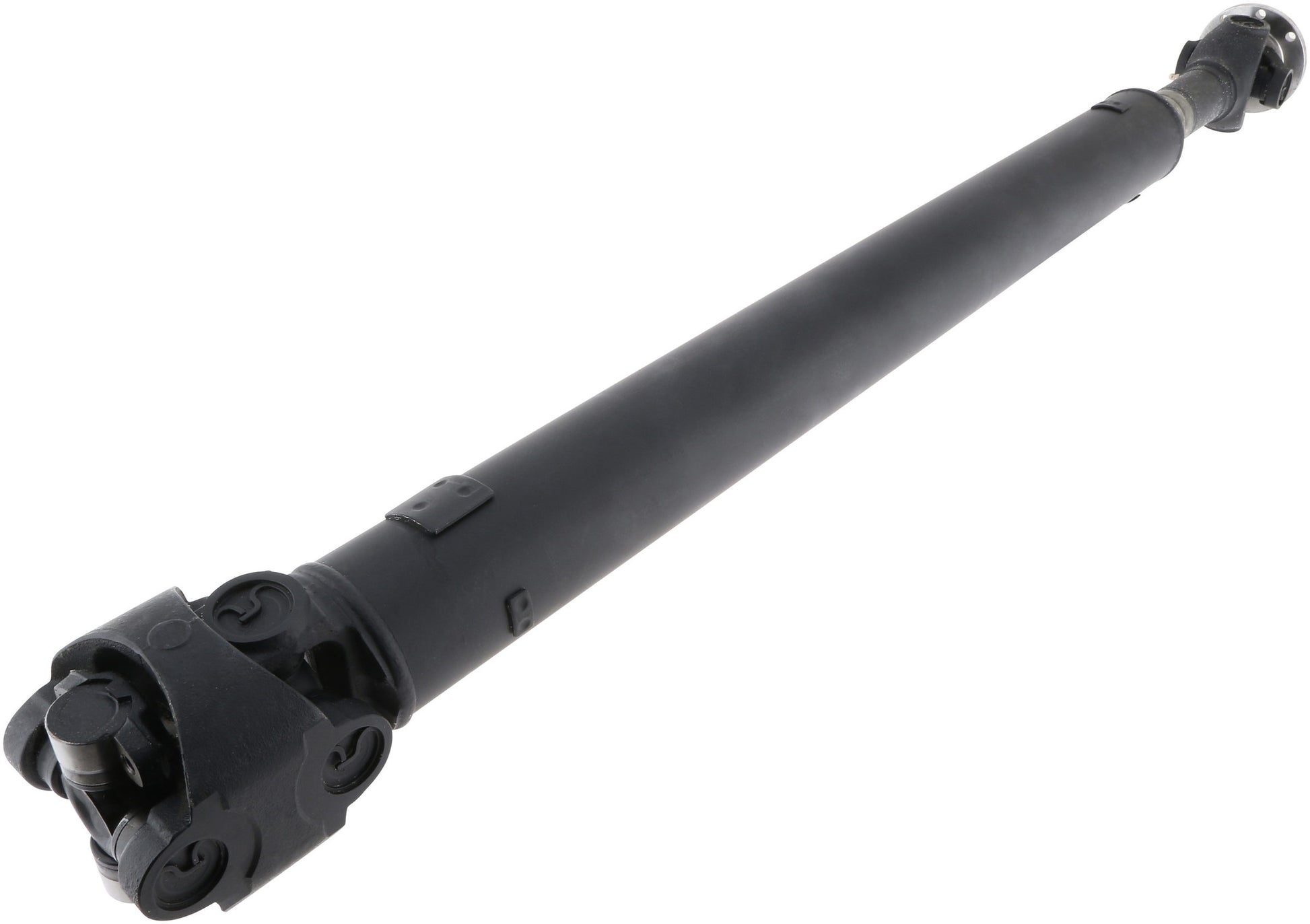

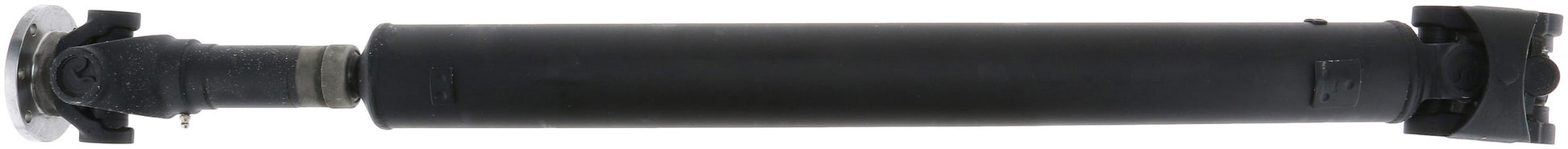

Spicer 10097263 - Drive Shaft Assembly - 1350 DANA 35 - AdvanTEK Rear JL
Spicer 10097263 - Drive Shaft Assembly - 1350 DANA 35 - AdvanTEK Rear JL
SKU: FSGR-10097263
Regular price
$862.99 USD
Regular price
$949.29 USD
Sale price
$862.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 10097263 - Drive Shaft Assembly - 1350 DANA 35 - AdvanTEK Rear JL
Drive Shaft Assembly - 1350 DANA 35 - AdvanTEK Rear JL
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Highest quality mix of bearings, cups and cones for performance you can count on.
- Premium oil seals to keep lube in - and dust and grime out.
- RTV or gasket included to seal the repair.
- Genuine OE quality. Tested and proven.
Series: 1350
Tube Length (In): 29.8425
Tube Length (Mm): 758.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 3.6063
Max Slip (MM): 91.6000
Notes: Double Cardan Yoke at one end
CL Yoke To CL Yoke (IN) - COLL: 42.7008
CL Yoke To CL Yoke (MM) - COLL: 1084.6000
Mid Slip (MM): 45.8000
Mid Slip (IN): 1.8031
Phase (Yes/No): No
CV Joints Included: No
End 2 TJ Side: 10042428
CL Yoke To Flange Face(IN)-COLL: 44.8386
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 1138.9000
CL Yoke To Flange Face (MM)-INST: 1184.700
1/2 Max Slip (IN): 1.8031
1/2 Max Slip (MM): 45.8
