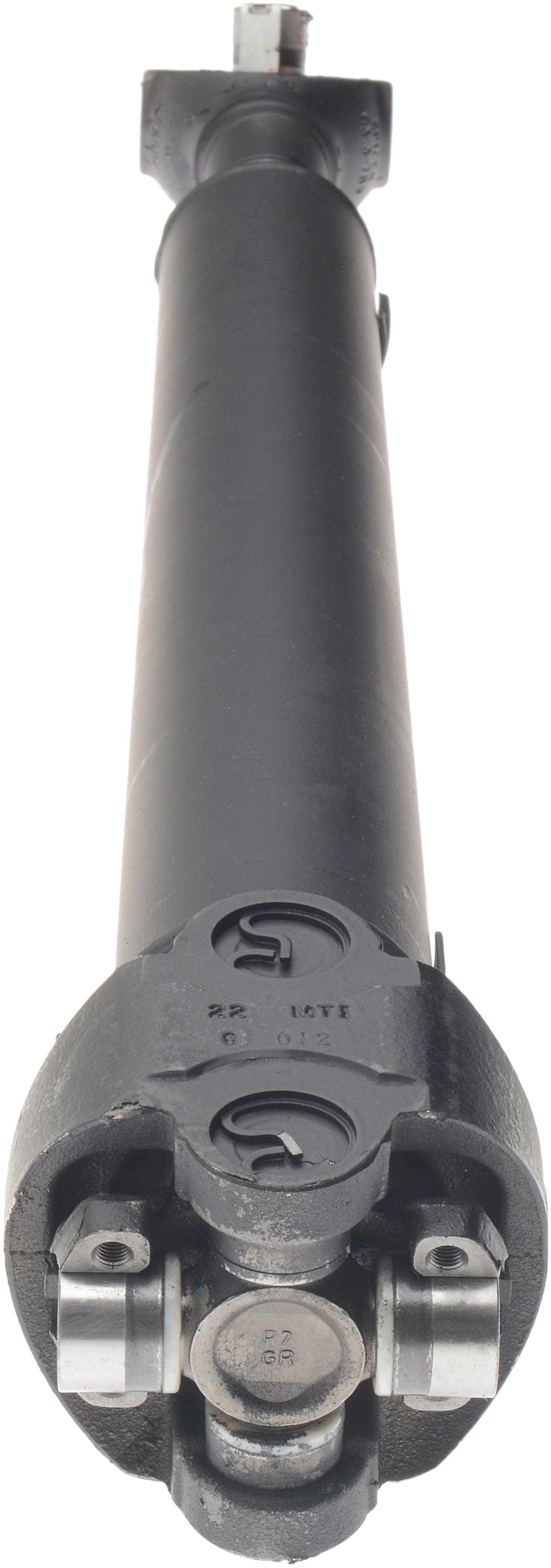

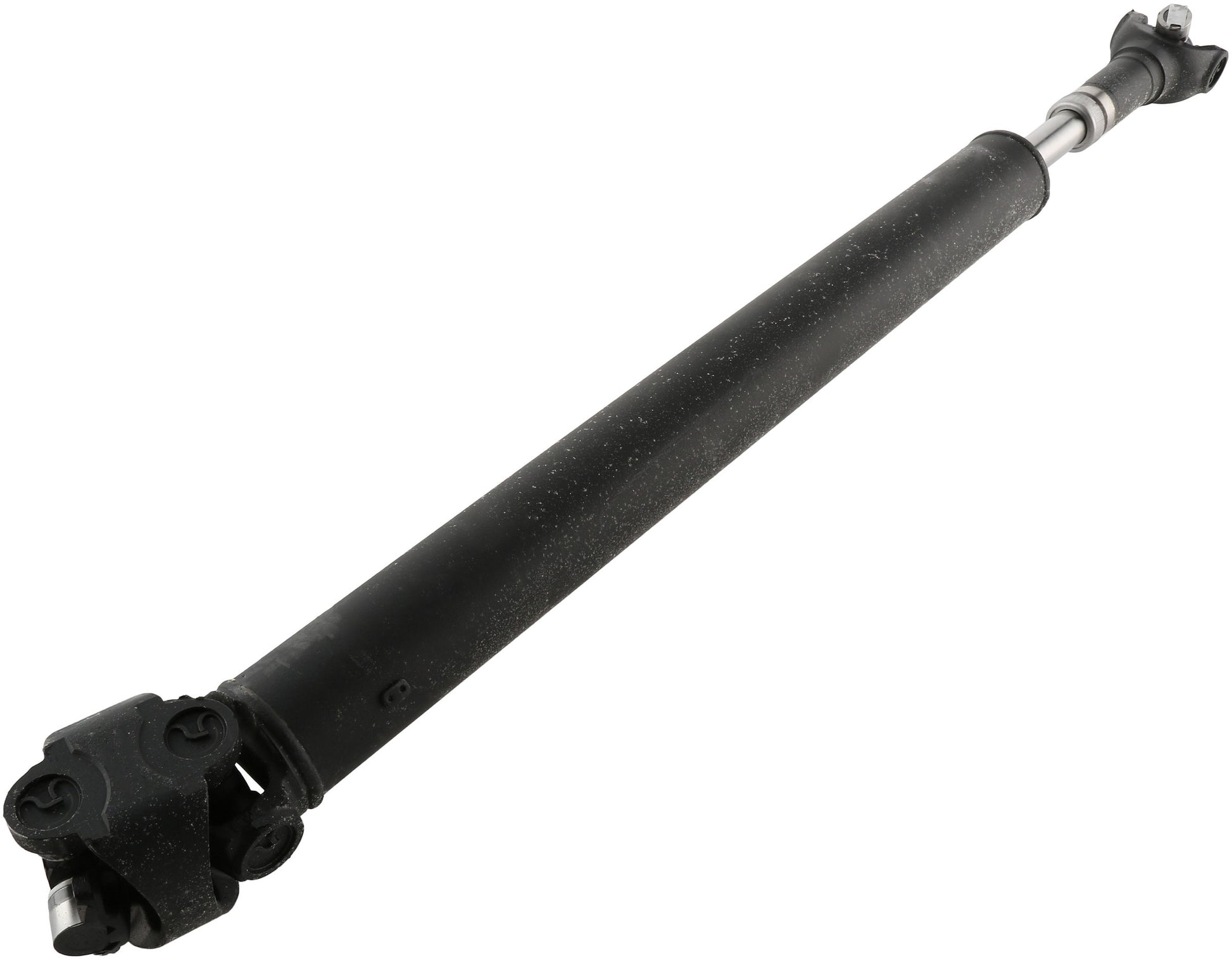

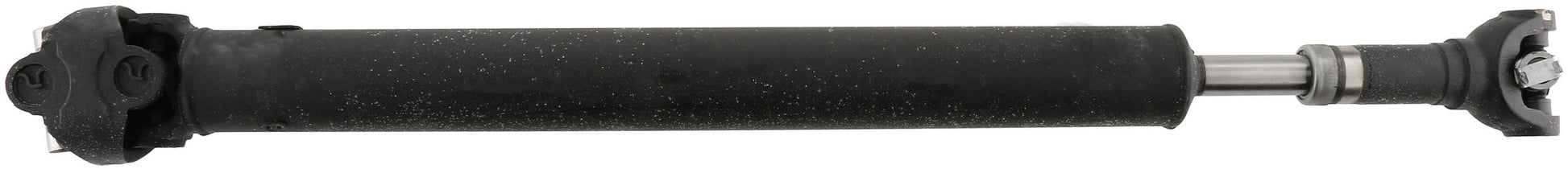

Spicer 10091131 - Drive Shaft Assembly - 1350 Ultimate DANA 60 Rear JL

Spicer 10091131 - Drive Shaft Assembly - 1350 Ultimate DANA 60 Rear JL

Spicer | 10091131
SKU: FSGR-10091131
Regular price $810.99 USD
Regular price $892.09 USD Sale price $810.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10091131 - Drive Shaft Assembly - 1350 Ultimate DANA 60 Rear JL

Drive Shaft Assembly - 1350 Ultimate DANA 60 Rear JL

The Spicer 1350 series driveshaft is manufactured with high-quality steel that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includes extra thick tubing and a slip assembly located at the transfer case to minimize impacts and contamination. With all the hardware required for a 100% bolt-in solution, Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.

  • Highest quality mix of bearings, cups and cones, each precisely selected for maximum performance in every position and application
  • Premium oil seals for your best protection against nagging leaks and damaging contamination
  • All the small parts to do the job right, including sealant, snap rings, gasket, shims, ring gear bolts and more
  • Production upgrades that ensure genuine Spicer parts are as good as - or better than - the OE parts they replace
Series: 1350
Tube Length (In): 28.5827
Tube Length (Mm): 726.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 3.6063
Max Slip (MM): 91.6000
Notes: Double Cardan Yoke at one end
CL Yoke To CL Yoke (IN) - COLL: 41.4409
CL Yoke To CL Yoke (MM) - COLL: 1052.6000
Mid Slip (MM): 45.8000
Mid Slip (IN): 1.8031
Phase (Yes/No): No
CV Joints Included: No
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 14.5000
1/2 Max Slip (IN): 1.8031
1/2 Max Slip (MM): 45.8
