Spicer 10090961 - Drive Shaft Assembly - Ultimate DANA 60 for JK - Front

Spicer 10090961 - Drive Shaft Assembly - Ultimate DANA 60 for JK - Front

Spicer | 10090961
SKU: FSGR-10090961
Regular price $837.99 USD
Regular price $921.79 USD Sale price $837.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10090961 - Drive Shaft Assembly - Ultimate DANA 60 for JK - Front

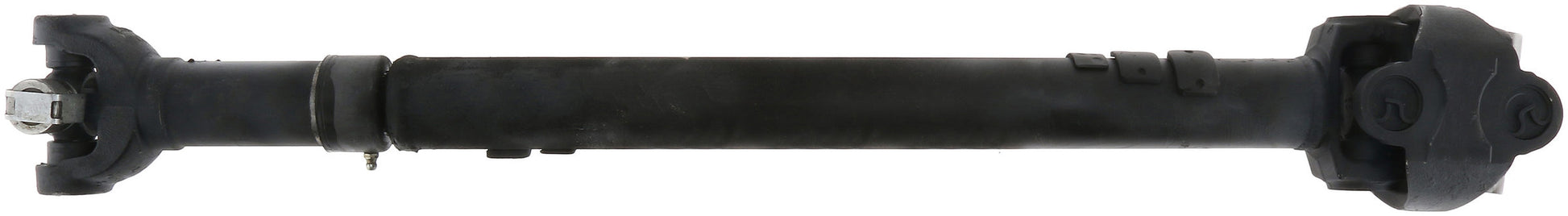

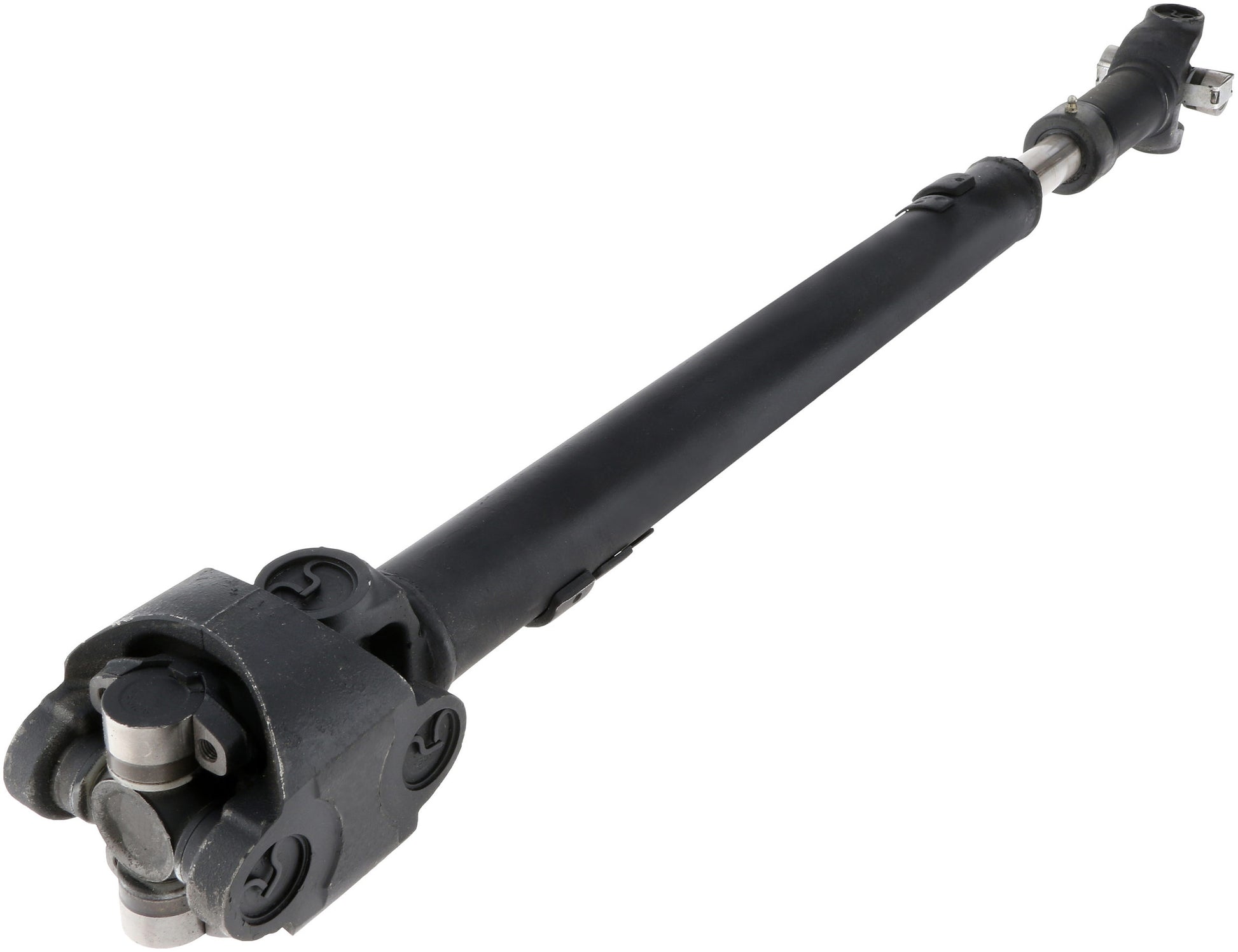

Drive Shaft Assembly - Ultimate DANA 60 for JK - Front

The Spicer 1350 series driveshaft is manufactured with high-quality steel that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includes extra thick tubing and a slip assembly located at the transfer case to minimize impacts and contamination. With all the hardware required for a 100% bolt-in solution, Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.

  • Highest quality mix of bearings, cups and cones for performance you can count on.
  • Premium oil seals to keep lube in - and dust and grime out.
  • RTV or gasket included to seal the repair.
  • Genuine OE quality. Tested and proven.
Series: 1350
Tube Length (In): 19.8425
Tube Length (Mm): 504.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 3.1220
Max Slip (MM): 79.3000
Notes: Double Cardan Yoke at one end
CL Yoke To CL Yoke (IN) - COLL: 31.8740
CL Yoke To CL Yoke (MM) - COLL: 809.6000
Mid Slip (MM): 39.6500
Mid Slip (IN): 1.5610
Phase (Yes/No): No
CV Joints Included: No
Slip Assembly: No
1/2 Max Slip (IN): 1.5610
1/2 Max Slip (MM): 39.65
