Spicer - 10048784

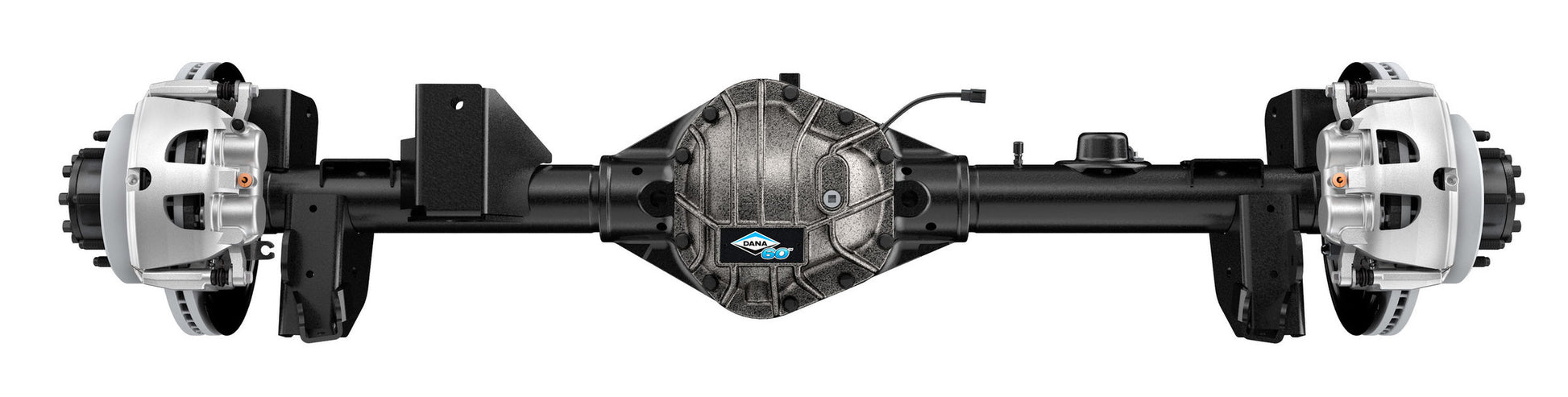

Rear Axle Assembly - 69 in Wide - 5.38 Gear Ratio - Chromoly - Black Powder Coat - Dana 60 - Jeep Wrangler JL 2018-22 - Kit

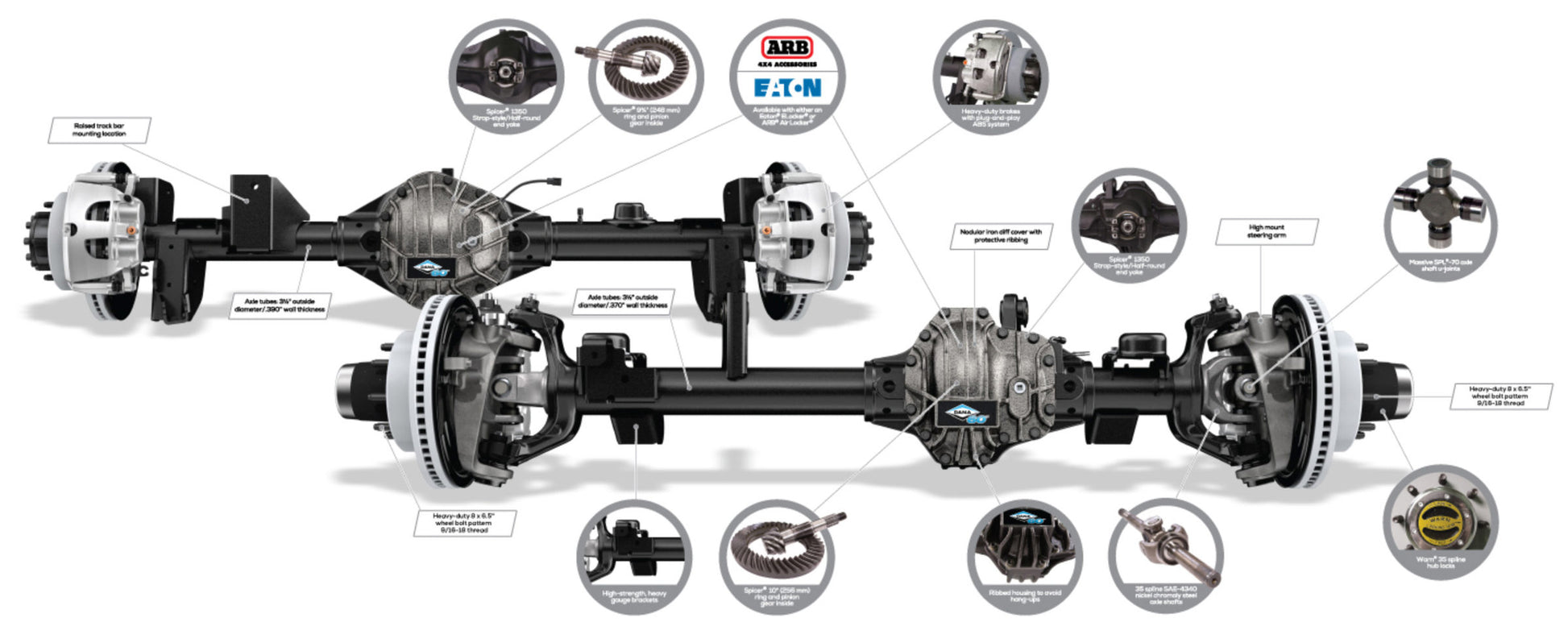

As Jeep owners modify their axles for even better performance over rocks, across sand, and through mud, Dana has taken notice. That is why Ultimate Dana 60 rear axles are built with the innovations that give you the confidence to take on the toughest terrain. Get the performance and dependability of Ultimate Dana 60 for your Jeep Wrangler!
- Spicer 10 inch ring gears inside.
- 14" disc brakes with dual piston calipers.
- High-strength heavy gauge brackets.
- Plug and play with your factory ABS.
Axle Model: DANA 60
Gear Ratio: 5.38
Vehicle Location: Rear
Axle Shaft Material: Chromoly
Axle Shaft U Joint Series: SPL70
Brakes Included: Y
Drive Shaft U Joint Series: 1350
End Yoke Style: Half Round
Inner Axle Shaft Spline Count: 35
Mounting Bracket Included: Y
Outer Axle Spline Count: 35
Traction Device: Eaton Electronic Locker
Wheel Bolt Pattern: 8 X 6.5
Hub Surface to Hub Surface(IN): 69.000
