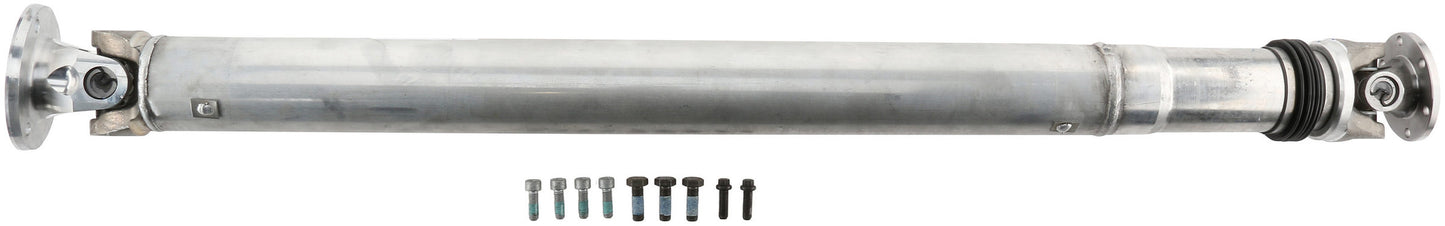

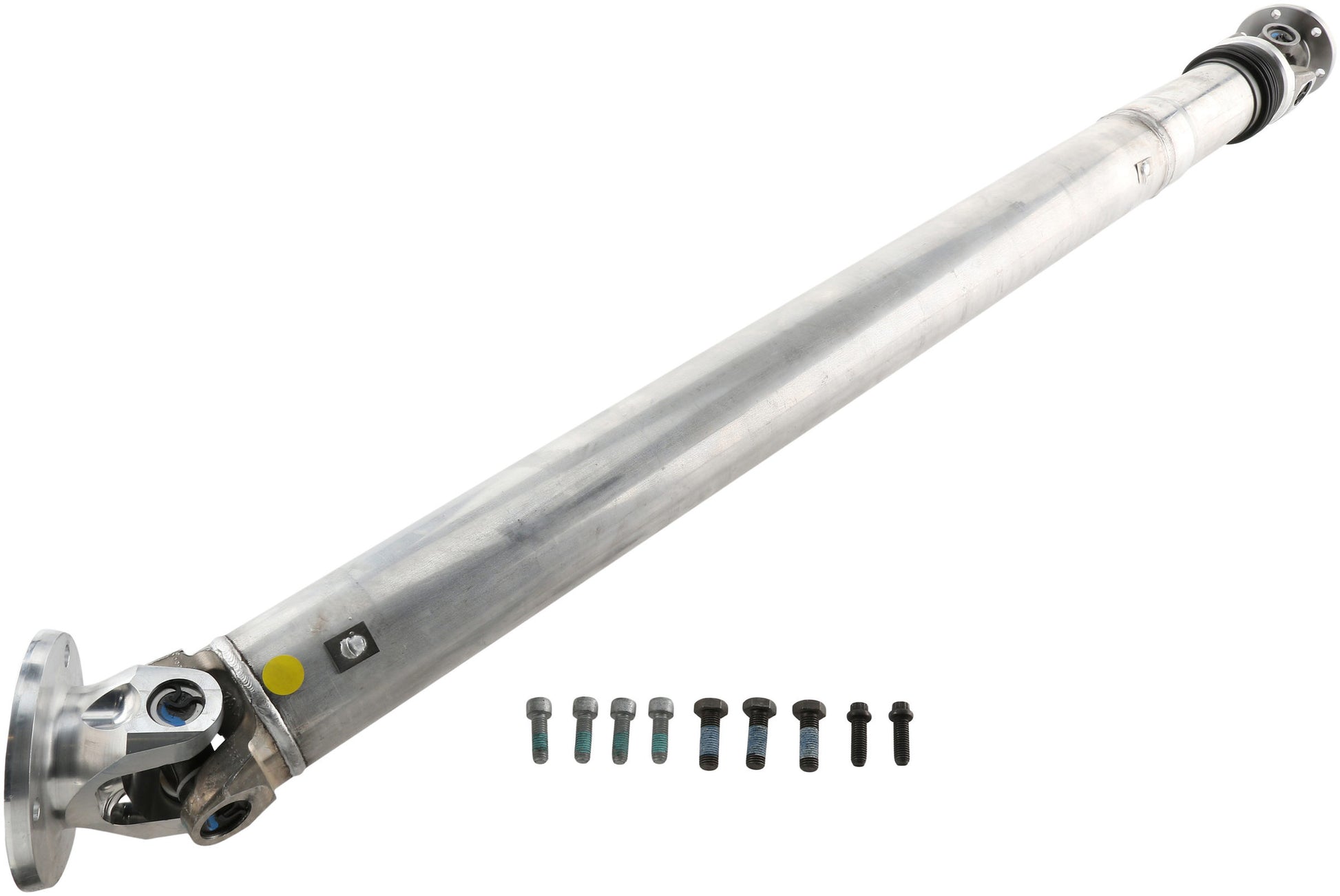

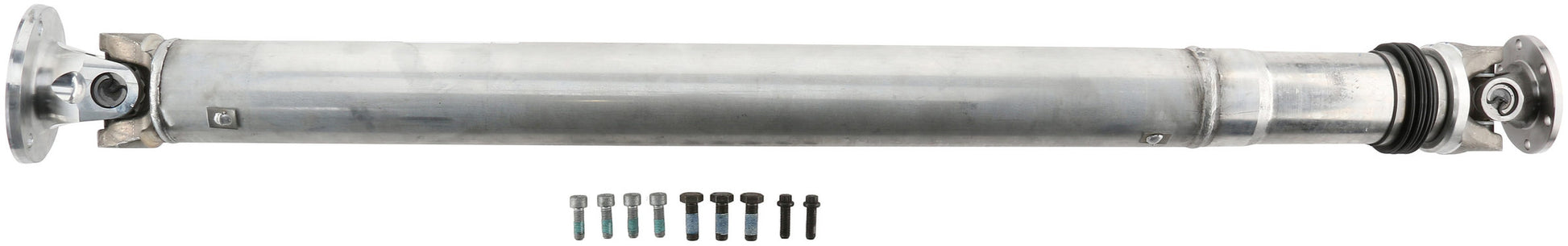

Spicer 10045512 - Mustang V6 Performance Drive Shaft, Aluminum 3.5 in Diameter,1350 Series,1359 mm

Spicer 10045512 - Mustang V6 Performance Drive Shaft, Aluminum 3.5 in Diameter,1350 Series,1359 mm

Spicer | 10045512
SKU: FSGR-10045512
Regular price $1,441.99 USD
Regular price $1,939.91 USD Sale price $1,441.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10045512 - Mustang V6 Performance Drive Shaft, Aluminum 3.5 in Diameter,1350 Series,1359 mm

Mustang V6 Performance Drive Shaft, Aluminum 3.5 in Diameter,1350 Series,1359 mm

Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum drive shaft. Engineered specifically to enhance driveline performance in high horse power applications our design yields peak performance and optimum strength. Our reduced weight design is lighter than the OE shaft yielding reduced rotating mass, improved driving performance and quicker acceleration. The one piece design eliminates the need for a center bearing further reducing driveline weight. This direct bolt in assembly mounts directly to the OE flange and requires no adapters. Spicer parts are engineered for peak performance so hit the road with confidence knowing you are backed by the global leader in driveline technology.

  • Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
  • Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1350
Tube Length (In): 33.5827
Tube Length (Mm): 853.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Aluminum
Max Slip (IN): 0.4567
Max Slip (MM): 11.6000
Notes: Flange Yoke at Both Ends
CL Yoke To CL Yoke (IN) - COLL: 47.1220
CL Yoke To CL Yoke (MM) - COLL: 1196.9000
Mid Slip (MM): 5.8000
Mid Slip (IN): 0.2283
FF(Flange Face) To FF (MM)-COLL: 1322.2000
Phase (Yes/No): No
End 1 Type SJ Side: 10055876
CV Joints Included: No
End 2 TJ Side: 10021342
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 52.0551
FF(Flange Face) To FF (IN)-INST: 52.2835
FF(Flange Face) To FF (MM)-INST: 1328.0000
1/2 Max Slip (IN): 0.2283
1/2 Max Slip (MM): 5.8
