Spicer 10045511 - Mustang Performance:Aluminum,3.5 in. Diameter 1350 Series,V8 Manual Transmission

Mustang Performance:Aluminum,3.5 in. Diameter 1350 Series,V8 Manual Transmission

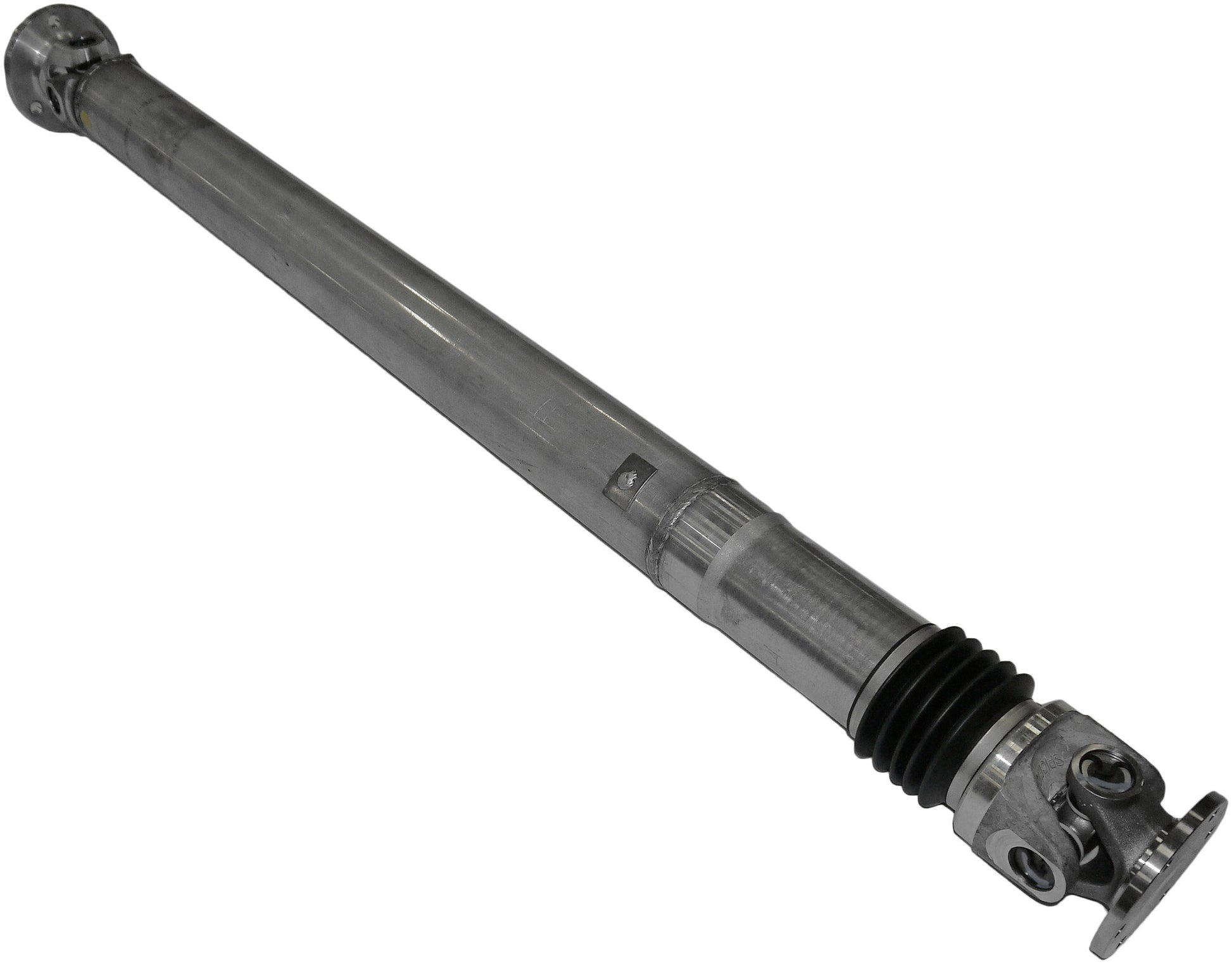

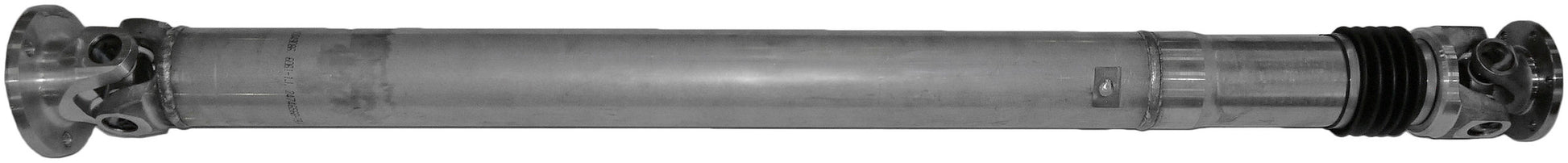

Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum drive shaft. Engineered specifically to enhance driveline performance in high horse power applications our design yields peak performance and optimum strength. Our reduced weight design is lighter than the OE shaft yielding reduced rotating mass, improved driving performance and quicker acceleration. The one piece design eliminates the need for a center bearing further reducing driveline weight. This direct bolt in assembly mounts directly to the OE flange and requires no adapters. Spicer parts are engineered for peak performance so hit the road with confidence knowing you are backed by the global leader in driveline technology.

  • Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
  • Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1350
Tube Length (In): 34.5669
Tube Length (Mm): 878.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Aluminum
Max Slip (IN): 0.4567
Max Slip (MM): 11.6000
Notes: Flange Yoke at Both Ends
CL Yoke To CL Yoke (IN) - COLL: 48.1181
CL Yoke To CL Yoke (MM) - COLL: 1222.2000
Mid Slip (MM): 5.8000
Mid Slip (IN): 0.2283
FF(Flange Face) To FF (MM)-COLL: 1352.7000
Phase (Yes/No): No
End 1 Type SJ Side: 10055876
CV Joints Included: No
End 2 TJ Side: 10021342
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 53.2559
FF(Flange Face) To FF (IN)-INST: 53.4843
FF(Flange Face) To FF (MM)-INST: 1358.5000
1/2 Max Slip (IN): 0.2283
1/2 Max Slip (MM): 5.8
