Spicer 10045510 - Mustang Performance:Aluminum 3.5 inch Diameter 1350 Series, V8 Auto Transmission

Spicer 10045510 - Mustang Performance:Aluminum 3.5 inch Diameter 1350 Series, V8 Auto Transmission

Spicer | 10045510
SKU: FSGR-10045510
$1,086.99 USD
$1,195.69 USD $1,086.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10045510 - Mustang Performance:Aluminum 3.5 inch Diameter 1350 Series, V8 Auto Transmission

Mustang Performance:Aluminum 3.5 inch Diameter 1350 Series, V8 Auto Transmission

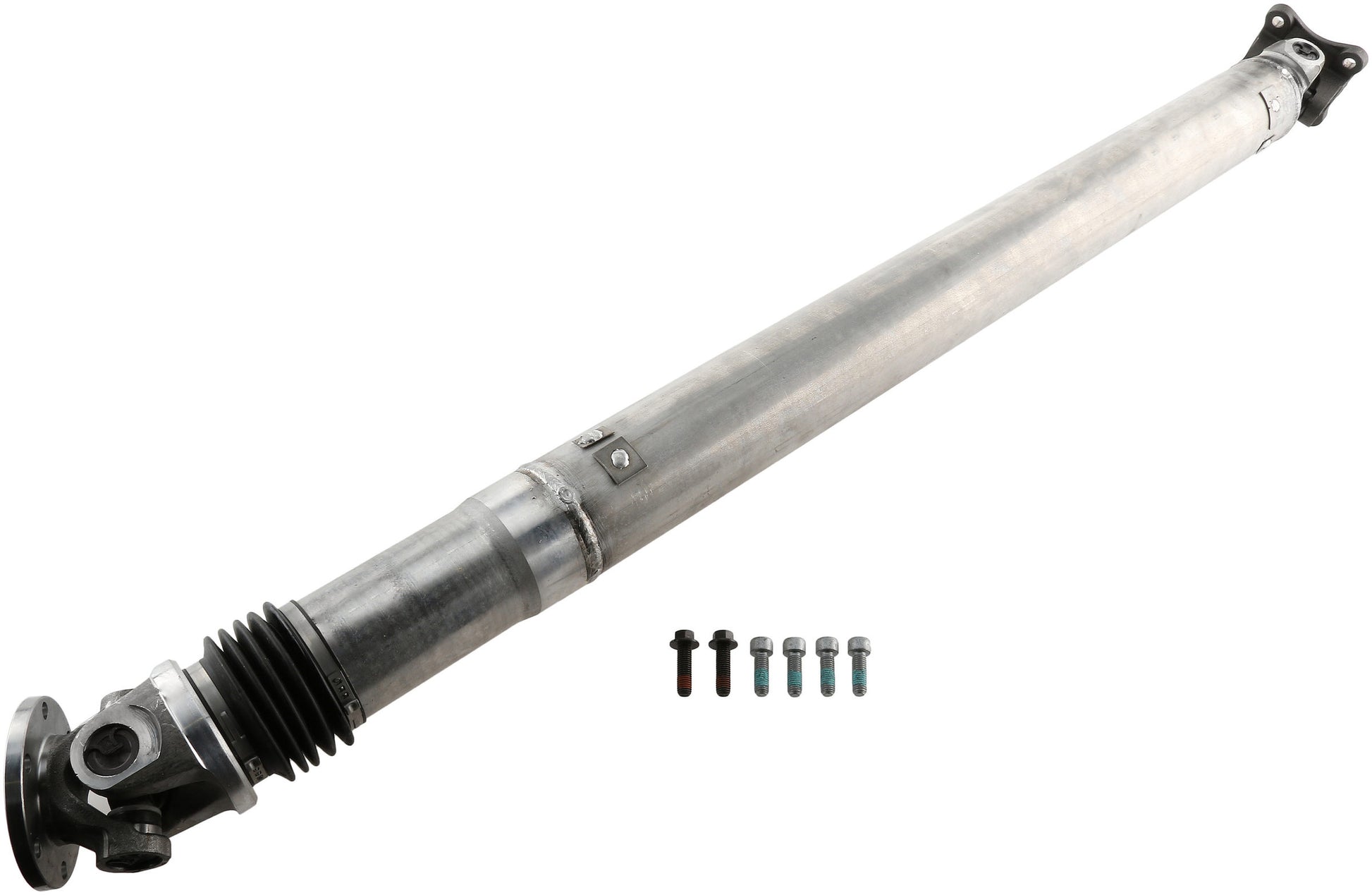

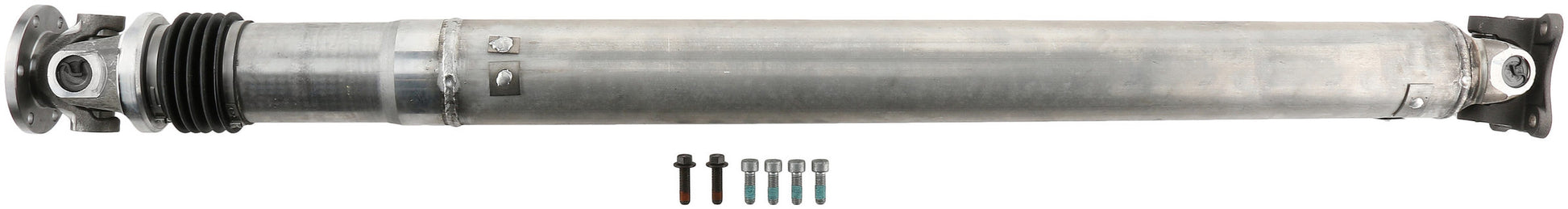

Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum drive shaft. Engineered specifically to enhance driveline performance in high horse power applications our design yields peak performance and optimum strength. Our reduced weight design is lighter than the OE shaft yielding reduced rotating mass, improved driving performance and quicker acceleration. The one piece design eliminates the need for a center bearing further reducing driveline weight. This direct bolt in assembly mounts directly to the OE flange and requires no adapters. Spicer parts are engineered for peak performance so hit the road with confidence knowing you are backed by the global leader in driveline technology.

  • Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
  • Meets or exceeds the performance requirements of the original factory driveshaft
1/2 Max Slip (MM): 21
Series: 1350
Tube Length (In): 35.3543
Tube Length (Mm): 898.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Aluminum
Max Slip (IN): 1.6535
Max Slip (MM): 42.0000
Notes: Flange Yoke at Both Ends
CL Yoke To CL Yoke (IN) - COLL: 48.6142
CL Yoke To CL Yoke (MM) - COLL: 1234.8000
Mid Slip (MM): 21.0000
Mid Slip (IN): 0.8268
FF(Flange Face) To FF (MM)-COLL: 1334.4000
Phase (Yes/No): No
End 1 Type SJ Side: 3-2-1859
CV Joints Included: No
End 2 TJ Side: 10048488
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 52.5354
FF(Flange Face) To FF (IN)-INST: 53.3622
FF(Flange Face) To FF (MM)-INST: 1355.4000
1/2 Max Slip (IN): 0.8268
