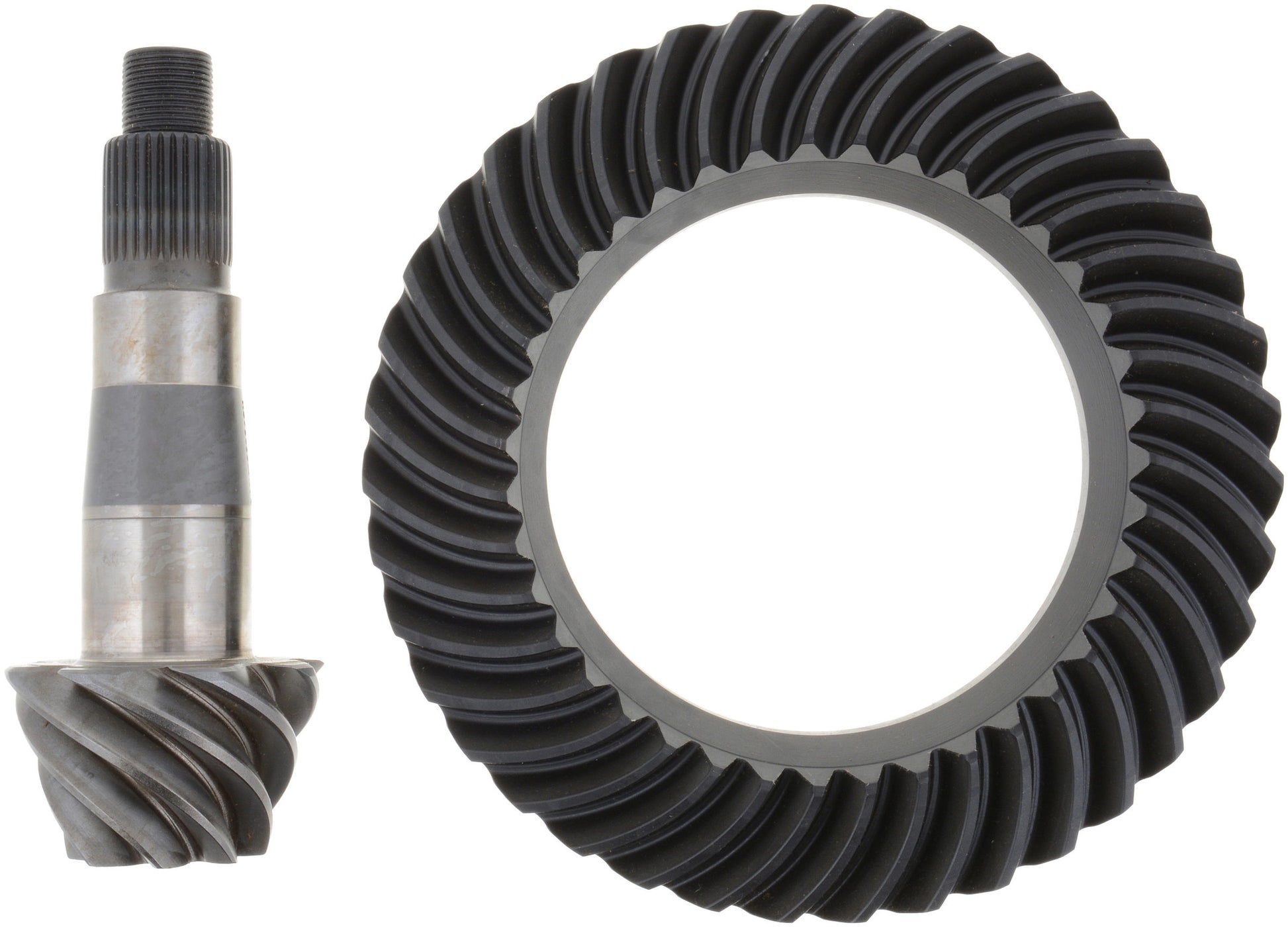

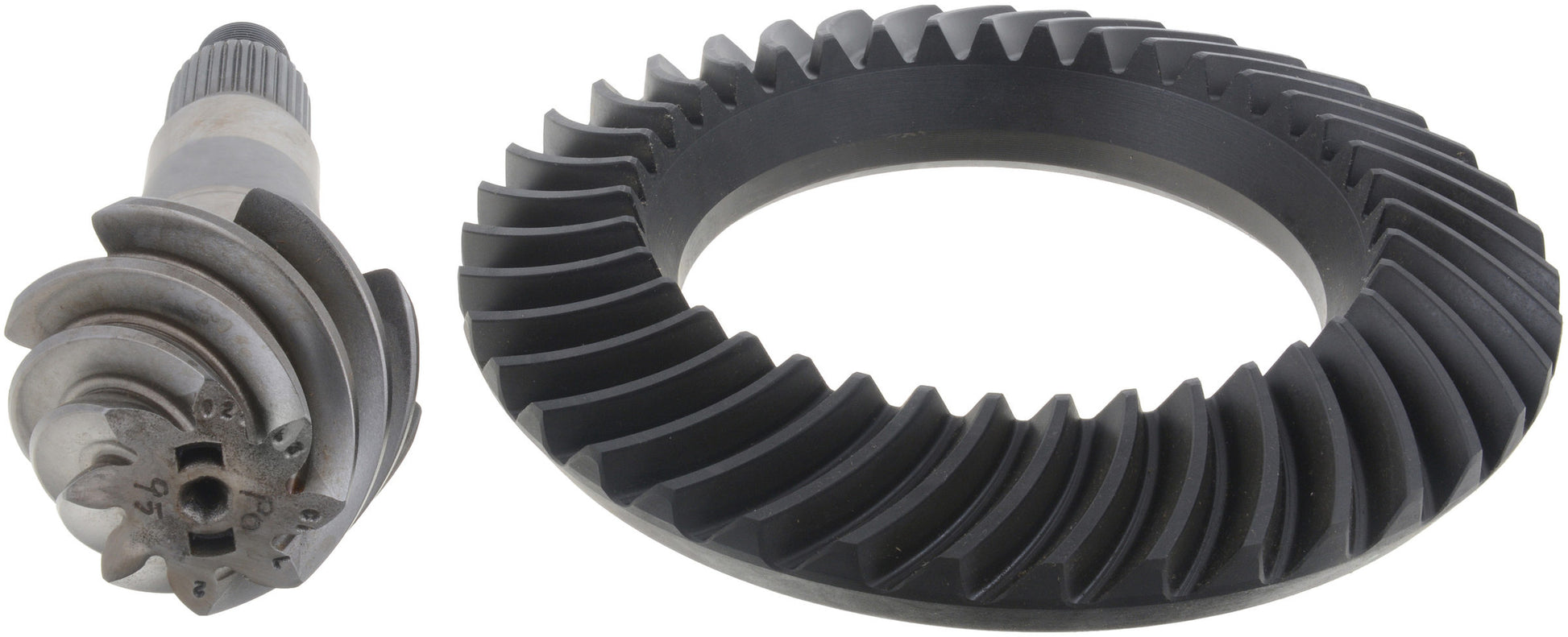

Spicer 10034909 - Differential Ring and Pinion - M300 Rear 4.88 Ratio

Spicer 10034909 - Differential Ring and Pinion - M300 Rear 4.88 Ratio

Spicer | 10034909
SKU: FSGR-10034909
$495.99 USD
$666.94 USD $495.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10034909 - Differential Ring and Pinion - M300 Rear 4.88 Ratio

Differential Ring and Pinion - M300 Rear 4.88 Ratio

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

  • Superior Metallurgy: Ensures more consistent, higher quality product
  • Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life
  • Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear
  • High-grade steel for maximum durability
Axle Model: M300
Gear Ratio: 4.88
Ring Teeth Count: 39
Carrier Breaks: 4.10 And Up
Cover Bolt Quantity: 14
Include Installation Kit: N
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 2.000
Pinion Spline Count: 32
Ring Gear Bolt Qty: 14
Ring Gear Bolt Thread In.: M16 X 1.25
Ring Gear Diameter (In.): 12.000
Ring Gear Rotation: Standard
Axle Type: Full Floating
New Or Remanufactured: New
Shims Included: N
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
