Spicer 10020113 - Drive Shaft Assembly - 1310 DANA 30/44 Front JK, DANA 30/44 AdvanTEK Front JL

Spicer 10020113 - Drive Shaft Assembly - 1310 DANA 30/44 Front JK, DANA 30/44 AdvanTEK Front JL

Spicer | 10020113
SKU: FSGR-10020113
Regular price $670.99 USD
Regular price $1,017.51 USD Sale price $670.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10020113 - Drive Shaft Assembly - 1310 DANA 30/44 Front JK, DANA 30/44 AdvanTEK Front JL

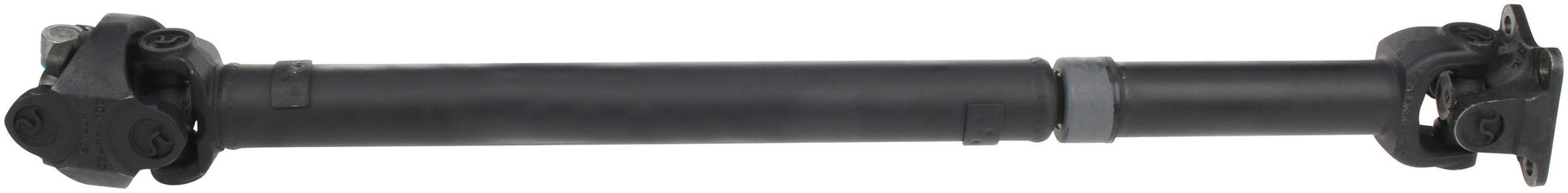

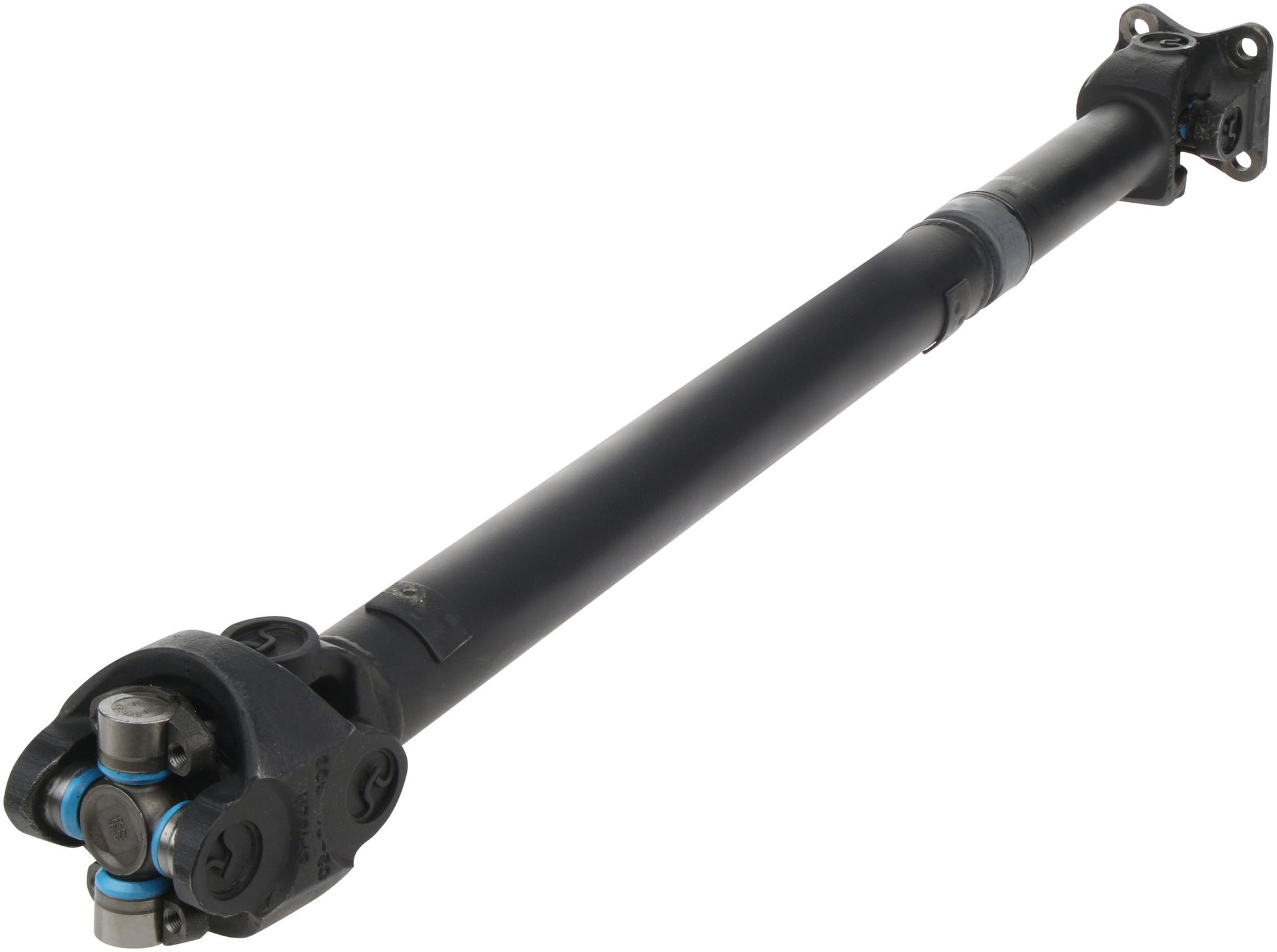

Drive Shaft Assembly - 1310 DANA 30/44 Front JK, DANA 30/44 AdvanTEK Front JL

Wherever limits are pushed, Dana is there. Spicer performance driveshafts for the Jeep Wrangler JK have been specifically designed off road punishment. Fitting Wranglers with 2 to 4 inch lifts these shafts yield better balance, greater strength and less vibration than other aftermarket alternatives. Features 50 percent thicker tube for added strength and small diameter design to eliminate exhaust clearance issues on lifted vehicles. We engineer our parts to deliver peak performance and optimum strength, so you can hit the road, the track, or the trail with confidence that comes from knowing you are backed by the industry leader in driveline technology.

  • Designed with 1310 series u-joint.
  • Includes premium SPL u-joints. The Strongest u-joint available.
  • Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
Series: 1310
Tube Length (In): 19.2913
Tube Length (Mm): 490.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 4.5276
Max Slip (MM): 115.0000
Notes: Flange yoke and Double Carden joint at one end
CL Yoke To CL Yoke (IN) - COLL: 34.1654
CL Yoke To CL Yoke (MM) - COLL: 867.8000
Mid Slip (MM): 57.0000
Mid Slip (IN): 2.2441
Phase (Yes/No): No
End 1 Type SJ Side: 2-2-1949
CV Joints Included: No
CL Yoke To Flange Face(IN)-COLL: 35.9449
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 913.0000
CL Yoke To Flange Face (MM)-INST: 970.000
1/2 Max Slip (IN): 2.2441
1/2 Max Slip (MM): 57
