Spicer 10018230 - Drive Shaft Assy Kit-1310 Series-Wrangler JK DANA 30/44 Front-With T-Case Yoke

Spicer 10018230 - Drive Shaft Assy Kit-1310 Series-Wrangler JK DANA 30/44 Front-With T-Case Yoke

Spicer | 10018230
SKU: FSGR-10018230
Regular price $569.99 USD
Regular price $626.99 USD Sale price $569.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

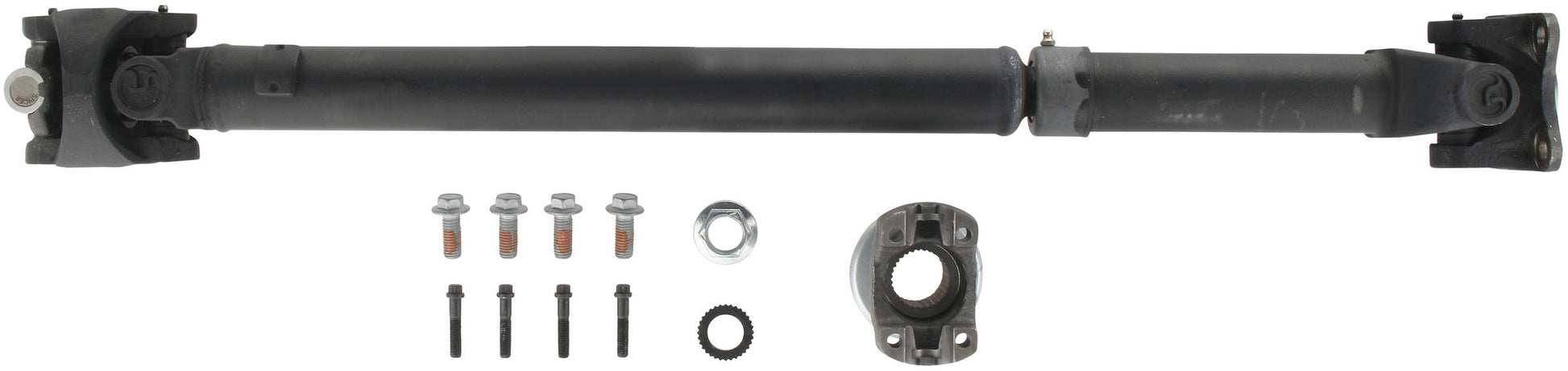

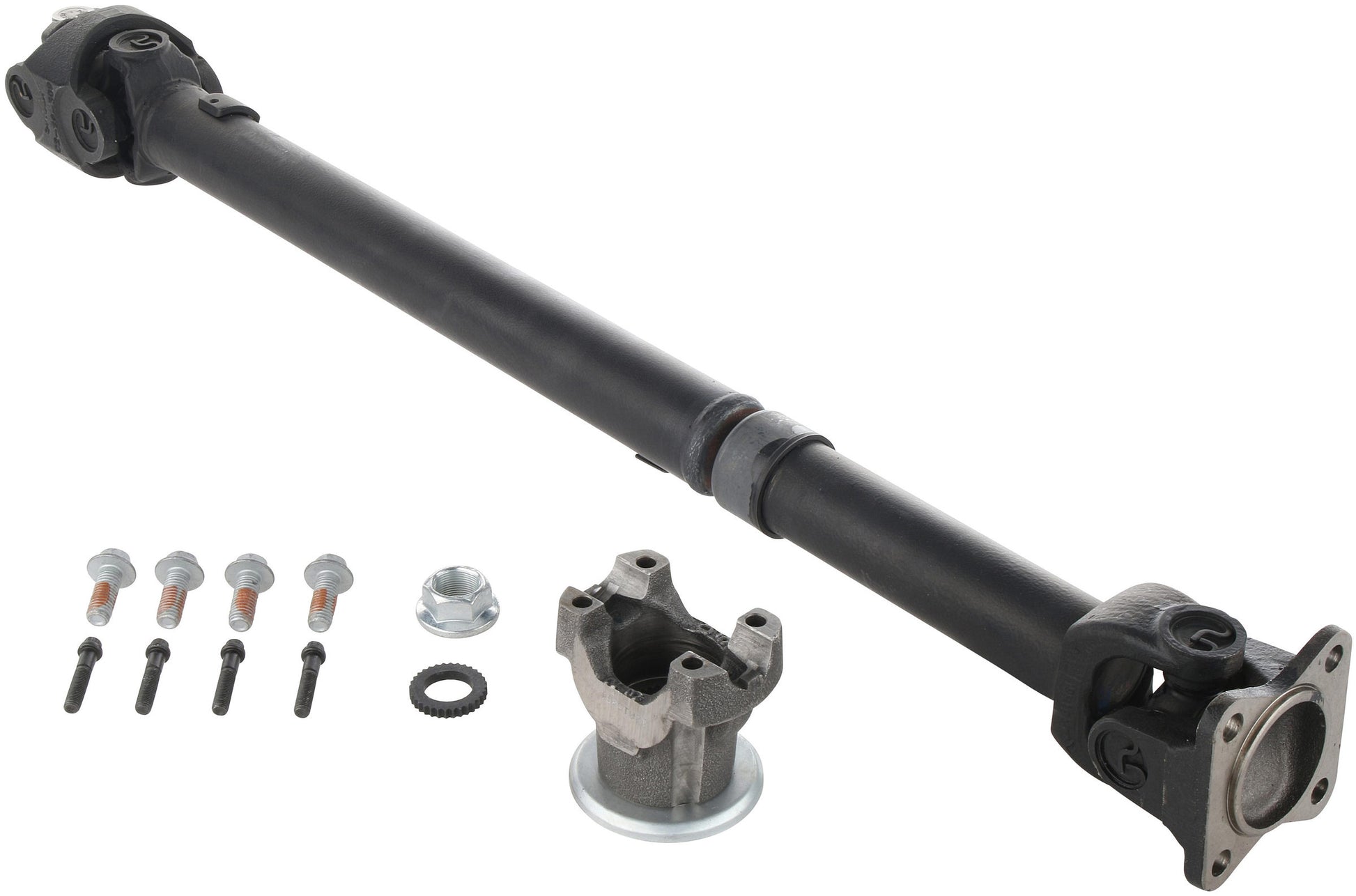

Spicer 10018230 - Drive Shaft Assy Kit-1310 Series-Wrangler JK DANA 30/44 Front-With T-Case Yoke

Drive Shaft Assy Kit-1310 Series-Wrangler JK DANA 30/44 Front-With T-Case Yoke

Wherever limits are pushed, Dana is there. Spicer performance driveshafts for the Jeep Wrangler have been specifically designed off road punishment. Fitting Wranglers with 0 to 2 inch lifts these shafts yield better balance, greater strength and less vibration than other aftermarket alternatives. Features 50% thicker tubing for added strength and small diameter design to eliminate exhaust clearance issues on lifted vehicles. We engineer our parts to deliver peak performance and optimum strength so you can hit the road, the track, or the trail with confidence that comes from knowing you are backed by the industry leader in driveline technology.

  • Highest quality mix of bearings, cups and cones for performance you can count on.
  • Premium oil seals to keep lube in - and dust and grime out.
  • RTV or gasket included to seal the repair.
  • Genuine OE quality. Tested and proven.
Series: 1310
Tube Length (In): 18.1890
Tube Length (Mm): 462.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 4.5276
Max Slip (MM): 115.0000
Notes: Flange yoke and Double Carden joint at one end
CL Yoke To CL Yoke (IN) - COLL: 33.0630
CL Yoke To CL Yoke (MM) - COLL: 839.8000
Mid Slip (MM): 57.0000
Mid Slip (IN): 2.2441
Phase (Yes/No): No
End 1 Type SJ Side: 2-2-1949
CV Joints Included: No
CL Yoke To Flange Face(IN)-COLL: 34.8425
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 885.0000
CL Yoke To Flange Face (MM)-INST: 942.000
1/2 Max Slip (IN): 2.2441
1/2 Max Slip (MM): 57
