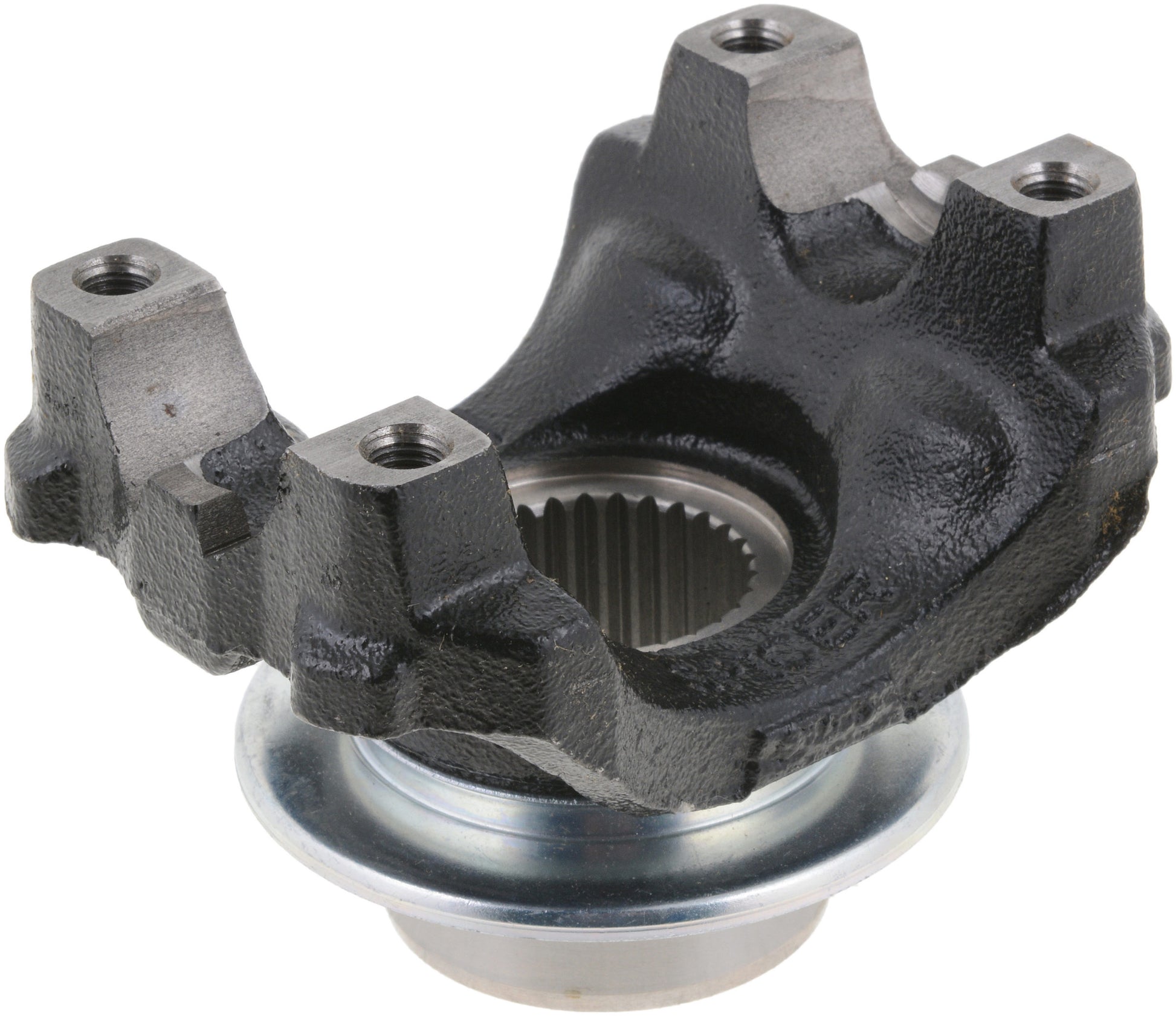

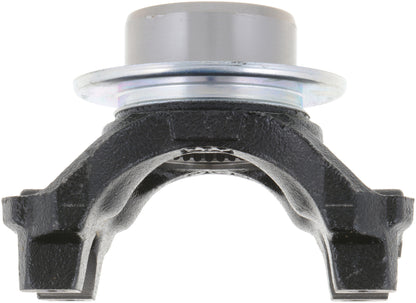

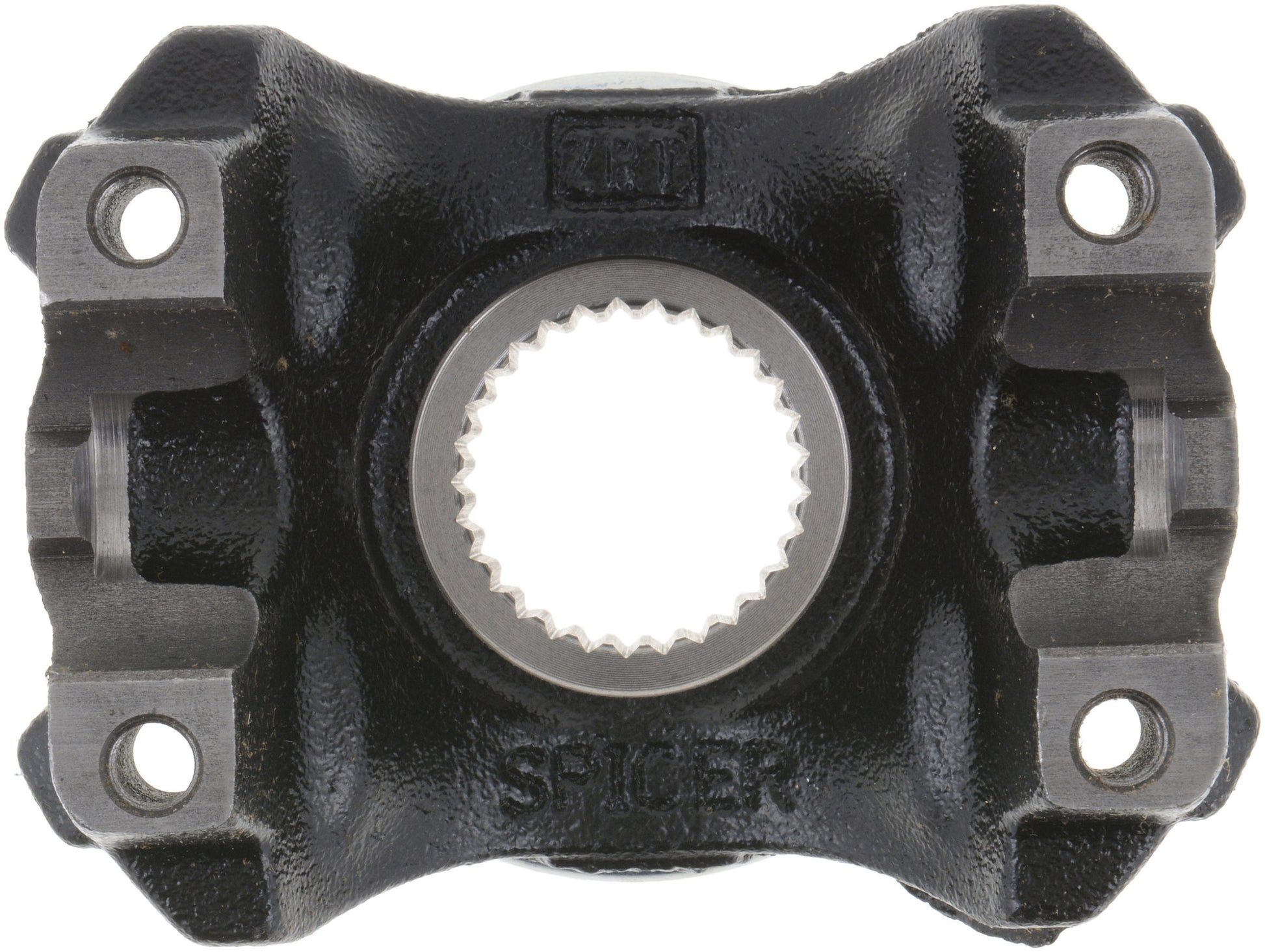

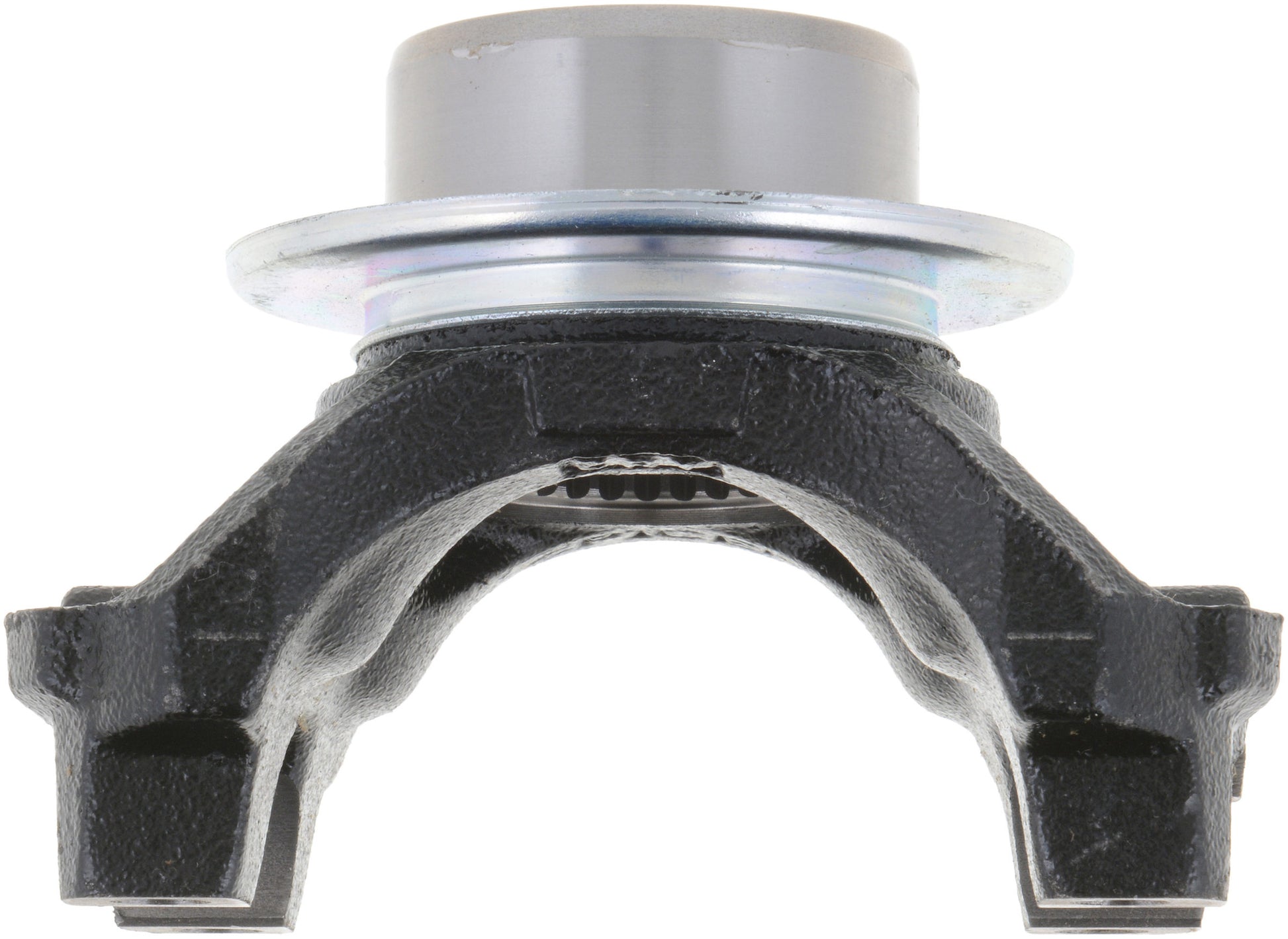

Spicer 10015235 - End Yoke Ultimate DANA 60 Front Builder Axle Compatible

Spicer 10015235 - End Yoke Ultimate DANA 60 Front Builder Axle Compatible

Spicer | 10015235
SKU: FSGR-10015235
Regular price $127.99 USD
Regular price $172.08 USD Sale price $127.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10015235 - End Yoke Ultimate DANA 60 Front Builder Axle Compatible

End Yoke Ultimate DANA 60 Front Builder Axle Compatible

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver. This product can be used as a component in Dana's Builder Axle program. Search the literature section for more details.

  • Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
  • Tested for unparalleled reliability.
  • Strength and durability for long life.
  • Dana engineering-approved for fit, form and function
Series: 1350
Material: Steel
Spline Count: 29
Type: Splined Hole
Assembly: Y
Hub Diameter R: 1.915
Includes Slinger/Plug: N
Involute Spline: Y
Length Thru Hole Q: 1.509
Yoke Bearing Dimension (In) D: 1.188
Keyway Location W: 12
Set Screw Location W: 6
Major Diameter: 1.276
C/L To End Hub S: 2.995
Set Screw Hole Diameter (In): 0.375
