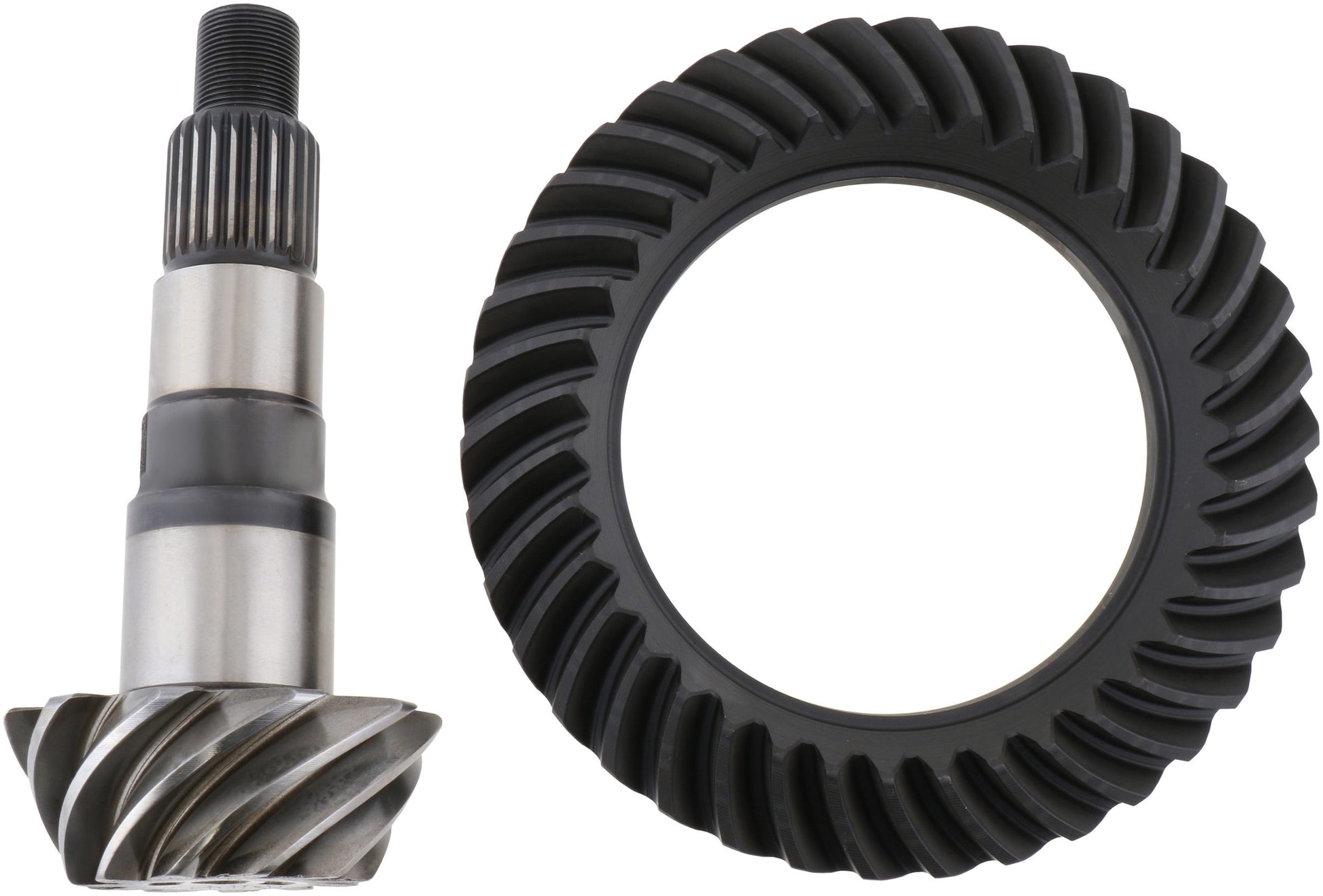

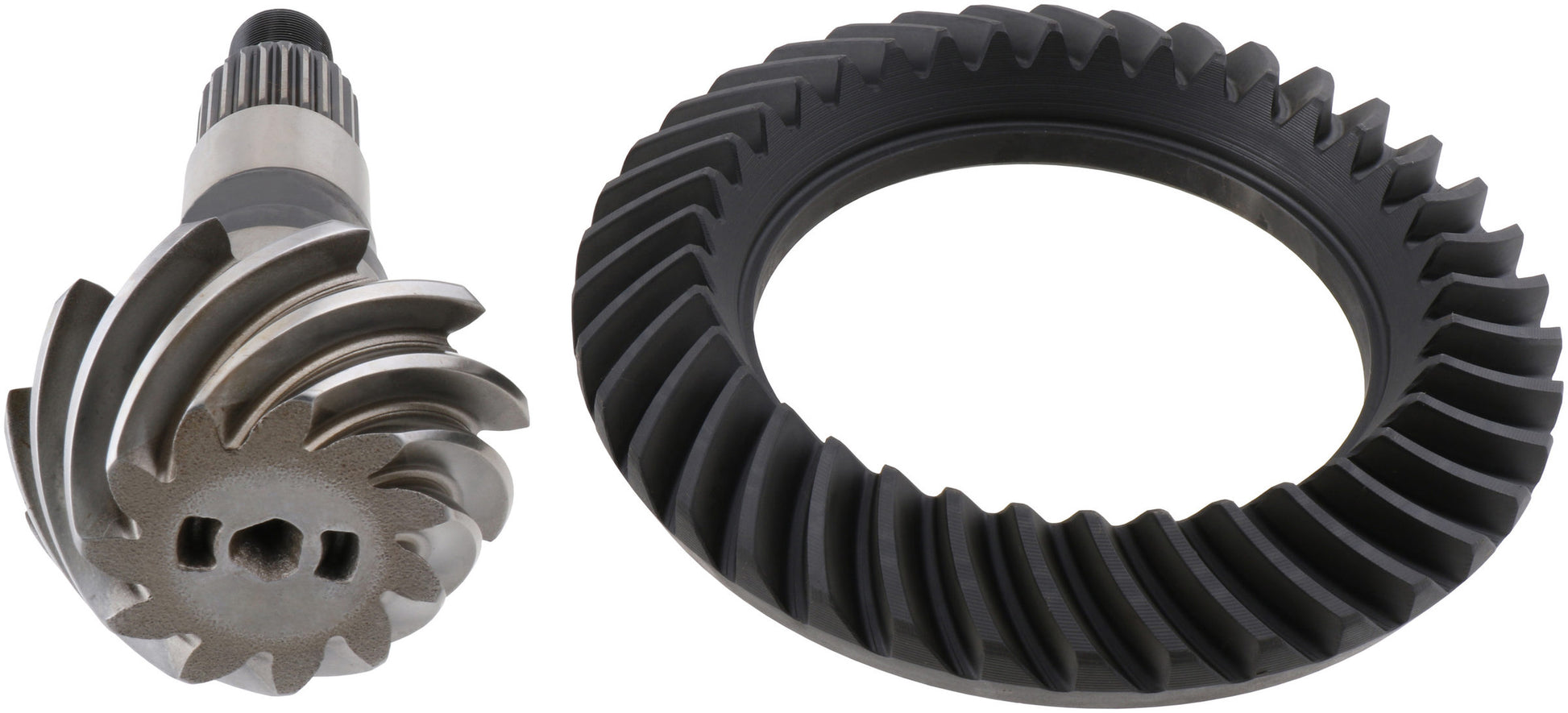

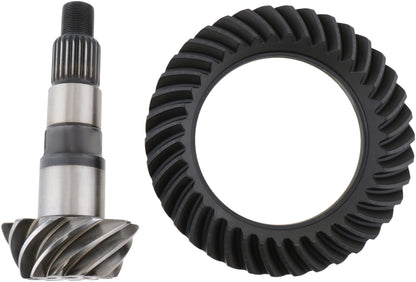

Spicer 10006253 - Differential Ring and Pinion - DANA 30 - Front 3.45 Ratio

Spicer 10006253 - Differential Ring and Pinion - DANA 30 - Front 3.45 Ratio

Spicer | 10006253
SKU: FSGR-10006253
Regular price $215.99 USD
Regular price $290.00 USD Sale price $215.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10006253 - Differential Ring and Pinion - DANA 30 - Front 3.45 Ratio

Differential Ring and Pinion - DANA 30 - Front 3.45 Ratio

For vehicles that require extreme performance, Spicer gearing offers strength that cannot be beaten. Dana design, engineering, testing, and manufacturing processes all work together to ensure reliability that others simply cannot deliver. For when you push your vehicle to the extreme, Spicer gearing is proven to be the best in the business.

  • Superior Metallurgy: Ensures more consistent, higher quality product
  • Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life
  • Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear
  • High-grade steel for maximum durability
Carrier Breaks: 3.55 And Down
Cover Bolt Quantity: 12
Include Installation Kit: N
On Vehicle Location: Front
Pinion Gear Tooth Quantity: 11
Pinion Shaft Diameter: 1.630
Pinion Spline Count: 24
Ring Gear Bolt Qty: 10
Axle Model: DANA 30
Gear Ratio: 3.45
Ring Teeth Count: 38
Ring Gear Bolt Thread In.: .375-24
Ring Gear Diameter (In.): 7.320
Ring Gear Rotation: Reverse
Axle Type: M186
New Or Remanufactured: New
Shims Included: N
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
