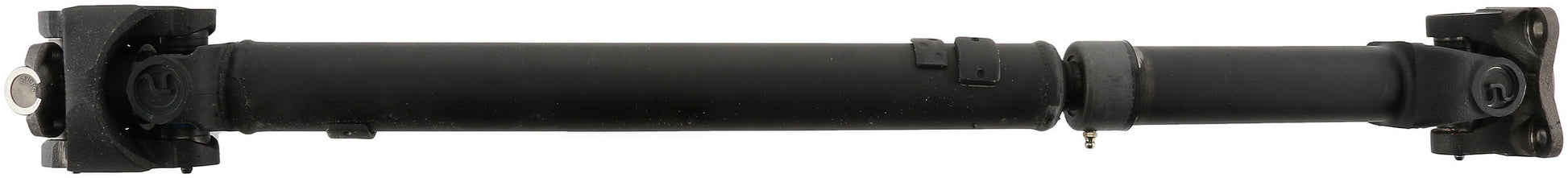

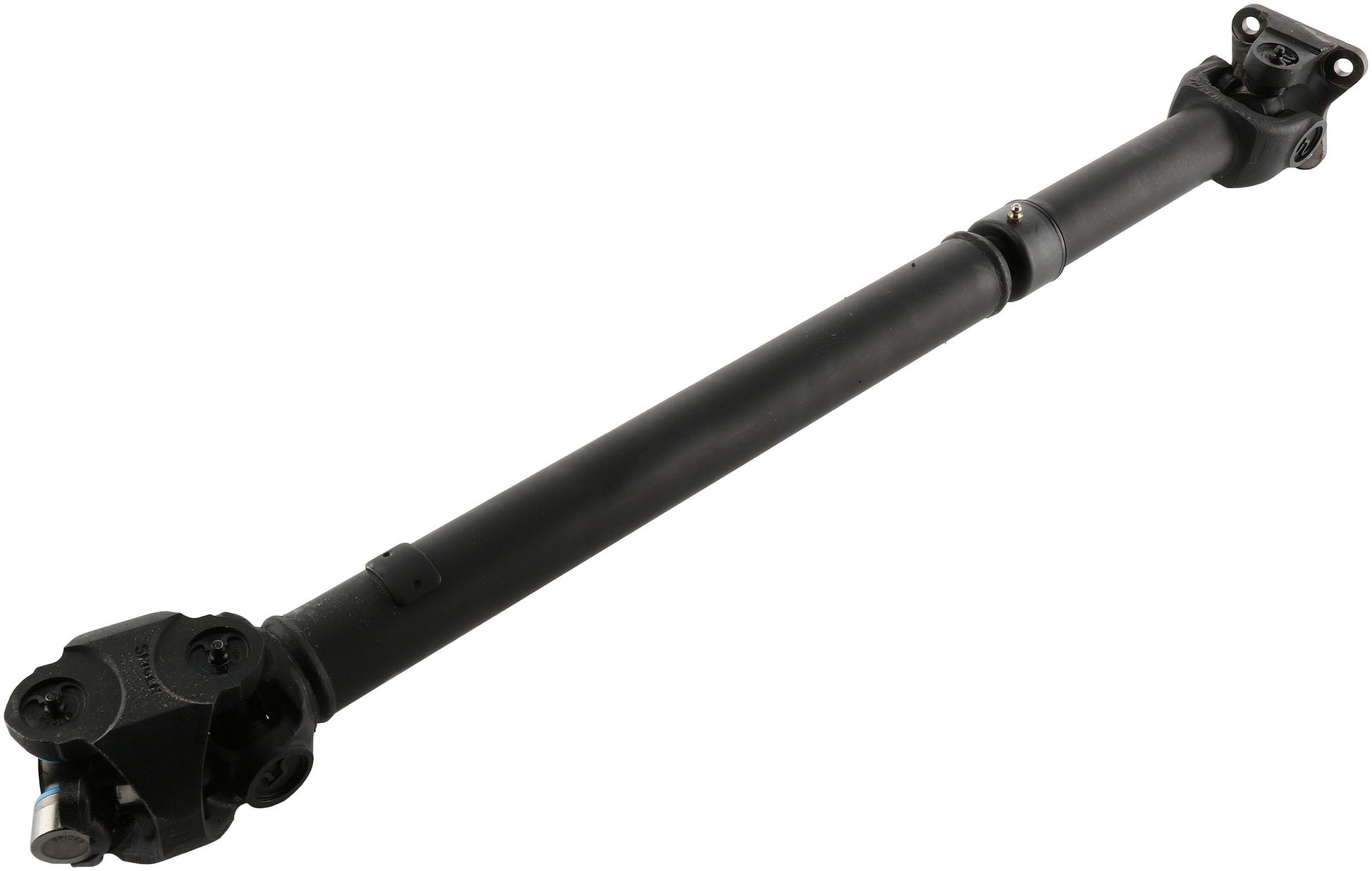

Spicer 10004467 - Drive Shaft Assembly - 1310 DANA 30/44 Front JK

Spicer 10004467 - Drive Shaft Assembly - 1310 DANA 30/44 Front JK

Spicer | 10004467
SKU: FSGR-10004467
Regular price $605.99 USD
Regular price $1,012.28 USD Sale price $605.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10004467 - Drive Shaft Assembly - 1310 DANA 30/44 Front JK

Drive Shaft Assembly - 1310 DANA 30/44 Front JK

Wherever limits are pushed, Dana is there. Spicer performance driveshafts for the Jeep Wrangler JK have been specifically designed off road punishment. Fitting Wranglers with 0 to 2 inch lifts these shafts yield better balance, greater strength and less vibration than other aftermarket alternatives. Features 50 percent thicker tube for added strength and small diameter design to eliminate exhaust clearance issues on lifted vehicles. We engineer our parts to deliver peak performance and optimum strength, so you can hit the road, the track, or the trail with confidence that comes from knowing you are backed by the industry leader in driveline technology.

  • Designed with 1310 series u-joint.
  • Includes premium SPL u-joints. The Strongest u-joint available.
  • Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
Series: 1310
Tube Length (In): 18.1890
Tube Length (Mm): 462.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 4.5276
Max Slip (MM): 115.0000
Notes: Flange yoke and Double Carden joint at one end
CL Yoke To CL Yoke (IN) - COLL: 33.0630
CL Yoke To CL Yoke (MM) - COLL: 839.8000
Mid Slip (MM): 57.5000
Mid Slip (IN): 2.2638
Phase (Yes/No): No
End 1 Type SJ Side: 2-2-1949
1/2 Max Slip (MM): 57.5
1/2 Max Slip (IN): 2.2638
CL Yoke To Flange Face (MM)-INST: 942.000
CL Yoke To Flange Face (MM)-COLL: 885.0000
Slip Assembly: No
CL Yoke To Flange Face(IN)-COLL: 34.8425
CV Joints Included: No
