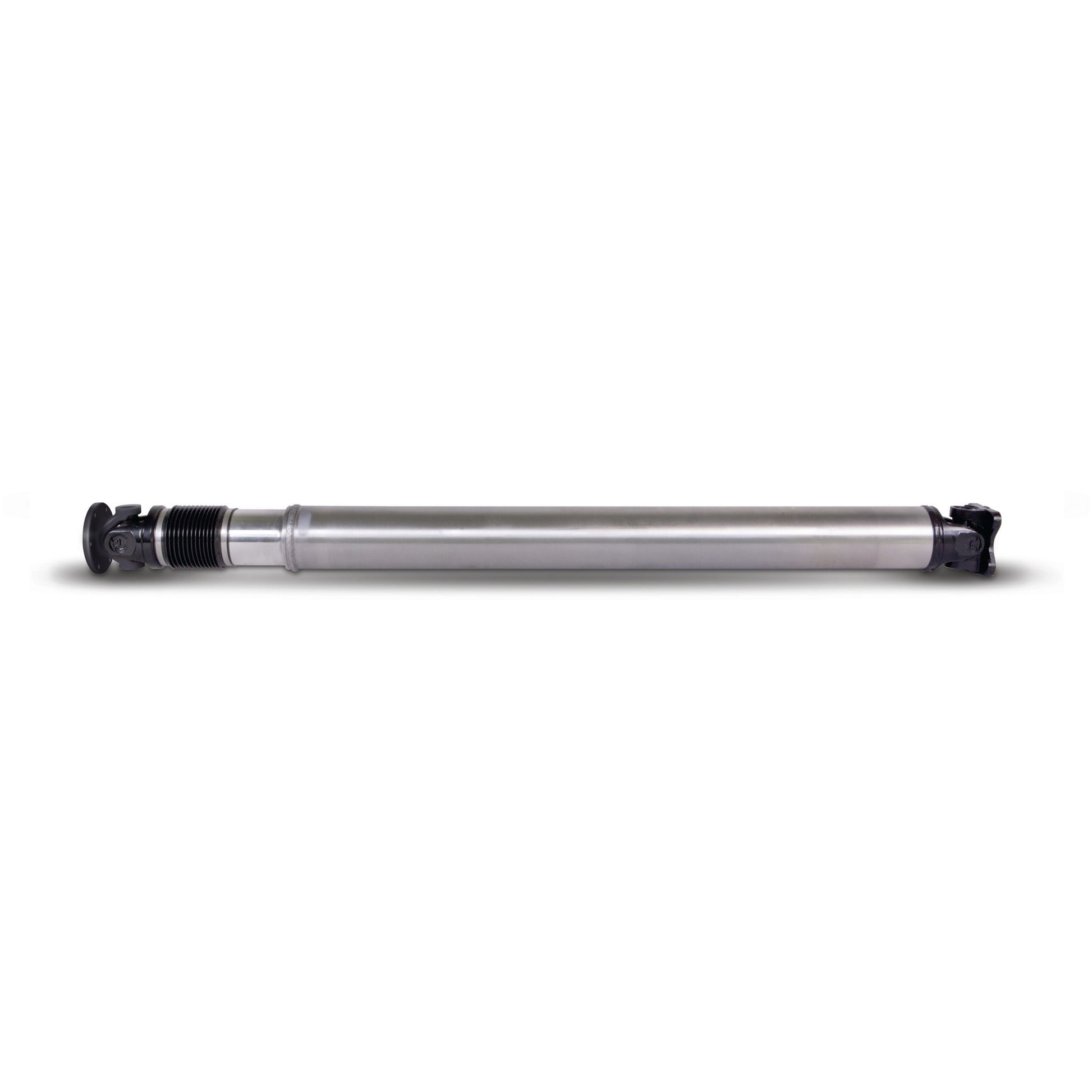

Spicer 10002094 - Mustang Performance Drive Shaft - Aluminum 3.5 inch Diameter 1350 Series 1312 mm

Spicer 10002094 - Mustang Performance Drive Shaft - Aluminum 3.5 inch Diameter 1350 Series 1312 mm

Spicer | 10002094
SKU: FSGR-10002094
Regular price $903.99 USD
Regular price $994.39 USD Sale price $903.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 10002094 - Mustang Performance Drive Shaft - Aluminum 3.5 inch Diameter 1350 Series 1312 mm

Mustang Performance Drive Shaft - Aluminum 3.5 inch Diameter 1350 Series 1312 mm

Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum driveshaft. Engineered specifically to enhance driveline performance in high horse power applications our design yields peak performance and optimum strength. Our reduced weight design is on average 21 pounds lighter than the OE shaft yielding reduced rotating mass, improved driving performance and quicker acceleration. The one-piece design eliminates the need for a center bearing further reducing driveline weight. This direct bolt-in assembly mounts directly the OE flange and requires no adapters. Spicer parts are engineered for peak performance so hit the road with confidence knowing you are backed by the global leader in driveline technology.

  • Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
  • Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
  • Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1350
Tube Length (In): 37.9134
Tube Length (Mm): 963.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Aluminum
Max Slip (IN): 2.7559
Max Slip (MM): 70.0000
Notes: Flange Yoke at Both Ends
CL Yoke To CL Yoke (IN) - COLL: 51.1811
CL Yoke To CL Yoke (MM) - COLL: 1300.0000
Mid Slip (MM): 35.0000
Mid Slip (IN): 1.3780
FF(Flange Face) To FF (MM)-COLL: 1395.0000
Phase (Yes/No): No
End 1 Type SJ Side: 5022701
CV Joints Included: No
End 2 TJ Side: 3-2-1579
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 54.9213
FF(Flange Face) To FF (IN)-INST: 56.2992
FF(Flange Face) To FF (MM)-INST: 1430.0000
1/2 Max Slip (IN): 1.3780
1/2 Max Slip (MM): 35
