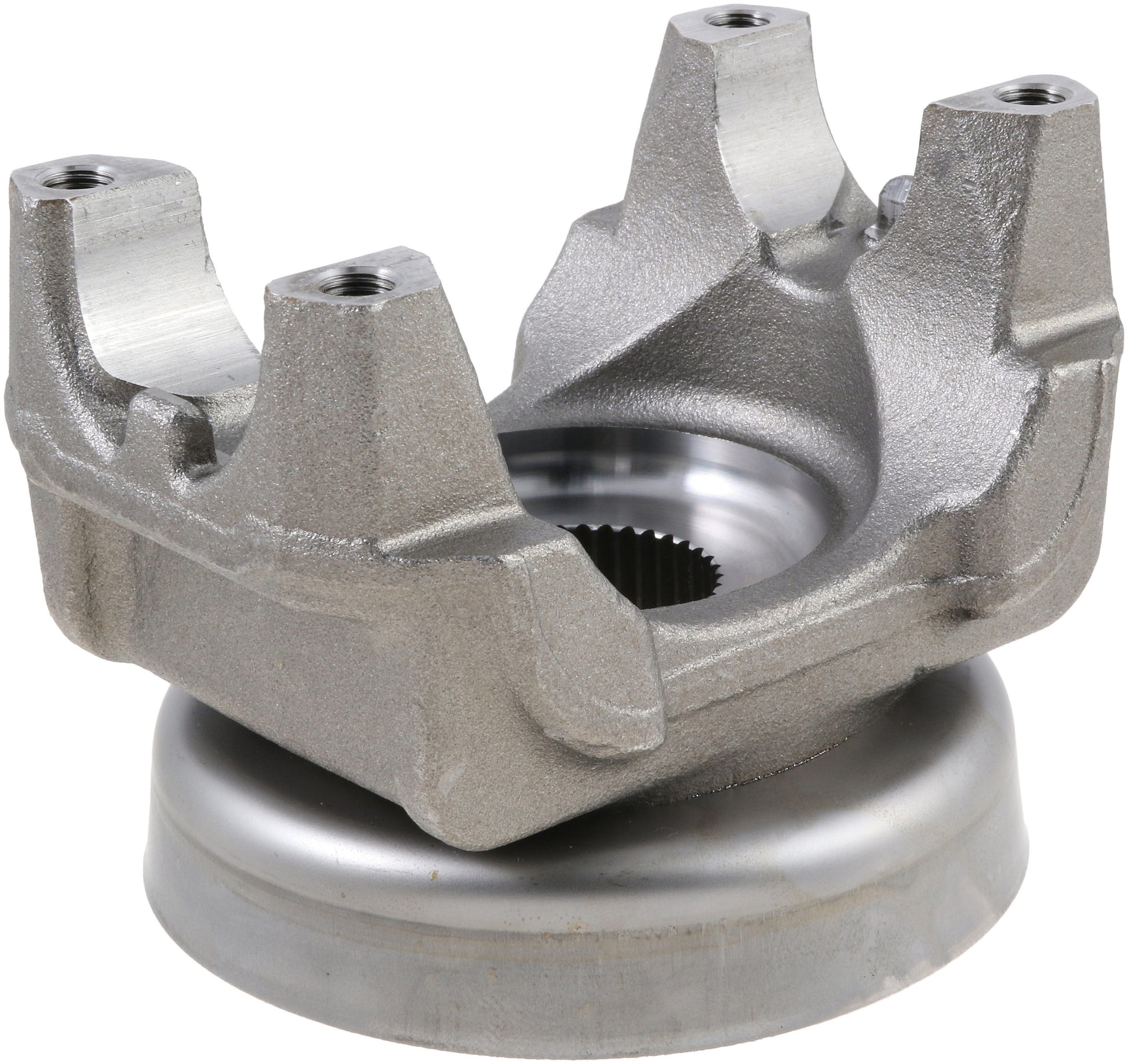

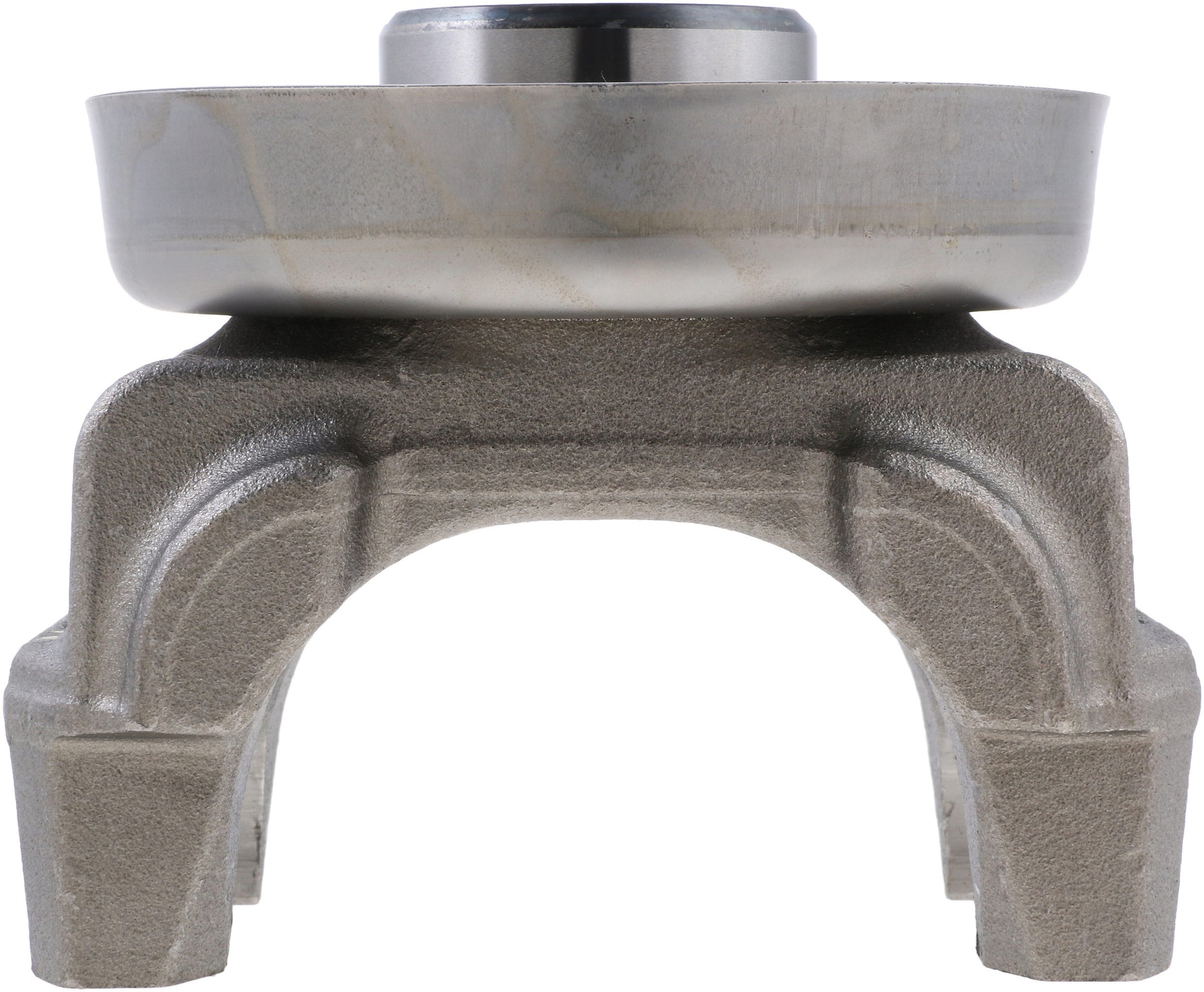

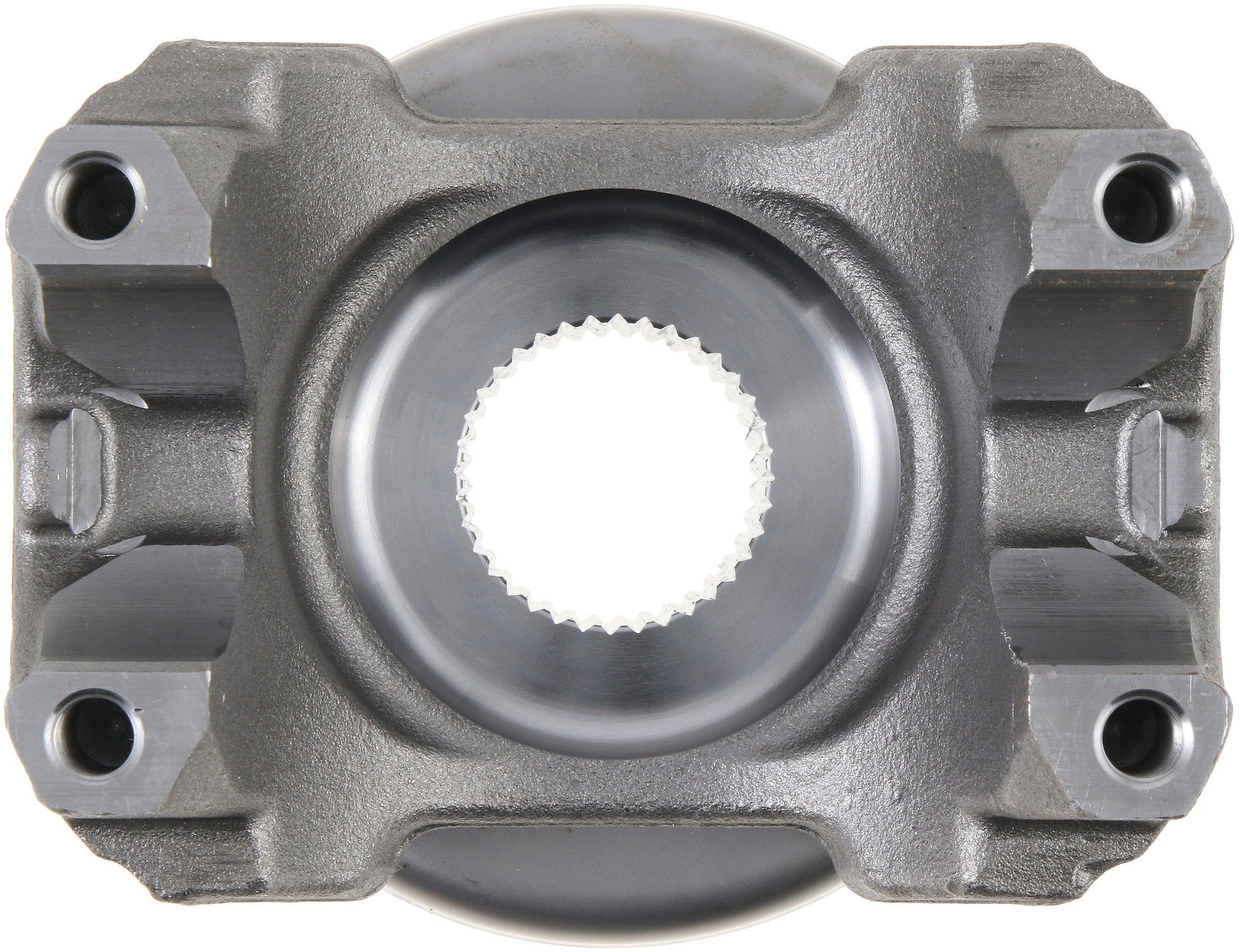

Spicer 100-4-1631-1X - End Yoke Assembly

Spicer 100-4-1631-1X - End Yoke Assembly

Spicer | 100-4-1631-1X
SKU: FSGR-100-4-1631-1X
$266.99 USD
$358.72 USD $266.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 100-4-1631-1X - End Yoke Assembly

End Yoke Assembly

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL100
Material: Steel
Spline Count: 36
Type: Splined Hole
Assembly: Yes
Hub Diameter R: 2.1264
Includes Slinger/Plug: 231206
Involute Spline: Yes
Length Thru Hole Q: 2.0000
Outside Yoke Dimension (In) E: 4.9570
Yoke Bearing Dimension (In) D: 1.6255
Yoke Style: HR
Major Diameter: 1.5680
C/L To End Hub S: 4.2323
Joint Angle #1: 15
