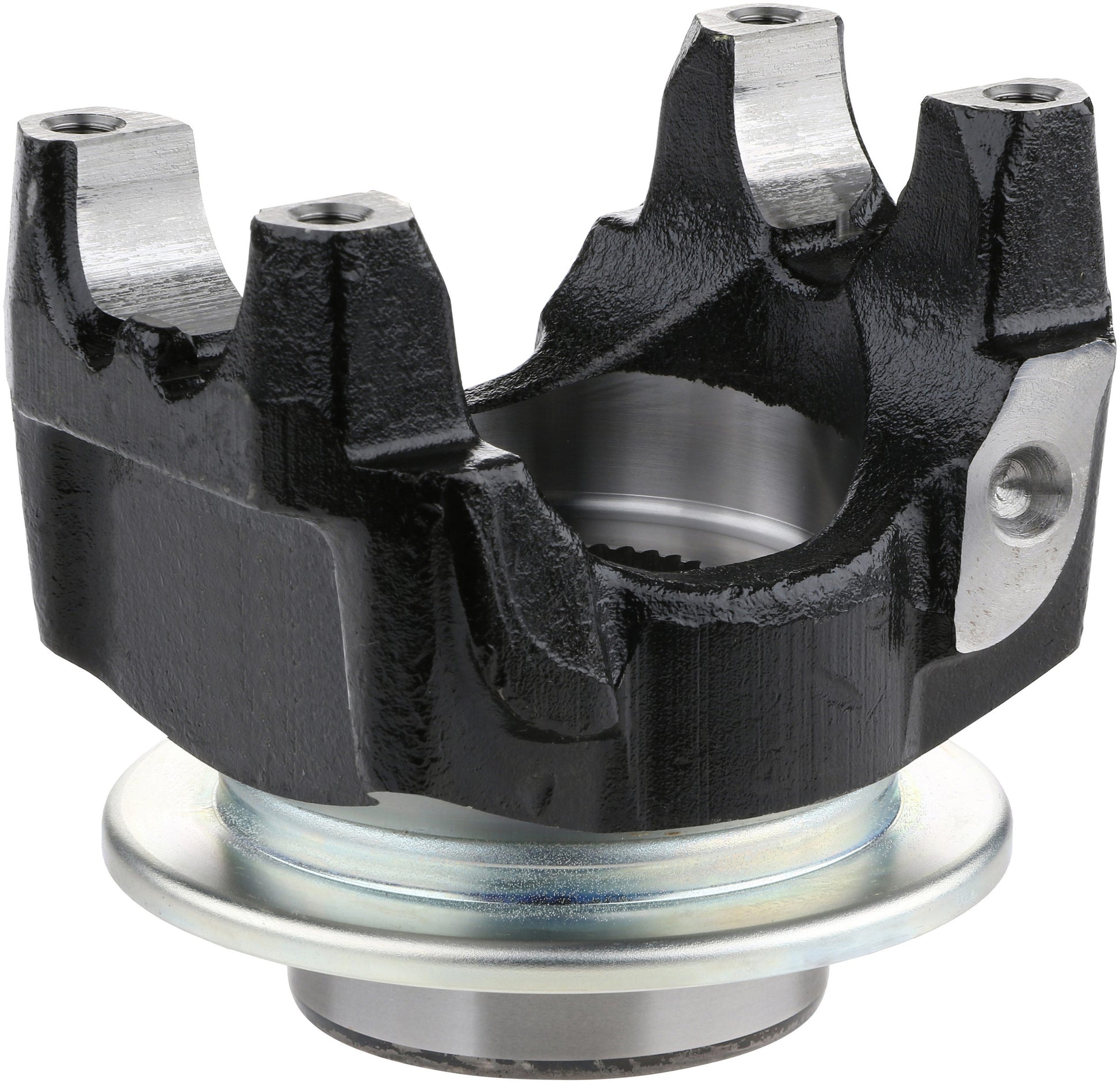

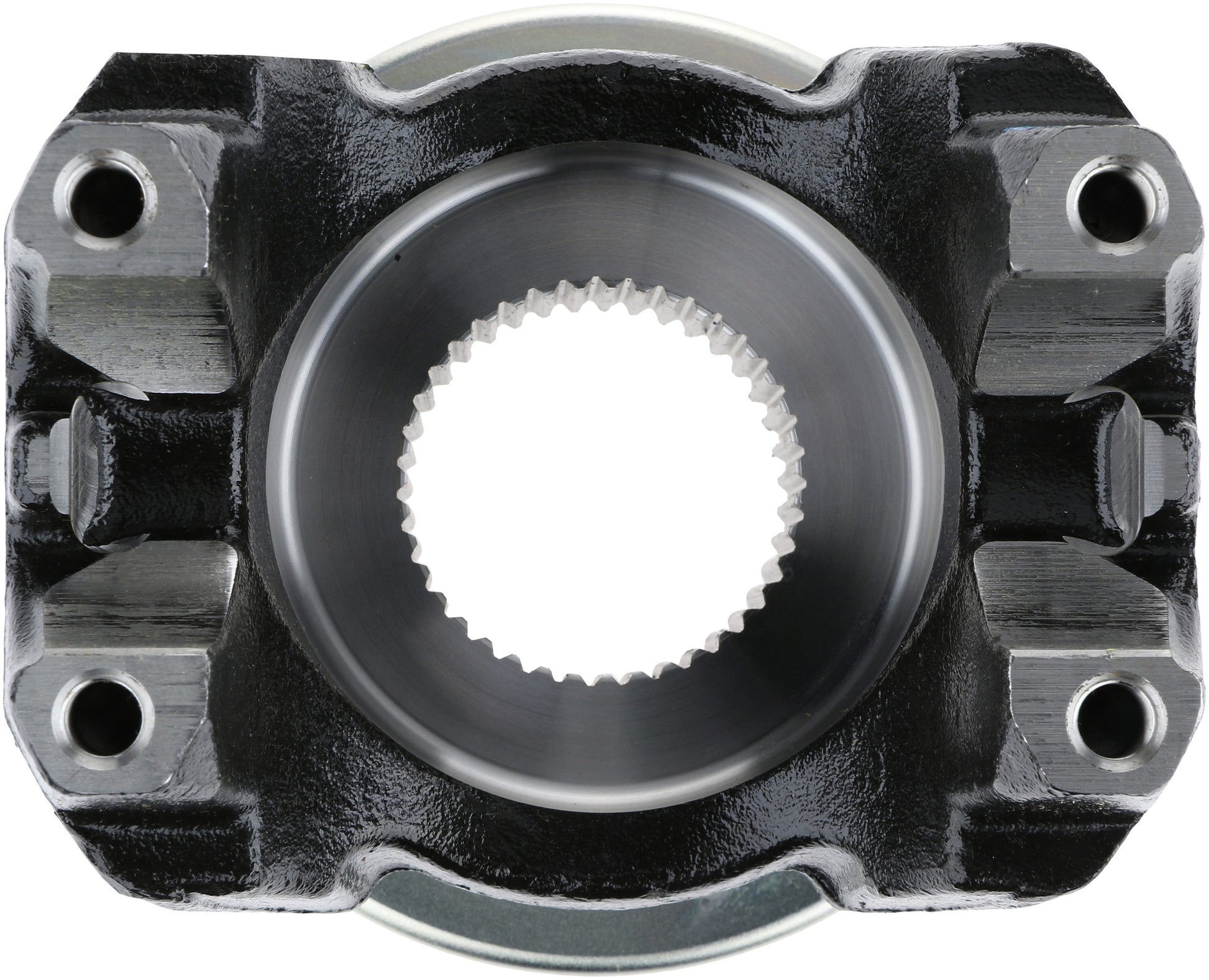

Spicer 100-4-1551-1XE - Painted End Yoke Assembly
Spicer 100-4-1551-1XE - Painted End Yoke Assembly
SKU: FSGR-100-4-1551-1XE
Regular price
$258.99 USD
Regular price
$348.42 USD
Sale price
$258.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 100-4-1551-1XE - Painted End Yoke Assembly
Painted End Yoke Assembly
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: SPL90
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Yes
Hub Diameter R: 3.0015
Includes Slinger/Plug: 139782
Involute Spline: Yes
Length Thru Hole Q: 2.2840
Outside Yoke Dimension (In) E: 4.9570
Yoke Bearing Dimension (In) D: 1.6255
Yoke Style: HR
Major Diameter: 2.0240
C/L To End Hub S: 4.7500
C-Bore Depth: 0.2500
C-Bore Diameter: 2.0800
Joint Angle #1: 15
