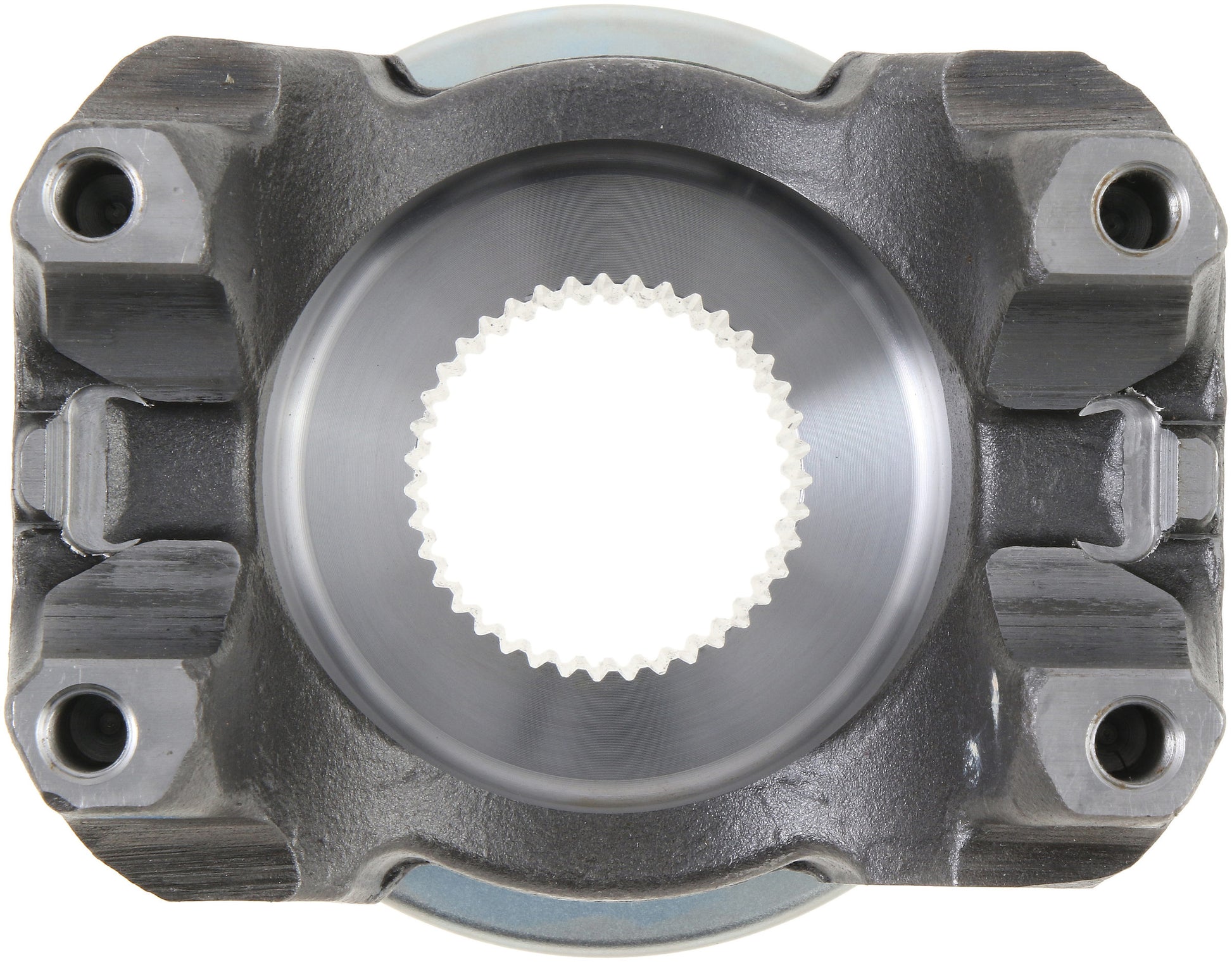

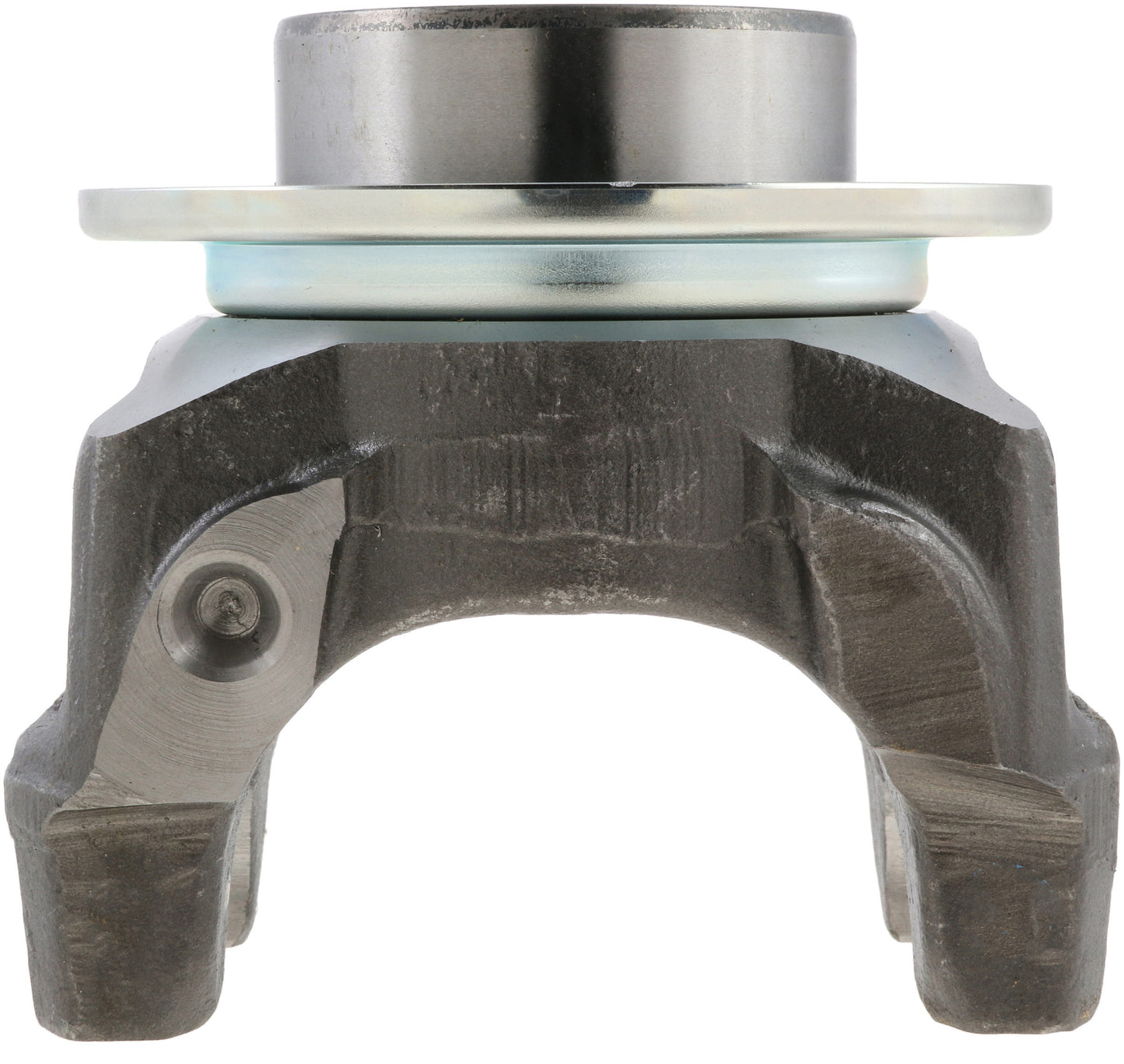

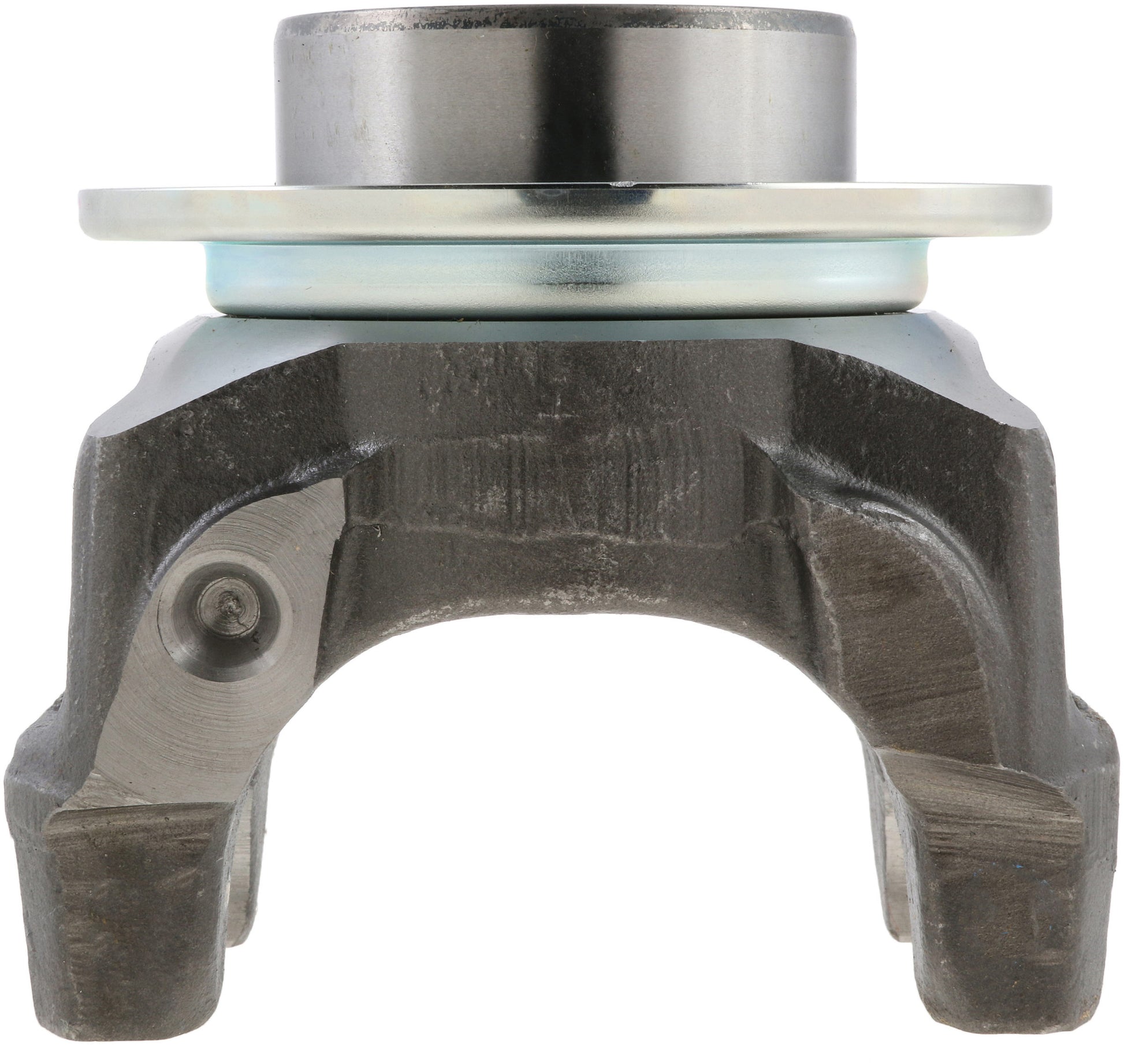

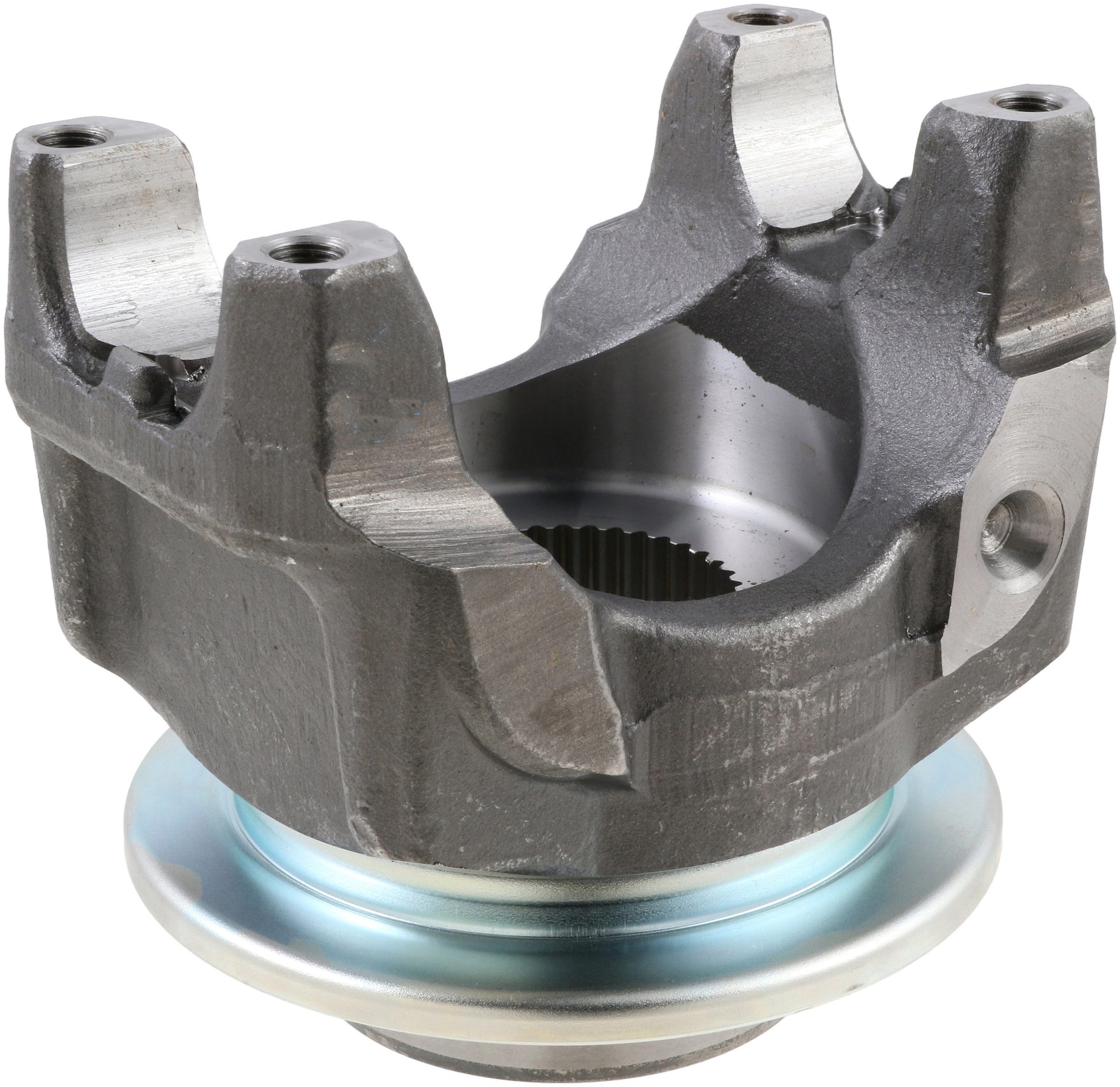

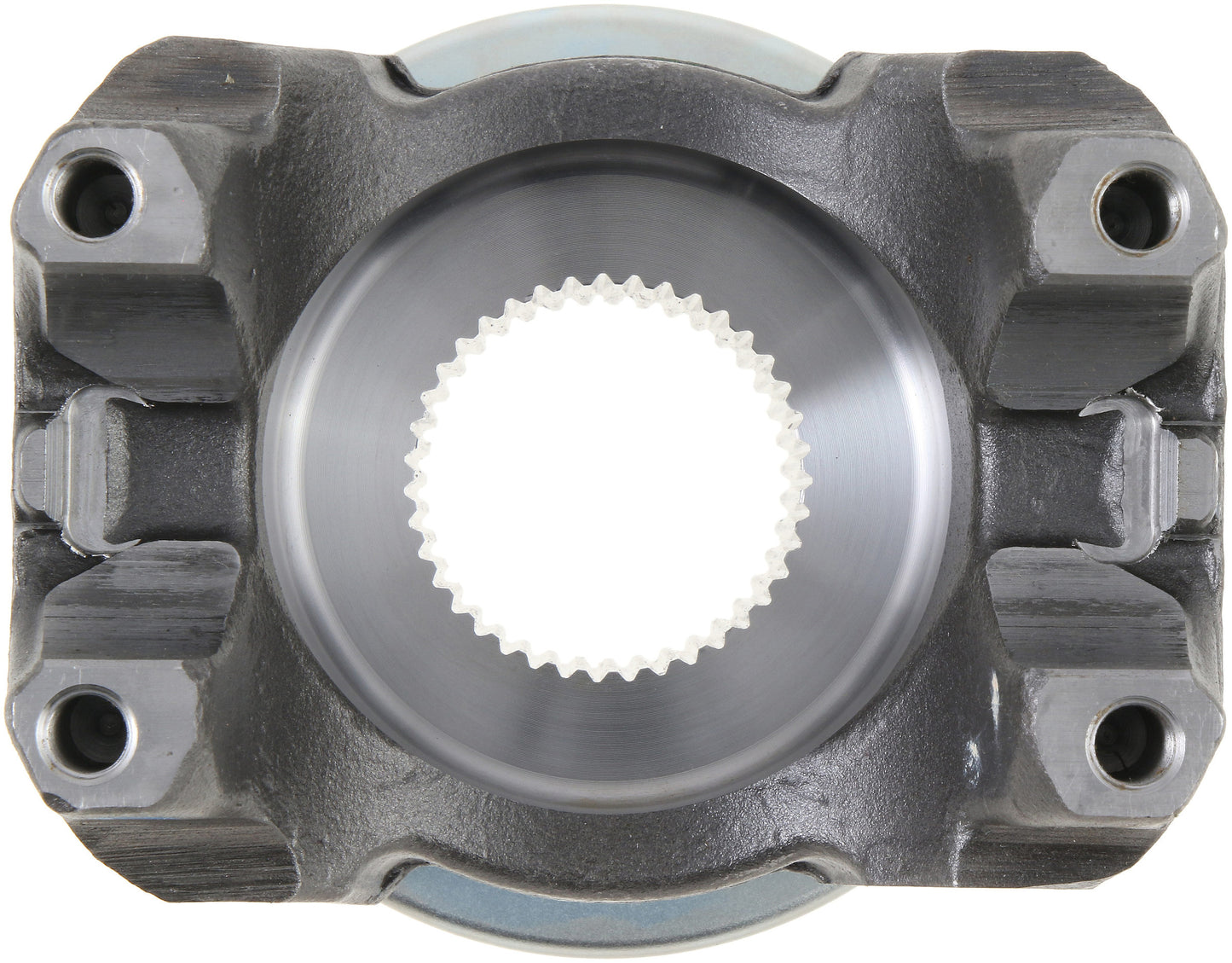

Spicer 100-4-1551-1X - End Yoke Assembly

Spicer 100-4-1551-1X - End Yoke Assembly

Spicer | 100-4-1551-1X
SKU: FSGR-100-4-1551-1X
$262.99 USD
$352.68 USD $262.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 100-4-1551-1X - End Yoke Assembly

End Yoke Assembly

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL100
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3
Includes Slinger/Plug: Y
Involute Spline: Y
Length Thru Hole Q: 2.281
Outside Yoke Dimension (In) E: 4.958
Yoke Bearing Dimension (In) D: 1.625
Yoke Style: BS
Major Diameter: 2.024
C/L To End Hub S: 4.75
C-Bore Depth: 0.25
