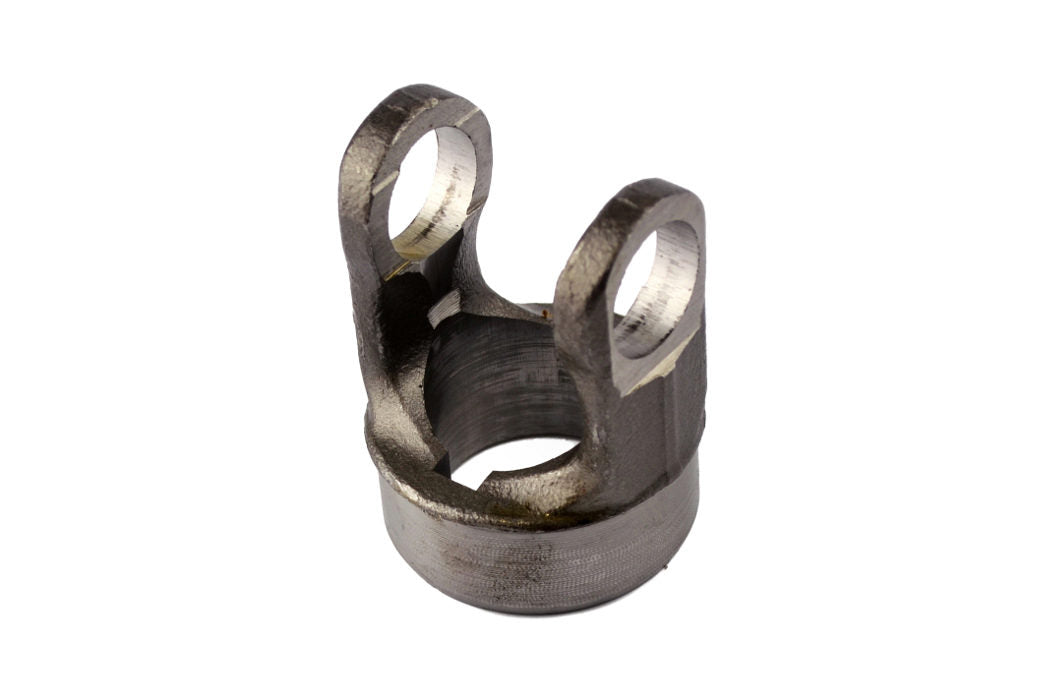

Spicer 10-4-223 - POWER TAKE OFF END YOKE
Spicer 10-4-223 - POWER TAKE OFF END YOKE
SKU: FSGR-10-4-223
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Spicer 10-4-223 - POWER TAKE OFF END YOKE
POWER TAKE OFF END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Series: 1000
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.500
Hub Diameter R: 2.250
Involute Spline: N
Yoke Bearing Dimension (In) D: 0.938
Yoke Style: ISR
Keyway Location W: 3
Sae Keyway Width (In) X: 0.375
Set Screw Location W: 6
Inside Yoke Dimension (In) K: 1.500
C/L To End Hub S: 2.500
Joint Angle #1: 60
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.671
Hole Diameter - Min: 1.666
Keyway Width - Max: 0.378
Keyway Width - Min: 0.376
