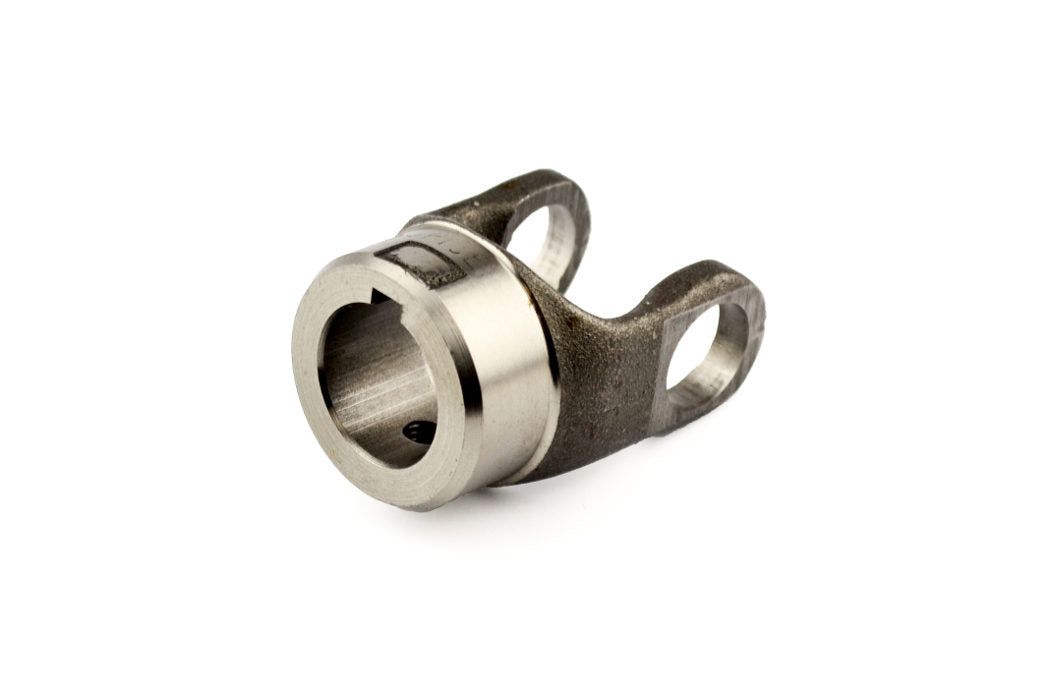

Spicer 10-4-123 Power Take Off (PTO) End Yoke

Name: Spicer 10-4-123 Power Take Off (PTO) End Yoke
Brand: Spicer
SKU: FSGR-10-4-123
Availability: OutOfStock

Spicer | 10-4-123
SKU: FSGR-10-4-123

$0.00 USD

~~$0.00 USD~~ $0.00 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock

Spicer 10-4-123 Power Take Off (PTO) End Yoke

Genuine OE quality. Tested and proven.
Built to meet OE standards set by Dana
Tested and validated to rigorous OE specifications
Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace

Joint Angle #1: 60

Set Screw Hole Diameter (In): 0.375

Hole Diameter - Max: 1.2505

Hole Diameter - Min: 1.2495

Keyway Width - Max: 0.3155

Keyway Width - Min: 0.3135

Series: 1000

Material: Steel

Type: Straight Round Hole

Hole Diameter (In) P: 1.250

Hub Diameter R: 2.000

Involute Spline: N

Length Thru Hole Q: 1.030

Yoke Bearing Dimension (In) D: 0.938

Yoke Style: ISR

Keyway Location W: 3

Sae Keyway Width (In) X: 0.312

Set Screw Location W: 9

Inside Yoke Dimension (In) K: 1.500

C/L To End Hub S: 2.500
