SPC Performance - 36021
NAVISTAR HD SHIM 1/16"(6)

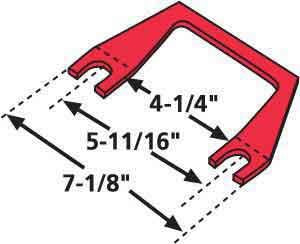

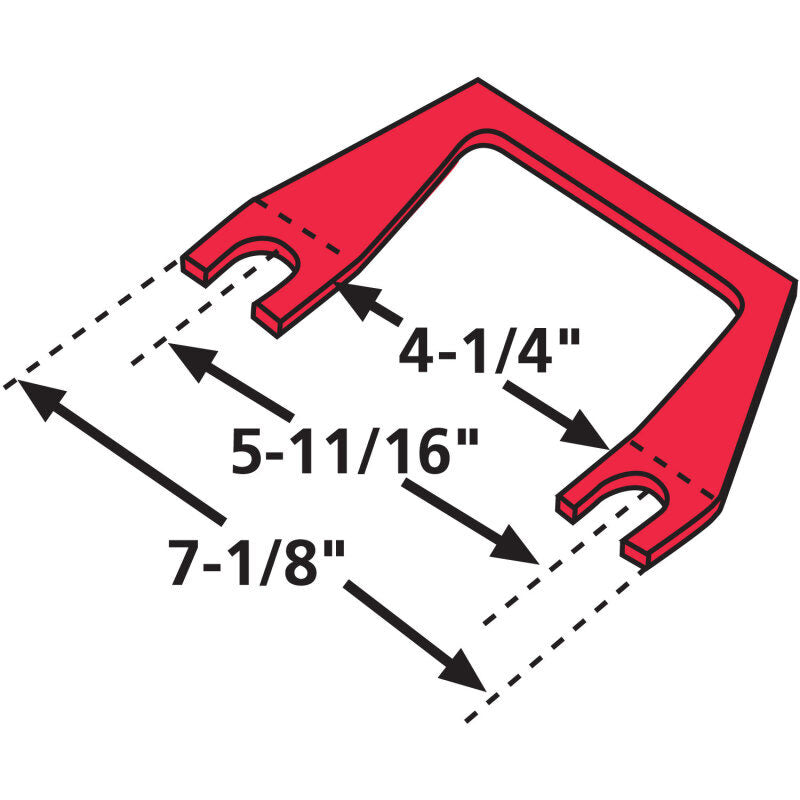

When used on the lateral link on the Navistar "Corporate" 6x4 air suspension, these shims will center the axle with the frame rails. Also will adjust thrust angle and toe by placing the shim between the spring hanger and the spring. Six shims per box. California Residents WARNING
- Tandem Alignment shims for all your HD needs
- Navistar Corp. 6x4 Air Susp. 1/16”
- Included in SPC #36000 Shim assortment
Color: SILVER
Grade Type: Standard Replacement
Material: STEEL
Maximum Length: 7.125
Maximum Thickness: 0.068
Minimum Length: 4.625
Minimum Thickness: 0.058
Universal Or Specific Fit: Specific
Thickness: 1/16
Add-On: 36020, 36022
