SPC Performance 15746 - xAxis Rod End Ball Joint

SPC Performance 15746 - xAxis Rod End Ball Joint

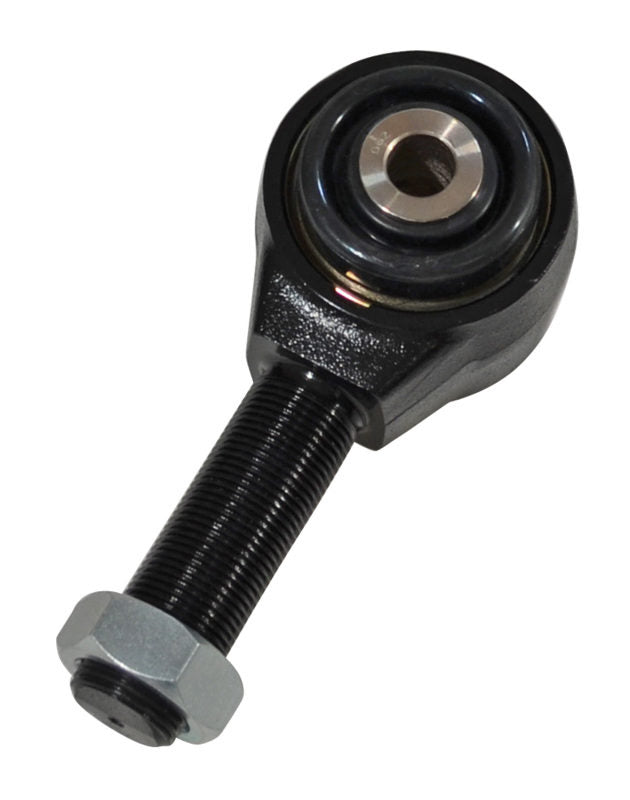

XAXIS ROD END BALL JOINT

Build your next project with these forged steel alloy threaded receivers and xAxis sealed flex joints from SPC Performance. Get the increased angularity of a mono-ball that has been equipped with high mis-alignment inserts, the reduced compliance of a spherical bearing, and better durability than rubber and urethane bushings with SPC's superior design. This assembly has LH 3/4"-16 threads takes a 1/2" bolt and is 2" wide. 45deg of articulation, sealed dust boots, moly grease and a highly polished electroless nickel ball makes this the best joint on the market. These assemblies utilize a snap ring for positive retention and easy replacements. Download a package model into your CAD software and start designing today. California Residents WARNING

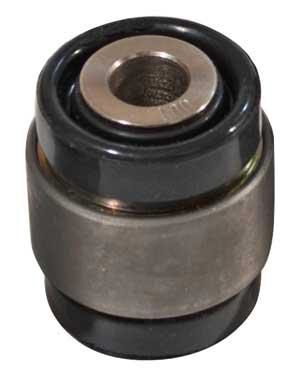

• Forged steel alloy receivers with xAxis sealed flex joints
• Sealed dust boots, moly grease and polished nickel ball

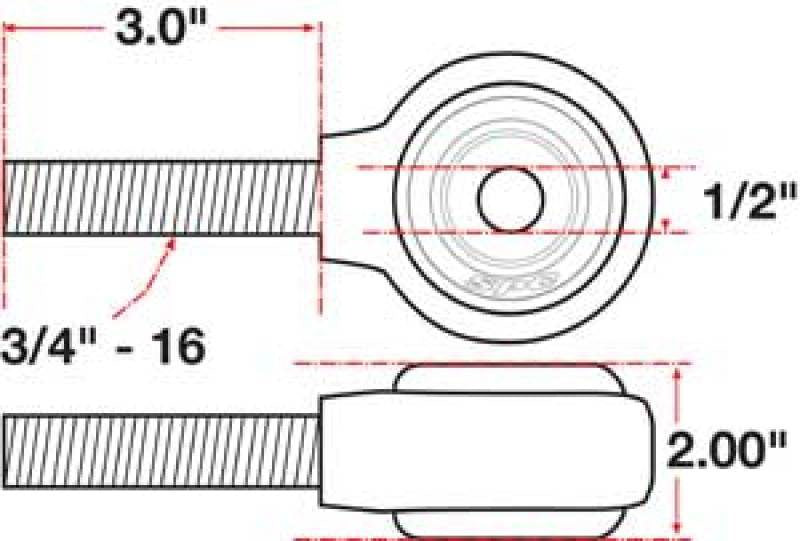

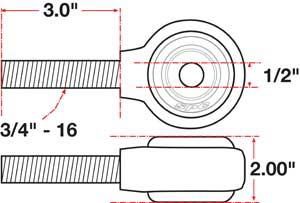

• 15746 has RH 3/4"-16 threads takes a 1/2" bolt and is 2" wide
• Up to 45 degree angularity for easy alignment
