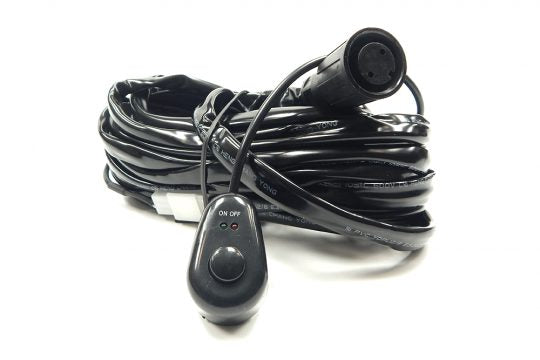

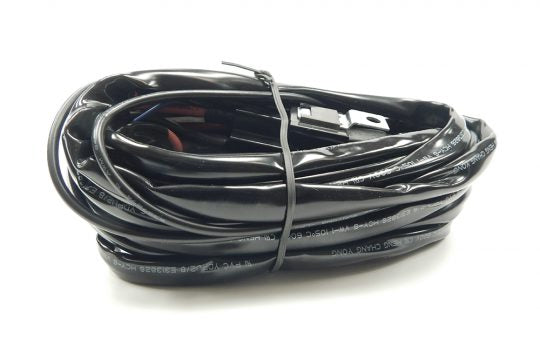

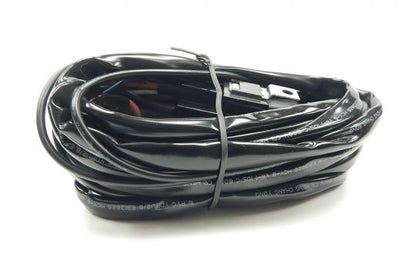

Southern Truck 79901 - Light Bar Harness/Switch Round Connector Lifts

Southern Truck 79901 - Light Bar Harness/Switch Round Connector Lifts

Own the night with Southern Truck's LED Light Bar Round Wiring Harness. With plenty of power to support on and off-road applications, the Southern Truck wiring harness is a flat wound, 14-gauge harness that includes the power supply needed to light almost any application. For added protection, we've enclosed the harness with a protective rubber layer to exceed IP68 waterproof standards, in addition to including a 30 amp in-line fuse and 40-amp relay.

Features:

• Single Round Connector.
• Push button illuminated on/off switch.
• 40 Amp Relay.
• 30 AMP fuse.
• 360 watt load capacity.
• Voltage: 12 volts.
• Watts: 180.
• IP68 waterproof rating.
• 14 gauge wire for added strength and durability.
• Wiring Harness Length Overall: 132 inches, Light Connector to Relay: 116 inches, Relay to Switch: 114 inches, Relay to Power Terminals: 22 inches

Details:

• Wire Gauge 14 Gauge
• Wire Type Flat Wound
• Relay 40 Amps
• Waterproof Rating IP68
• Fuse 30 Amps
• Voltage 12 volts
• Connector Type Single Round
• Switch Push button illuminated on/off switch
