Sniper - 860010
SNIPER EFI 90MM TB FOR 11-14 5.0L COYOTE

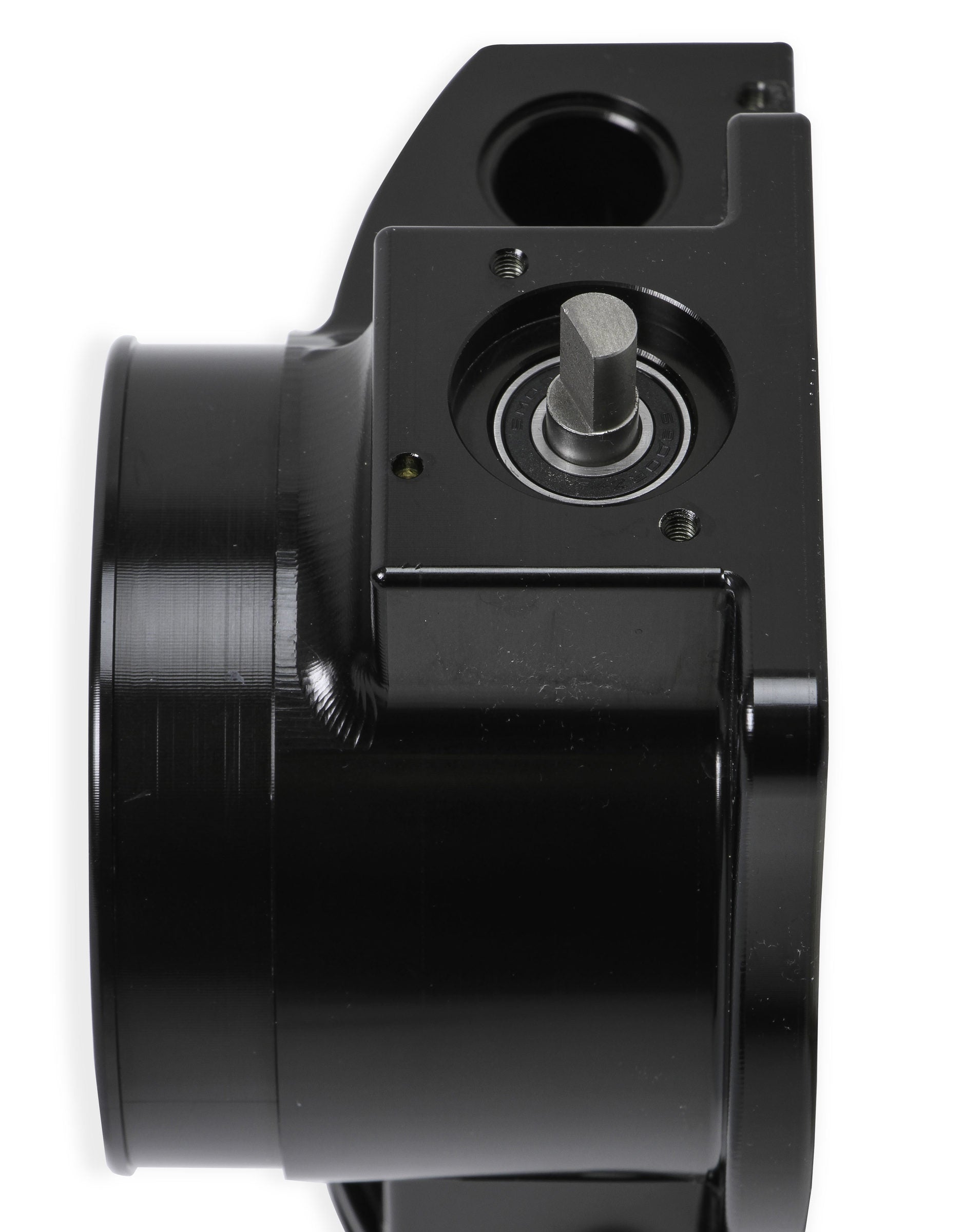

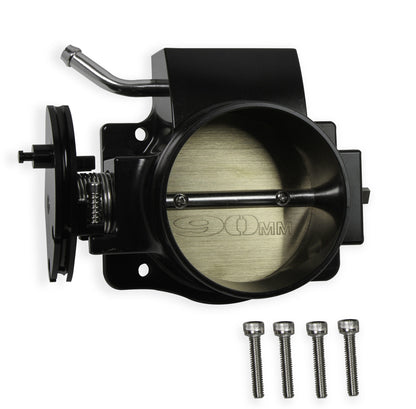

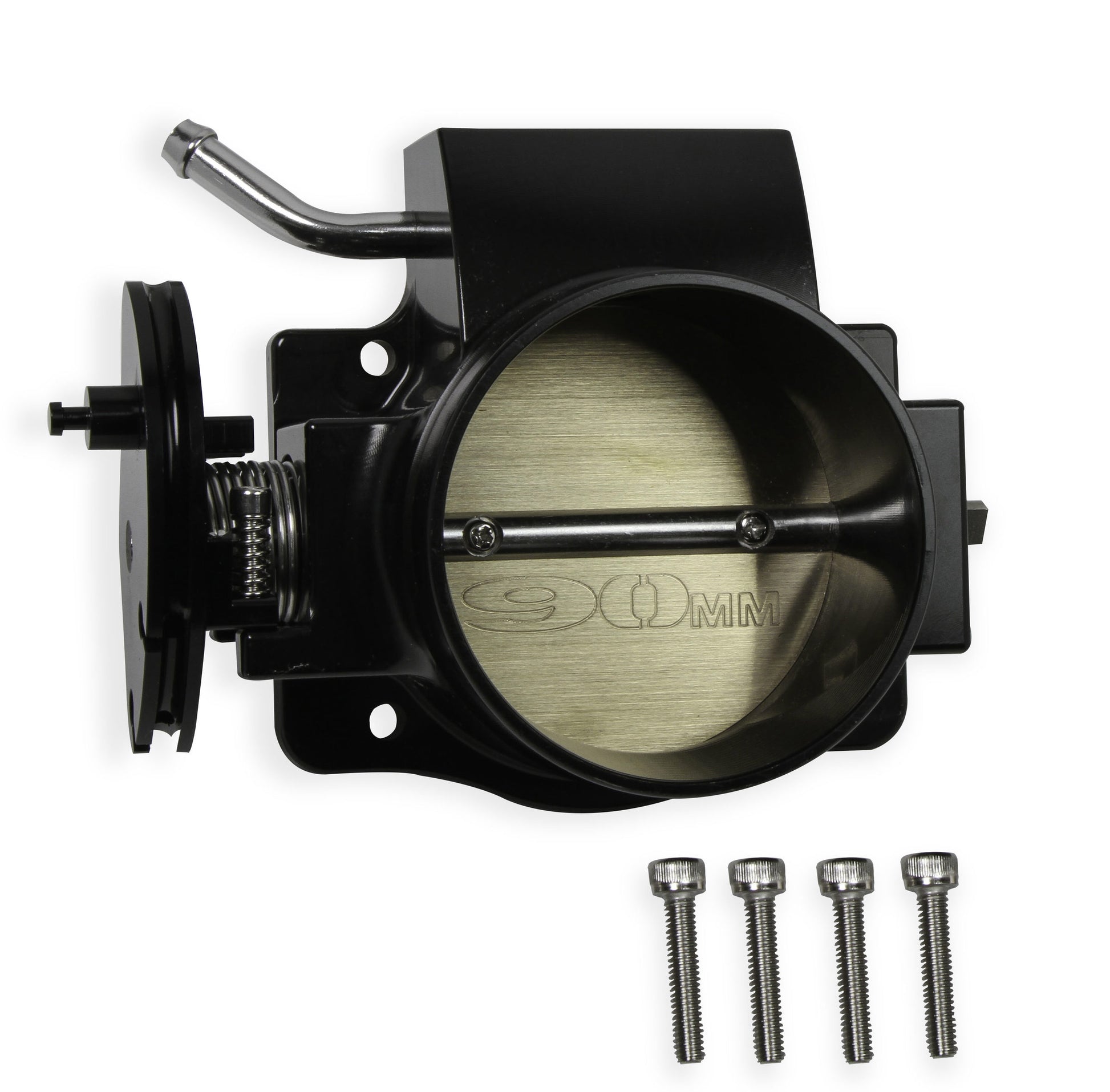

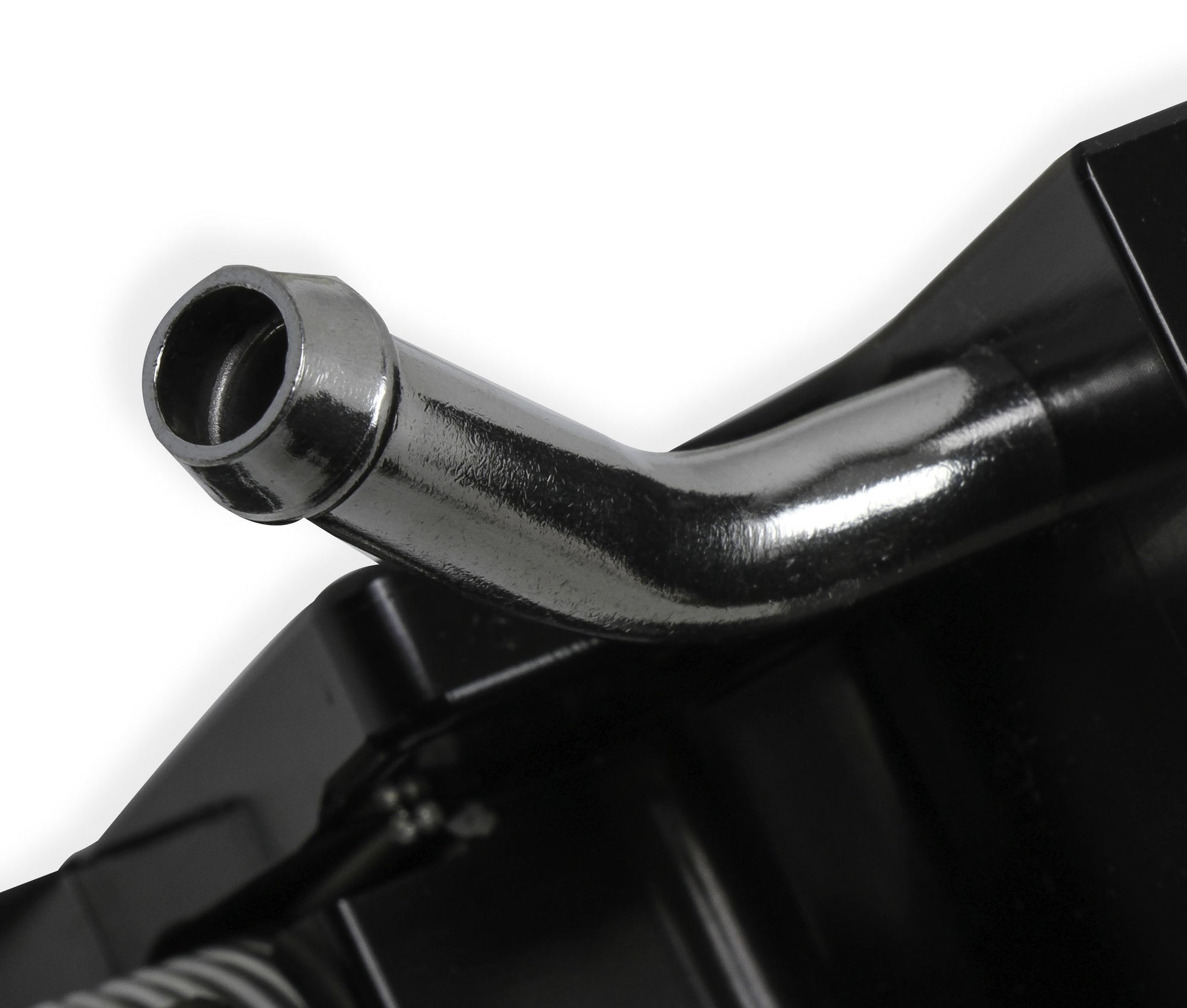

90MM Throttle Body with Sniper EFI Logo Black for 2011-present Ford Coyote 5.0L
Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.
- Cable operated throttle body available in 90mm opening
- Adjustable throttle stop
- High quality billet aluminum construction
- Available in two finishes Silver or Black anodized

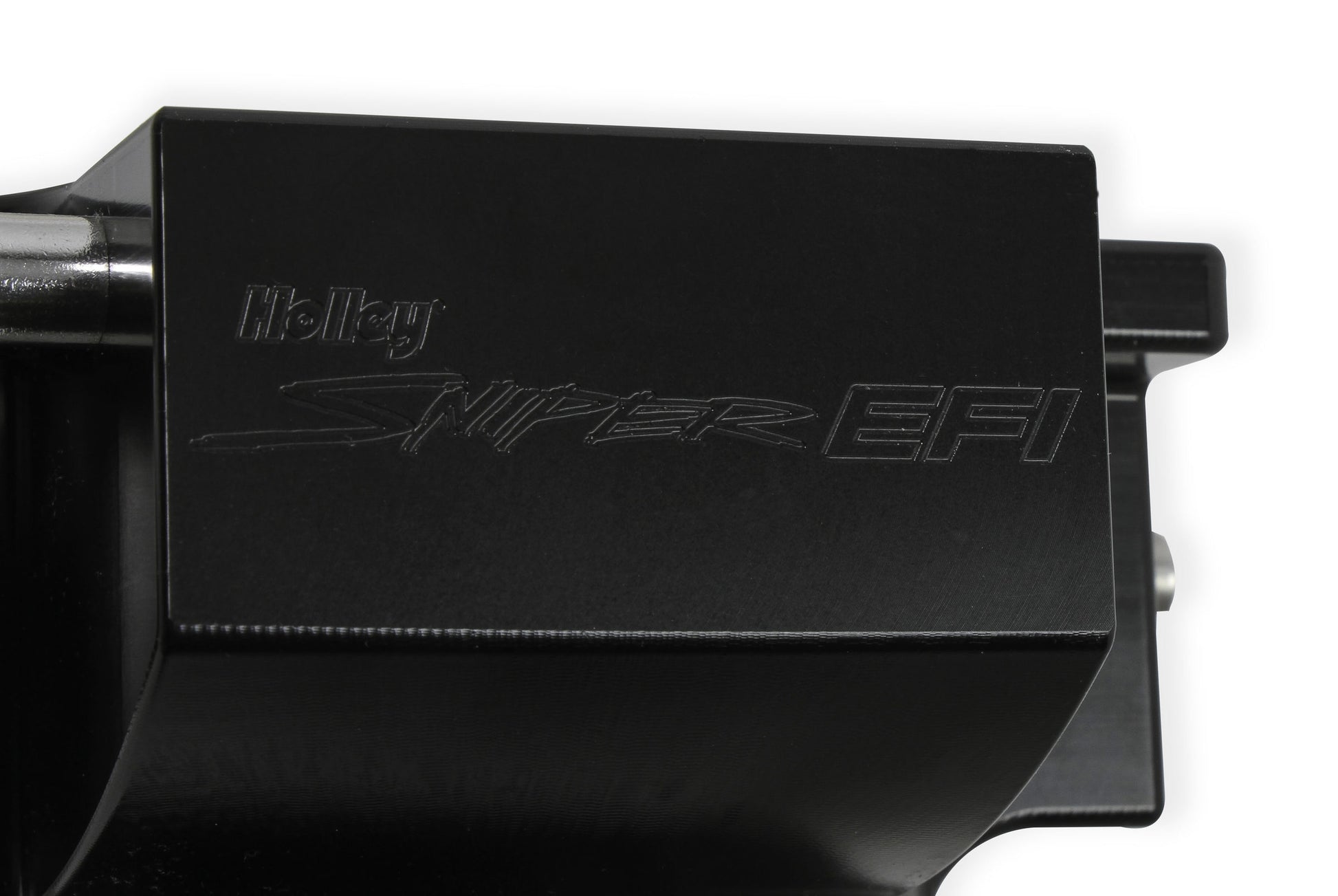

- Laser engraved Sniper EFI logo

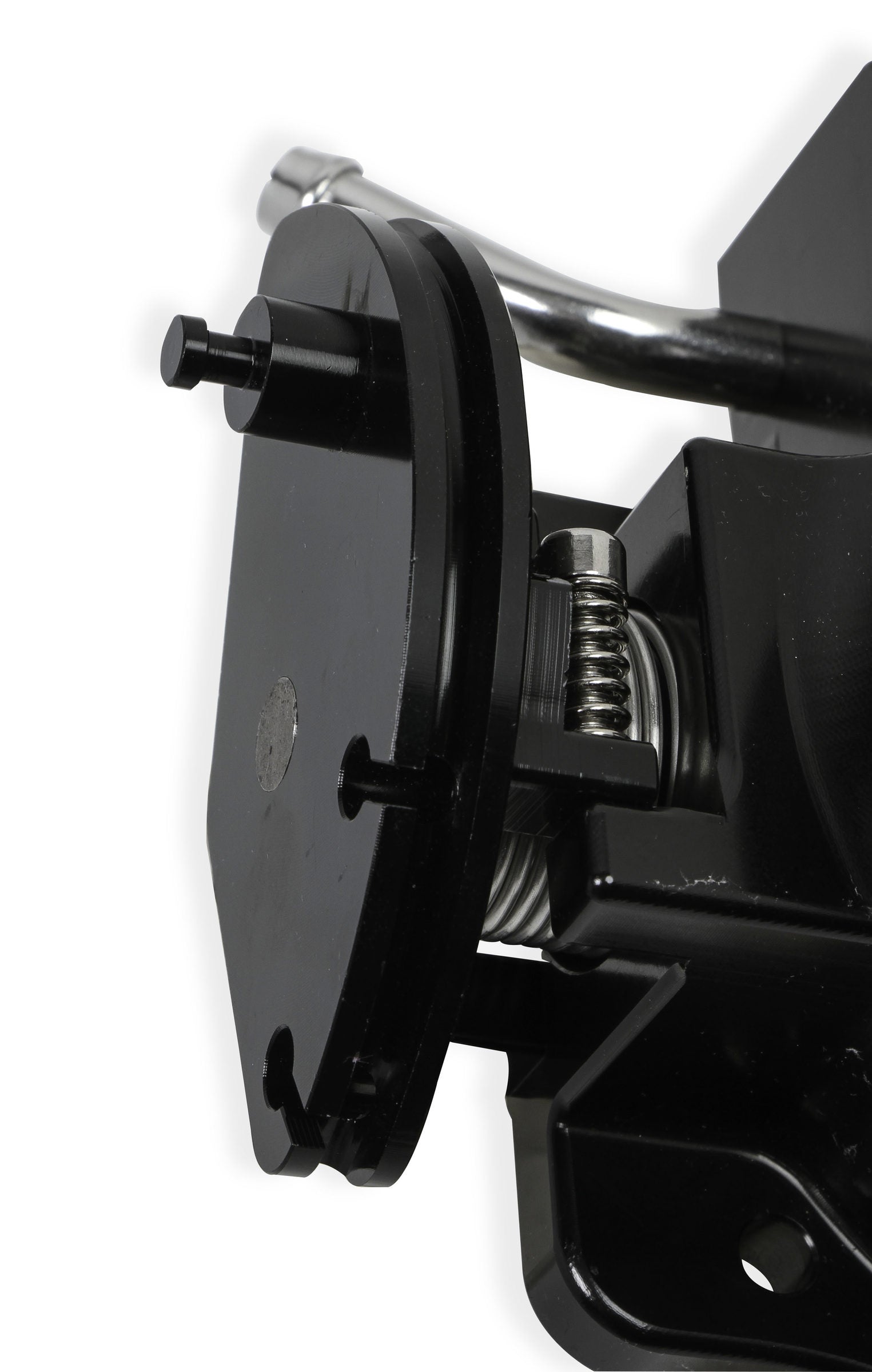

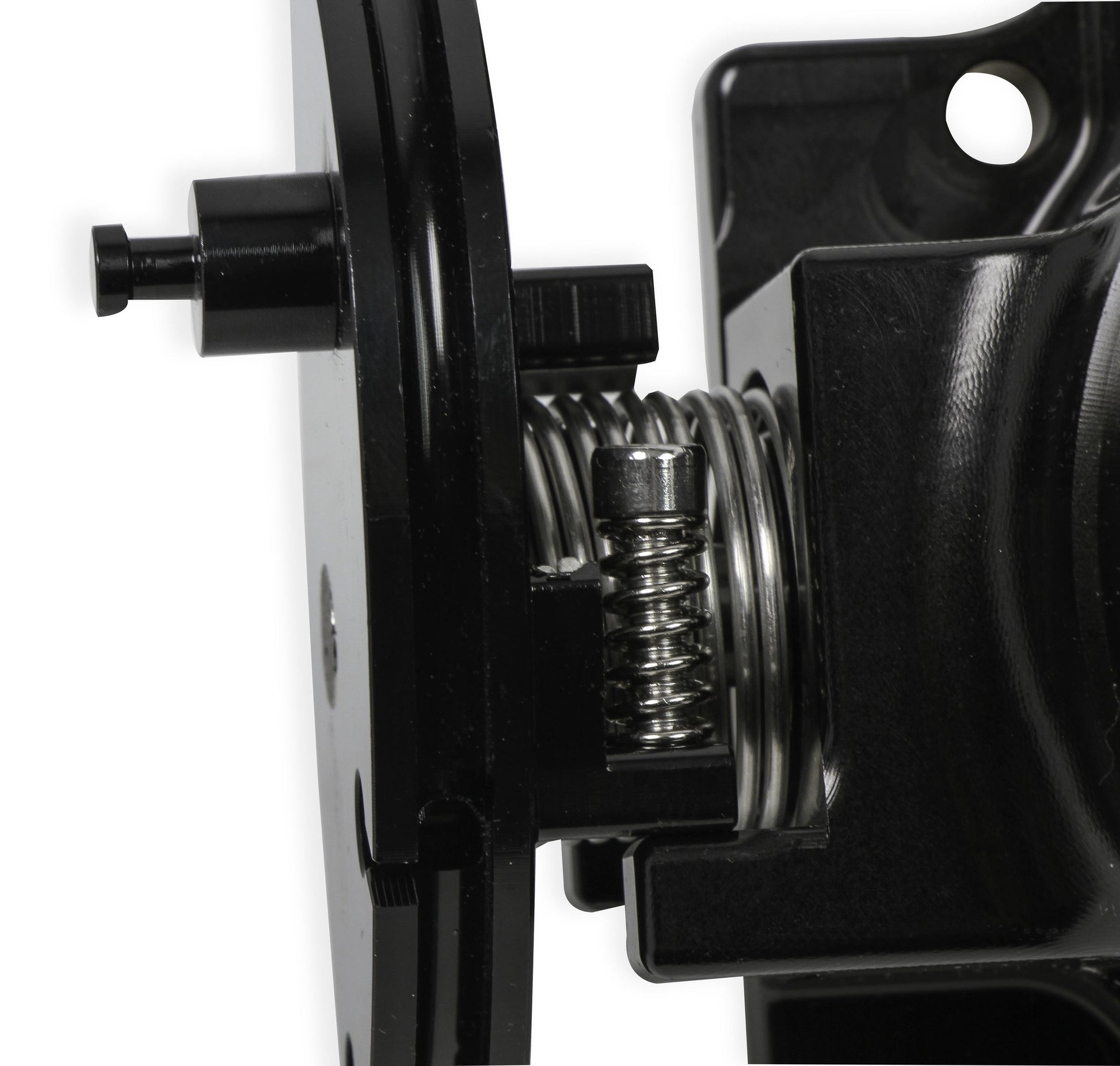

- Progressive throttle pulley and double return spring
- Mounting bolts included
- Enlarged bore allows increased airflow to support higher horsepower requirements
- Designed for us when installing an OEM throttle body for motor housing clearance or can be used as spacer on Sniper EFI intakes for increased horsepower and throttle response
Billet Color: Silver
Brand: Holley Sniper EFI
Category: Sniper EFI Intakes
Emission Code: 8
Fuel Injectors Included: No
Gasket Or Seal Included: No
IAC hardware specs: (2) 8-32 UNC
Idle Air Control Motor Included: No
Material: Billet Aluminum
Mounting Hardware Included: Yes
Product Type: Throttle Body
Throttle Bore: 90mm
Throttle Diameter (mm): 90mm
TPS hardware specs: (2) M4 x 0.7
Transmission: N/A
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
